New Holland Crawler Excavators E80BMSR Tier 3 Service Repair Manual (84365680B) – NH E80BMSR – PDF Download

Description

New Holland Crawler Excavators E80BMSR Tier 3 Service Repair Manual (84365680B) – NH E80BMSR

File Details:

New Holland Crawler Excavators E80BMSR Tier 3 Service Manual_84365680B
Size: 43.4 MB
Format: PDF
Language: English
Number of Pages: 948 pages
Brand: New Holland
Type of document: Service Manual
Model: E80BMSR Tier 3
Part No: 84365680B

Description:

New Holland Crawler Excavators E80BMSR Tier 3 Service Repair Manual (84365680B) – NH E80BMSR

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
• Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ;
  SPECIFICATIONS.
  The following is a list of basic precautions that must always be observed.
• (1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
• (2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
• (3) Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
• (4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
• (5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly

Table Of Contents:

New Holland Crawler Excavators E80BMSR Tier 3 Service Repair Manual (84365680B) – NH E80BMSR

• OUTLINE
• SP ECIFICATIONS
• ATTACHMENT DIMENSIONS
• TOOLS
• STANDARD MAINTENANCE TIME TABLE
• MAINTENANCE STANDARDS AND TEST PROCEDURES
• MECHATRO CONTROL SYSTEM
• HYDRAULIC SYSTEM
• ELECTRICAL SYSTEM
• COMPONENTS SYSTEM
• AlR-CONDITIONER SYSTEM
• DISASSEMBLING & ASSEMBLING
• ATTACHMENTS
• UPPER SWING BODY
• TRAVEL SYSTEM
• BY ERROR CODE
• BY TROUBLE
• ENGINE

NEW HOLLAND CRAWLER EXCAVATORS E80BMSR TIER 3 SERVICE REPAIR MANUAL (84365680B) – NH E80BMSR – PDF DOWNLOAD:

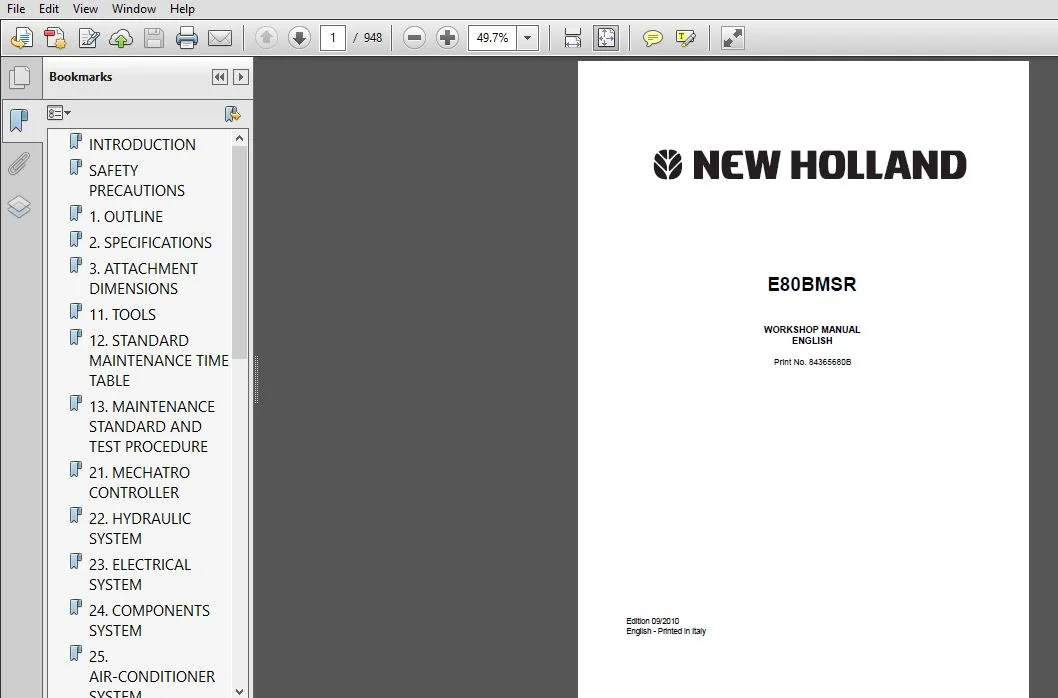

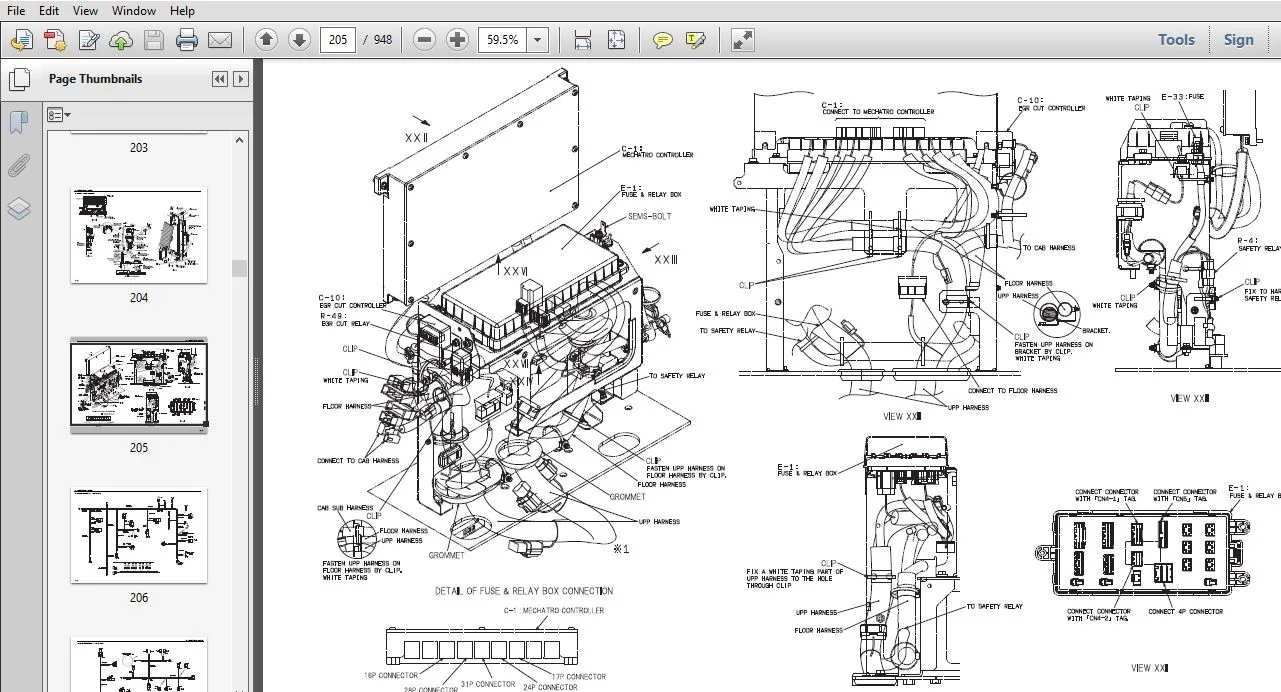

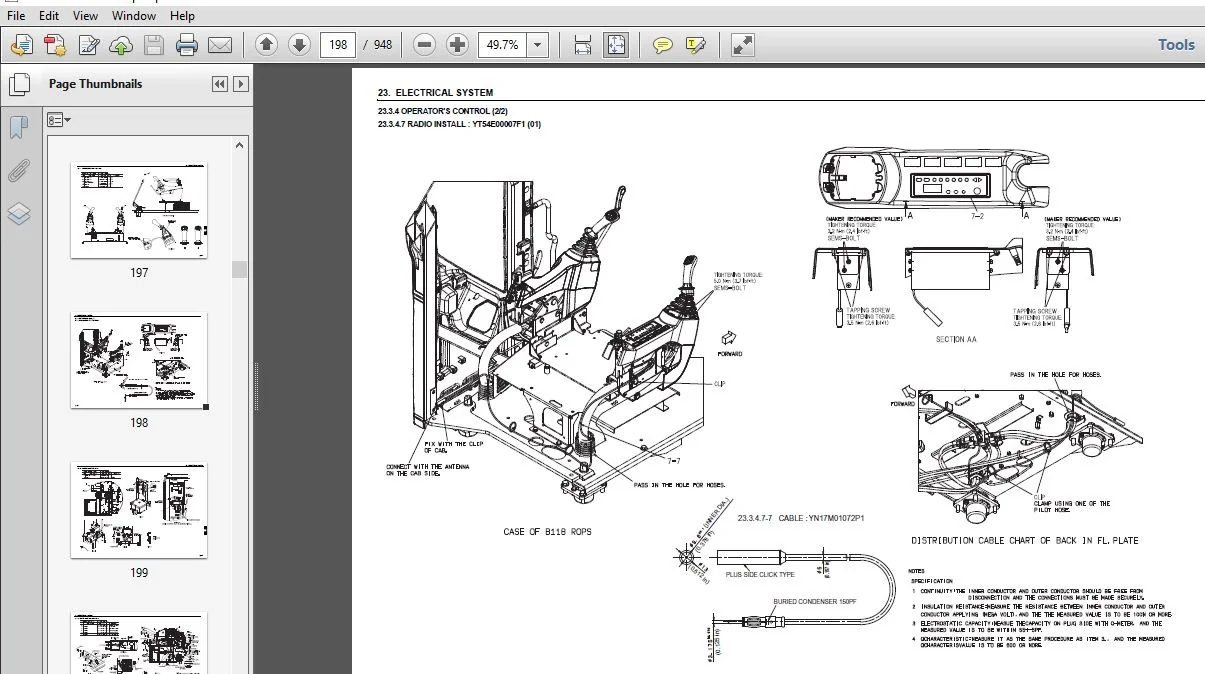

Image Preview:

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
