Description

New Holland Crawler Tractor TK76 TK85 TK85M Service Repair Manual (86637916) – NH TK76 TK85 TK85M

File Details:

New Holland Crawler Tractor TK76, TK85, TK85M Repair Manual_86637916
Size: 58.9 MB
Format: PDF
Language: English
Number of Pages: 591 pages
Brand: New Holland
Type of machine: Tractor
Type of document: Repair Manual
Model: TK76, TK85, TK85M
Part No: 86637916

NEW HOLLAND CRAWLER TRACTOR TK76 TK85 TK85M SERVICE REPAIR MANUAL (86637916) – NH TK76 TK85 TK85M – PDF DOWNLOAD:

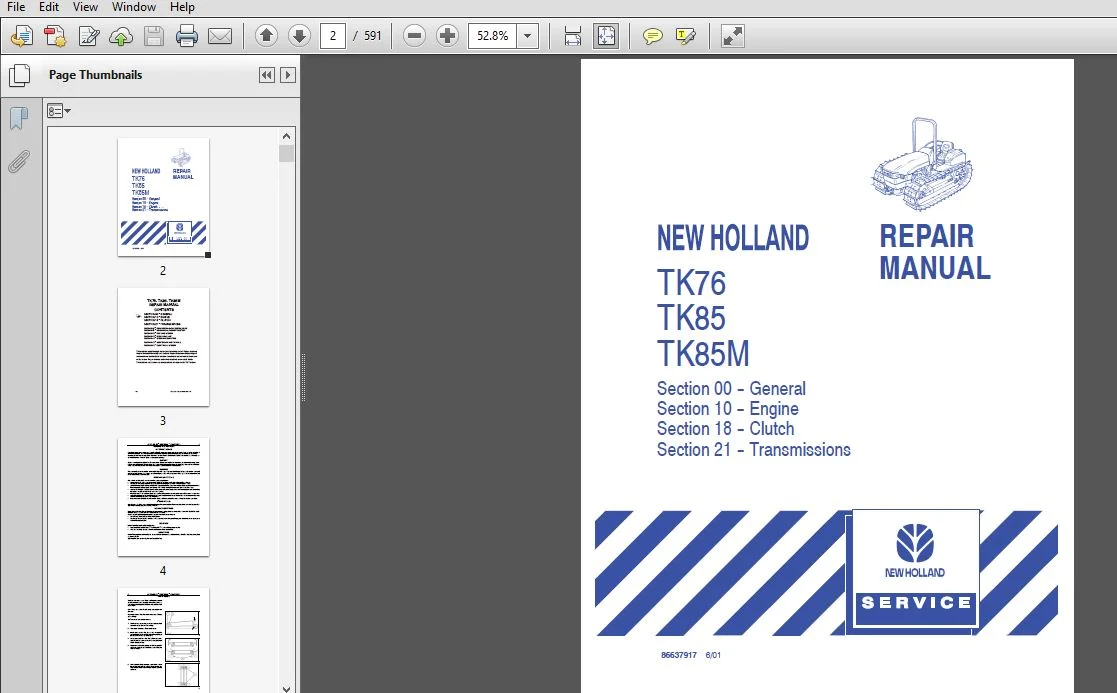

Image Preview:

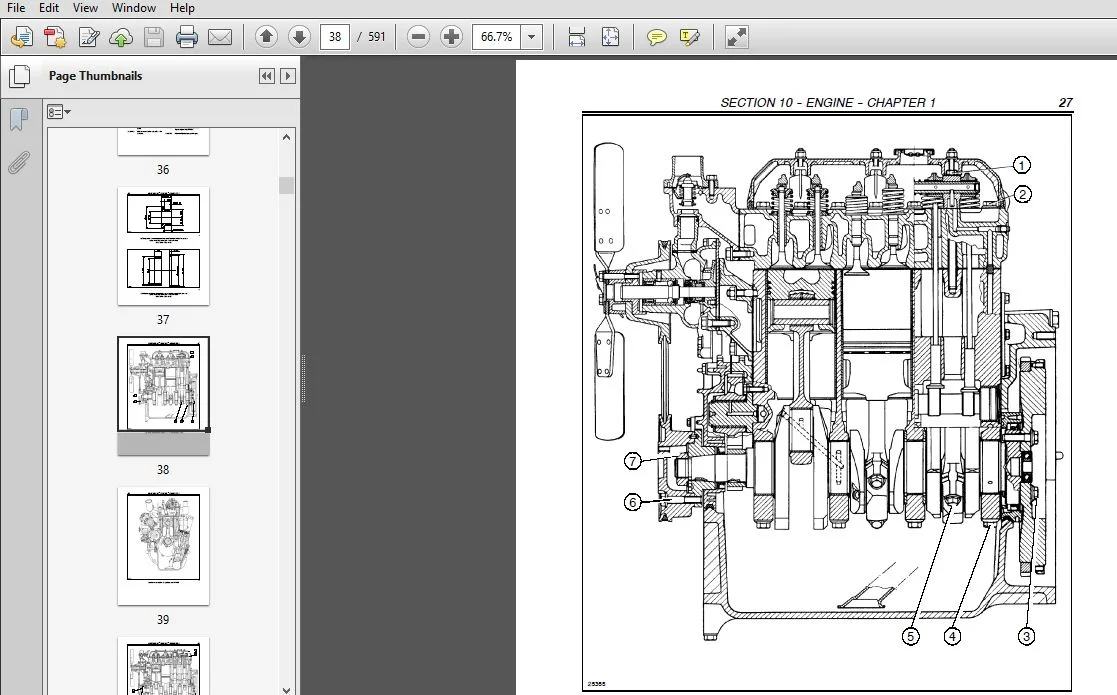

Sample Page From The Manual:

New Holland Crawler Tractor TK76 TK85 TK85M Service Repair Manual (86637916) – NH TK76 TK85 TK85M

— Carefully follow specified repair and maintenance procedures.
— Do not wear rings, wristwatches, jewellery, unbuttoned or loose articles of clothing such as: ties, torn clothing, scarves, open jackets or shirts with open zips that may remain entangled in moving parts. It is advised to wear approved safety clothing, e.g.: non–slip footwear, gloves, safety goggles, helmets, etc.
— Do not carry out repair operations with someone sitting in the driver’s seat, unless the person is a trained technician who is assisting with the operation in question.
— Do not operate the vehicle or use any of the implements from different positions, other than the driver’s seat.
— Do not carry out operations on the vehiclewith the engine running, unless specifically indicated.
— Stop the engine and check that the hydraulic circuits are pressure–free before removing caps, covers, valves, etc.
— All repair and maintenance operations must be carried out using extreme care and attention.
— Service steps and platforms used in the workshop or elsewhere should be built according to standard accident prevention regulations.
— Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Any parts that are to be raised must be locked in position.
— Do not check or fill fuel tanks, accumulator batteries, nor use starting liquid when smoking or near naked flames, as these fluids are inflammable.
— Brakes are inoperative when manually released for repair or maintenance purposes. Use blocks  or similar devices to control the machine in these conditions.
— The fuel nozzle should always be in contact with the filling aperture. Maintain this position until filling operations are completed in order to avoid possible sparks caused by the accumulation of static electricity

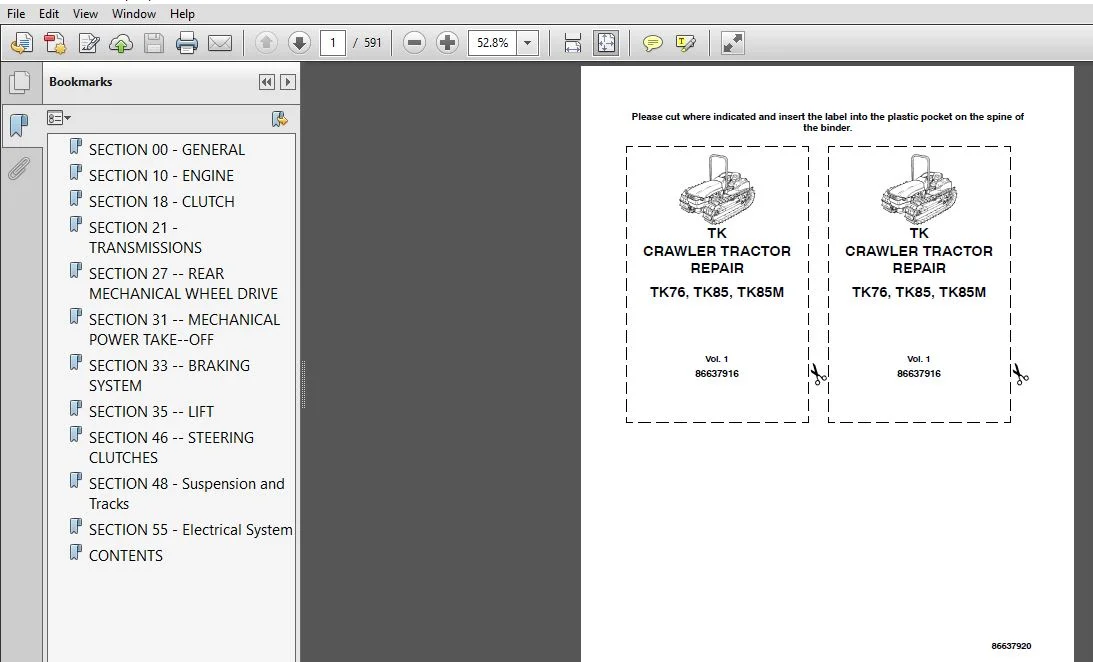

Table Of Contents:

New Holland Crawler Tractor TK76 TK85 TK85M Service Repair Manual (86637916) – NH TK76 TK85 TK85M

SECTION 00 - GENERAL.........................  4
SECTION 10 - ENGINE.......................... 12
SECTION 18 - CLUTCH..........................130
SECTION 21 - TRANSMISSIONS...................158
SECTION 27 -- REAR MECHANICAL WHEEL DRIVE....196
SECTION 31 -- MECHANICAL POWER TAKE--OFF.....262
SECTION 33 -- BRAKING SYSTEM.................276
SECTION 35 -- LIFT...........................298
SECTION 46 -- STEERING CLUTCHES..............356
SECTION 48 - Suspension and Tracks ..........386
SECTION 55 - Electrical System ..............432
CONTENTS.....................................188
