New Holland CV1100 CV1500 Compactor Service Manual

FILE DETAILS:

New Holland CV1100 CV1500 Compactor Service Manual

Size: 49.8 MB
Fomat: PDF
Language: English
Brand: NEW HOLLAND
Type of document: SERVICE Manual
Model: CV1100 – CV1500
Part No: 6045613100
Number of page: 248 pages

DESCRIPTION:

New Holland CV1100 CV1500 Compactor Service Manual

SAMPLE PAGE FROM THE  MANUAL:

• We at New Holland and your New Holland dealer want you to be completely satisfied with your investment. Normally any problems with your equipment will be handled by your dealer‘s Service Depanment. Sometimes. however. misunderstandings can occur. lt‘your problem has not been handled to your satisfaction. we suggest the following.
• Contact the owner orGeneraI Managcroi‘ the dealership, explain the problem,and rcquestassistance. When additional assistance is needed. yourdcaler has direct access to ourol‘l‘rce.
• If you cannot obtain satisfaction by doingthisxontacttheNew Holland Cortstmetionoffice and provide them with: – Your name. address. and telephone number – Machine model and serial number – Dealership name and address – Machine purchase date and amount of use – Nature of problem When contacting New l-lolland.beaware thatvourproblem will likelyberesolved in the dealership using thedealcr’s facilities. cquipmcnt,and personnel.
• So it isimportant thatyouriniliai contact bcwith the dealer. The warranty coverage that is extended to your machine is explained in the Warranty and Limitation of Liability form.
• Yourdealcr will provide you with a copy of the warranty and retain a copy which you have signed. After you read the warranty. ask yourdealcr to explain any points that you may not understand. The machine was designed to power and propel itself. It is intended to move material in the normal and customary applications. Do not modify oraiter or pcnnit anyone else to modify or alter this machine or any ol’its components mechanical function with first consulting an authorized New
• I lolland Construction dealer. If you have arty guestions regarding machine modifications. contact New I lollund Construction. 245 E. North Ave, Carol . tream, IL 60188. Your safety and the safety of those around you depend upon the care and goodjudgment you use while operating this equipment. Read the safety precautions carefully. Aftcryou have operated the machine for 50 hours, take your machine and this manual to your selling dealer.
• He will perfomr the factory recommended 50-hour service. You will be responsible for the cost oflubri- cams. fluids. filters and other items replaced as part of normal maintenance. Prior to taking the machine to your selling dealer for service, it is recommended that you contact them to detcmrinc any other charges for which you may be responsible. All data given in this book is subject to product variations.
• Dimensionsand weights are approximate only and the illostratiom do not ricerssan‘ly show machines in standard condition. For exact infonnation about any particular machine, please consult your New Holland Construction dealer:

NEW HOLLAND CV1100 CV1500 COMPACTOR SERVICE MANUAL 6045613100 – PDF DOWNLOAD:

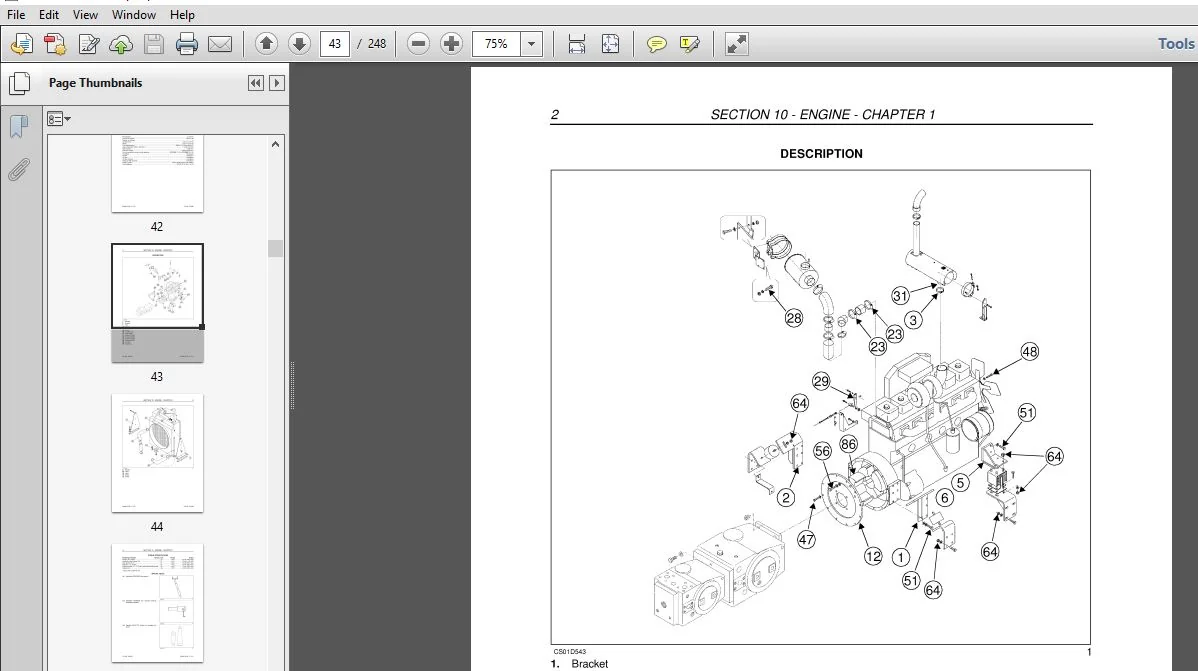

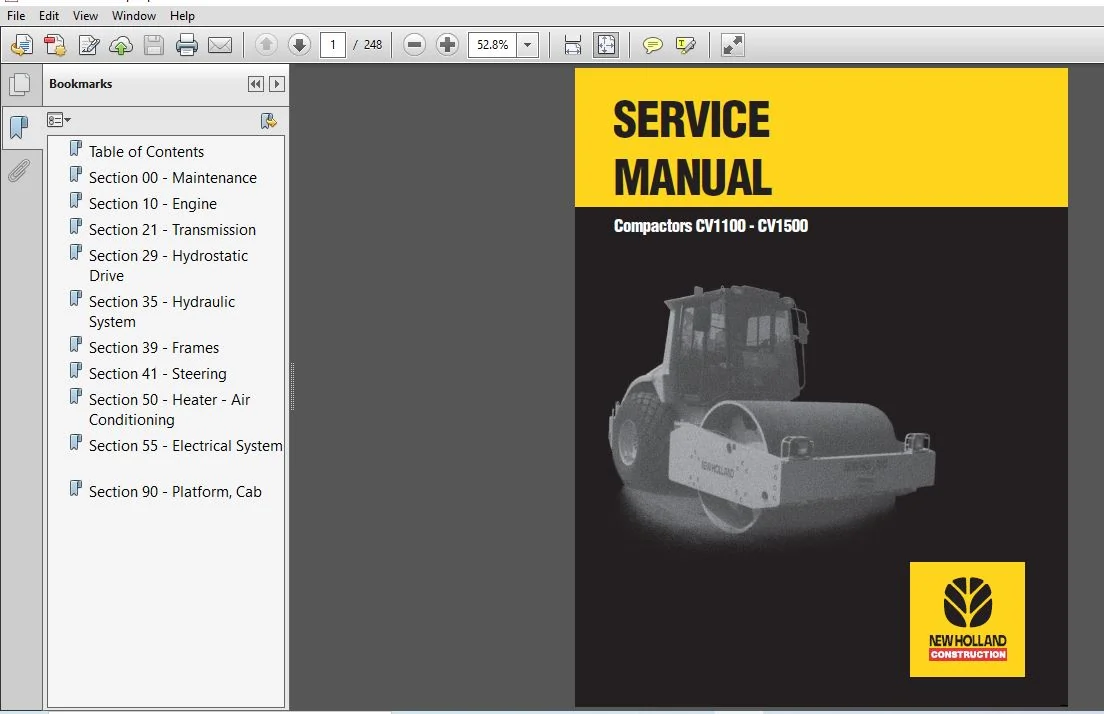

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland CV1100 CV1500 Compactor Service Manual

Table of Contents 8
Section 00 – Maintenance 14
Section 10 – Engine 42
Section 21 – Transmission 56
Section 29 – Hydrostatic Drive 84
Section 35 – Hydraulic System 92
Section 39 – Frames 167
Section 41 – Steering 201
Section 50 – Heater – Air Conditioning 223
Section 55 – Electrical System 229
Section 90 – Platform, Cab 240
