New Holland D150 CRAWLER DOZER SERVICE MANUAL 60413517 – PDF DOWNLOAD

Description

New Holland D150 CRAWLER DOZER SERVICE MANUAL

FILE DETAILS:

New Holland D150 CRAWLER DOZER SERVICE MANUAL

Size: 27.9 MB
Fomat: PDF
Language: English
Brand: New Holland
Type of machine: CRAWLER DOZER
Type of document: Service Manual

DESCRIPTION:

New Holland D150 CRAWLER DOZER SERVICE MANUAL

SAMPLE PAGE FROM THE MANUAL:

• Do not allow unauthorised personnel to operate service or maintain this machine. Do not wear rings, wrist watches, jewellery, loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as recommended for the job. Examples: hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator.
• Consult your employer for specific safety equipment requirements. Keep operator’s compartment, stepping points, grabrails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimise the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine. Do not jump on or off the machine.
• Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Also, controls may be inadvertently moved causing accidental machine or equipment movement. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times, to reduce exposure to hazards outside the operator’s compartment. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. Do not leave the machine until it is completely stopped. Check the seat safety belt at least twice a year.
• If there are signs of wear or fraying or other signs of weakness that could lead to failure, replace it. . Before operating a machine, always ensure that any unsafe condition has been satisfactorily remedied. Check brakes, steering and attachment controls before moving.
• Advise the proper maintenance authority of anymalfunctioning part or system. Be sure all protective guards or panels are in place, and all safety devices provided are in place and in good operating conditions. Be sure exposed personnel in the area of operation are clear of the machine before moving it or its attachments.  the machine before mounting. Sound horn. Before starting machine, check, adjust and lock the operator’s seat for maximum comfort and control of the machine.
• Fasten your seat belt (when provided). Obey all flag signals and signs. Due to the presence on the machine of flammable fluids, never check or fill fuel reservoirs or batteries near open flames, smoking materials or sparks.  Follow strictly the recommendations printed on containers and in the Operation and Maintenance Manual. Containers must be stored in fresh, well ventilated places, out of reach of unauthorised persons.
• Follow strictly the instructions provided by the Manufacturer. Never use these products near open flames, smoking materials or sparks.  Do not run the engine of this machine in closed areas without proper ventilation to remove deadly exhaust gases. Roll Over Protective Structures are required on loaders, dozers, graders, excavators.
• machines without ROPS. Make sure the Operator’s compartment is free of foreign objects, especially if not firmly secured. Never use the machine to transport objects, unless proper securing points are provided.
• Check monitoring instruments at start up and frequently during operations. in case the brake pressure gauge shows a pressure lower than the minimum operating pressure, stop immediately the machine .
• Study and familiarise with escape routes alternate to normal exit routes. Seat belts are required by current regulations to be provided with Roll Over Protection Structures or cabs. Keep safety belts fastened around you during operation. For your personal protection, do not climb on or off machine while machine is in motion. Make sure that exposed persons in the area of operation are clear of the machine, before starting the engine and operating the equipment. Sound horn. Obey all indications provided by flags and signals.  the machine down grades and slopes with the transmission in neutral or neutralised.
• Choose and shift into the most appropriate gear to keep the speed required, thus preventing any loss of control. Do not operate machinery in a condition of extreme fatigue or illness. Be especially careful towards the end of working shift. Do not operate machine with brakes out of adjustment. Operate the machine at speeds slow enough to ensure complete control at all times. Travel slowly over rough terrain, on slopes or near drop offs, in congested areas or on ice or slippery surfaces. When backing, always look to where the machine is to be moved. Be alert to the position of exposed personnel.
• if exposed personnel enter the immediate work area.  Maintain a safe distance from other machines. Provide sufficient clearance for ground and visibility conditions. Yield right of way to loaded machines. Maintain clear vision of areas of travel or work. Keep cab windows clean and repaired.
• When machines are operating in tandem, the pusher (rear) must be equipped with the appropriate deflectors to protect the unit in front from the air stream coming from the radiator. When pulling or towing through a cable or chain, do not start suddenly at full throttle; take up slack carefully. Inspect carefully for flaws or troubles before using.

NEW HOLLAND D150 CRAWLER DOZER SERVICE MANUAL 60413517 – PDF DOWNLOAD:

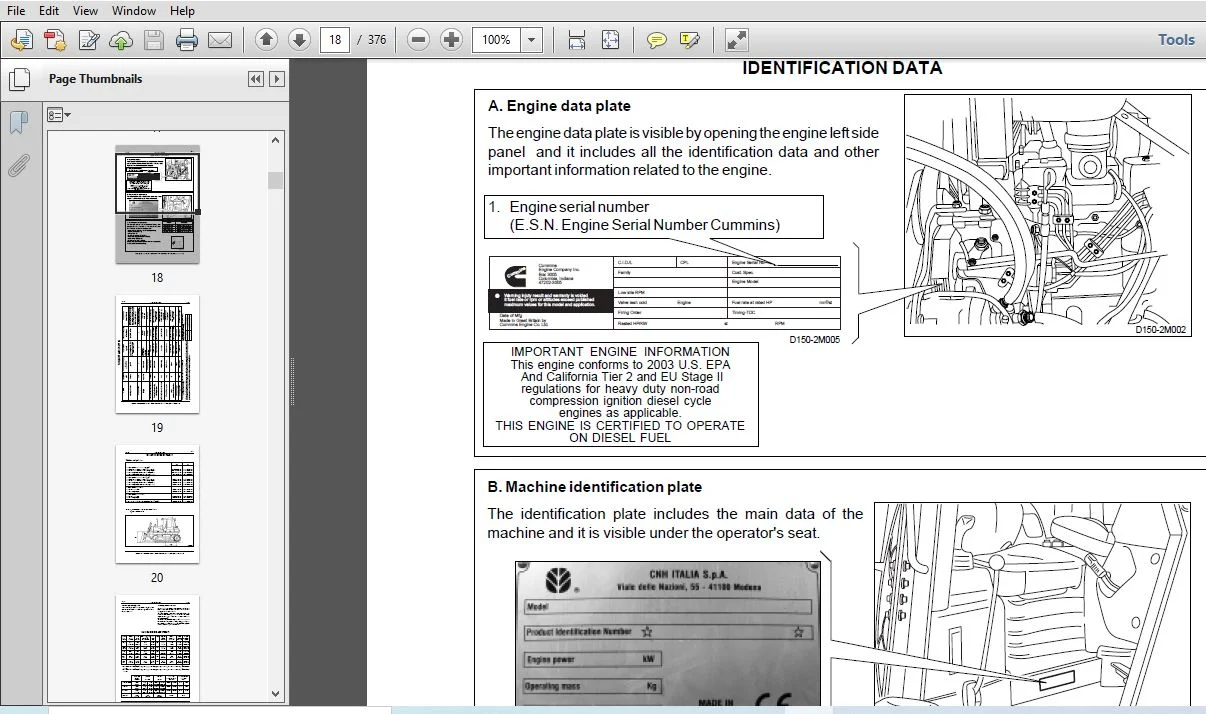

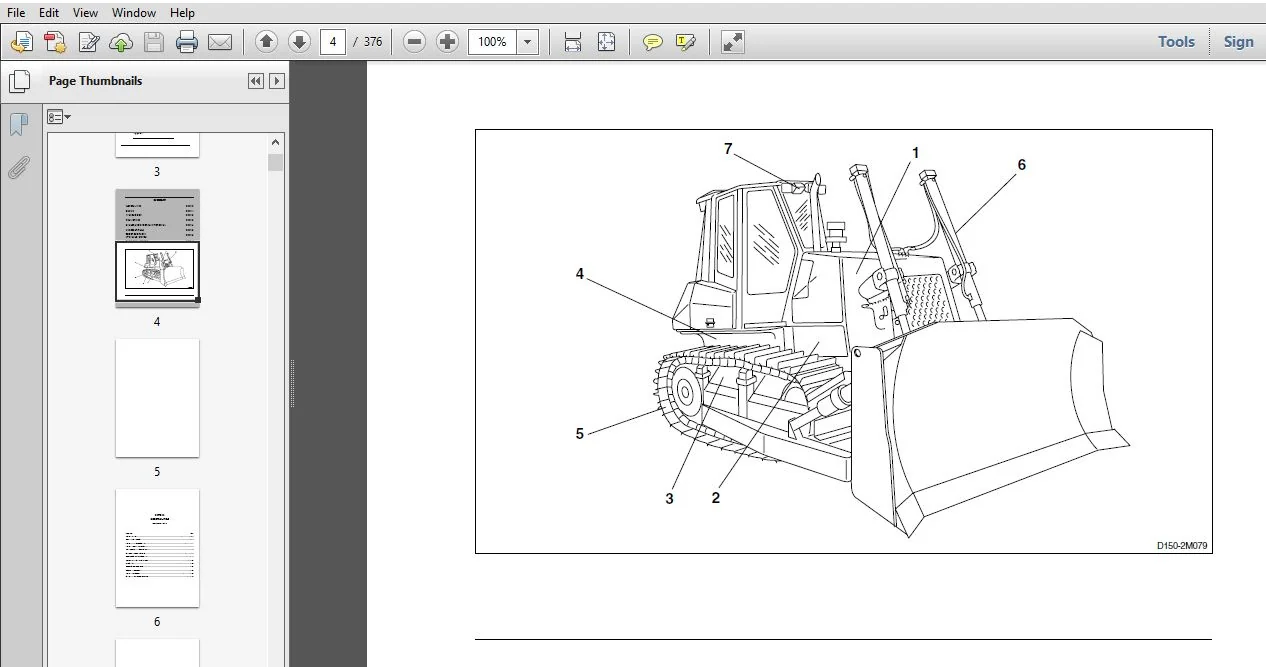

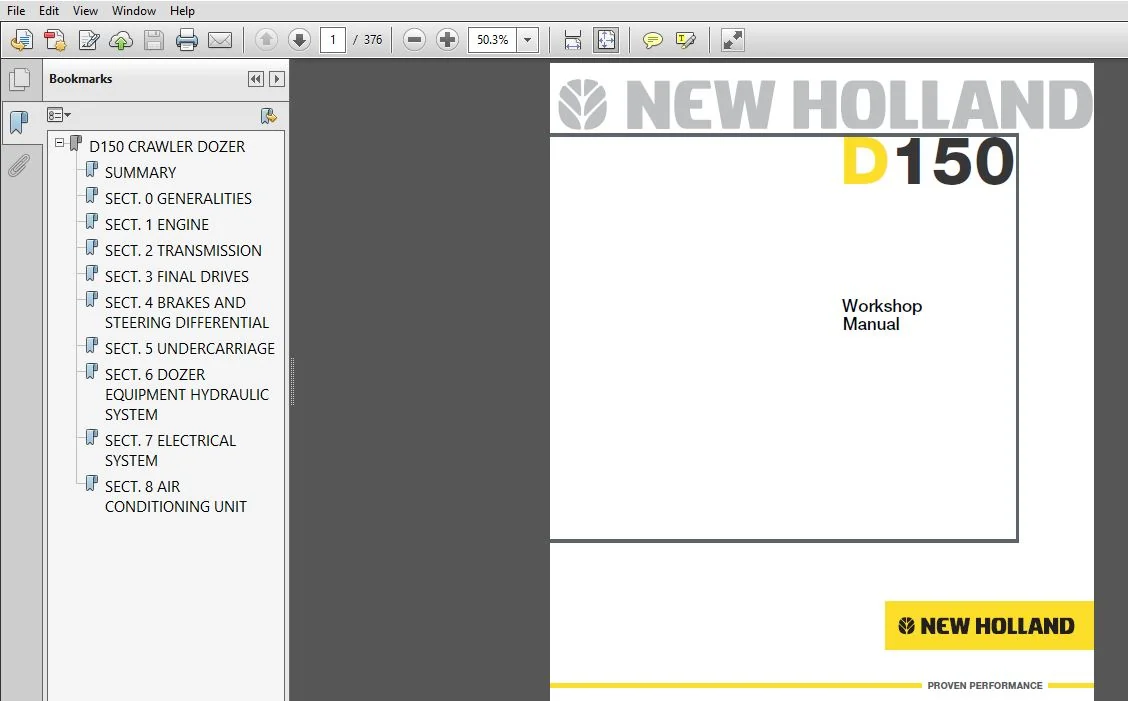

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland D150 CRAWLER DOZER SERVICE MANUAL

D150 CRAWLER DOZER 1
SUMMARY 4
SECT 0 GENERALITIES 6
SECT 1 ENGINE 50
SECT 2 TRANSMISSION 62
SECT 3 FINAL DRIVES 132
SECT 4 BRAKES AND STEERING DIFFERENTIAL 156
SECT 5 UNDERCARRIAGE 258
SECT 6 DOZER EQUIPMENT HYDRAULIC SYSTEM 292
SECT 7 ELECTRICAL SYSTEM 322
SECT 8 AIR CONDITIONING UNIT 351
