New Holland D180 Tier 2 CRAWLER DOZER Workshop manual 6040239001 – PDF DOWNLOAD

Description

New Holland D180 Tier 2 CRAWLER DOZER Workshop manual

FILE DETAILS:

New Holland D180 Tier 2 CRAWLER DOZER Workshop manual

Size: 22 MB
Format: PDF
Language: English
Number of Pages: 404 pages
Brand: New Holland

DESCRIPTION:

New Holland D180 Tier 2 CRAWLER DOZER Workshop manual

SAMPLE PAGE FROM THE MANUAL:

• Do not allow unauthorised personnel to operate service or maintain this machine. Do not wear rings, wrist watches, jewellery, loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as recommended for the job.
• Examples: hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety equipment requirements. Keep operator’s compartment, stepping points, grabrails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimise the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine. Do not jump on or off the machine.
• Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Also, controls may be inadvertently moved causing accidental machine or equipment movement.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times, to reduce exposure to hazards outside the operator’s compartment. Be careful of slippery conditions on stepping points, hand rails, and on the ground.
• Wear safety boots or shoes that have a high slip resistant sole material. Do not leave the machine until it is completely stopped. Check the seat safety belt at least twice a year. If there are signs of wear or fraying or other signs of weakness that could lead to failure, replace it. STARTING NEVER START NOR OPERATE AN UNSAFE MACHINE.Before operating a machine, always ensure that any unsafe condition has been satisfactorily remedied. Check brakes, steering and attachment controls before moving.
• Advise the proper maintenance authority of any malfunctioning part or system. Be sure all protective guards or panels are in place, and all safety devices provided are in place and in good operating conditions. Be sure exposed personnel in the area of operation are clear of the machine before moving it or its attachments.
• WALK COMPLETELY AROUND the machine before mounting. Sound horn. Before starting machine, check, adjust and lock the operator’s seat for maximum comfort and control of the machine. Fasten your seat belt (when provided). Obey all flag signals and signs. Due to the presence on the machine of flammable fluids, never check or fill fuel reservoirs or batteries near open flames, smoking materials or sparks. REMEMBER THAT STARTING FLUID IS FLAMMABLE.
• Follow strictly the recommendations printed on containers and in the Operation and Maintenance Manual. DO NOT PUNCTURE OR BURN CONTAINERS. Containers must be stored in fresh, well ventilated places, out of reach of unauthorised persons.
• Follow strictly the instructions provided by the Manufacturer. Never use these products near open flames, smoking materials or sparks. OPERATION Do not run the engine of this machine in closed areas without proper ventilation to remove deadly exhaust gases. Roll Over Protective Structures are required on loaders, dozers, graders, excavators.

NEW HOLLAND D180 TIER 2 CRAWLER DOZER WORKSHOP MANUAL 6040239001 – PDF DOWNLOAD:

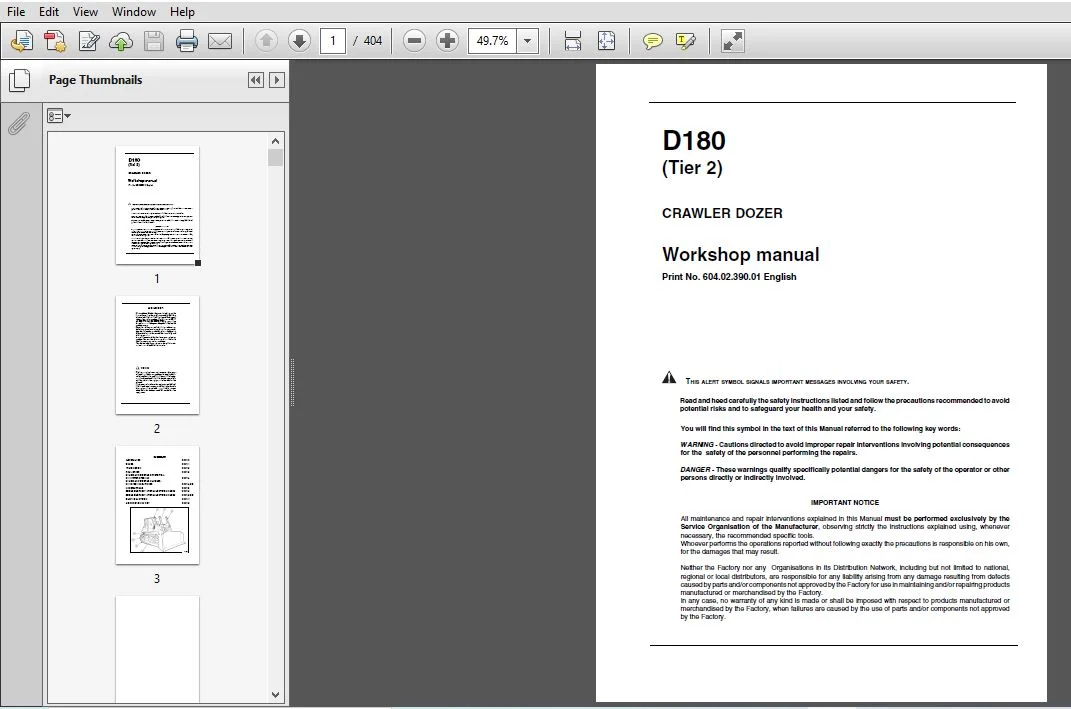

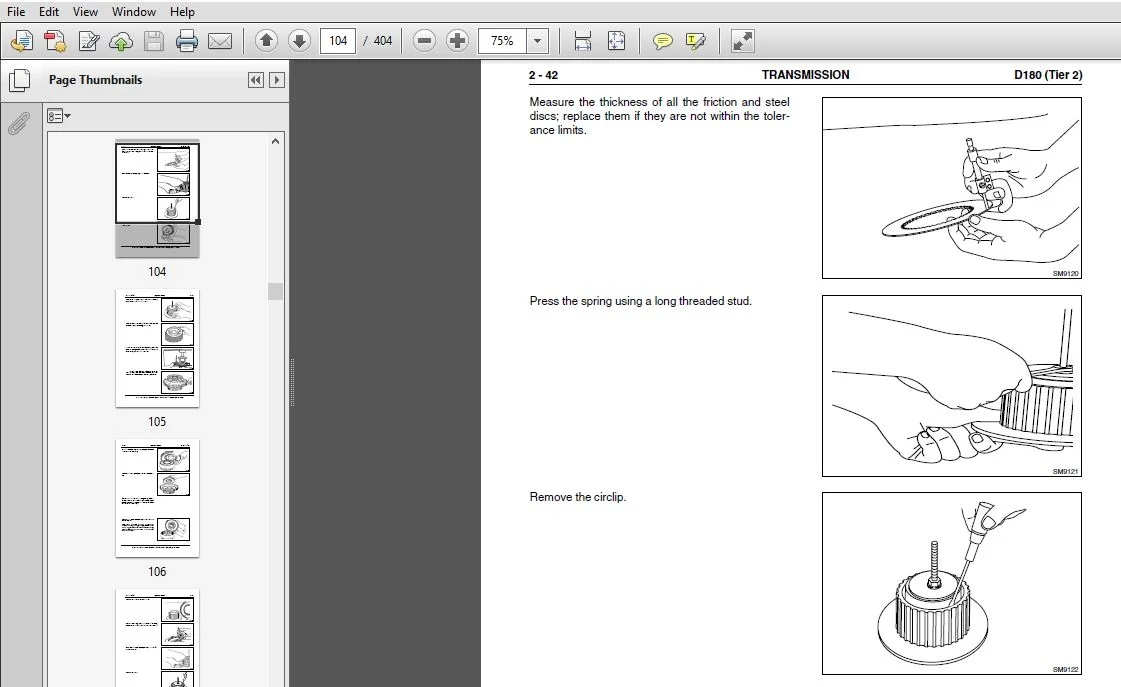

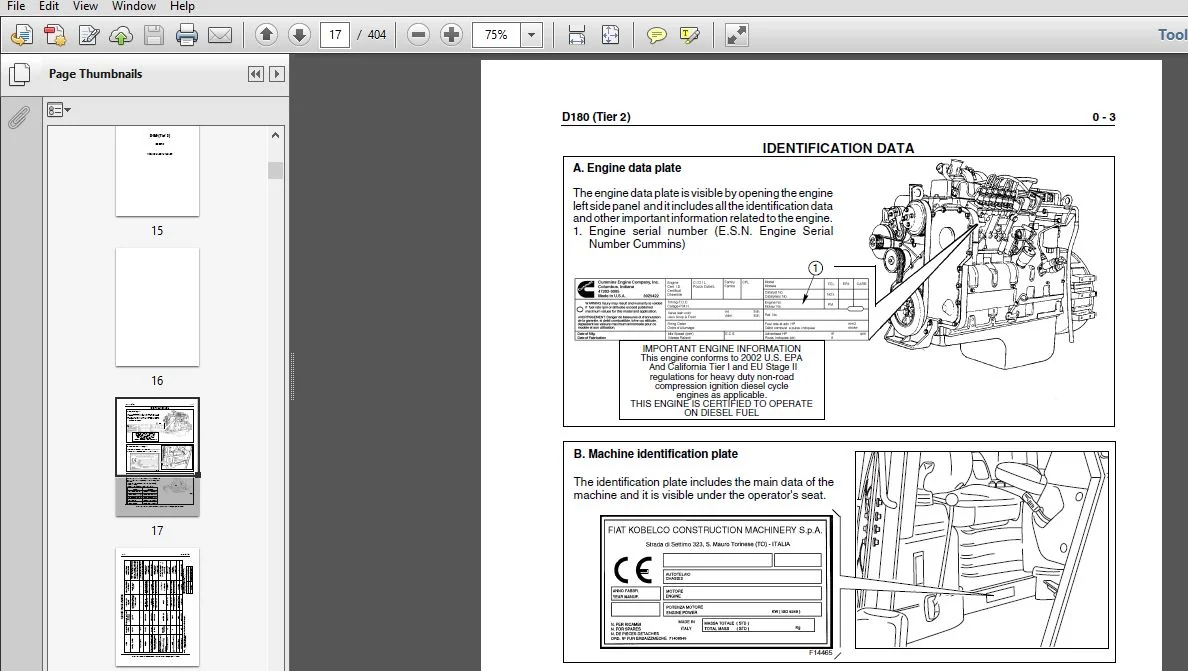

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland D180 Tier 2 CRAWLER DOZER Workshop manual

GENERALITIES
ENGINE
TRANSMISSION
FINAL DRIVES
BRAKES AND STEERING DIFFERENTIAL –
D180 POWER STEERING
BRAKES AND STEERING CLUTCHES –
D180 STEERING CLUTCHES
UNDERCARRIAGE
DOZING EQUIPMENT – HYDRAULIC SYSTEM D180 PS
DOZING EQUIPMENT – HYDRAULIC SYSTEM D180 SC
ELECTRICAL SYSTEM
AIR CONDITIONING UNIT

 PLEASE NOTE:

This is the SAME exact manual used by your dealers to fix your vehicle.
The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
Any queries / doubts regarding your purchase, please feel free to contact [email protected]
