NEW HOLLAND Dozer Crawlers DC150 Includes LGP SERVICE MANUAL 60402262 – PDF DOWNLOAD

Description

NEW HOLLAND Dozer Crawlers DC150 Includes LGP SERVICE MANUAL

FILE DETAILS:

NEW HOLLAND Dozer Crawlers DC150 Includes LGP SERVICE MANUAL

DESCRIPTION:

NEW HOLLAND Dozer Crawlers DC150 Includes LGP SERVICE MANUAL

SAMPLE PAGE FROM THE MANUAL:

• The warranty coverage that is extended to your machine is explained in the Warranty and Limitation of Liability form. Your dealer will provide you with a copy of the warranty and retain a copy which you have signed.
• After you read the warranty, ask your dealer to explain any points that you may not understand. The machine was designed to power and propel itself. It is intended to move material in the normal and customary applications.
• Do not modify or alter or permit anyone else to modify or alter this machine or any of its components mechanical function with first consulting an authorized New Holland Construction dealer.
• If you have any questions regarding machine modifications, contact New Holland Construction, 245 E. North Ave., Carol Stream, IL 60188. Your safety and the safety of those around you depend upon the care and good judgment you use while operating this equipment.
• Read the safety precautions carefully. After you have operated the machine for 50 hours, take your machine and this manual to your selling dealer. He will perform the factory recommended 50-hour service.
• You will be responsible for the cost of lubricants, fluids, filters and other items replaced as part of normal maintenance. Prior to taking the machine to your selling dealer for service, it is recommended that you contact them to determine any other charges for which you may be responsible.
• All data given in this book is subject to product variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condition. For exact information about any particular machine, please consult your New Holland Construction dealer.
• Do not allow unauthorized personnel to operate service or maintain this machine.  Do not wear rings, wrist watches, jewelery, loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
• Wear proper safety equipment as recommended for the job. Examples: hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety equipment requirements. – Keep operator’s compartment, stepping points, grabrails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. – Do not jump on or off the machine. Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Also, controls may be inadvertently moved causing accidental machine or equipment movement.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. – Keep head, body, limbs, hands and feet inside operator’s compartment at all times, to reduce exposure to hazards outside the operator’s compartment.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• Do not leave the machine until it is completely stopped. – Check the seat safety belt at least twice a year. If there are signs of wear or fraying or other signs of weakness that could lead to failure, replace it.

NEW HOLLAND DOZER CRAWLERS DC150 INCLUDES LGP SERVICE MANUAL 60402262 – PDF DOWNLOAD:

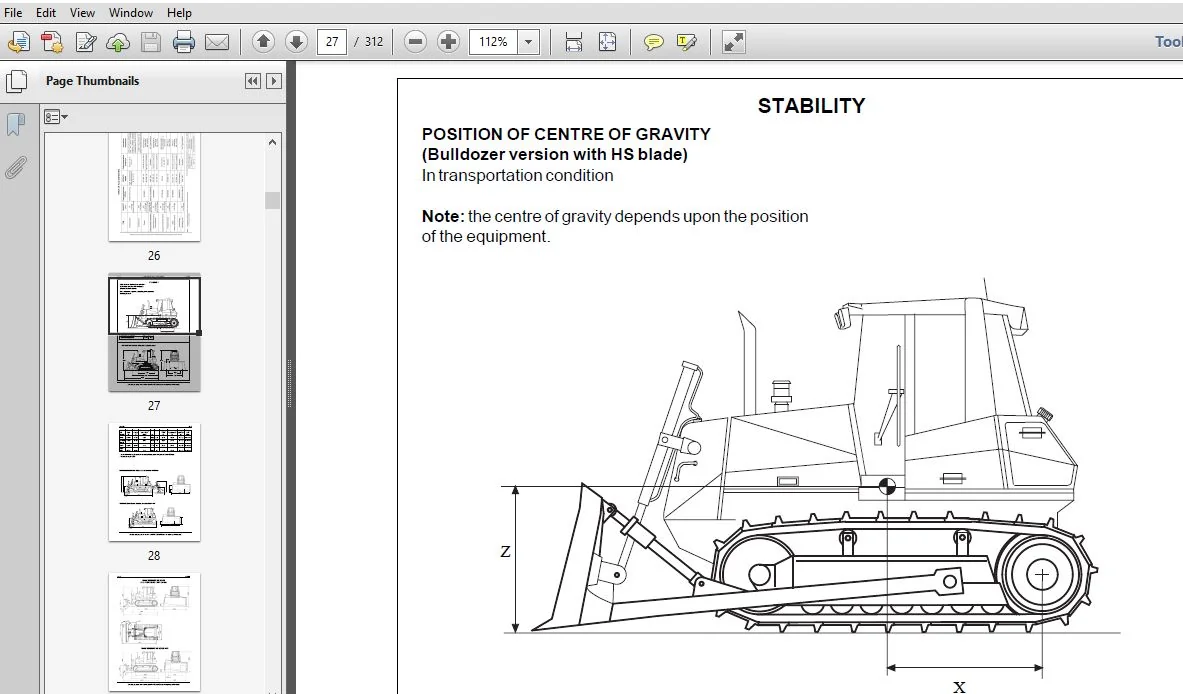

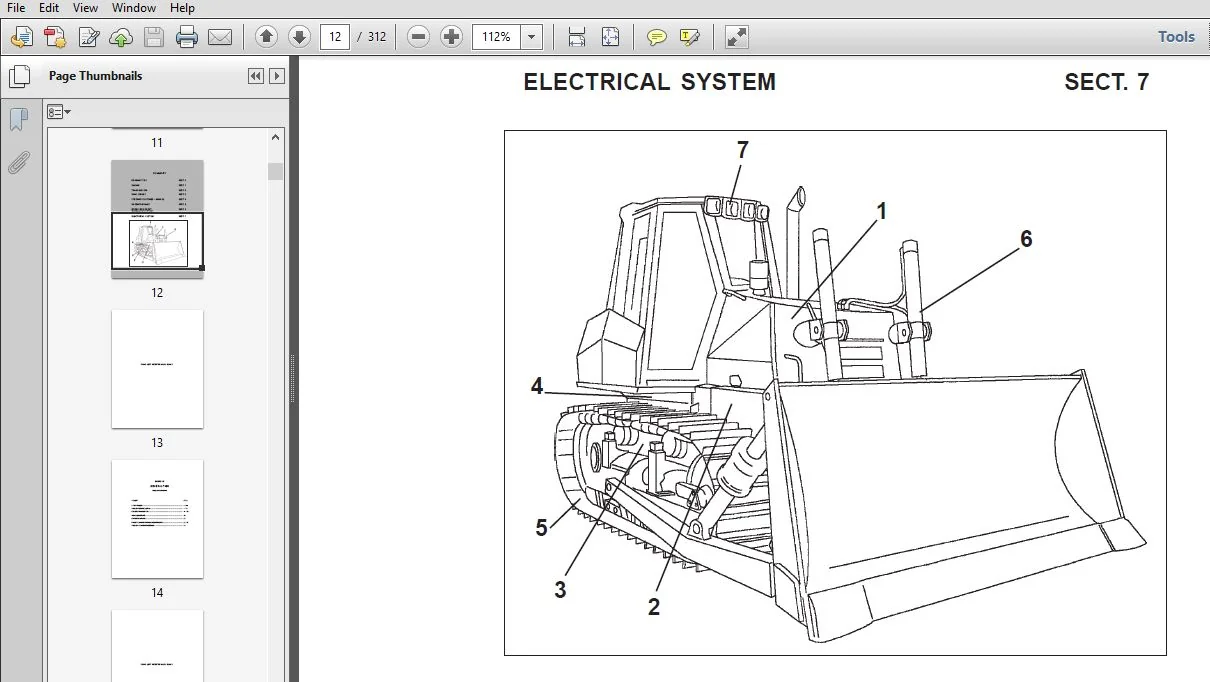

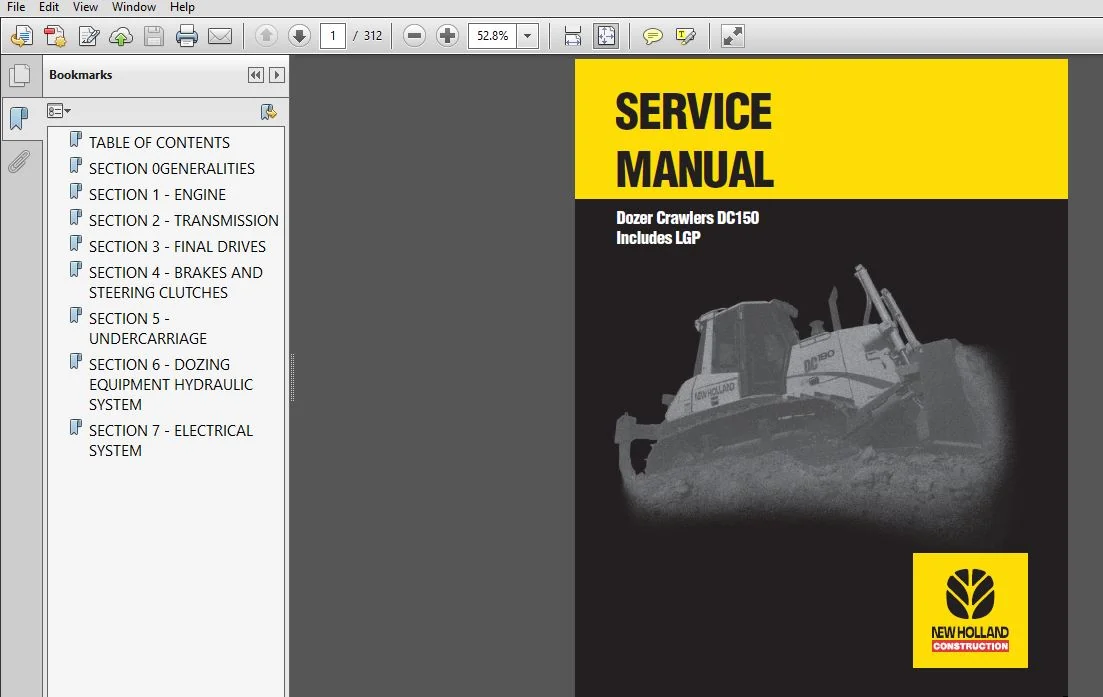

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

NEW HOLLAND Dozer Crawlers DC150 Includes LGP SERVICE MANUAL

TABLE OF CONTENTS 12
SECTION 0GENERALITIES 14
SECTION 1 – ENGINE 48
SECTION 2 – TRANSMISSION 60
SECTION 3 – FINAL DRIVES 130
SECTION 4 – BRAKES AND STEERING CLUTCHES 154
SECTION 5 – UNDERCARRIAGE 222
SECTION 6 – DOZING EQUIPMENT HYDRAULIC SYSTEM 254
SECTION 7 – ELECTRICAL SYSTEM 289

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
