New Holland E115SR Excavators Operation and Maintenance Instruction Manual 604.21.538.00 – PDF DOWNLOAD

Description

New Holland E115SR Excavators Operation and Maintenance Instruction Manual 604.21.538.00 – PDF DOWNLOAD

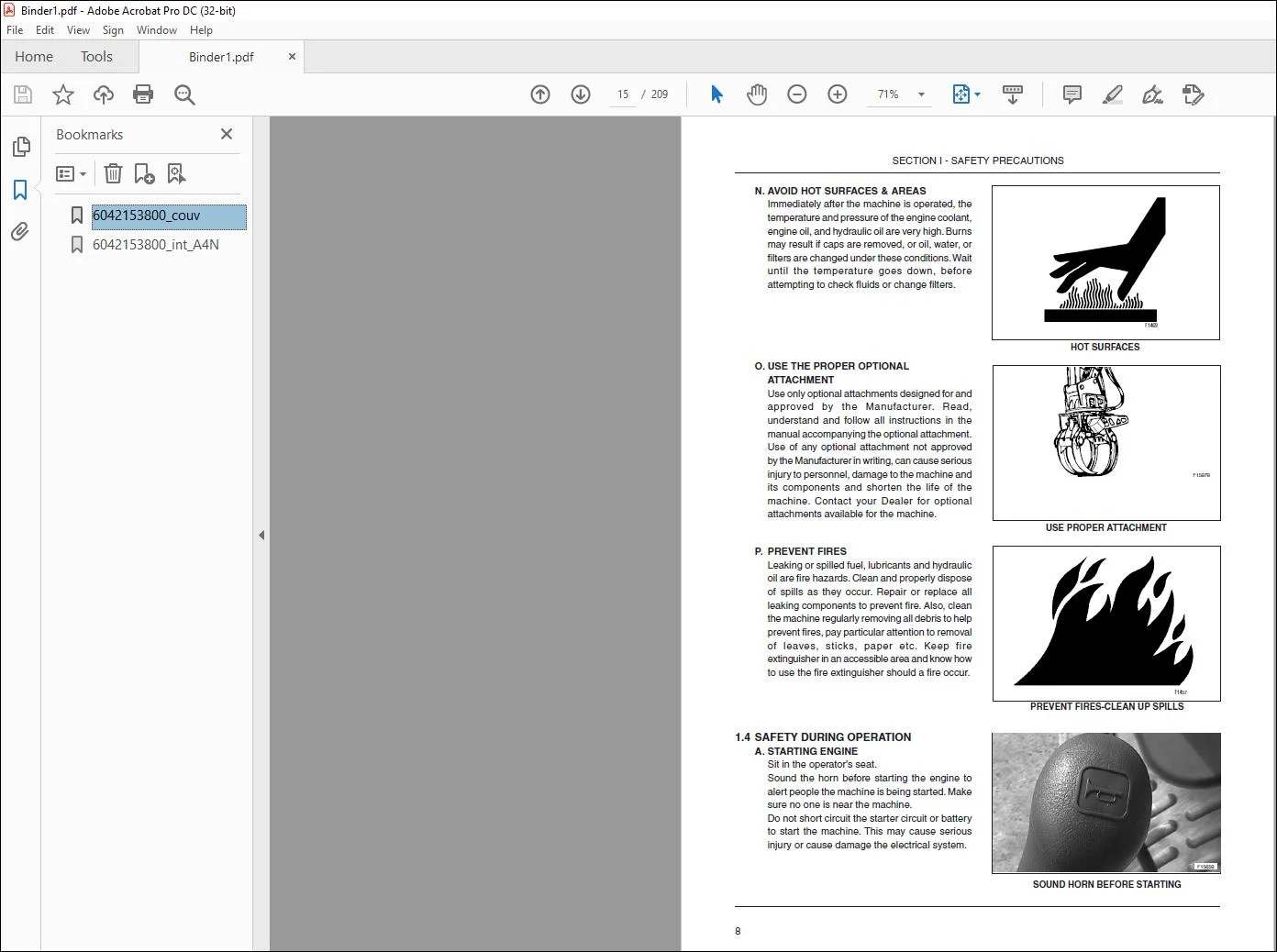

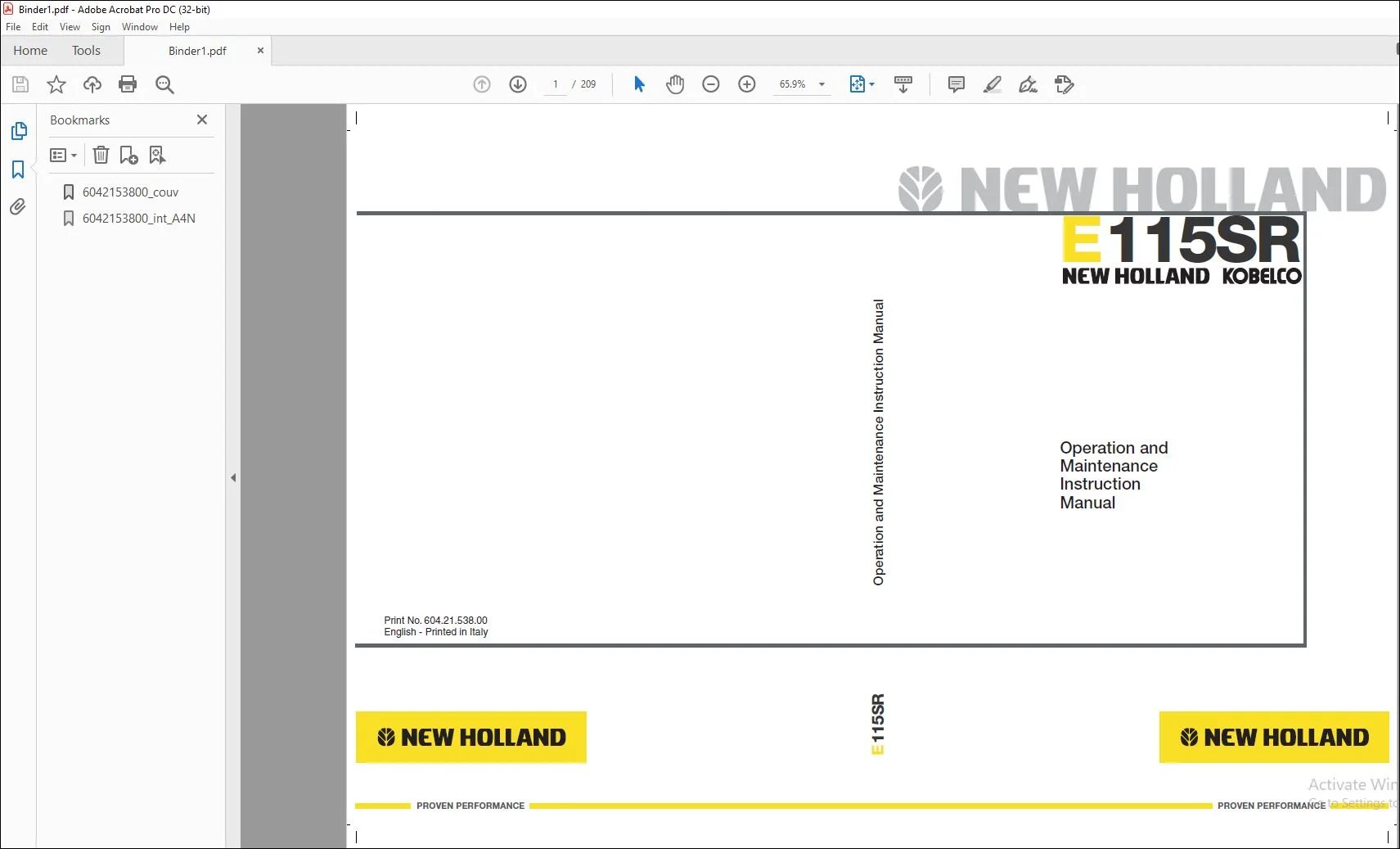

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E115SR Excavators Operation and Maintenance Instruction Manual 604.21.538.00 – PDF DOWNLOAD

GENERAL SAFETY INFORMATION

WARNING

Do not operate or perform any maintenance on this machine until all instructions found in the OPERATOR’S MANUAL have been thoroughly read and understood. Improper operation or maintenance of this machine may cause accidents and could result in serious injury or death. Always keep the manual in storage. If it is missing or damaged, place an order with an authorized dealer/distributor for a replacement. If you have any questions, please consult an authorized dealer/distributor

1.  Most accidents occurring during operation are due to negligence of precautionary measures and safety instructions. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in this manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.
2. Operation, inspection, and maintenance should be carefully carried out, and first priority must be given to safety. Messages of safety are indicated with marks. The safety information contained in this manual is intended only for supplement of safety codes, insurance requirements, local laws, rules and regulations.
3. Messages of safety appear in the manual and on the machine: All messages of safety are identified by the words “DANGER”, “WARNING” and “CAUTION”.

DANGER– Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury and is represented as follows:

WARNING– Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury and is represented as follows:

CAUTION– Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against possible damage to the machine and its components and is represented as follows:

CAUTION

• It is very difficult to forecast every danger that may occur during operation. However, safety can be guaranteed by fully understanding the operating procedures for this machine according to the methods recommended by the Manufacturer.
• While operating the machine, be sure to perform work with great care, so as not to damage the machine, or allow accidents to occur.
• Continue studying this manual until all Safety, Operation and Maintenance procedures are completely understood by all persons working with the machine

TABLE OF CONTENTS:

New Holland E115SR Excavators Operation and Maintenance Instruction Manual 604.21.538.00 – PDF DOWNLOAD

Index
SECTION I
Safety precautions 1
11 General safety information 2
12 Safety precautions 2
13 Pre-start safety 5
14 Safety during operation 8
15 Inspection & maintenance safety 12
16 Battery safety 15
17 Warning labels & tag 17
18 Prohibited machine operation 26
19 End of work shift safety 27
110 Use of protective structures 28
111 Use safety valve and overload alarm 28
SECTION II
Machine familiarization 29
21 Foreword 30
22 Identification data 31
23 Noise levels (2000/14/EC) 32
24 Basic components of the excavator 33
25 Operator cab nomenclature 34
26 Component & controls nomenclature 36
SECTION III
Basic machine operation67
31 Pre-start check 68
32 Starting & stopping machine engine with temperature above 0° C (32° F) 68
33 Starting & stopping machine engine with temperature below 0° C (32° F) 69
34 Starting machine engine with booster cables 71
35 Machine warm up 73
36 Controls decal 74
37 Basic operation of hydraulic controls 75
38 Practices to improve efficiency 83
39 Flagman hand signals 87
SECTION IV
Maintenance 91
41 General information92
42 General safety & precautions 93
43 Inspection and maintenance chart 97
44 Fluids and filters 99
45 Pre-start inspection & maintenance 101
46 50 hour & new machine break-in inspection & maintenance procedures 112
47 100 Hour inspection & maintenance procedures 119
48 250 Hour inspection & maintenance procedure 122
49 500,1000 Hours inspection & maintenance procedures 125
410 2000 Hour inspection & maintenance procedures 128
411 Miscellaneous 140
SECTION V
Transportation 145
51 Ground transportation 146
52 Lifting machine 148
53 Lifting machine (without attachment) 150
54 Shipping dimensions 151
SECTION VI
Specifications 155
61 General specifications 156
62 Specifications – optional attachments 162
61 General specifications 163
64 Specifications – optional attachments 168
65 Bucket and arm combinations 169
66 Torque specifications 169
67 Miscellaneous information172
SECTION VII
Troubleshooting 173
71 General troubleshooting 174
SECTION VIII
Optional equipment 181
81 Hydraulic breaker 182
82 Safety precautions 186
83 Maintenance for nibbler / breaker 188
84 Reinforcement of attachment 188
85 Extra (grapple, clamshell, etc) & breaker 189
86 Dozer blade specifications 191
SECTION IX
Special procedures 193
91 General 194
92 Releasing travel motor brakes 194
93 Lowering attachment when sudden engine failure occurs 197
94 Hydraulic tank pressure 198
95 Releasing swing brake 199
