New Holland E16B E18B Mini Excavator Service Repair Manual – PDF DOWNLOAD

Description

New Holland E16B E18B Mini Excavator Service Repair Manual

FILE DETAILS:

New Holland E16B E18B Mini Excavator Service Repair Manual

Language : English
Pages : 614
Downloadable : YES
Format : PDF
Size : 37.6 MB
Print No. 87743534

DESCRIPTION:

New Holland E16B E18B Mini Excavator Service Repair Manual

SAFETY INSTRUCTION:

The operator or serviceman may be unfamiliar with many of the systems in this machine. This makes a careful use of the systems very important when performing maintenance operations. Getting familiar with the system or its components is very important before removing or disassembling any of them. Because of the size of some of the machine’s components, the operator or serviceman should check the weights noted in this manual. Use proper lifting procedures when removing any components.

• The following is a list of basic precautions that must always be observed. Read and understand all warning labels and safety decals before operating, servicing or repairing this machine. Always wear protective glasses and protective shoes when working around machines. In particular, wear safety goggles when using hammers, punches or drifts on any part or attachment of the machine. Use gloves, safety goggles, aprons and protective clothing appropriate for welding jobs.
• Do not wear loose accessories or torn clothes. Remove all rings from fingers, loose jewellery, confine long hair and loose clothing before working on this machine. Disconnect the battery and hang a “Maintenance in progress” tag in the operator’s compartment. Remove the starter switch key. If possible, make all repairs with the machine parked on a level and firm surface. Block the machine so it does not roll while working on or under the machine. Hang a “Maintenance in progress” tag in the operator’s compartment.
• Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or stops for the jack before carrying out any disassembly operation. S? WARNING Do not operate this machine until you have read and understood the instructions contained in this manual. Improper machine operation is dangerous and could result in injury or death. Relieve all pressure in air, oil or fuel systems before any lines, fittings or related devices are disconnected or removed. Always make sure that all raised components are blocked correctly and pay attention to possible pressures when disconnecting any device from a system under pressure.
• Lower the bucket, dozer or other attachments to the ground before performing any operation on the machine. If this cannot be done, make sure the bucket, dozer or other attachment is blocked correctly to prevent it from dropping unexpectedly. Use the steps and the grab handles when mounting or dismounting the machine. Remove any debris or mud from steps, walkways or work platforms before using them. Always face the machine when using steps, ladders and walkways.
• When it is not possible to use the designed access system, provide ladders, scaffolds, or work, platforms to perform safe repair operations. To prevent back injury, use a hoist when lifting components which weigh 20 kg (45 lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and have the correct capacity.
• Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation. In order to prevent burns, be careful not to touch hot machine parts and hot liquids in systems. Be careful when removing cover plates. Gradually back off the last two screws or nuts located at opposite ends of the cover or device and carefully pry the cover loose to relieve any spring or other pressure before removing the last two screws or nuts completely. Be careful when removing filler caps, breathers and plugs on the machine.
• Hold a rag over the cap or plug to prevent being sprayed or splashed by liquids under pressure. Danger is even greater if the machine has just been stopped, as liquids might be boiling hot. Always use proper tools that are in good condition and that are suited for the job at hand. Be sure you understand how to use them before performing any service work. Replace all clamps with original spare parts. Do not use clamps of a lesser quality.

TABLE OF CONTENTS:

New Holland E16B E18B Mini Excavator Service Repair Manual

1 – DESCRIPTION
2 – TECHNICAL SPECIFICATIONS
3 – WORKING ATTACHMENT
11 – TOOLS
12 – TABLE OF STANDARD MAINTENANCE TIMES
13 – MAINTENANCE STANDARDS AND INSPECTION
PROCEDURES
22 – HYDRAULIC SYSTEM
23 – ELECTRICAL SYSTEM
24 – MAIN COMPONENTS
32 – WORKING ATTACHMENT REMOVAL AND
INSTALLATION
33 – UPPER FRAME
34 – TRAVEL
42 – TROUBLESHOOTING – HYDRAULIC SYSTEM
43 – TROUBLESHOOTING – ELECTRICAL SYSTEM
44 – TROUBLESHOOTING – ENGINE
51 – ENGINE

NEW HOLLAND E16B E18B MINI EXCAVATOR SERVICE REPAIR MANUAL – PDF DOWNLOAD:

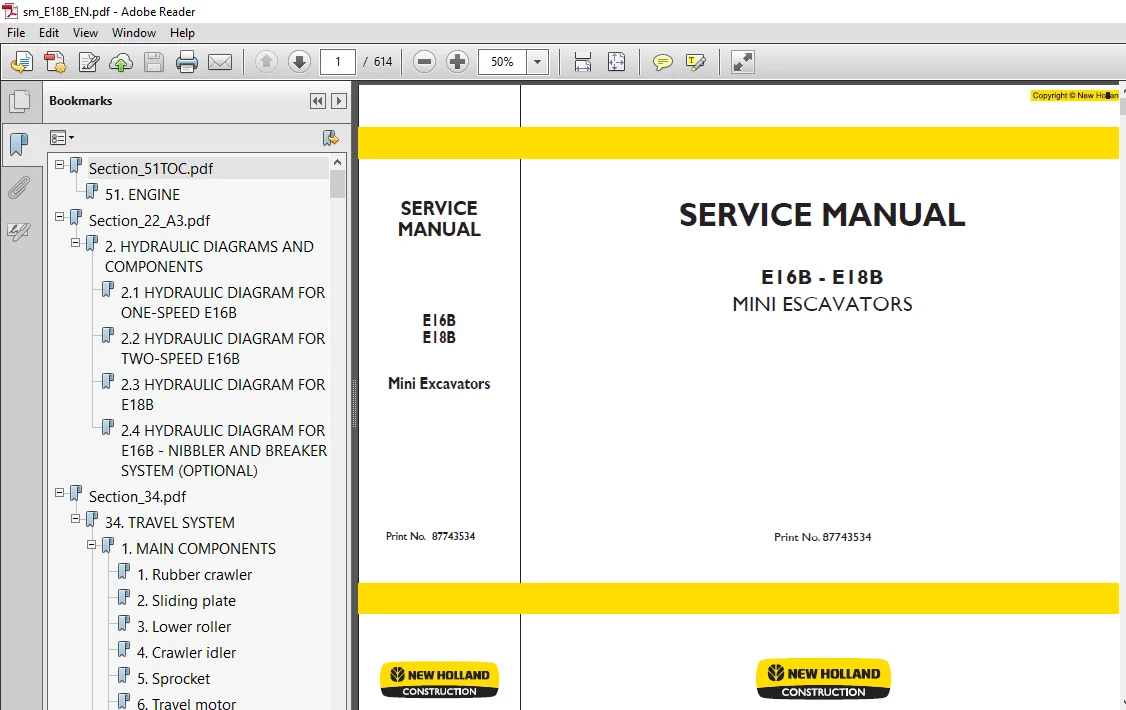

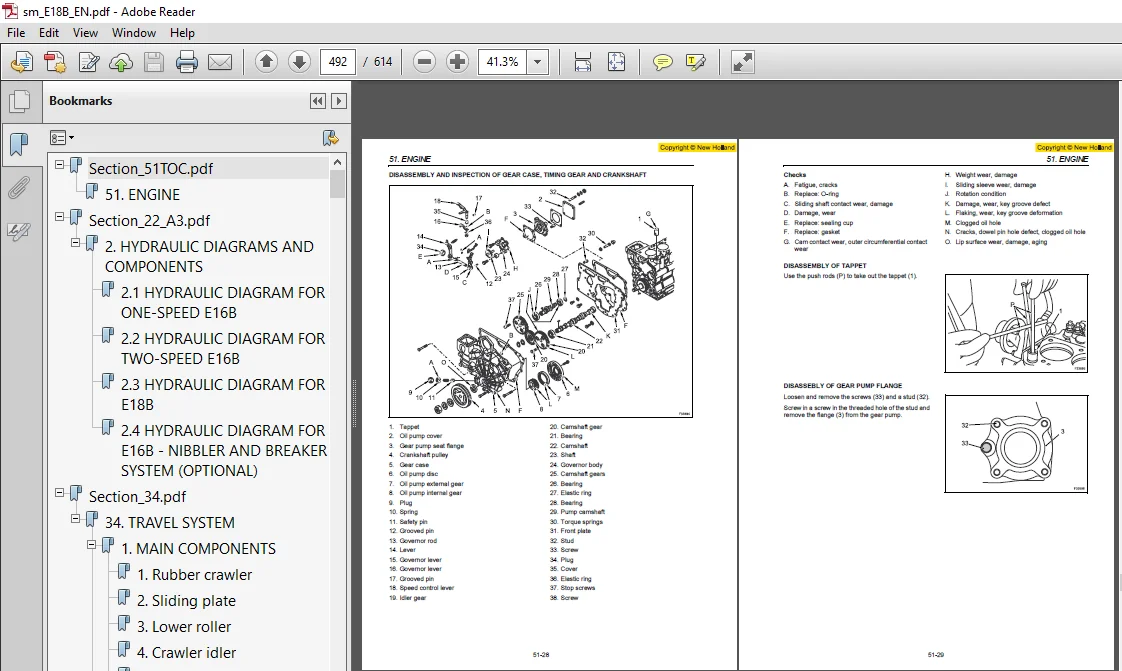

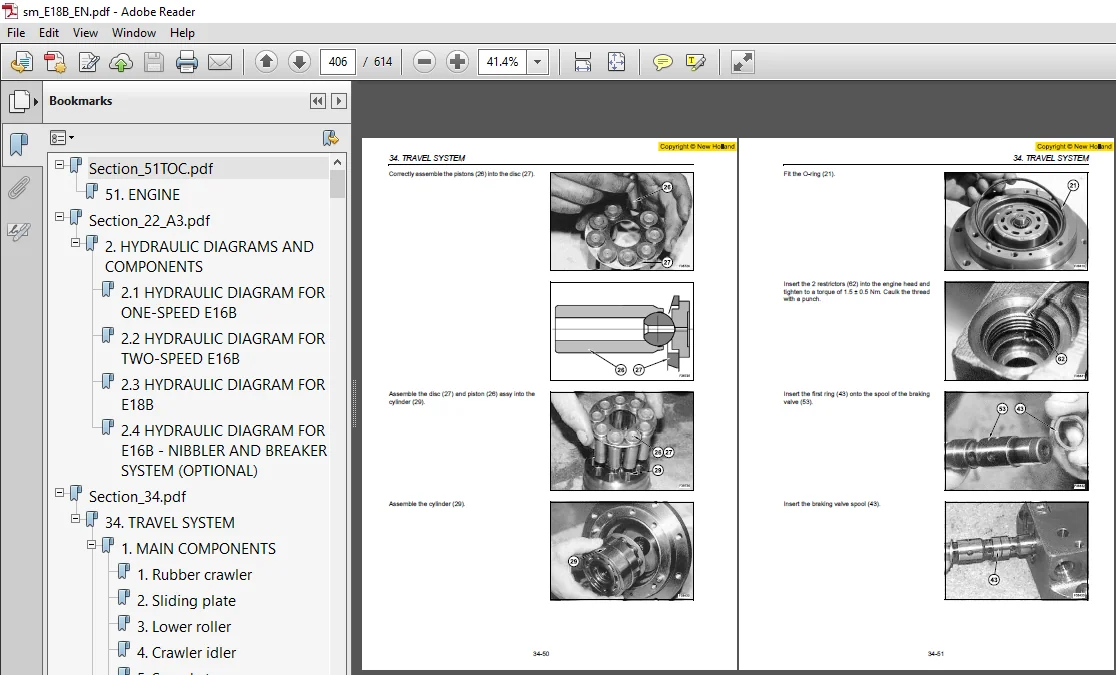

IMAGES PREVIEW OF THE MANUAL:
