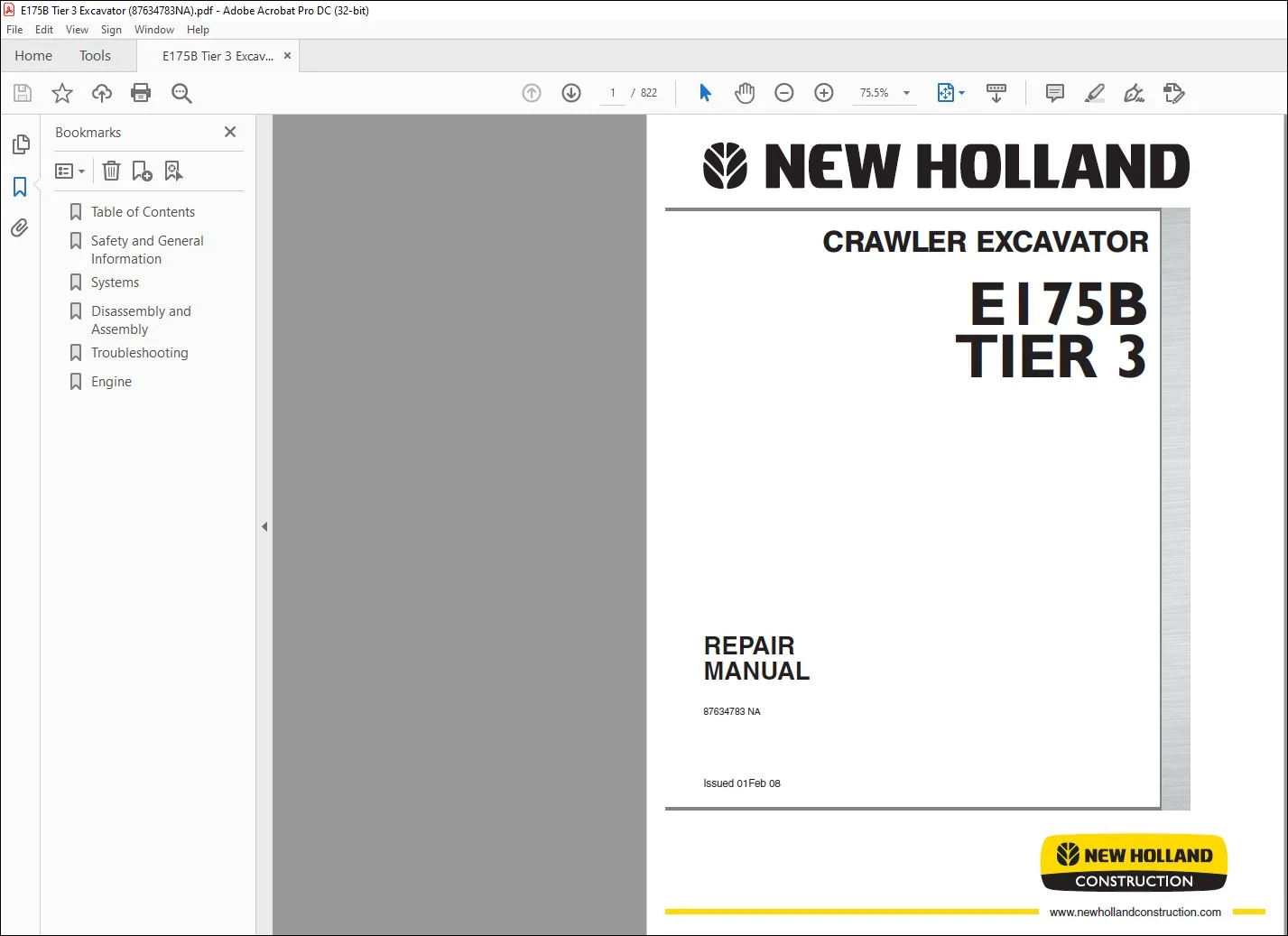

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E175B TIER 3 Crawler Excavators REPAIR MANUAL 87634783NA – PDF DOWNLOAD

SAFETY PRECAUTIONS
GENERALITIES

• Read the Operation and Maintenance Instruction Manual careful ly before star t ing, operating, maintaining, fuelling or servicing the machine. Carefully read the explanation to each and all safety signs in the special section of this Manual before starting, operating, maintaining, fueling or servicing the machine. Machine-mounted safety plates are color coded
• yellow with black borders when they refer to points where special ATTENTION must be paid and failure to observe them may cause a serious DANGER to the integrity of machine operators. They are white with red borders and black lettering when they refer to a FORBIDDEN practice. It is fundamental that all machine operators know very well the meaning of each
• safety plate as this considerably decreases operating hazards and accidents. Do not allow unauthorized personnel to operate or service this machine. Do not wear rings, wrist watches, jewelry, loose or hanging garments, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can get caught in moving parts. Wear certified safety clothes such as:
• hard hat, no-slip footwear, heavy gloves, ear protection, safety glasses, reflector vests, respirators every time the job requires it. Ask your employer about safety regulations in force and protective equipment. Always keep the operator’s compartment, step plates, grab-rails and handles clean and clear of foreign objects, oil, grease, mud or snow to minimize the danger of slipping or stumbling. Remove mud or grease from your shoes before operating the machine. Do not jump on
• or off the machine. Always keep both hands and one foot, or both feet and one hand in contact with steps and/or grab rails. Do not use controls or hoses as hand holds. Hoses and controls are movable parts and do not provide solid support. Besides, controls may be inadvertently moved and cause unexpected movement of the machine or its attachments. Never operate
• the machine or its attachments from any position other than sitting in the driver’s seat. Keep head, body, limbs, hands and feet inside the operator’s compar tment at all times to reduce exposure to external hazards. Be careful of possible slippery conditions of the steps and hand rails as well as of the ground around the machine. Wear protective boots or shoes with the
• soles made of highly no-slip rubber Do not leave the machine until it has come to a complete stop. Always check height, width and weight limitations which may be encountered in the working site and make sure the machine does not exceed them. Assess exact paths of gas ducts, water mains, telephone lines, sewers, overhead and underground electric lines and all
• other possible obstacles. Such paths should be opportunely defined by competent Authorities. If necessary, require that the service is interrupted or said installations are moved prior to starting the work. You must know the working capacity of the
• machine. Define the rear upper structure swing area and provide for opportune barriers to prevent access into it. Never exceed machine lifting capacity. Remain within the limits shown in the loading capacity chart which located on the machine.

TABLE OF CONTENTS:

New Holland E175B TIER 3 Crawler Excavators REPAIR MANUAL 87634783NA – PDF DOWNLOAD

SECTION 1
SAFETY AND GENERAL INFORMATION
Section Table of Contents I
Book/Form Number: 5-10610 NA
CHAPTER 1
SAFETY PRECAUTIONS
Table of Contents 1-1
Book/Form Number: 5-10620 NA
CHAPTER 2
SPECIFICATIONS
Table of Contents 2-1
Book/Form Number: 5-10630 NA
CHAPTER 3
STANDARD PRECAUTIONS AND TIGHTENING TORQUES
Table of Contents 3-1
Book/Form Number: 5-10640 NA
CHAPTER 4
MAINTENANCE STANDARDS AND TEST PROCEDURES
Table of Contents 4-1
Book/Form Number: 5-10650 NA
CHAPTER 5
ATTACHMENT DIMENSIONS
Table of Contents 5-1
Book/Form Number: 5-6860 NA
SECTION 2
SYSTEMS
Section Table of Contents I
Book/Form Number: 5-10660 NA
CHAPTER 1
MECHATRO CONTROL SYSTEM
Table of Contents 1-1
Book/Form Number: 5-10670 NA
CHAPTER 2
HYDRAULIC SYSTEM
Table of Contents 2-1
Book/Form Number: 5-10680 NA
CHAPTER 3
ELECTRICAL SYSTEM
Table of Contents 3-1
Book/Form Number: 5-10690 NA
CHAPTER 4
COMPONENTS SYSTEM
Table of Contents 4-1
Book/Form Number: 5-10700 NA
CHAPTER 5
AIR CONDITIONING SYSTEM
Table of Contents 5-1
Book/Form Number: 5-10710 NA
SECTION 3
DISASSEMBLY AND ASSEMBLY
Section Table of Contents I
Book/Form Number: 5-10720 NA
CHAPTER 1
ATTACHMENTS
Table of Contents 1-1
Book/Form Number: 5-10730 NA
CHAPTER 2
UPPER STRUCTURE
Table of Contents 2-1
Book/Form Number: 5-10740 NA
CHAPTER 3
UNDERCARRIAGE (TRAVEL SYSTEM)
Table of Contents 3-1
Book/Form Number: 5-10750 NA
SECTION 4
TROUBLESHOOTING
Section Table of Contents I
Book/Form Number: 5-10760 NA
CHAPTER 1
TROUBLESHOOTING BY ERROR CODES
Table of Contents 1-1
Book/Form Number: 5-10770 NA
CHAPTER 2
TROUBLESHOOTING BY TROUBLE
Table of Contents 2-1
Book/Form Number: 5-10780 NA
CHAPTER 3
TROUBLESHOOTING BY DIAGNOSIS MODE
Table of Contents 3-1
Book/Form Number: 5-10790 NA
SECTION 5
ENGINE
Section Table of Contents I
Book/Form Number: 5-10800 NA
CHAPTER 1
ENGINE
Table of Contents 1-1
Book/Form Number: 5-10810 NA
