New Holland E18B TIER 4 HYDRAULIC EXCAVATOR SERVICE MANUAL S5PU0019E01 – PDF DOWNLOAD

Description

New Holland E18B TIER 4 HYDRAULIC EXCAVATOR SERVICE MANUAL S5PU0019E01 – PDF DOWNLOAD

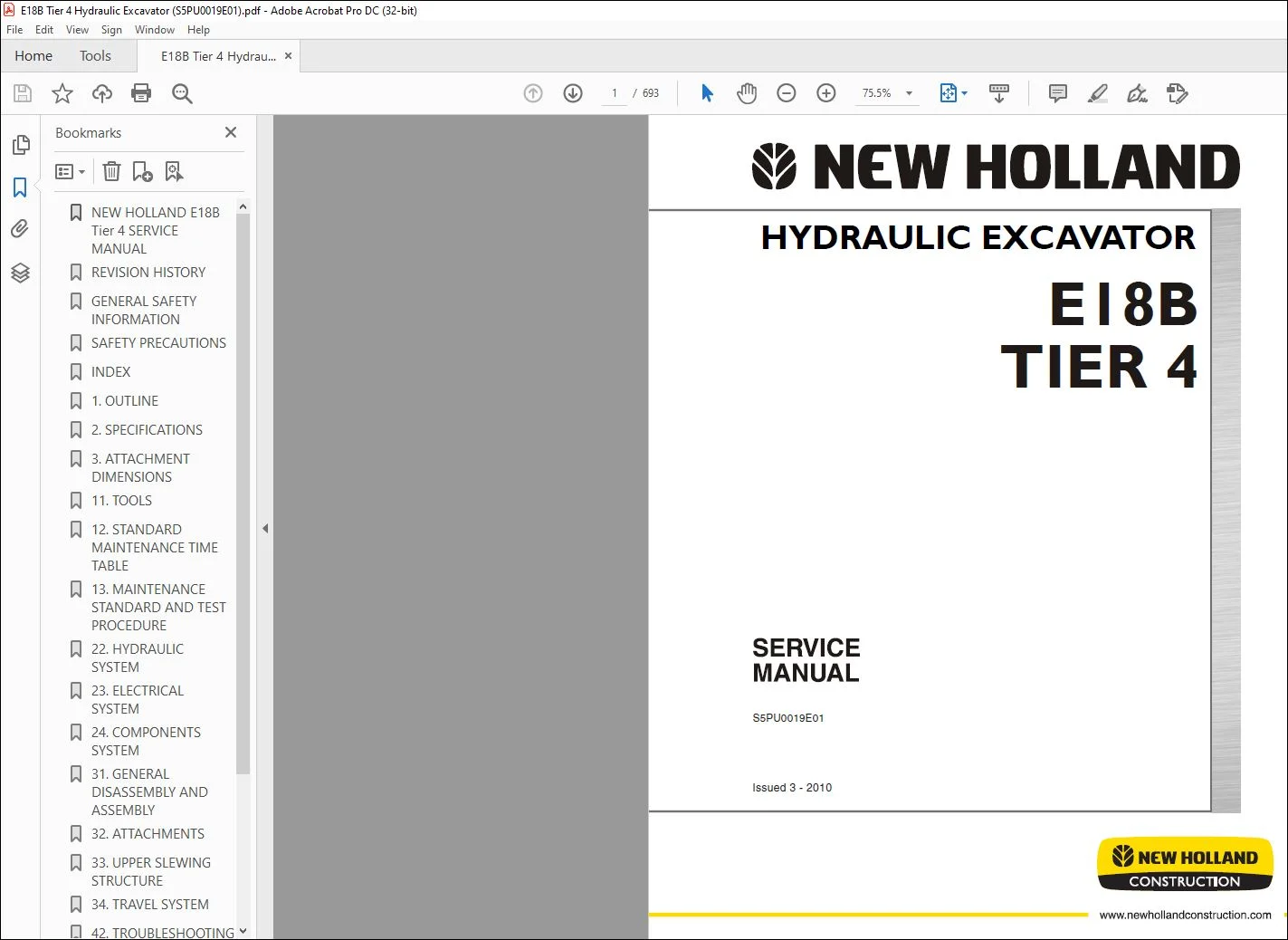

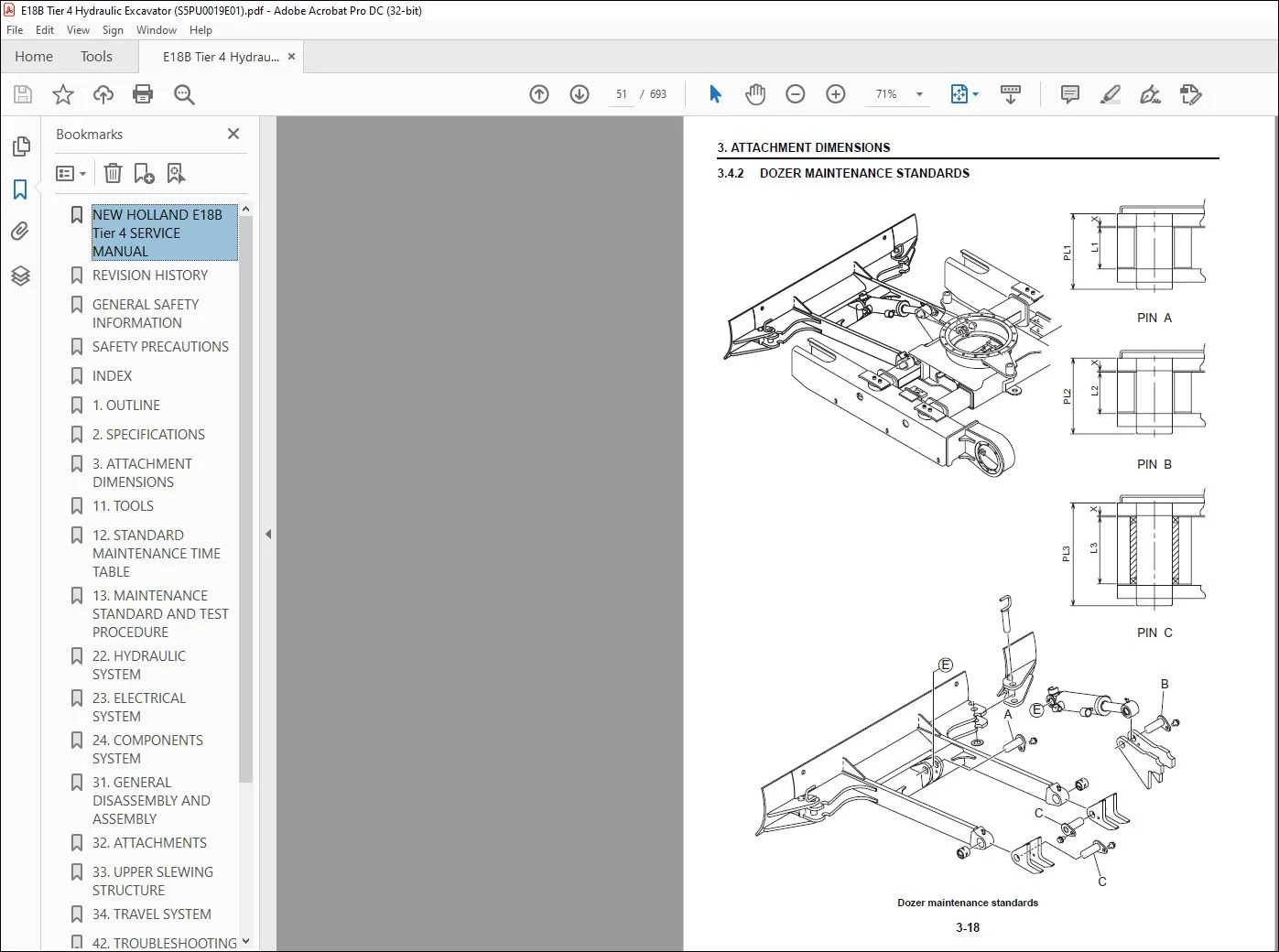

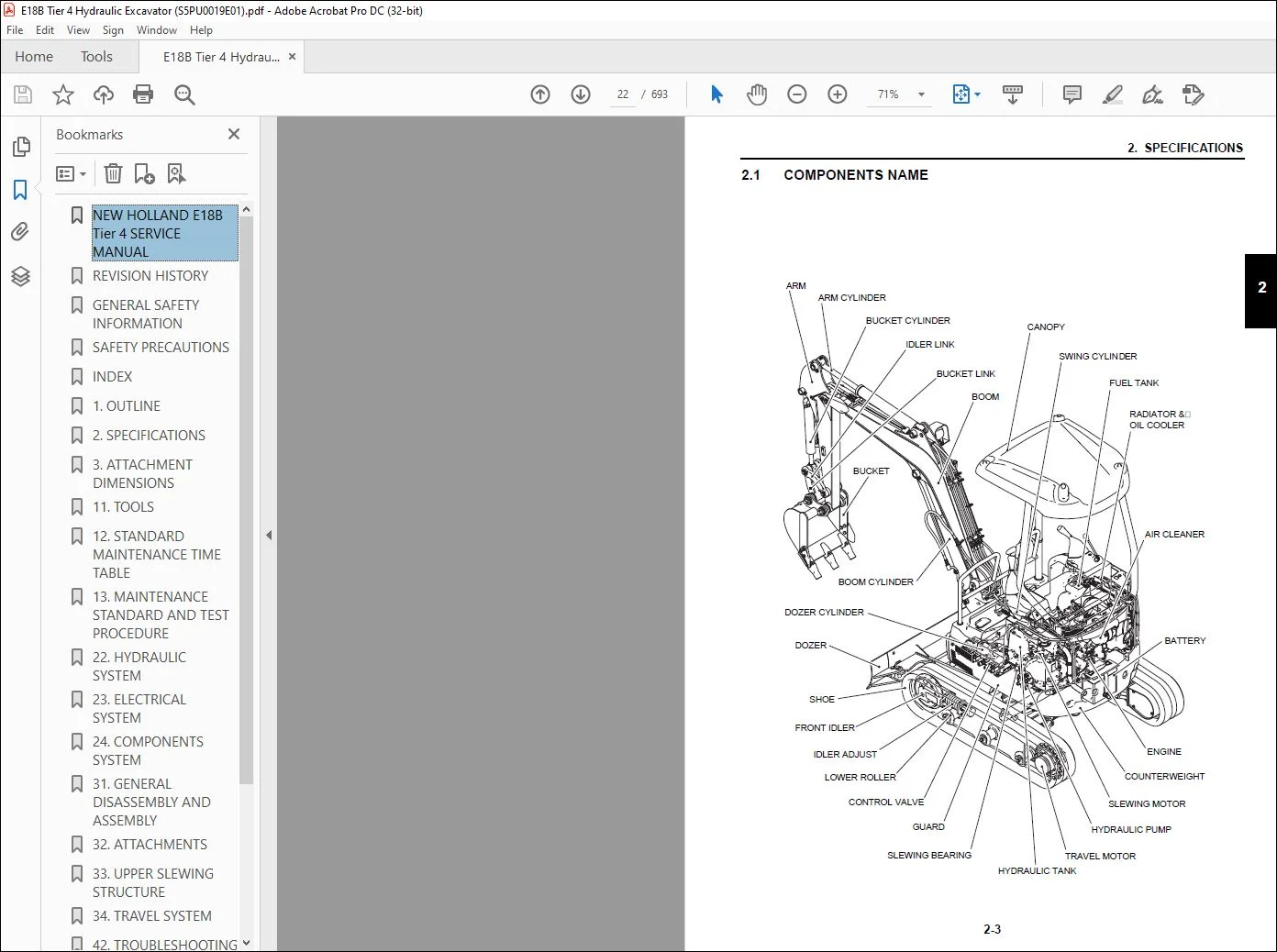

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E18B TIER 4 HYDRAULIC EXCAVATOR SERVICE MANUAL S5PU0019E01 – PDF DOWNLOAD

GENERAL SAFETY INFORMATION

WARNING:

Do not operate or perform any maintenance on this machine until all instructions found in the OPERATOR’S MANUAL and this MANUAL have been thoroughly read and understood. Improper operation or maintenance of this machine may cause accidents and could result in serious injury or death. Always keep the manual in storage. If it is missing or damaged, place an order with an authorized our Distributor for a replacement. If you have any questions, please consult an authorized our Distributor

1. Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in the manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.
2. Operation, inspection, and maintenance should be carefully carried out, and safety must be given the first priority. Messages of safety are indicated with marks. The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations.
3. Messages of safety appear in the manual and on the machine : All messages of safety are identified by either word of “DANGER”, “WARNING” and “CAUTION”.

SAFETY PRECAUTIONS

WARNING:

The proper and safe lubrication and maintenance for this machine, recommended by Manufacturer, are outlined in the OPERATOR’S MANUAL for the machine. Improper performance of lubrication or maintenance procedures are dangerous and could result in injury or death. Read and understand the MANUAL before performing any lubrication or maintenance.

The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ; SPECIFICATIONS.

The following is a list of basic precautions that must always be observed

1.  Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
3. Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
4. If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
5. Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.

WARNING:

Do not operate this machine unless you have read and understand the instructions in the OPERATOR’S MANUAL. Improper machine operation is dangerous and could result in injury or death.

6. Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.

7.Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.

8.Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.

9.To avoid back injury, use a hoist when lifting components which weigh 20kg (45lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation.

10.To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and compartments

TABLE OF CONTENTS:

New Holland E18B TIER 4 HYDRAULIC EXCAVATOR SERVICE MANUAL S5PU0019E01 – PDF DOWNLOAD

NEW HOLLAND E18B Tier 4 SERVICE MANUAL 1
REVISION HISTORY 3
GENERAL SAFETY INFORMATION 5
SAFETY PRECAUTIONS 6
INDEX 8
1 OUTLINE 10
2 SPECIFICATIONS 20
3 ATTACHMENT DIMENSIONS 34
11 TOOLS 58
12 STANDARD MAINTENANCE TIME TABLE 72
13 MAINTENANCE STANDARD AND TEST PROCEDURE 84
22 HYDRAULIC SYSTEM106
23 ELECTRICAL SYSTEM136
24 COMPONENTS SYSTEM162
31 GENERAL DISASSEMBLY AND ASSEMBLY234
32 ATTACHMENTS238
33 UPPER SLEWING STRUCTURE270
34 TRAVEL SYSTEM398
42 TROUBLESHOOTING (HYDRAULIC SYSTEM)462
43 TROUBLESHOOTING (ELECTRICAL SYSTEM)474
44 TROUBLESHOOTING (ENGINE)484
51 ENGINE496
ENGINE SERVICE MANUAL – MITSUBISHI498

Need help? Contact: [email protected]

https://vimeo.com/730889757

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
