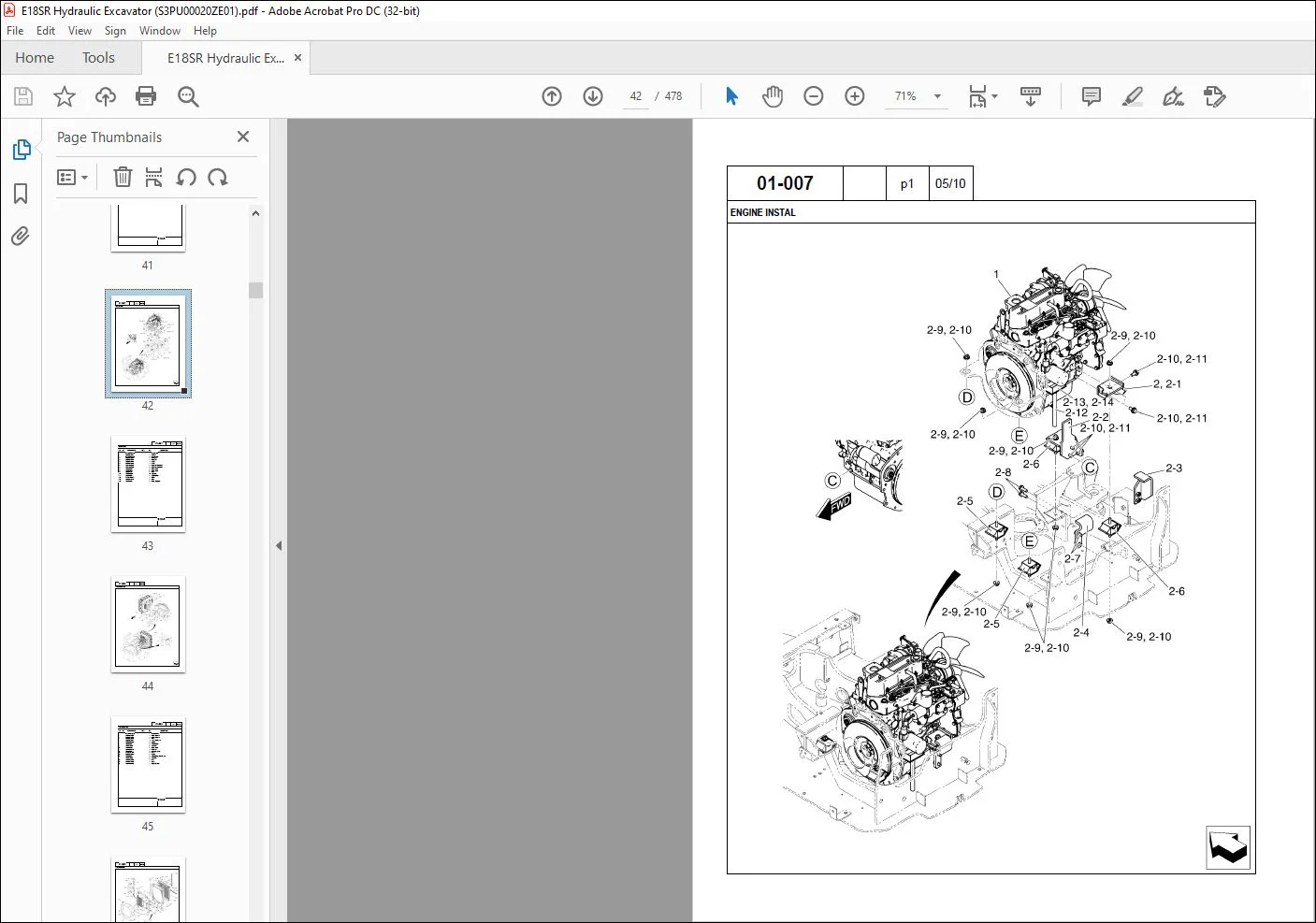

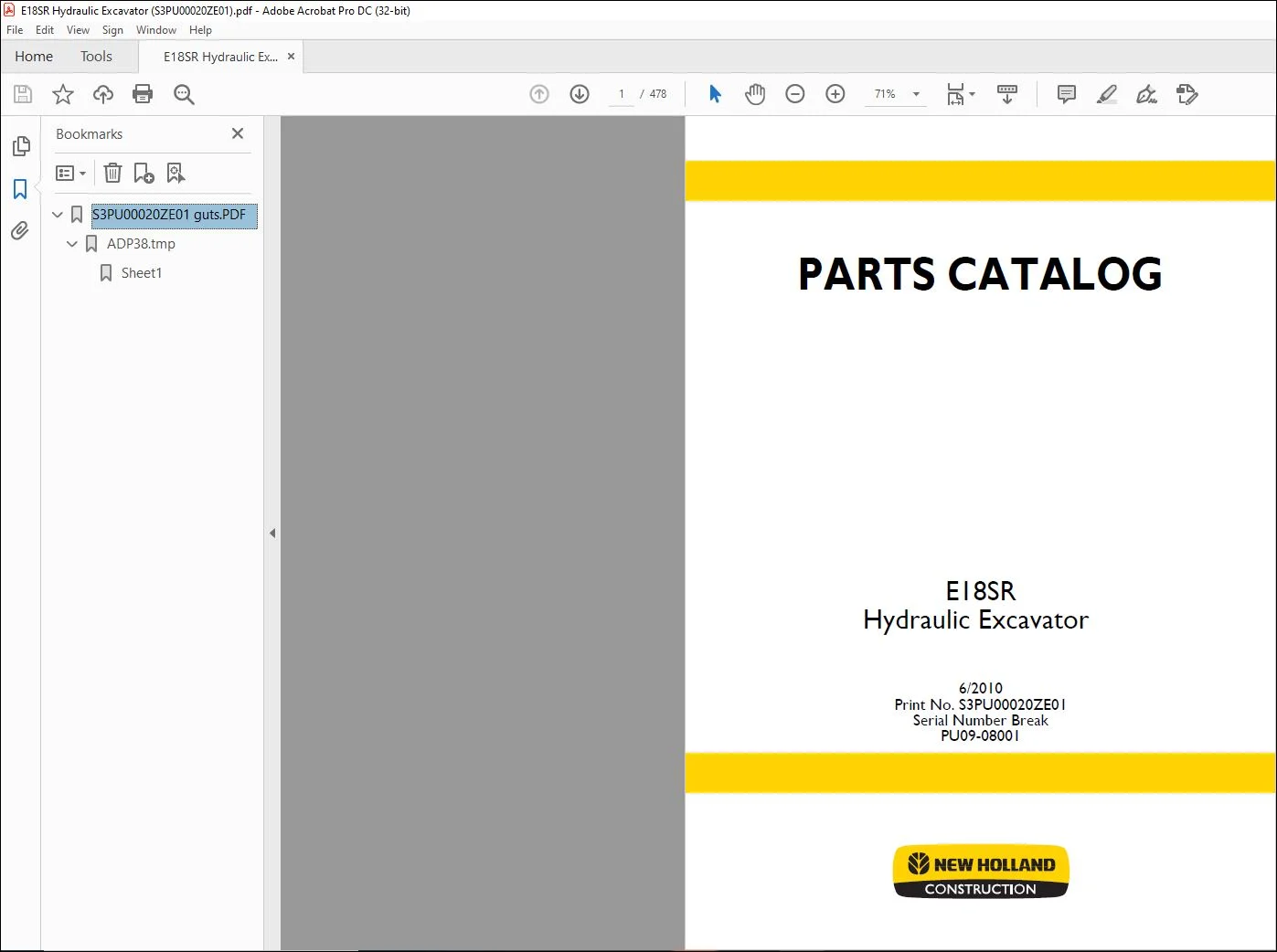

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E18SR Hydraulic Excavator Parts Catalog Manual S3PU00020ZE01 – PDF DOWNLOAD

Serial Number Break
PU09-08001

GENERAL INFORMATION:

1. Whenever the terms left and right are used, it should be understood to mean
from a position facing in direction of travel.
2. Throughout this manual you may find common hardware not illustrated, but
listed in the description column. The service part immediately preceding a
hardware listing is the part using these particular items for mounting purposes.
This hardware is not included with the service part or assembly when ordered as
a replacement.
3. The illustrations show typical assemblies plus individual parts but in all cases
may not show the exact shape or detail of parts required. However, the purpose
for the illustrations is to identify parts performing like functions. Whenever possible,
illustrations are located at the beginning of each section or immediately adjacent
to the applicable text.
4. CNH America LLC is continually striving to improve its products. We must,
therefore, reserve the right to make improvements or changes when it becomes
practical and possible to do so, without incurring any obligation to make changes
or additions to the equipment sold previously.

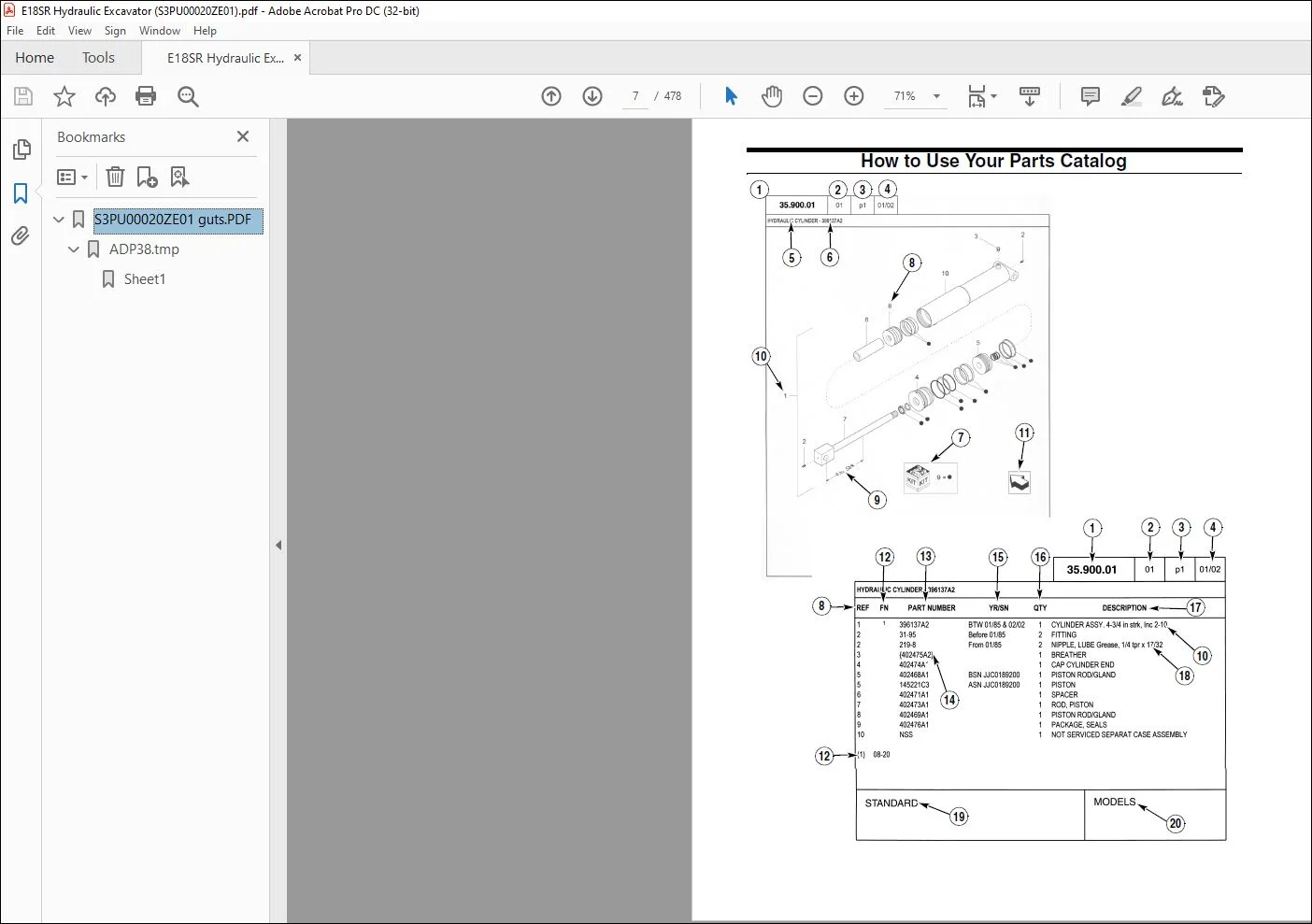

How to Use Your Parts Catalog:
1. Figure Number
2. Sequence code within the Figure Number
3. Page number within the Sequence Code
4. Date of Printing (month / year)
5. Figure Description
6. General information regarding the figure
7. Parts supplied in repair kits per symbol reference
8. Figure call-out of the part number (REF)
9. Technical Specifications relating to the part indicated
10. Figure call-out includes bracketed items, the included items may also be listed in the additional description
area
11. Orientation – Arrow indicates front of the machine
12. Footnote – Additional information relating to the part number. In this example, 08-20 equals another figure
that this part is shown on.
13. Part Number
NSS = Non-serviced parts
Bracketed numbers = not available as service parts in this market
14. Not Available as service part in this market
15. YR/SN
Year
Before 01/85 = Part valid for production January 1985 and before
From 01/85 = Part valid for production from January 1985 and after
BTW 01/85 & 02/02 = Part valid for machines produced between January 1985 and February 2002.
Serial Number (P.I.N.)
BSN JJC0268800 = Part valid for serial number JJC0268800 and below
ASN JJC0268800 = Part valid for serial number JJC0268800 and above
BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000
16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications:
AR = quantity as required
X = as required
17. Part Description
18. Additional description of the part to help confirm identification
19. Figure Notes
20. Model Number(s)

TABLE OF CONTENTS:

New Holland E18SR Hydraulic Excavator Parts Catalog Manual S3PU00020ZE01 – PDF DOWNLOAD

00-001 FILTER LIST
01-001 FRAME GROUP, UPP
01-002 COUNTERWEIGHT INSTAL
01-003 BRACKET GROUP, SWING – NIBBLER AND BREAKER
01-004 01 CYLINDER INSTAL
01-004 02 CYLINDER INSTAL
01-005 BRACKET INSTAL, SWING
01-006 HYD LINES, CYLINDER
01-007 ENGINE INSTAL
01-008 RADIATOR GROUP
01-009 RADIATOR INSTAL
01-010 CLEANER ASSY, AIR
01-011 MUFFLER ASSY
01-012 01 FUEL LINES
01-012 02 FUEL LINES
01-013 TANK INSTAL, FUEL
01-014 TANK INSTAL, HYD
01-015 CONTROL ASSY, ENGINE
01-016 01 POWER TAKE-OFF ASSY
01-016 02 POWER TAKE-OFF ASSY
01-017 01 MOTOR INSTAL, SWING
01-017 02 MOTOR INSTAL, SWING
01-017 03 MOTOR INSTAL, SWING
01-018 LUB LINES
01-019 01 VALVE INSTAL
01-019 02 VALVE INSTAL
01-019 03 VALVE INSTAL
01-019 04 VALVE INSTAL
01-019 05 VALVE INSTAL
01-019 06 VALVE INSTAL
01-019 07 VALVE INSTAL
01-019 08 VALVE INSTAL
01-019 09 VALVE INSTAL
01-019 10 VALVE INSTAL
01-019 11 VALVE INSTAL
01-019 12 VALVE INSTAL
01-019 13 VALVE INSTAL
01-020 HYD LINES, PUMP
01-021 01 HYD LINES, UPP – NIBBLER AND BREAKER
01-021 02 HYD LINES, UPP – NIBBLER AND BREAKER
01-021 03 HYD LINES, UPP – NIBBLER AND BREAKER
01-021 04 HYD LINES, UPP – NIBBLER AND BREAKER
01-021 05 HYD LINES, UPP – NIBBLER AND BREAKER
01-022 HYD LINES, SWIVEL
01-023 01 HYD LINES, RETURN – NIBBLER AND BREAKER
01-023 02 HYD LINES, RETURN – NIBBLER AND BREAKER
01-024 01 CONTROLS, OPERATORS
01-024 02 CONTROLS, OPERATORS
01-024 03 CONTROLS, OPERATORS
01-024 04 CONTROLS, OPERATORS
01-025 01 VALVE INSTAL
TABLE OF CONTENTS
01-025 02 VALVE INSTAL
01-026 01 VALVE INSTAL – MULTI
01-026 02 VALVE INSTAL – MULTI
01-026 03 VALVE INSTAL – MULTI
01-027 LOCK ASSY
01-028 LEVER ASSY, CONTROL – CRAWLER
01-029 LEVER ASSY, CONTROL
01-030 01 COVER ASSY
01-030 02 COVER ASSY
01-031 SUPPORT ASSY
01-032 KEY ASSY
01-033 CONTROL ASSY, EXTRA
01-034 CONTROL LINES, MAIN – MULTI
01-035 CONTROL LINES, MULTI
01-036 01 CONTROL LINES, REMOTE – MULTI
01-036 02 CONTROL LINES, REMOTE – MULTI
01-036 03 CONTROL LINES, REMOTE – MULTI
01-037 01 CONTROL LINES, VALVE
01-037 02 CONTROL LINES, VALVE
01-038 01 CONTROL LINES, PROPEL
01-038 02 CONTROL LINES, PROPEL
01-038 03 CONTROL LINES, PROPEL
01-039 PLATE GROUP, FLOOR – NIBBLER AND BREAKER
01-040 CANOPY ASSY
01-041 SEAT INSTAL
01-042 GUARD INSTAL
01-043 COVER ASSY, UNDER
01-044 BATTERY ASSY
01-045 01 ELEC ASSY, UPP
01-045 02 ELEC ASSY, UPP
01-045 03 ELEC ASSY, UPP
01-045 04 ELEC ASSY, UPP
01-045 05 ELEC ASSY, UPP
01-046 HARNESS ASSY
02-001 FRAME ASSY, LOW
02-002 01 MOTOR INSTAL, PROPEL
02-002 02 MOTOR INSTAL, PROPEL
02-002 03 MOTOR INSTAL, PROPEL
02-003 01 JOINT INSTAL, SWIVEL
02-003 02 JOINT INSTAL, SWIVEL
02-003 03 JOINT INSTAL, SWIVEL
02-004 01 CYLINDER INSTAL – CRAWLER FRAME WIDTH
02-004 02 CYLINDER INSTAL – CRAWLER FRAME WIDTH
02-005 HYD LINES, CYLINDER – DOZER
02-006 RING ASSY, SLEWING
02-007 01 IDLER ASSY, CRAWLER
02-007 02 IDLER ASSY, CRAWLER
02-008 ROLLER ASSY, TRACK
02-009 SHOE ASSY
02-010 CRAWLER ASSY
02-011 01 HYD LINES, LOW
TABLE OF CONTENTS
02-011 02 HYD LINES, LOW
02-012 HYD LINES, PROPEL
02-013 HYD LINES, SWIVEL
02-014 DOZER ASSY
02-015 DOZER GROUP
02-016 DOZER INSTAL
02-017 01 CYLINDER INSTAL – DOZER
02-017 02 CYLINDER INSTAL – DOZER
02-018 HYD LINES, CYLINDER – DOZER
03-001 BOOM GROUP
03-002 BOOM, HOE 1.75M
03-003 BOOM INSTAL
03-004 01 CYLINDER INSTAL – BOOM
03-004 02 CYLINDER INSTAL – BOOM
03-005 01 CYLINDER INSTAL – ARM
03-005 02 CYLINDER INSTAL – ARM
03-006 01 CYLINDER INSTAL – BUCKET
03-006 02 CYLINDER INSTAL – BUCKET
03-007 01 HYD LINES, BOOM 1.75M – NIBBLER AND BREAKER
03-007 02 HYD LINES, BOOM 1.75M – NIBBLER AND BREAKER
03-008 HYD LINES, CYLINDER – BOOM
03-009 HYD LINES, CYLINDER – ARM
03-010 HYD LINES, CYLINDER – BUCKET
03-011 HARNESS ASSY, BOOM
03-012 01 LIGHT ASSY
03-012 02 LIGHT ASSY
03-013 ARM 0.98M
03-014 ARM GROUP
03-015 ARM INSTAL
03-016 HYD LINES, ARM 0.98M
03-017 HYD LINES, ARM 0.98M – NIBBLER AND BREAKER
03-018 BUCKET INSTAL
03-019 BUCKET ASSY, 450W
03-020 BUCKET ASSY, 400W
03-021 BUCKET ASSY, 450W – REINFORCE TYPE
04-001 TOOL ASSY
04-002 TOOL ASSY
05-001 CONTROL LINES, PROPEL
05-002 ALARM ASSY
05-003 01 ELEC ASSY – FOR ANTITHEFT
05-003 02 ELEC ASSY – FOR ANTITHEFT
05-004 01 LIGHT ASSY – HAND RAIL
05-004 02 LIGHT ASSY – HAND RAIL
05-005 SOCKET ASSY
05-006 01 LIGHT ASSY
05-006 02 LIGHT ASSY
05-007 HOOK INSTAL
05-008 BUCKET ASSY, 450W – TOOTH 18S
05-009 BUCKET ASSY, 300W
06-001 01 NAME PLATE INSTAL
06-001 02 NAME PLATE INSTAL
TABLE OF CONTENTS
06-002 01 NAME PLATE INSTAL
06-002 02 NAME PLATE INSTAL
06-002 03 NAME PLATE INSTAL
06-002 04 NAME PLATE INSTAL
06-003 NAME PLATE INSTAL – CEMA MARK
06-004 NAME PLATE INSTAL
08-001 CYLINDER HEAD
08-002 VALVE DRIVE
08-003 ROCKER COVER
08-004 CAM SHAFT
08-005 CRANKCASE
08-006 CRANKSHAFT BEARING
08-007 GEAR OR CHAIN CASE
08-008 FLYWHEEL HOUSING
08-009 OIL PAN
08-010 PISTON & CONNECTING ROD
08-011 CRANKSHAFT & FLYWHEEL
08-012 MANIFOLD
08-013 OIL SCREEN & OIL FILTER
08-014 WATER PUMP
08-015 THERMOSTAT
08-016 RADIATOR & FAN
08-017 NOZZLE & FUEL INJECTION
08-018 NOZZLE & NOZZLE HOLDER
08-019 SEDIMENTER ASSY,WATER
08-020 FUEL FILTER
08-021 GOVERNOR PARTS
08-022 01 FUEL INJECTION PUMP
08-022 02 FUEL INJECTION PUMP
08-023 FUEL INJECTION PUMP DRIVE
08-024 STARTER
08-025 GLOW PLUG
08-026 07 GLOW LAMP
08-027 GENERATOR
08-028 ALTERNATOR
08-029 MAGNETIC SWITCH
08-030 SPEED CONTROL
08-031 REPAIR GASKET KIT
