New Holland E200SR Excavators Operation and Maintenance Instruction Manual 604.21.580.01 – PDF DOWNLOAD

Description

New Holland E200SR Excavators Operation and Maintenance Instruction Manual 604.21.580.01 – PDF DOWNLOAD

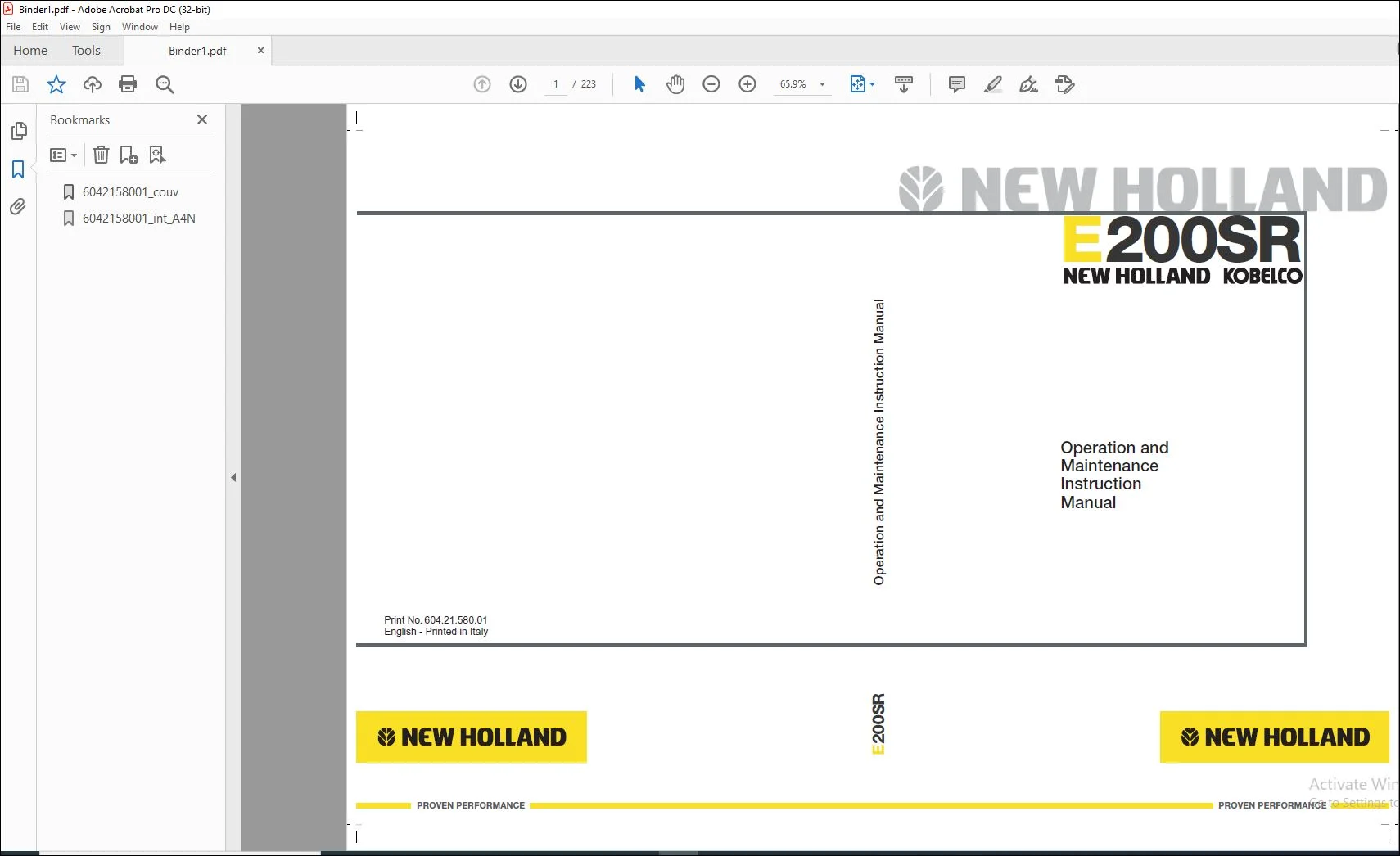

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E200SR Excavators Operation and Maintenance Instruction Manual 604.21.580.01 – PDF DOWNLOAD

GENERAL SAFETY INFORMATION

WARNING

Do not operate or perform any maintenance on this machine until all instructions found in the OPERATOR’S MANUAL have been thoroughly read and understood. Improper operation or maintenance of this machine may cause accidents and could result in serious injury or death. Always keep the manual in storage. If it is missing or damaged, place an order with an authorized dealer/distributor for a replacement. If you have any questions, please consult an authorized dealer/distributor

1.  Most accidents occurring during operation are due to negligence of precautionary measures and safety instructions. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in this manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.
2. Operation, inspection, and maintenance should be carefully carried out, and first priority must be given to safety. Messages of safety are indicated with marks. The safety information contained in this manual is intended only for supplement of safety codes, insurance requirements, local laws, rules and regulations.
3. Messages of safety appear in the manual and on the machine: All messages of safety are identified by the words “DANGER”, “WARNING” and “CAUTION”.

DANGER– Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury and is represented as follows:

WARNING– Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury and is represented as follows:

CAUTION– Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against possible damage to the machine and its components and is represented as follows:

CAUTION

• It is very difficult to forecast every danger that may occur during operation. However, safety can be guaranteed by fully understanding the operating procedures for this machine according to the methods recommended by the Manufacturer.
• While operating the machine, be sure to perform work with great care, so as not to damage the machine, or allow accidents to occur.
• Continue studying this manual until all Safety, Operation and Maintenance procedures are completely understood by all persons working with the machine

1.2 SAFETY PRECAUTIONS

WARNING

THE PROPER AND SAFE LUBRICATION AND MAINTENANCE FOR THIS MACHINE, RECOMMENDED BY THE MANUFACTURER, ARE OUTLINED IN THIS MANUAL FOR THE MACHINE. IMPROPER PERFORMANCE OF LUBRICATION OR MAINTENANCE PROCEDURES ARE DANGEROUS AND COULD RESULT IN INJURY OR DEATH. READ AND UNDERSTAND THIS MANUAL BEFORE PERFORMING ANY LUBRICATION OR MAINTENANCE.

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
• Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in Sec. SPECIFICATIONS

The following is a list of basic precautions that
must always be observed

1. Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
3. Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
4. If possible, make all repairs with the machine parked on a level, hard surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
5. Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly

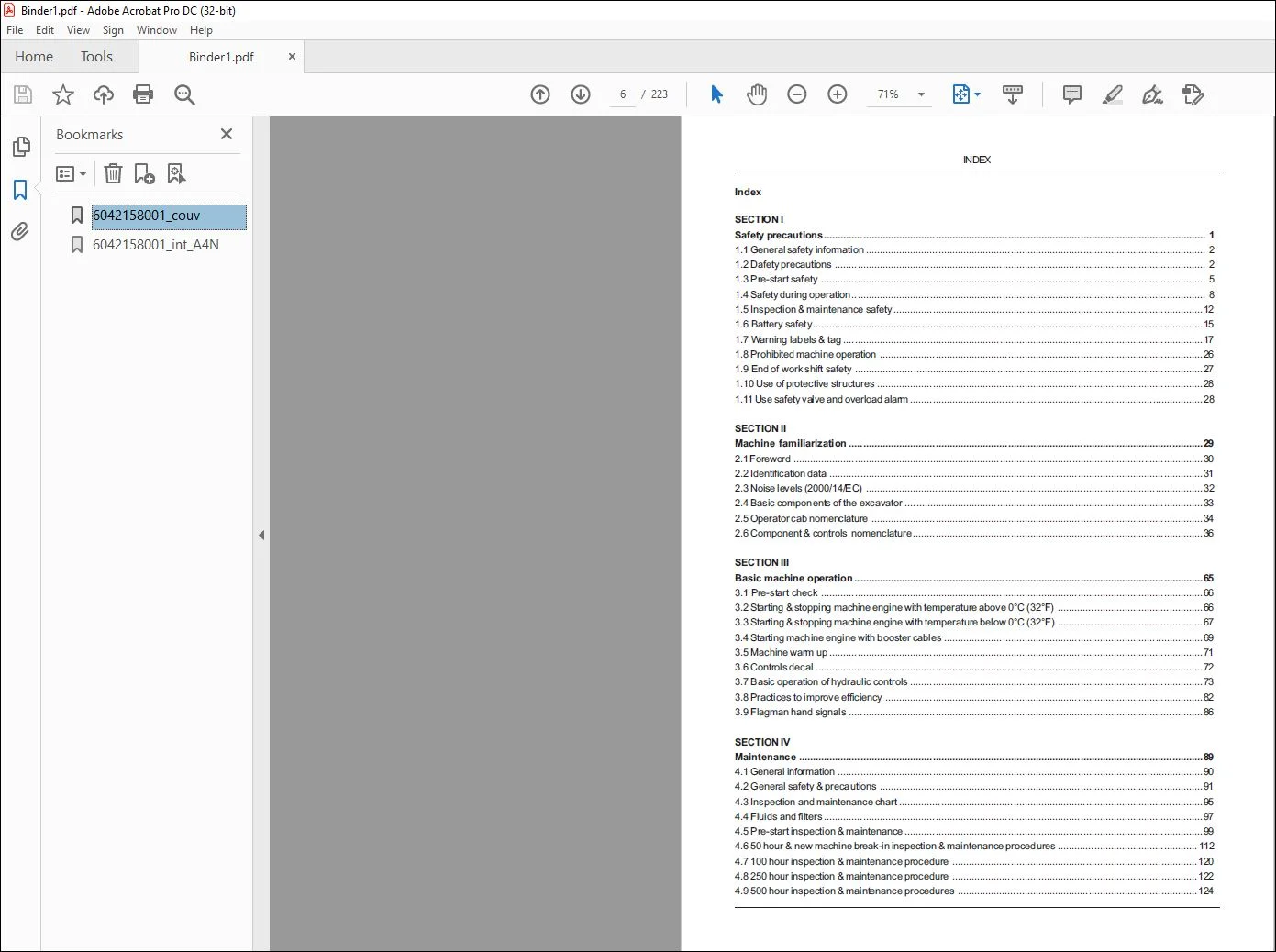

TABLE OF CONTENTS:

New Holland E200SR Excavators Operation and Maintenance Instruction Manual 604.21.580.01 – PDF DOWNLOAD

SECTION I
Safety precautions 1
11 General safety information 2
12 Dafety precautions 2
13 Pre-start safety 5
14 Safety during operation 8
15 Inspection & maintenance safety 12
16 Battery safety 15
17 Warning labels & tag 17
18 Prohibited machine operation 26
19 End of work shift safety 27
110 Use of protective structures 28
111 Use safety valve and overload alarm 28
SECTION II
Machine familiarization 29
21 Foreword 30
22 Identification data 31
23 Noise levels (2000/14/EC) 32

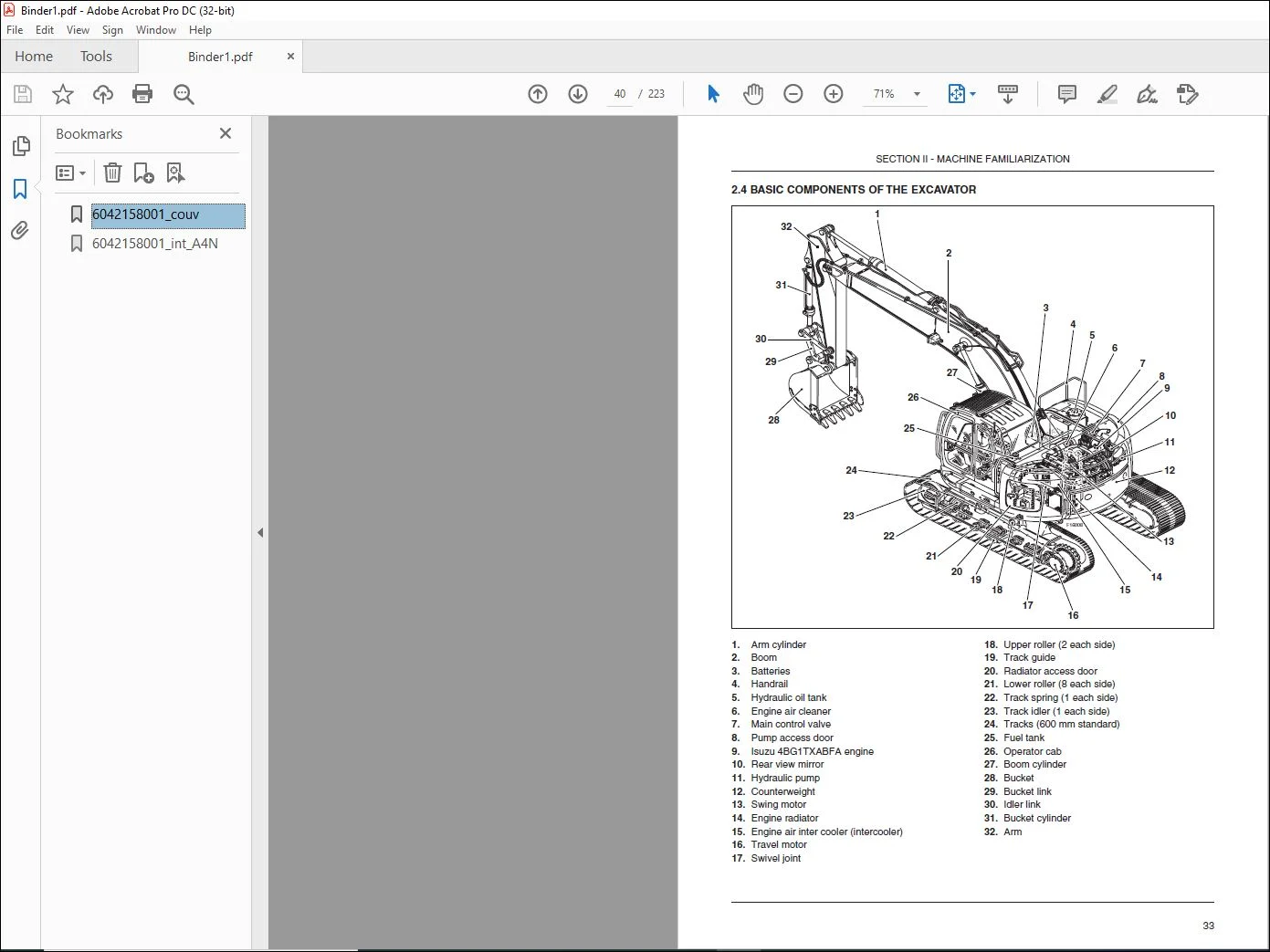

24 Basic components of the excavator 33
25 Operator cab nomenclature 34
26 Component & controls nomenclature 36
SECTION III
Basic machine operation 65
31 Pre-start check 66
32 Starting & stopping machine engine with temperature above 0°C (32°F) 66
33 Starting & stopping machine engine with temperature below 0°C (32°F) 67
34 Starting machine engine with booster cables 69
35 Machine warm up 71
36 Controls decal 72
37 Basic operation of hydraulic controls 73
38 Practices to improve efficiency 82
39 Flagman hand signals 86
SECTION IV
Maintenance 89
41 General information 90
42 General safety & precautions 91
43 Inspection and maintenance chart 95
44 Fluids and filters 97
45 Pre-start inspection & maintenance 99
46 50 hour & new machine break-in inspection & maintenance procedures 112
47 100 hour inspection & maintenance procedure 120
48 250 hour inspection & maintenance procedure 122
49 500 hour inspection & maintenance procedures 124
410 1000 hour inspection & maintenance procedures 128
411 2000 hour inspection & maintenance procedures 129
412 Miscellaneous 140
SECTION V
Transportation 145
51 Ground transportation 146
52 Lifting machine 149
53 Lifting machine (without attachment) 151
54 Shipping dimensions 152
SECTION VI
Specifications 155
61 General specifications 156
62 Specifications – optional attachments 177
63 Torque specifications 178
64 Miscellaneous information 181
SECTION VII
Troubleshooting 183
71 General troubleshooting 184
SECTION VIII
Optional equipment 191
81 Hydraulic breaker 192
82 Safety precautions 196
83 Maintenance for nibbler / breaker 198
84 Reinforcement of attachment 198
85 Extra & breaker 199
86 Dozer 201
SECTION IX
Special procedures 205
91 General 206
92 Releasing travel motor brakes 206
93 Lowering attachment when sudden engine failure occurs 210
94 Hydraulic tank pressure 211
95 Releasing swing brake 212
