New Holland E215B Tier III Crawler Excavator Service Repair Manual 87612178NA – PDF DOWNLOAD

Description

New Holland E215B Tier III Crawler Excavator Service Repair Manual 87612178NA

FILE DETAILS:

New Holland E215B Tier III Crawler Excavator Service Repair Manual 87612178NA

Language : English
Pages : 954
Downloadable : YES
Format : PDF
Part No: 87612178 NA

DESCRIPTION:

New Holland E215B Tier III Crawler Excavator Service Repair Manual

The service technician may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowl- edge of the system and or components is important be- fore the removal or disassembly of any component. Because of the size of some of the machine compo- nents. the technician should check the weights noted in this manual. Use proper lifting procedures when remov- ing any components. Weight of components table Is shown in the section; SPECIFICATIONS. The following is a list of basic precautions that must al- ways be observed.

• (1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
• (2) Always wear protective glasses and protective shoes when working around machines. In pedicular, wear protective glasses when using hammers. punches or drifts on any part of the machine or attachments. Use welders gloves. hoodlgoggles. apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fit- ting or torn clothing. Remove all rings from fingers. loose jewelry. confine long hair and loose clothing before working on this machinery.
• (3) Disconnect the battery and hang a “Do Not Oper- ate’ tag in the Operators Compartment. Remove ignition keys.
• (4) If possible. make all repairs with the machine parked on a frmt level surface. Block the machine so it does not roll while working on or under the ma- chine. Hang a “Do Not Operate” tag in the Opera- tors Compartment.
• (5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands. capable of supporting the machine. before performing any disassembly.
• (6) Relieve all pressure in air, all or water systems be- fore any Iines, fittings or related items are discon- nected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.
• (7) Lower the bucket. dozer. or other attachments to the ground before performing any work on the ma- chine. If this cannot be done. make sure the bucket. dozer. ripper or other attachment is blocked correct- ly to prevent it from dropping unexpectedly.
• (8) Use steps and grab handles when mounting or dis- mounting a machine. Clean any mud ordebris from steps, walkways or work platforms before using. Always face to the machine when using steps, lad- ders and walkways. When it is not possible to use the designed access system. provide ladders. awf- folds, or work platforms to perform safe repair oper- ations.
• (9) To avoid back Injury, use a hoist when llitlng com- ponents which weigh 20kg (45lbs) or more. Make sure all chains, hooks, slings, etc., are in good con- dition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lilting operation. (10)To avoid burns. be alert for hot parts on machines which have just been stopped and hot fluids in lines. tubes and compartments.
• (11 )Be careful when removing cover plates. Gradually back off the last two capscrews or nuts located at opposite ends of the cover or device and carefully pry cover loose to relieve any spring or other pres- sure. before removing the last two capscrews or nuts completely.
• (12)Be careful when removing filler caps. breathers and plugs on the machine. Hold a rag over the cap or plug to prevent being sprayed or splashed by liq- uids under pressure. The danger ls even greater If the machine has just been stopped because fluids can be hot.

TABLE OF CONTENTS:

New Holland E215B Tier III Crawler Excavator Service Repair Manual

E215B Table of Contents
......................  4
Safety
....................................... 12
Outline
...................................... 18
Specifications
............................... 26
Attachment Dimensions
........................ 40
Tools
........................................ 52
Stanard Maintenance Time Table
............... 72
Maintenance Standard and Test Procedure
...... 88
Mechatro Control System
......................118
Hydraulic System
.............................176
Electric System
..............................210
Components System
............................246
Air-Conditioner System
.......................366
Disassembling and Assembling
.................462
Attachment
 ..................................470
Upper Structure
..............................512
Travel System
................................676
Trouble Shooting (By Error Codes).............742
Trouble Shooting (By Symptom)
 ...............800
Trouble Shooting (Trouble Diagnosis Mode)
....836
Engine
.......................................844
Table of Contents
............................848
Diagnostics
..................................850
Engines Overhaul
.............................866
Recharging and Start-Up
......................948

NEW HOLLAND E215B TIER III CRAWLER EXCAVATOR SERVICE REPAIR MANUAL 87612178NA – PDF DOWNLOAD:

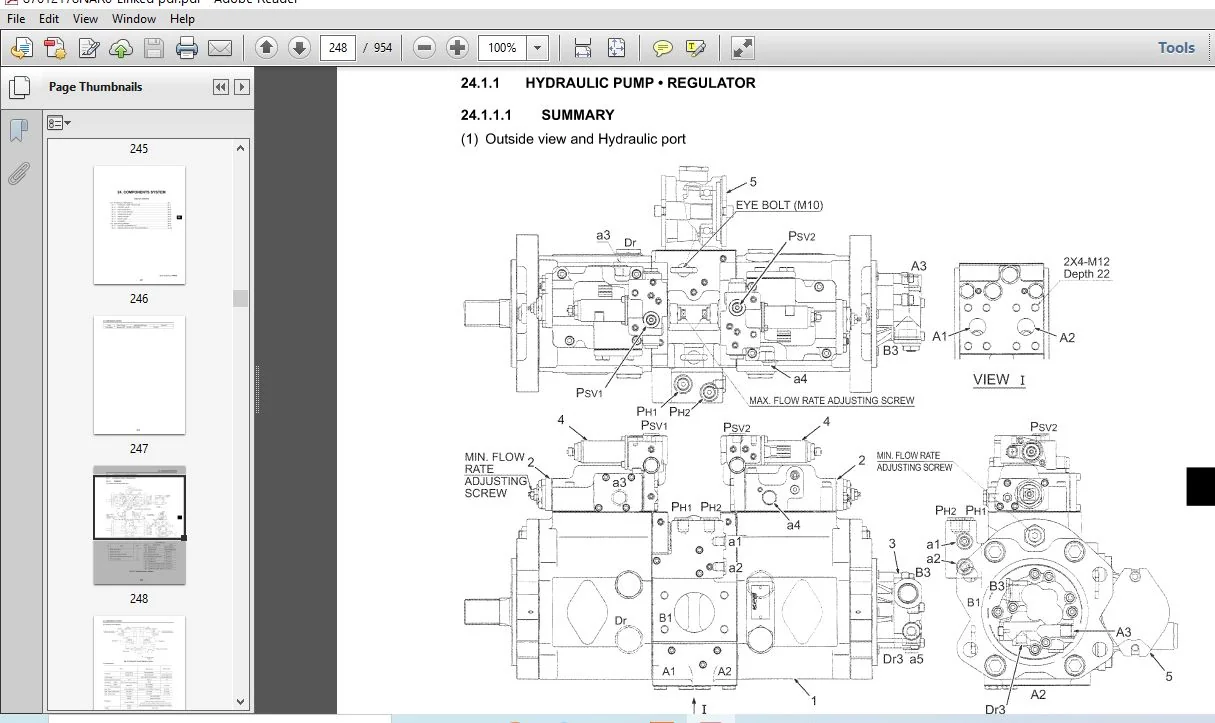

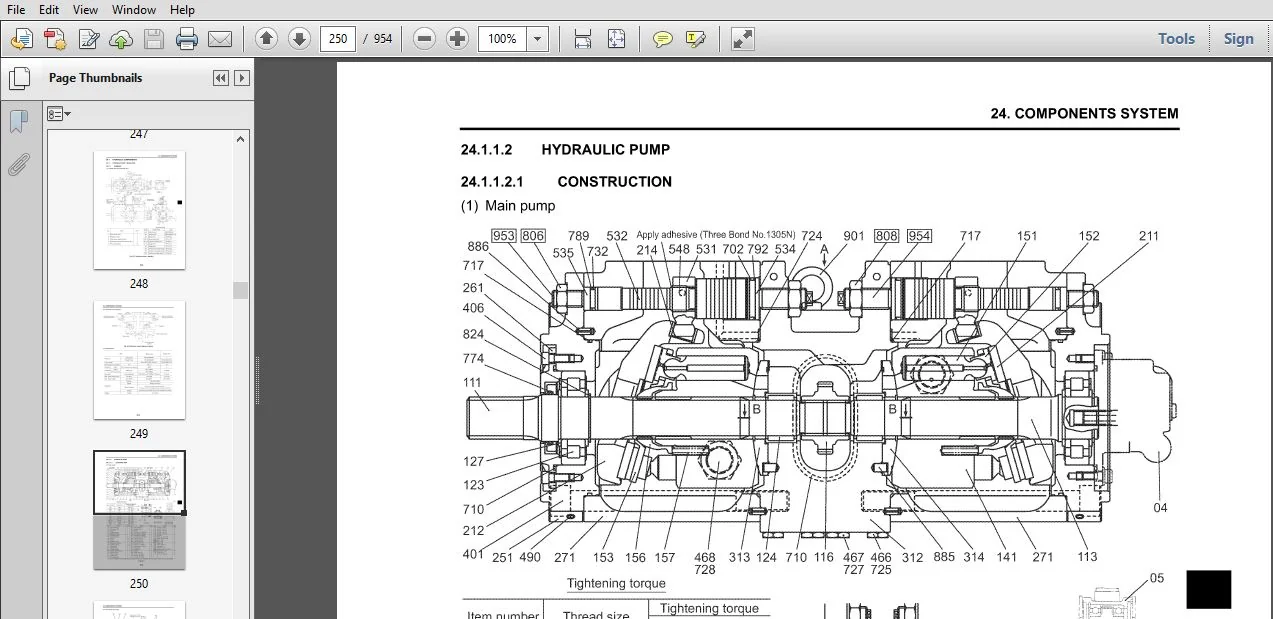

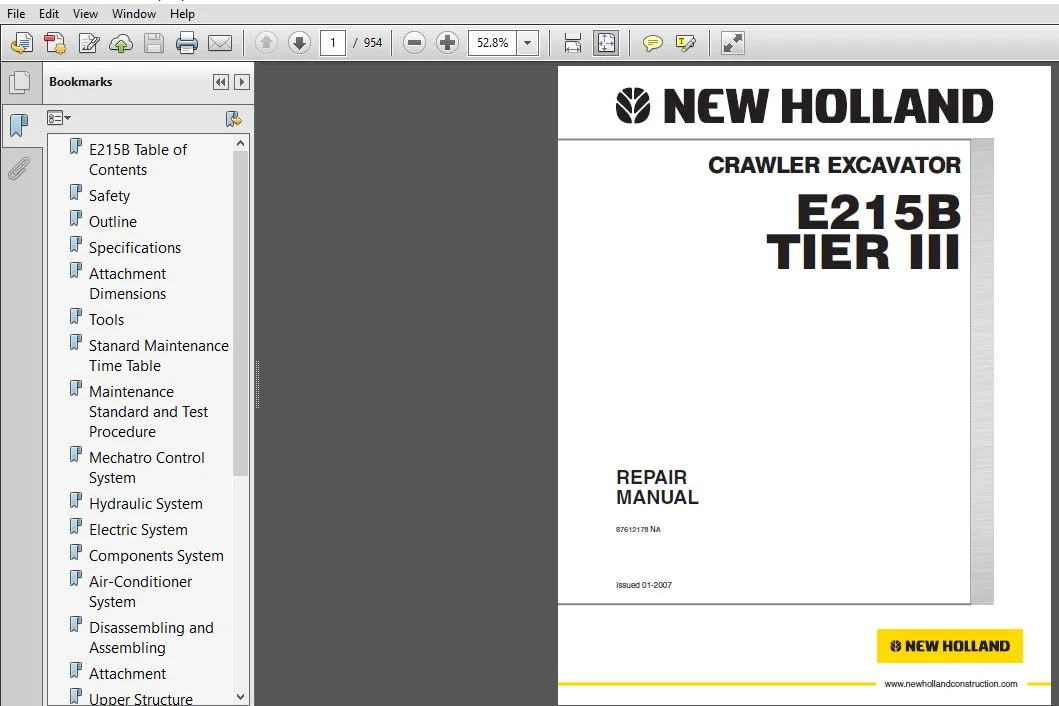

IMAGES PREVIEW OF THE MANUAL:
