New Holland E30B Compact Hydraulic Excavator Operator’s Manual S2PW00041ZE02 – PDF DOWNLOAD

Description

New Holland E30B Compact Hydraulic Excavator Operator’s Manual S2PW00041ZE02 – PDF DOWNLOAD

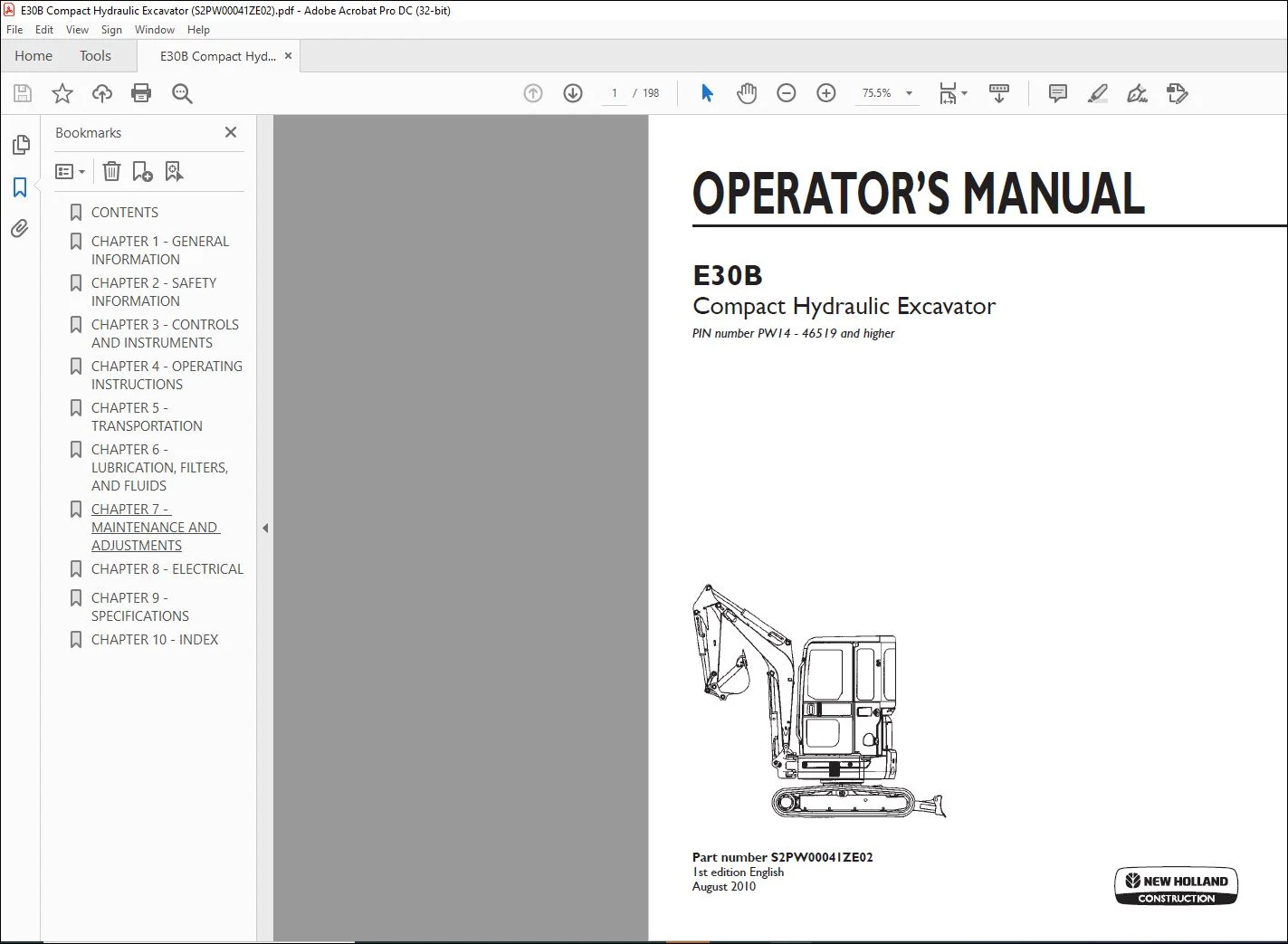

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E30B Compact Hydraulic Excavator Operator’s Manual S2PW00041ZE02 – PDF DOWNLOAD

PIN number PW14 – 46519 and higher

GENERAL INFORMATION:
TO THE OWNER:
E30B COMPACT HYDRAULIC EXCAVATOR

• This excavator, with standard equipment and authorized attachments, is intended to be used for below ground level
  digging and general earth moving purposes such as trenching, truck loading, material rehandling, and ditch
  cleaning. If the machine is to be used for lifting objects, make certain the machine is properly equipped and follow
  the instructions and safety precautions in this manual.
• DO NOT use this machine for any purpose or in any manner other than as described in the manual, decals, or
  other product safety information provided with the machine. These materials define the machine’s intended use.
  If this machine is to handle a load (pipes, culverts, formwork, etc.), make sure that it is equipped to carry out this
  kind of work. For this type of application, the machine must be equipped with safety valves, a load handling chart
  corresponding to the type of machine and its attachment and a load fixing point. All legal requirements must also
  be strictly observed.
• Do not use this machine for any application or purpose other than those described in this manual. If the machine is
  to be used for work involving the use of special attachments, accessories or equipment, consult your New Holland
  Construction, LLC Dealer in order to make sure that any adaptations or modifications made are in keeping with the
  machine’s technical specifications and with prevailing safety requirements.
• Read this manual carefully, paying particular attention to the instructions concerning safety, operation and
  maintenance to avoid the risk of injury while operating or servicing the machine.
• The machine must undergo regular inspections, the frequency of which varies according to the type of use. Consult
  your authorized New Holland Construction Dealer.
• Do not operate or permit anyone to operate or service this machine until you or the other persons have read and
  understand the safety, operation, and maintenance instructions in this manual. Use only trained operators who
  have demonstrated the ability to operate and service this machine correctly and safely. All persons who will be
  operating this machine shall possess a valid local vehicle operating permit and/or other applicable local age work
  permit.
• Always keep this manual in the operator’s compartment (in the seat back, behind the operator’s seat). Make sure it
  is complete and in good condition. If you wish to obtain extra copies, or copies in languages other than that of the
  country of use, consult your authorized New Holland Construction, LLC Dealer. Your New Holland Construction
  Dealer is available for any further information. They will also provide any after sales service you may need, and
  genuine New Holland spare parts, your guarantee of quality and match. Contact your dealer for operator manuals
  translated into Spanish or French Canadian.
• Any modification or adaptation which is not approved by the manufacturer may invalidate the machine’s initial
  conformity with safety requirements and warranty.
• The information in this manual is provided on the basis of information that was available at the time the manual was
  written. Settings, procedures, part numbers, software and other items can change. These changes can affect the
  service that is given to the machine. Ensure that you have complete and current information from your dealer
  before you start any machine operation.

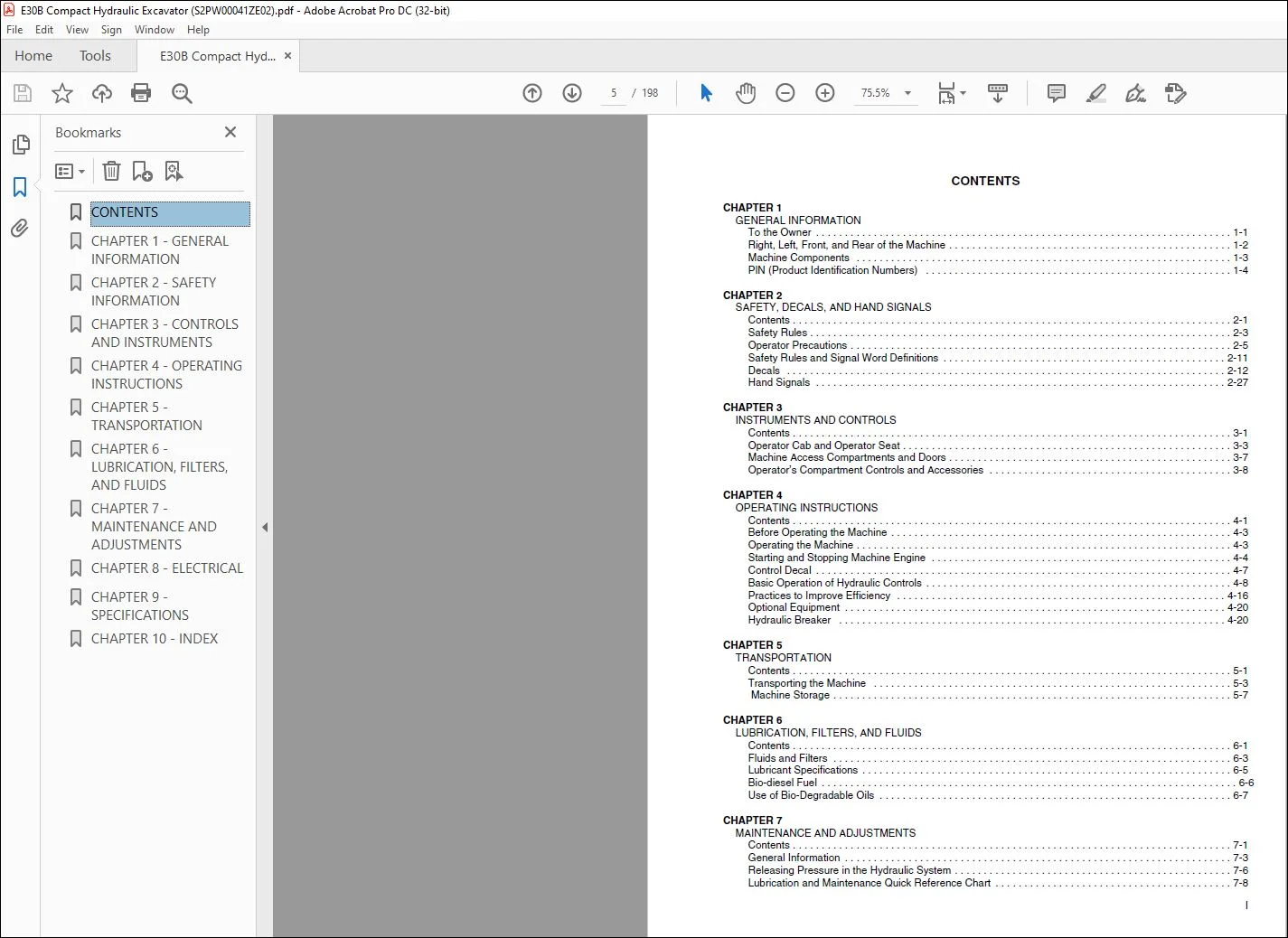

TABLE OF CONTENTS:

New Holland E30B Compact Hydraulic Excavator Operator’s Manual S2PW00041ZE02 – PDF DOWNLOAD

CHAPTER 1
GENERAL INFORMATION
To the Owner 1-1
Right, Left, Front, and Rear of the Machine 1-2

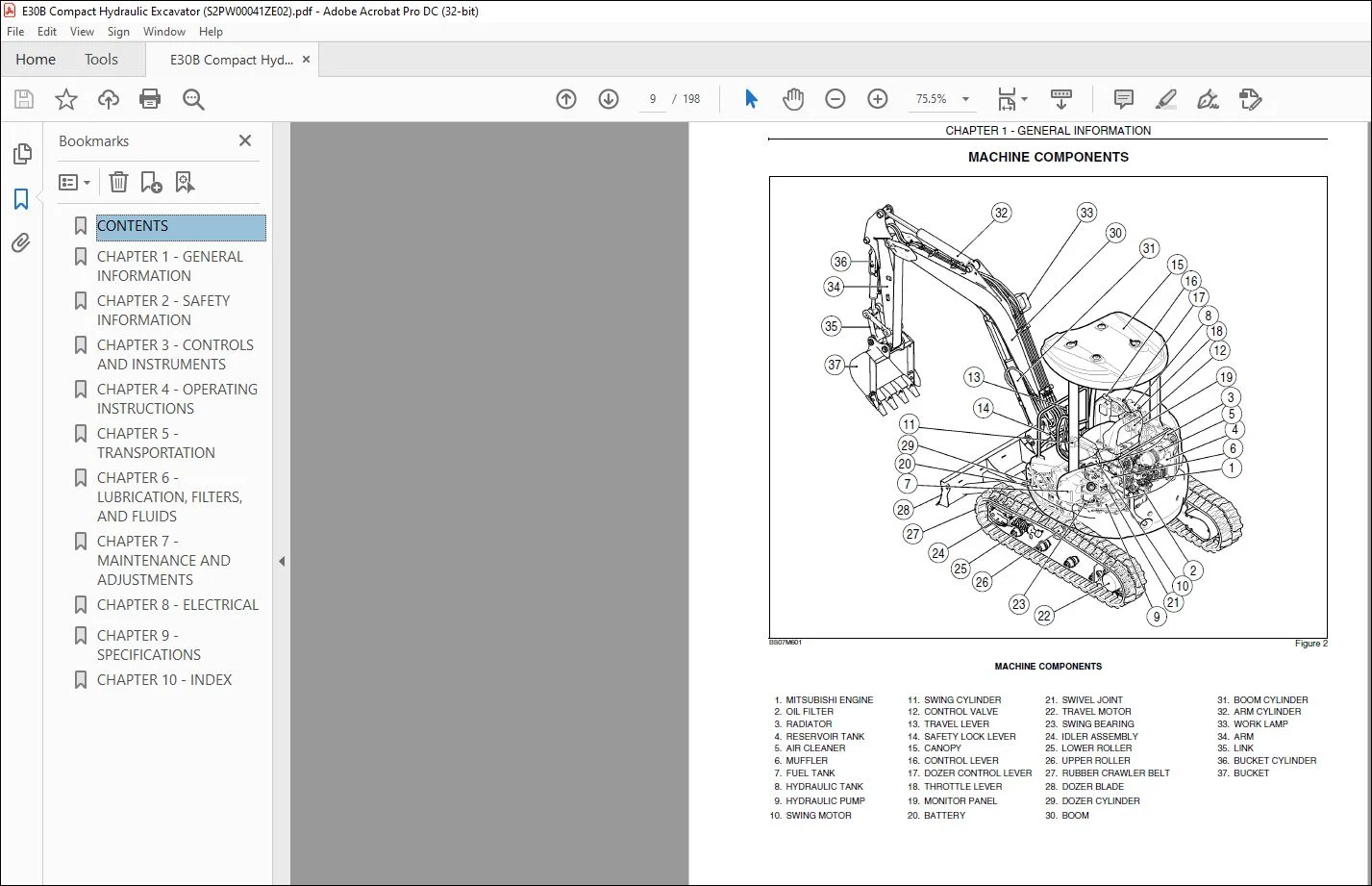

Machine Components 1-3
PIN (Product Identification Numbers) 1-4
CHAPTER 2
SAFETY, DECALS, AND HAND SIGNALS
Contents 2-1
Safety Rules 2-3
Operator Precautions 2-5
Safety Rules and Signal Word Definitions 2-11
Decals 2-12
Hand Signals 2-27
CHAPTER 3
INSTRUMENTS AND CONTROLS
Contents 3-1
Operator Cab and Operator Seat 3-3
Machine Access Compartments and Doors 3-7
Operator’s Compartment Controls and Accessories 3-8
CHAPTER 4
OPERATING INSTRUCTIONS
Contents 4-1
Before Operating the Machine 4-3
Operating the Machine 4-3
Starting and Stopping Machine Engine 4-4
Control Decal 4-7
Basic Operation of Hydraulic Controls 4-8
Practices to Improve Efficiency 4-16
Optional Equipment 4-20
Hydraulic Breaker 4-20
CHAPTER 5
TRANSPORTATION
Contents 5-1
Transporting the Machine 5-3
Machine Storage 5-7
CHAPTER 6
LUBRICATION, FILTERS, AND FLUIDS
Contents 6-1
Fluids and Filters 6-3
Lubricant Specifications 6-5
Bio-diesel Fuel 6-6
Use of Bio-Degradable Oils 6-7
CHAPTER 7
MAINTENANCE AND ADJUSTMENTS
Contents 7-1
General Information 7-3
Releasing Pressure in the Hydraulic System 7-6
Lubrication and Maintenance Quick Reference Chart 7-8
II
Daily Inspection and Maintenance 7-10
50 Hour Maintenance: 7-17
250 Hour Maintenance 7-25
500 Hour Maintenance 7-31
1000 Hour Maintenance 7-34
1500 Hour Maintenance 7-37
2000 Hour Maintenance 7-38
5000 Hour Maintenance 7-47
Special Procedures 7-48
CHAPTER 8
ELECTRICAL
Contents 8-1
Electrical Components 8-3
Batteries 8-4
Work Lamps 8-8
CHAPTER 9
SPECIFICATIONS
Contents 9-1
General Specifications 9-3
Canopy Type Machine Working Ranges 9-6
Cab Type Machine Working Ranges 9-7
Lift Capacities 9-8
Torque Specifications 9-11
CHAPTER 10
INDEX

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
