NEW HOLLAND E30B E35B Compact Hydraulic Excavator SERVICE MANUAL S5PW0033E02 – PDF DOWNLOAD
Original price was: $89.95.$37.95Current price is: $37.95.
NEW HOLLAND E30B E35B Compact Hydraulic Excavator SERVICE MANUAL
PART NUMBER: S5PW0033E02
E30B – PIN PW14-46519 – and higher
E35B – PIN PX15-21105 – and higher
Description
NEW HOLLAND E30B E35B Compact Hydraulic Excavator SERVICE MANUAL
FILE DETAILS:
NEW HOLLAND E30B E35B Compact Hydraulic Excavator SERVICE MANUAL
Size: 103 MB
Fomat: PDF
Language: English
Brand: NEW HOLLAND
Type of document: SERVICE Manual
Model: E30B / E35B
Part No: S5PW0033E02
Number of page: 951 pages
DESCRIPTION:
NEW HOLLAND E30B E35B Compact Hydraulic Excavator SERVICE MANUAL
SAMPLE PAGE FROM THE MANUAL:
- Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in the manual and on the machine should be read and understood by all personnel before starting any work with or on the machine. (
- Operation, inspection, and maintenance should be carefully carried out, and safety must be given the first priority. Messages of safety are indicated with marks. The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations. (3) Messages of safety appear in the manual and on the machine : All messages of safety are identified by either word of “DANGER”, “WARNING” and “CAUTION”. 1) DANGER- Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury and is represented as follows:
- WARNING- Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury and is represented as follows:
- CAUTION- Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against possible damage to the machine and its components and is represented as follows:
- It is very difficult to forecast every danger that may occur during operation. However, safety can be ensured by fully understanding proper operating procedures for this machine according to methods recommended by Manufacturer.
- While operating the machine, be sure to perform work with great care, so as not to damage the machine, or allow accidents to occur. (6) Continue studying the manual until all Safety, Operation and Maintenance procedures are completely understood by all persons working with the machine
NEW HOLLAND E30B E35B COMPACT HYDRAULIC EXCAVATOR SERVICE MANUAL S5PW0033E02 – PDF DOWNLOAD:

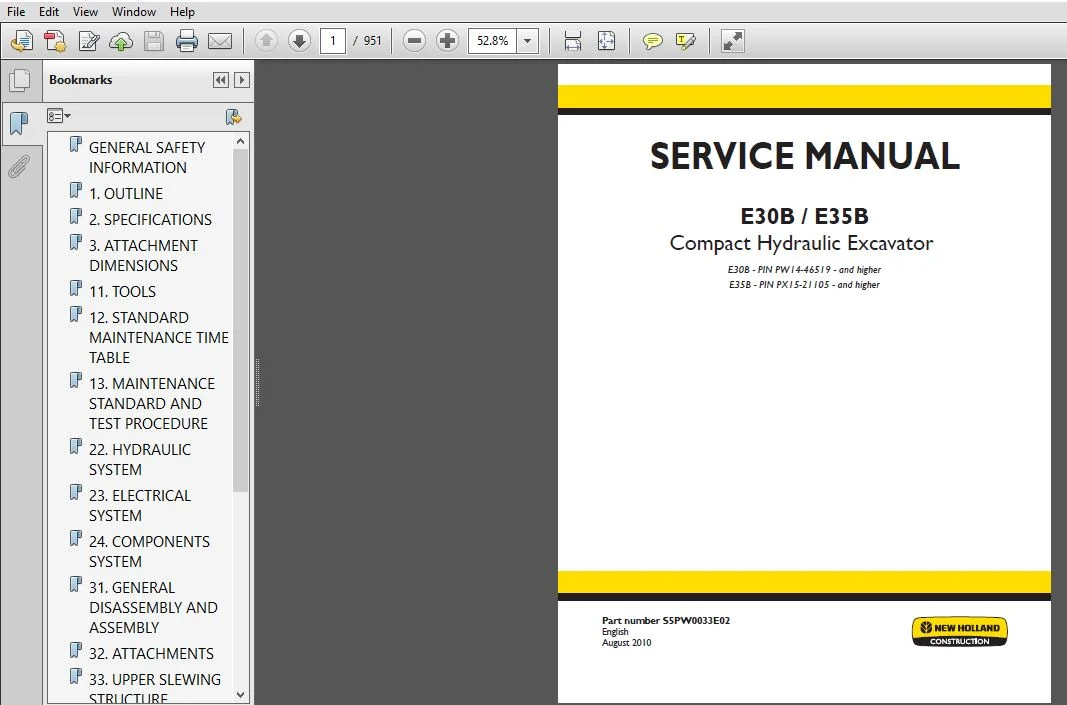

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
NEW HOLLAND E30B E35B Compact Hydraulic Excavator SERVICE MANUAL
GENERAL SAFETY INFORMATION 3
1 OUTLINE 8

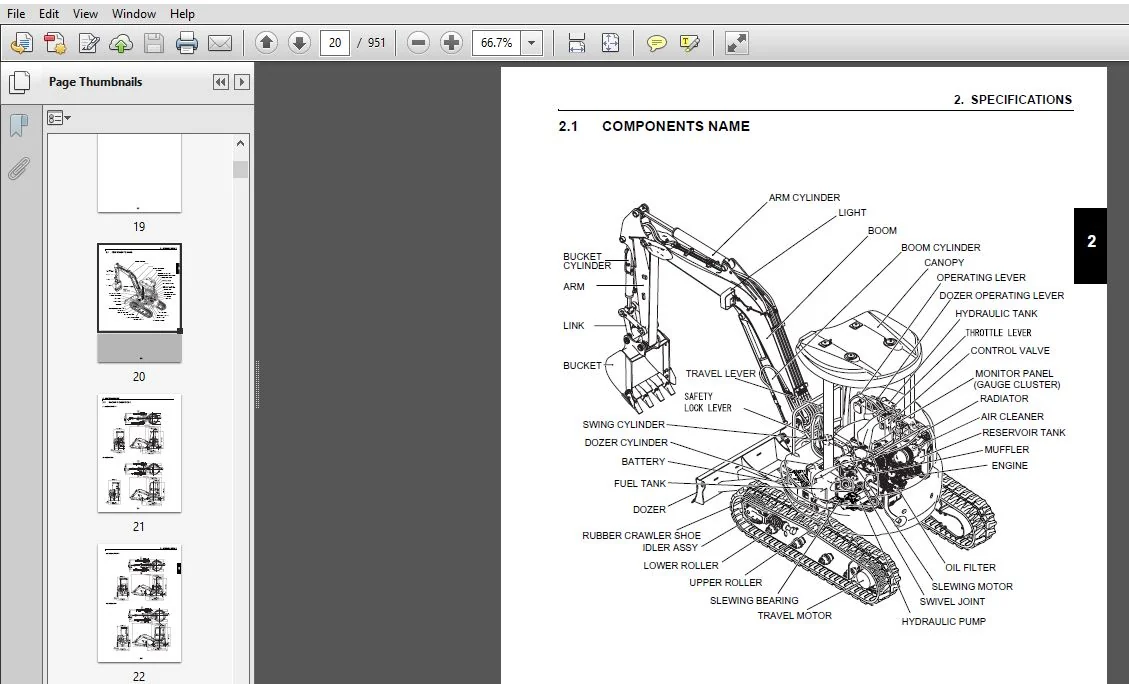

2 SPECIFICATIONS 18

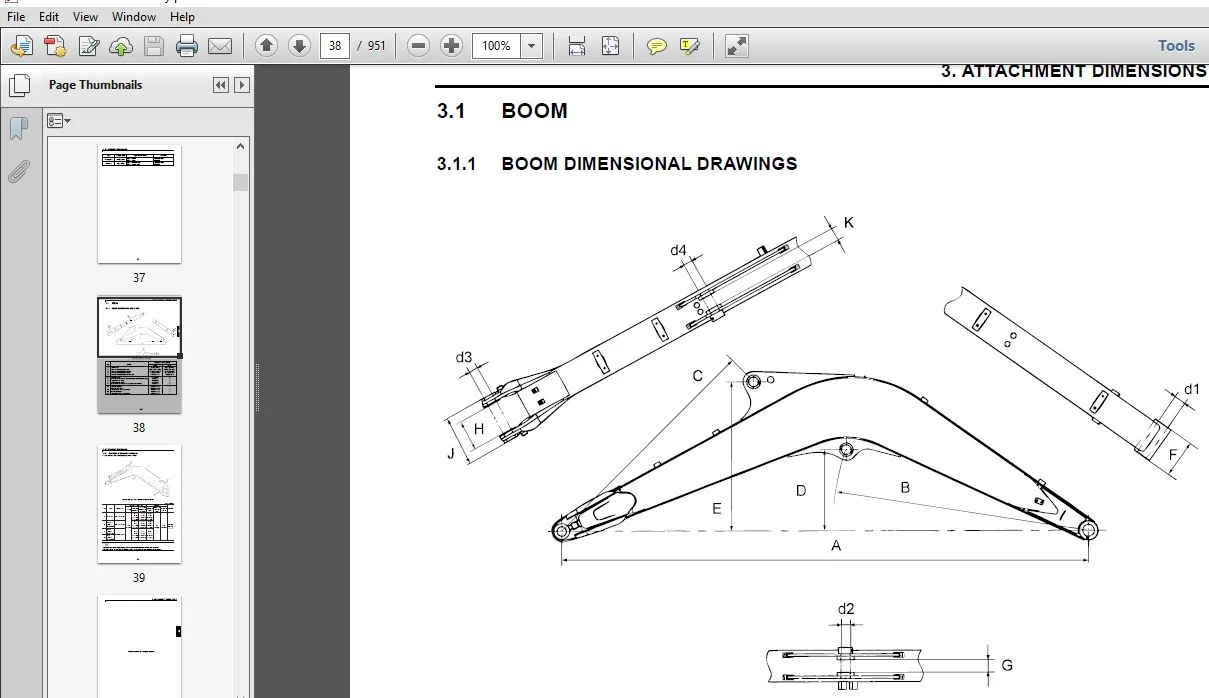

3 ATTACHMENT DIMENSIONS 36
11 TOOLS 60
12 STANDARD MAINTENANCE TIME TABLE 74
13 MAINTENANCE STANDARD AND TEST PROCEDURE 86
22 HYDRAULIC SYSTEM 108
23 ELECTRICAL SYSTEM 140
24 COMPONENTS SYSTEM 172
31 GENERAL DISASSEMBLY AND ASSEMBLY 266
32 ATTACHMENTS 270
33 UPPER SLEWING STRUCTURE 300
34 TRAVEL SYSTEM 438
42 TROUBLESHOOTING (HYDRAULIC SYSTEM) 522
43 TROUBLESHOOTING (ELECTRICAL SYSTEM) 534
44 TROUBLESHOOTING (ENGINE) 546
51 ENGINE 558
PLEASE NOTE:
⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
