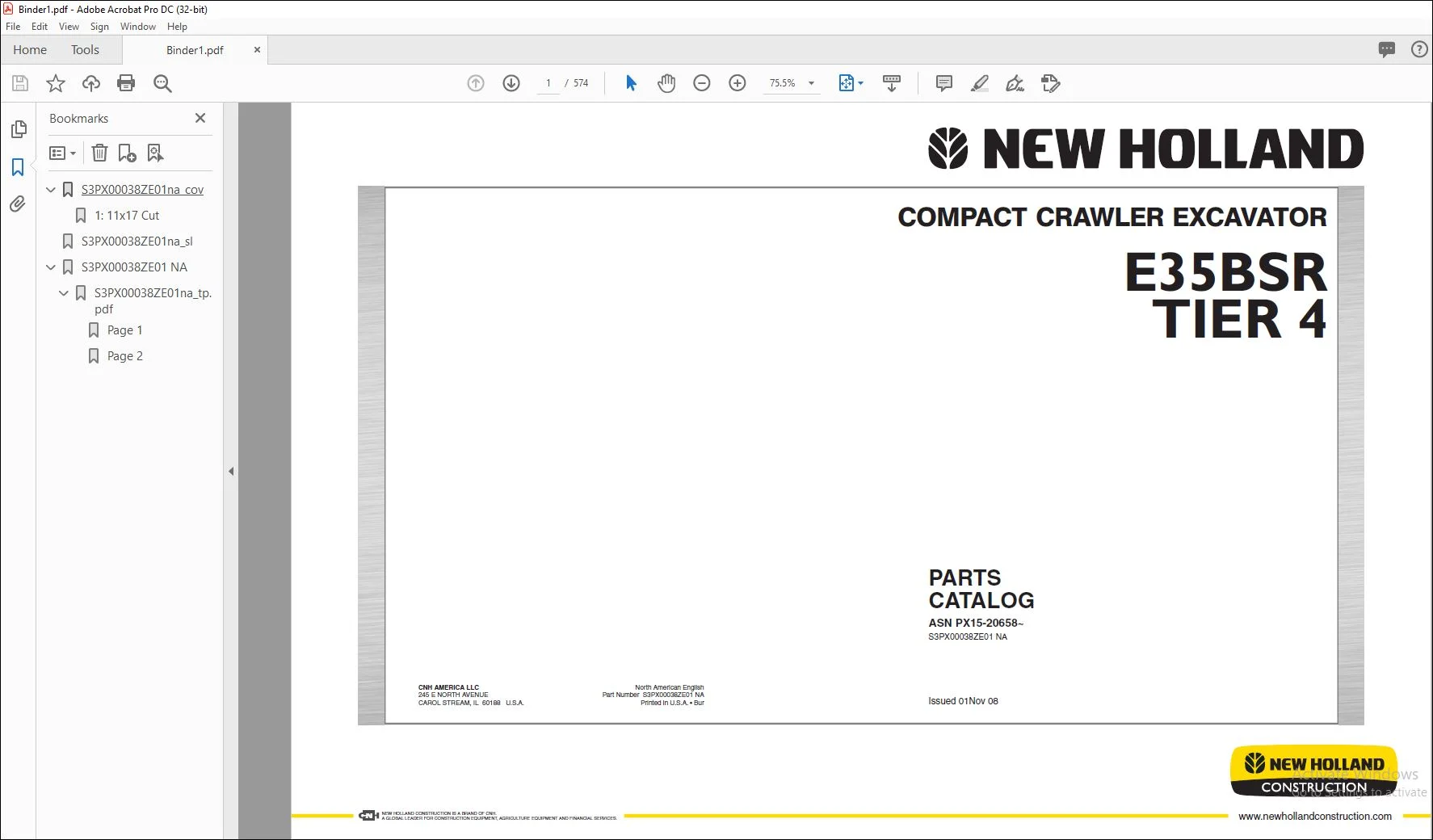

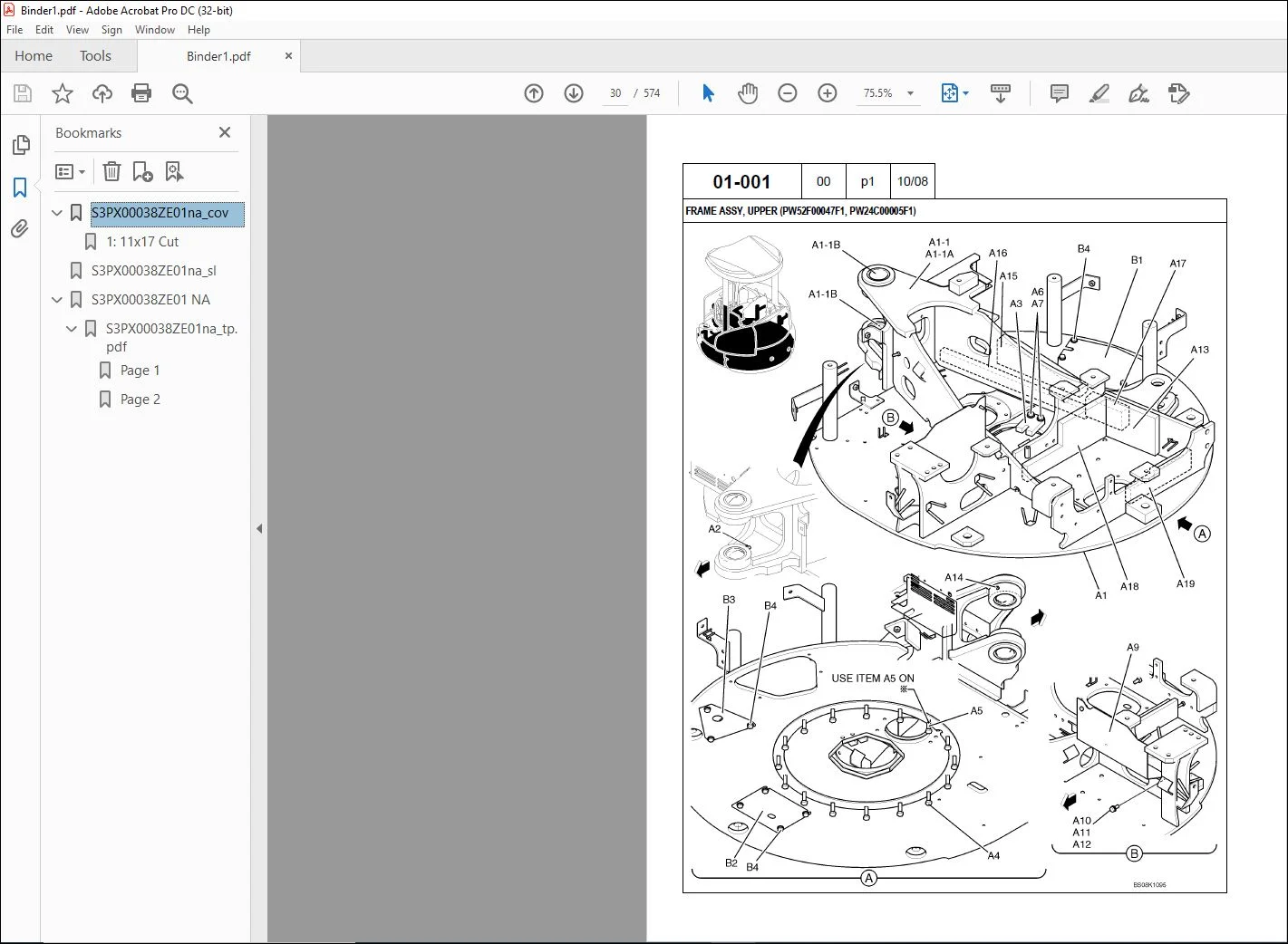

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E35BSR TIER 4 Compact Crawler Excavator Parts Catalog Manual S3PX00038ZE01 – PDF DOWNLOAD

GENERAL INFORMATION
PROPRIETARY NOTICE:
The contents of this manual are proprietary data of this company. Reproduction or use of any part for other than the operation and maintenance of our equipment is permissible only if expressly authorized in writing. Additional copies may be obtained from your dealer. Address requests for copies to your Dealer and refer to the publication part number appearing on the bottom of the rear catalog cover or on the title page.
COMPANY POLICY:
Company policy, which is one of continuous improvement, reserves the right to change prices and to make changes in design and specification at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condit ion. For exact information about any particular machine please consult your dealer.
PARTS AND ACCESSORIES:
Genuine parts and accessories have been specifically designed for these machines. We would like to point out that “non-genuine”  parts and accessories have NOT been examined and released by the Company. The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety. The company is not liable for any damage caused by the use of “non-genuine” parts and accessories.

HOW TO USE YOUR PARTS CATALOG:
1. Figure Number
2. Sequence Code within the Figure Number
3. Page Number within the Sequence Code
4. Date of Printing (month / year)
5. Figure Description
6. General information regarding the figure
7. Parts supplied in repair kits per symbol reference
8. Figure call-out of the part number (REF)
9. Technical specifications relating to the part indicated
10. Figure call-out includes bracketed items, the included items may also be listed in the additional description
area
11. Orientation – Arrow indicates front of the machine
12. Footnote – Additional information relating to the part number. In this example, 08-20 equals another figure that
this part is shown on
13. Part Number
NSS = Not Serviced Separately (Non-serviced parts)
Bracketed numbers = not available as service parts in this market
14. Not Available as service part in this market
15. YR/SN
Year
Before 01/85 = Part valid for production January 1985 and before
From 01/85 = Part valid for production from January 1985 and after
BTW 01/85 & 02/02 = Part valid for machines produced between January 1985 and February 2002.
Serial Number (P.I.N.)
BSN JJC0268800 = Part valid for serial number JJC0268800 and below
ASN JJC0268800 = Part valid for serial number JJC0268800 and above
BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000
16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications:
AR = As Required
X = As required
17. Part Description
18. Additional description of the part to help confirm identification
19. Figure Notes
20. Model Number(s)

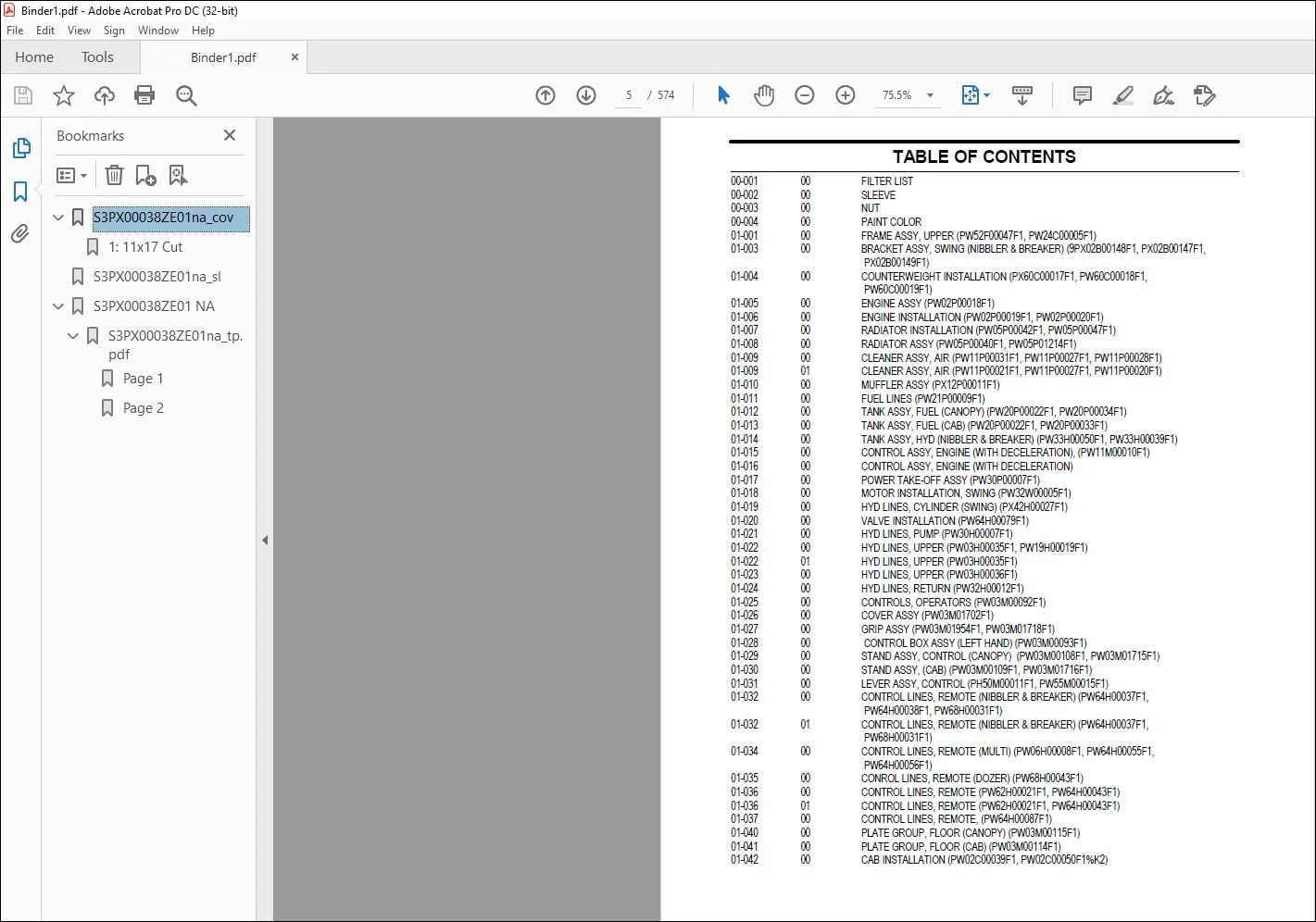

TABLE OF CONTENTS:

New Holland E35BSR TIER 4 Compact Crawler Excavator Parts Catalog Manual S3PX00038ZE01 – PDF DOWNLOAD

00-001 00 FILTER LIST
00-002 00 SLEEVE
00-003 00 NUT
00-004 00 PAINT COLOR
01-001 00 FRAME ASSY, UPPER (PW52F00047F1, PW24C00005F1)
01-003 00 BRACKET ASSY, SWING (NIBBLER & BREAKER) (9PX02B00148F1, PX02B00147F1,
PX02B00149F1)
01-004 00 COUNTERWEIGHT INSTALLATION (PX60C00017F1, PW60C00018F1,
PW60C00019F1)
01-005 00 ENGINE ASSY (PW02P00018F1)
01-006 00 ENGINE INSTALLATION (PW02P00019F1, PW02P00020F1)
01-007 00 RADIATOR INSTALLATION (PW05P00042F1, PW05P00047F1)
01-008 00 RADIATOR ASSY (PW05P00040F1, PW05P01214F1)
01-009 00 CLEANER ASSY, AIR (PW11P00031F1, PW11P00027F1, PW11P00028F1)
01-009 01 CLEANER ASSY, AIR (PW11P00021F1, PW11P00027F1, PW11P00020F1)
01-010 00 MUFFLER ASSY (PX12P00011F1)
01-011 00 FUEL LINES (PW21P00009F1)
01-012 00 TANK ASSY, FUEL (CANOPY) (PW20P00022F1, PW20P00034F1)
01-013 00 TANK ASSY, FUEL (CAB) (PW20P00022F1, PW20P00033F1)
01-014 00 TANK ASSY, HYD (NIBBLER & BREAKER) (PW33H00050F1, PW33H00039F1)
01-015 00 CONTROL ASSY, ENGINE (WITH DECELERATION), (PW11M00010F1)
01-016 00 CONTROL ASSY, ENGINE (WITH DECELERATION)
01-017 00 POWER TAKE-OFF ASSY (PW30P00007F1)
01-018 00 MOTOR INSTALLATION, SWING (PW32W00005F1)
01-019 00 HYD LINES, CYLINDER (SWING) (PX42H00027F1)
01-020 00 VALVE INSTALLATION (PW64H00079F1)
01-021 00 HYD LINES, PUMP (PW30H00007F1)
01-022 00 HYD LINES, UPPER (PW03H00035F1, PW19H00019F1)
01-022 01 HYD LINES, UPPER (PW03H00035F1)
01-023 00 HYD LINES, UPPER (PW03H00036F1)
01-024 00 HYD LINES, RETURN (PW32H00012F1)
01-025 00 CONTROLS, OPERATORS (PW03M00092F1)
01-026 00 COVER ASSY (PW03M01702F1)
01-027 00 GRIP ASSY (PW03M01954F1, PW03M01718F1)
01-028 00 CONTROL BOX ASSY (LEFT HAND) (PW03M00093F1)
01-029 00 STAND ASSY, CONTROL (CANOPY) (PW03M00108F1, PW03M01715F1)
01-030 00 STAND ASSY, (CAB) (PW03M00109F1, PW03M01716F1)
01-031 00 LEVER ASSY, CONTROL (PH50M00011F1, PW55M00015F1)
01-032 00 CONTROL LINES, REMOTE (NIBBLER & BREAKER) (PW64H00037F1,
PW64H00038F1, PW68H00031F1)
01-032 01 CONTROL LINES, REMOTE (NIBBLER & BREAKER) (PW64H00037F1,
PW68H00031F1)
01-034 00 CONTROL LINES, REMOTE (MULTI) (PW06H00008F1, PW64H00055F1,
PW64H00056F1)
01-035 00 CONROL LINES, REMOTE (DOZER) (PW68H00043F1)
01-036 00 CONTROL LINES, REMOTE (PW62H00021F1, PW64H00043F1)
01-036 01 CONTROL LINES, REMOTE (PW62H00021F1, PW64H00043F1)
01-037 00 CONTROL LINES, REMOTE, (PW64H00087F1)
01-040 00 PLATE GROUP, FLOOR (CANOPY) (PW03M00115F1)
01-041 00 PLATE GROUP, FLOOR (CAB) (PW03M00114F1)
01-042 00 CAB INSTALLATION (PW02C00039F1, PW02C00050F1%K2)
TABLE OF CONTENTS
01-043 00 CAB INSTALLATION (PW02C00024F1)
01-044 00 CAB ASSY, (PW02C00050F1%K2, PW02C00060F1%K2)
01-045 00 CAB ASSY, (PW02C00068F1)
01-045 01 CAB ASSY, (PW02C00068F1)
01-045 02 CAB ASSY, (PW02C00068F1)
01-045 03 CAB ASSY, (PW02C00068F1)
01-045 04 CAB ASSY, (PW02C00068F1)
01-049 00 GUARD ASSY, HEAD (PW25C00003F1)
01-050 00 WINDOW ASSY, FRAME (PW50C00002F1)
01-051 00 DOOR ASSY, CAB (PM51C00006F1%LD)
01-053 00 CANOPY ASSY (PW06C00036F1, PW80E00006F1, PW22T00169F1)
01-054 00 CANOPY INSTALLATION (PW06C00027F1)
01-056 00 LIGHT INSTALLATION (CAB) (PW80E00007F1)
01-057 00 LIGHT ASSY, (PW80S00003F1)
01-058 00 LIGHT ASSY, (PW80S00004F1)
01-059 00 LIGHT ASSY, (PM80S00008F1)
01-060 00 SEAT INSTALLATION (PW25M00029F1)
01-061 00 GUARD INSTALLATION (CANOPY) (PW21C00032F1)
01-061 01 GUARD INSTALLATION (CANOPY) (PW21C00032F1)
01-062 00 GUARD INSTALLATION (CANOPY) (PW21C00027F1)
01-063 00 GUARD INSTALLATION (CANOPY)
01-064 00 GUARD INSTALLATION (CANOPY) (PW22C01151F1)
01-065 00 GUARD INSTALLATION (CAB) (PW21C00033F1)
01-066 00 GUARD INSTALLATION (CAB) (PW21C00033F1)
01-067 00 GUARD INSTALLATION (CAB) (PW21C00027F1)
01-068 00 GUARD INSTALLATION (CAB)
01-069 00 GUARD INSTALLATION (CAB) (PW22C01151F1)
01-070 00 KEY ASSY (PW03M01869F1)
01-071 00 GUAGE ASSY, CLUSTER (PH59S00005F1)
01-072 00 BATTERY INSTALLATION (PW72E00011F1)
01-073 00 HEATER ASSY (WITH HEATER) (PW21M00013F1)
01-074 00 HEATER ASSY (WITHOUT HEATER) (PW21M00012F1)
01-075 00 ELEC ASSY, UPPER (PX03E00002F1)
01-076 00 HARNESS ASSY, CAB (PW14E00002F1)
01-077 00 HARNESS ASSY (AIR CLEANER) (PW11E00013F1)
01-078 00 HARNESS ASSY (PH11E00021F1)
01-078 01 HARNESS ASSY (PH11E00021F1)
01-079 00 HARNESS ASSY, ENGINE (PW16E00005F1)
01-080 00 RELAY ASSY (PX24E00007F1)
02-001 00 LOW GROUP (PX01F00008F1, PX53D00010F1, PW19H00023F1)
02-002 00 RING ASSY, SLEWING (PW40F00006F1)
02-003 00 IDLER ASSY, CRAWLER (PX52D00032F1)
02-004 00 IDLER ASSY, CRAWLER (PX52D00033F1)
02-005 00 IDLER ASSY (PX52D00034F1)
02-006 00 IDLER ADJUST ASSY (PX54D00011F1)
02-007 00 ROLLER ASSY, TRACK (PX64D00010F1)
02-008 00 ROLLER ASSY, UPP (PW64D00008F1)
02-009 00 SHOE ASSY. (PX60D00019F1, PX60D00021F2)
02-010 00 SHOE ASSY (PX61D00018F1)
02-011 00 HYD LINES, LOW (PX02H00007F1, PW19H00012F1, PW13H00001F1)
02-012 00 DOZER ASSY (PX51B00078F1, PX51B00071F1, PW51B00028F1, PX51B00072F1)
TABLE OF CONTENTS
03-001 00 BOOM ASSY, STD 2.5M (8FT 2IN) (PX02B00142F1, PX02B00168F1, PX02B00161F1)
03-002 00 HYD LINES, BOOM 2.5M (8FT 2IN) (PX42H00053F1, PX42H00056F1, PX42H00057F1)
03-003 00 HYD LINES, BOOM 2.5M (8FT 2IN) (NIBBLER & BREAKER) (PX42H00068F1,
PX43H00017F1)
03-004 00 CYLINDER INSTAL (CANOPY) (PX02B00146F1, PX02B00141F1)
03-005 00 CYLINDER INSTAL (CAB) (PX02B00145F1, PX02B00141F1)
03-006 00 LIGHT INSTAL (BOOM) (PW80E00012F1, PW15E00005F1)
03-007 00 ARM ASSY, STD 1.32M (4FT 4IN) (PX12B00092F1, PX12B00120F1)
03-008 00 HYD LINES, ARM 1.32M (4FT 4IN) (PX43H00025F1, PX12B00108F1, PX43H00024F1,
PX43H01011F1, PX43H01021F1)
03-009 00 BUCKET INSTAL (PX61B00072F1)
04-001 00 TOOL & ACCESSORY (PM01T00002FA)
04-002 00 MANUAL ASSY (PX91Z00011FE)
05-002 00 ENGINE INSTAL (COOLER) (PW02P00021F1, PW02P00022F1)
05-003 00 RADIATOR INSTAL (COOLER) (PW05P00042F1, PW05P00048F1)
05-004 00 RADIATOR ASSY (COOLER) (PW05P00040F1, PW05P01217F1)
05-005 00 FUEL LINES (COOLER) (PW21P00011F1)
05-006 00 POWER TAKE-OFF ASSY (COOLER) (PW30P00006F1)
05-007 00 CONTROL LINES, REMOTE (COOLER) (PW64H00047F1)
05-008 00 CONTROL LINES, REMOTE (COOLER) (PW64H00047F1)
05-009 00 CONTROL LINES, REMOTE (WITH A PUMP Z PORT) (PW62H00029F1,
PW64H00069F1)
05-010 00 CONTROL LINES, REMOTE (WITH A PUMP Z PORT) (PW62H00069F1)
05-012 00 CAB INSTAL (COOLER) (PW02C00073F1, PW02C00060F1%K2)
05-013 00 CAB INSTAL (COOLER) (PW02C00041F1)
05-014 00 CAB ASSY (COOLER) (PW02C00069F1)
05-015 00 CAB ASSY (COOLER) (PW02C00069F1, PW50C00002F1)
05-016 00 CAB ASSY (COOLER) (PW02C00069F1)
05-017 00 CAB ASSY (COOLER) (PW02C00069F1)
05-018 00 CAB ASSY (COOLER) (PW02C00069F1)
05-019 00 RADIO INSTAL (WITHOUT RADIO) (PM54E00003F2)
05-020 00 STOPPER ASSY (COOLER) (PW25M01067F1)
05-021 00 GUARD INSTAL (COOLER) (PW21C00034F1, PW22C00022F1)
05-022 00 GUARD INSTAL (COOLER) (PW21C00034F1)
05-023 00 GUARD INSTAL (COOLER) (PW21C00034F1, PW21C00027F1)
05-024 00 GUARD INSTAL (COOLER) (PW21C00034F1)
05-025 00 GUARD INSTAL (COOLER) (PW21C00034F1, PW22C01151F1)
05-026 00 COOLER ASSY (PW20M00028F1, PW20M00025F1)
05-027 00 COOLER ASSY (PW20M00022F1)
05-028 00 DRIER ASSY, AIR (PW96V00005F1)
05-029 00 COOLER ASSY (PH20M00016F1)
05-030 00 COOLER ASSY (PH20M00019F1)
05-031 00 HARNESS ASSY (COOLER) (PH11E00012F1)
06-001 00 NAME PLATE INSTALLATION (PW22T00083F2), PAGE 1 OF 2
06-001 01 NAME PLATE INSTALLATION (PW22T00083F2), PAGE 2 OF 2
06-002 00 NAME PLATE INSTALLATION (PW22T00123F1)
06-005 00 NAME PLATE INSTALLATION (PW22T00185F1)
06-006 00 NAME PLATE INSTALLATION (DECEL) (PW22T00113F1)
06-007 00 NAME PLATE INSTALLATION (PW22T00183F1)
06-008 00 NAME PLATE INSTALLATION (PW22T00182F1)
06-009 00 NAME PLATE INSTALLATION (CEMA MARK) (YN22T00288F1)
TABLE OF CONTENTS
06-010 00 NAME PLATE INSTALLATION (CAB) (PW22T00085F1)
06-011 00 NAME PLATE INSTALLATION (PW22T00156F2)
06-012 00 NAME PLATE INSTALLATION (PH22T00094F1)
06-013 00 NAME PLATE INSTALLATION (MODEL) (PX22T00112F1)
06-014 00 NAME PLATE INSTALLATION (PW22T00170F2)
06-015 00 NAME PLATE INSTALLATION (PW22T00172F1)
06-016 00 NAME PLATE INSTALLATION (NIBBLER & BREAKER) (PW22T00087F1,
PW22T00087F2)
06-017 00 NAME PLATE INSTALLATION(ATTACHMENT) (PW22T00166F2)
06-018 00 NAME PLATE INSTALLATION (CANOPY) (PX22T00085F3)
06-019 00 NAME PLATE INSTALLATION (CAB) (PX22T00086F3)
07-001 00 VALVE ASSY, CONTROL (PX30V00041F1, PX30V00041F2, PX30V00041F3)
07-002 00 VALVE ASSY, SHUTTLE (PH26V00001F1)
07-003 00 VALVE ASSY CONTROL (DOZER) (PX30V00048F1)
07-004 00 VALVE ASSY, CONTROL (SLEWING) (PX30V00049F1, PX30V00049F2,
PX30V00049F3)
07-005 00 VALVE ASSY, CONTROL (SUPPLY & STRAIGHT TRAVEL) (PX30V00050F1)
07-006 00 VALVE ASSY, CONTROL (ARM) (PX30V00051F1, PX30V00051F2)
07-007 00 VALVE ASSY, CONTROL (SERVICE) (PX30V00052F1)
07-008 00 VALE ASSY, CONTROL (BOOM SWING) (PX30V00053F1)
07-009 00 VALVE ASSY, CONTROL (TRAVEL RIGHT) (PX30V00054F1, PX30V00054F2)
07-010 00 VALVE ASSY, CONTROL (SUPPLY) (PX30V00055F1)
07-011 00 VALVE ASSY, CONTROL (TRAVEL LEFT) (PX30V00056F1, PX30V00056F2)
07-012 00 VALVE ASSY, CONTROL (BOOM) (PX30V00057F1, PX30V00057F2)
07-013 00 VALVE ASSY, CONTROL (BOOM LOCK) (PM30V01026F1)
07-014 00 VALVE ASSY, CONTROL (BUCKET) (PX30V00058F1, PX30V00058F2)
07-015 00 VALVE ASSY, OVERLOAD RELIEF (PM22V00005F1 – FG)
07-016 00 VALVE ASSY, RELIEF (PR22V00004F1-FA)
07-017 00 VALVE ASSY, RELIEF (PX22V00004F1, PX22V00004F2)
07-018 00 MOTOR ASSY (SWING) (PX15V00024F1)
07-019 00 MOTOR ASSY (SWING) (PX15V00024F1)
07-020 00 PLUG ASSY (PH50T00001F1)
07-021 00 VALVE ASSY, RELIEF (PX22V00003F1)
07-022 00 MOTOR ASSY (PROPELLING) (PX15V00025F1)
07-023 00 MOTOR ASSY (PROPELLING) (PX15V00025F1)
07-024 00 PUMP ASSY (PX10V00013F1)
07-025 00 SHAFT ASSY (PX10V01004F1)
07-026 00 BLOCK ASSY (PX10V01005F1)
07-027 00 ROTARY ASSY (PX10V01006F1)
07-028 00 COVER ASSY (PX10V01007F1)
07-029 00 SPRING ASSY (PX10V01008F1)
07-030 00 PUMP ASSY (PX10V00015F1)
07-031 00 HOUSING ASSY (PX10V01010F1)
07-032 00 PUMP ASSY, GEAR (PX10V00014F1)
07-033 00 PUMP ASSY (PX10V00012F1)
07-034 00 HOUSING ASSY (PX10V01009F1)
07-035 00 CYLINDER ASSY, BOOM (CANOPY) (PX01V00062F1)
07-036 00 CYLINDER ASSY, BOOM (CAB) (PX01V00065F1)
07-037 00 CYLINDER ASSY, ARM (PX01V00063F1)
07-038 00 CYLINDER ASSY, BUCKET (PX01V00064F1)
07-039 00 CYLINDER ASSY, DOZER (PX01V00043F1 & F2)
TABLE OF CONTENTS
07-040 00 CYLINDER ASSY, SWING (PX01V00042F1, F2)
07-041 00 VALVE ASSY, PILOT, (PX30V00043F1)
07-042 00 VALVE ASSY, PILOT (PB30V00002F1, F2)
07-043 00 VALVE ASSY, PILOT (PROPELLING) (PM30V00019F6)
07-044 00 VALVE ASSY, SOLENOID (PX35V00003F1)
07-045 00 VALVE ASSY, RELIEF (YR22V00001F1)
07-046 00 VALVE ASSY, SOLENOID (PW35V00002F1)
07-047 00 VALVE ASSY, SOLENOID (YJ35V00004F1, F2)
07-048 00 VALVE ASSY, SELECTOR (PX30V00060F1)
07-049 00 JOINT ASSY, SWIVEL (PW55V00015F1, F2)
08-001 00 CYLINDER BLOCK
08-002 00 GEAR HOUSING
08-003 00 FLYWHEEL HOUSING & OIL SMUP
08-004 00 CYLINDER HEAD & BONNET
08-005 00 SUCTION MANIFOLD
08-006 00 EXHAUST MANIFOLD
08-007 00 CAMSHAFT & DRIVING GEAR
08-008 00 CRANK SHAFT & PISTON
08-009 00 LUB, OIL SYSTEM
08-010 00 COOLING WATER SYSTEM
08-011 00 FUEL INJECTION PUMP
08-012 00 GOVERNOR
08-013 00 FUEL INJECTION VALVE
08-014 00 FUEL LINE
08-015 00 STARTING MOTOR
08-016 00 GENERATOR
08-017 00 GASKET SET

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.V
