New holland E485B ROPS Tier III Crawler Excavator SERVICE MANUAL 84392440A – PDF DOWNLOAD

Description

New holland E485B ROPS Tier III Crawler Excavator SERVICE MANUAL 84392440A – PDF DOWNLOAD

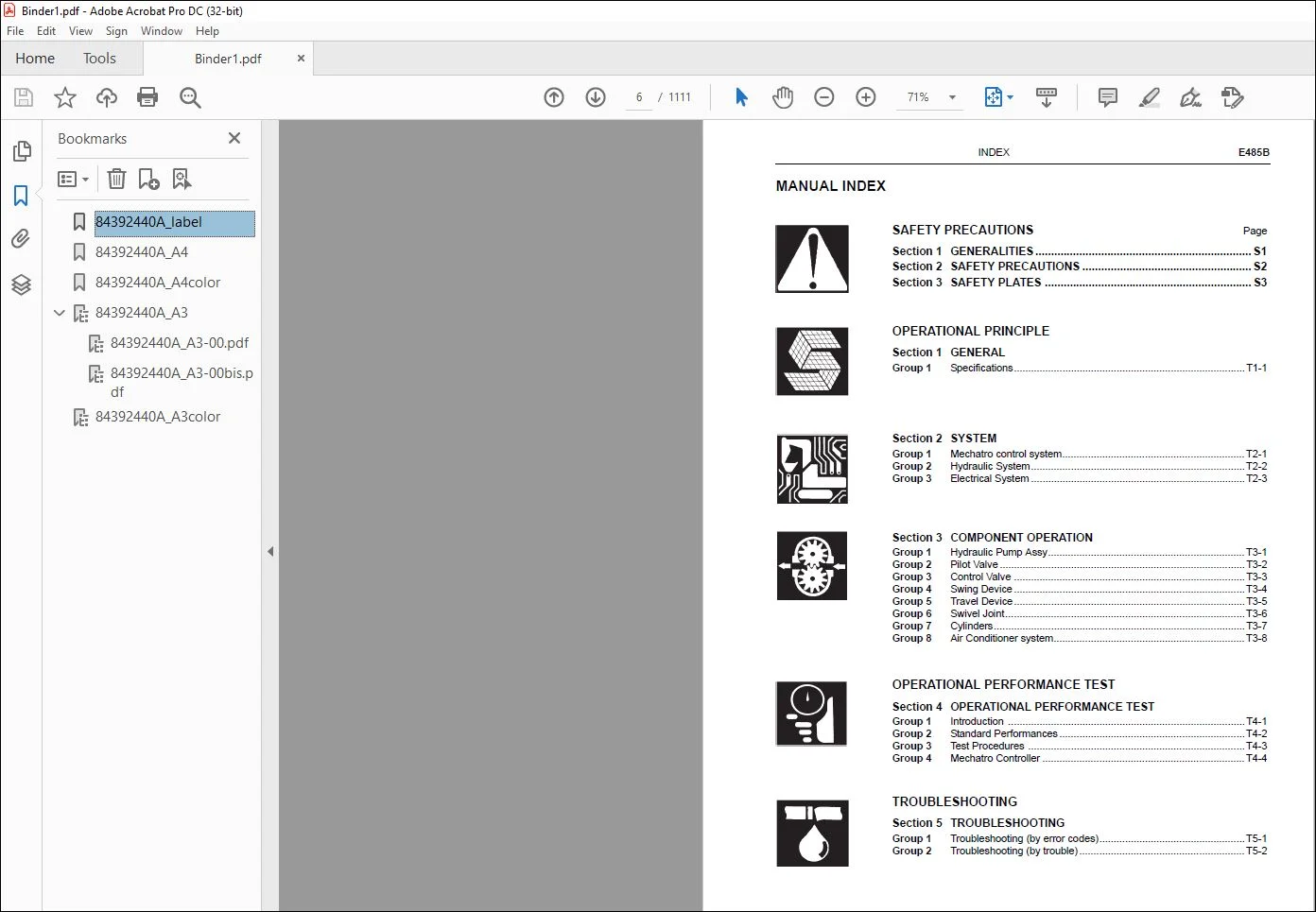

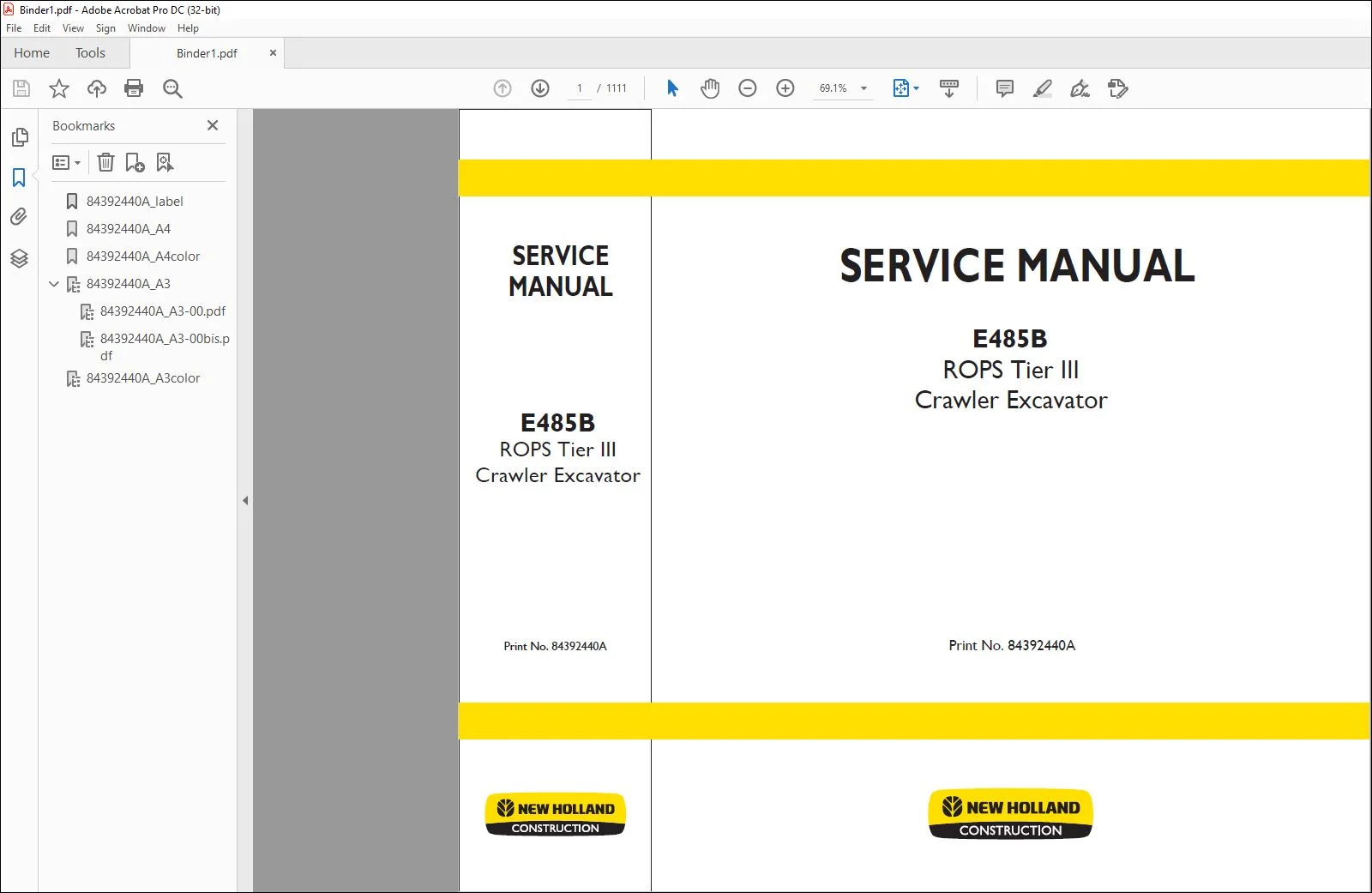

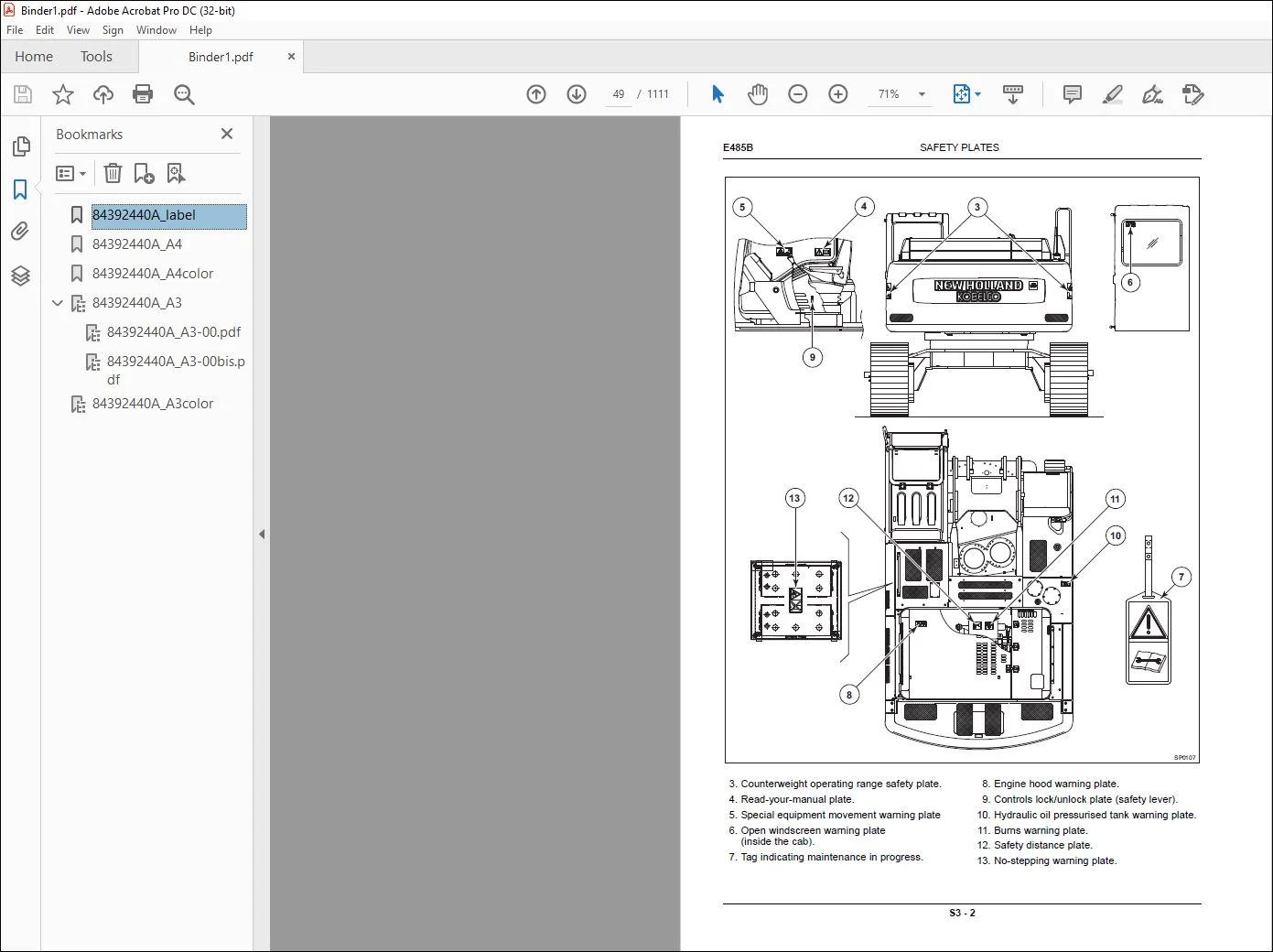

IMAGES PREVIEW OF THE MANUAL:

 DESCRIPTION:

New holland E485B ROPS Tier III Crawler Excavator SERVICE MANUAL 84392440A – PDF DOWNLOAD

INTRODUCTION
TO THE READER

• • This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• – Be sure to thoroughly read this manual for correct information concerning the service procedures.
• – If you have any questions or comments, or if you found any errors regarding the contents of this manual, please contact:
• NEW HOLLAND KOBELCO CONSTRUCTION MACHINERY S.p.A. Strada Settimo, 323 San Mauro Torinese (TO) 10099 ITALIA PRODUCT SUPPORT Fax. ++39 011 0077357

SAFETY PRECAUTIONS
GENERALITIES

• Read the Operation and Maintenance Instruction Manual carefully before starting, operating, maintaining, fuelling or servicing the machine. Carefully read the explanation to each and all safety signs in the special section of this Manual before starting, operating, maintaining, fuelling or servicing the machine. Machine-mounted safety plates are colour coded
• yellow with black borders when they refer to points where special ATTENTION must be paid and failure to observe them may cause a serious DANGER to the integrity of machine operators. They are white with red borders and black lettering when they refer to a FORBIDDEN practice. It is fundamental that all machine operators know very well the meaning of each
• safety plate as this considerably decreases operating hazards and accidents. Do not allow unauthorised personnel to operate or service this machine. Do not wear rings, wrist watches, jewellery, loose or hanging garments, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can get caught in moving parts. Wear certified safety clothes such as: hard hat, no-slip footwear, heavy gloves, ear protection, safety glasses, reflector vests, respirators every time the job requires it. Ask
• your employer about safety regulations in force and protective equipment. Always keep the operator’s compartment, step plates, grab-rails and handles clean and clear of foreign objects, oil, grease, mud or snow to minimise the danger of slipping
• or stumbling. Remove mud or grease from your shoes before operating the machine. Do not jump on or off the machine. Always keep both hands and one foot, or both feet and one hand in contact with steps and/or grab rails. Do not use controls or hoses as hand holds. Hoses and controls are movable parts and do not provide solid support. Besides, controls may be
• inadvertently moved and cause unexpected movement of the machine or its attachments. Never operate the machine or its attachments from any position other than sitting in the driver’s seat. Keep head, body, limbs, hands and feet inside the operator’s compartment at all times to reduce exposure to external hazards. Be careful of possible slippery conditions of the steps and hand rails as well as of the ground around the machine.
• Wear protective boots or shoes with the soles made of highly no-slip rubber Do not leave the machine until it has come to a complete stop. Always check height, width and weight limitations which may be encountered in the working site and ensure the machine does not exceed them. Assess exact paths of gas ducts, water mains, telephone lines, sewers, overhead and underground electric lines and all other possible obstacles.
• Such paths should be opportunely defined by competent Authorities. If necessary, require that the service is interrupted or said installations are moved prior to starting the work. You must know the working capacity of the machine. Define the rear upperstructure swing area and provide for opportune barriers to prevent access into it. Never exceed machine lifting capacity. Remain within the limits shown in the loading capacity chart which located on the machine.

TABLE OF CONTENTS:

New holland E485B ROPS Tier III Crawler Excavator SERVICE MANUAL 84392440A – PDF DOWNLOAD

SAFETY PRECAUTIONS Page
Section 1 GENERALITIES S1
Section 2 SAFETY PRECAUTIONS S2
Section 3 SAFETY PLATES S3
OPERATIONAL PRINCIPLE
Section 1 GENERAL
Group 1 Specifications T1-1
Section 2 SYSTEM
Group 1 Mechatro control system T2-1
Group 2 Hydraulic System T2-2
Group 3 Electrical System T2-3
Section 3 COMPONENT OPERATION
Group 1 Hydraulic Pump Assy T3-1
Group 2 Pilot Valve T3-2
Group 3 Control Valve T3-3
Group 4 Swing Device T3-4
Group 5 Travel Device T3-5
Group 6 Swivel Joint T3-6
Group 7 Cylinders T3-7
Group 8 Air Conditioner system T3-8
OPERATIONAL PERFORMANCE TEST
Section 4 OPERATIONAL PERFORMANCE TEST
Group 1 Introduction T4-1
Group 2 Standard Performances T4-2
Group 3 Test Procedures T4-3
Group 4 Mechatro Controller T4-4
TROUBLESHOOTING
Section 5 TROUBLESHOOTING
Group 1 Troubleshooting (by error codes) T5-1
Group 2 Troubleshooting (by trouble) T5-2
Section 1 GENERAL INFORMATION
Group 1 Precautions for Disassembly and AssemblyW1-1
Group 2 Tightening Torque W1-2
Section 2 UPPERSTRUCTURE
Group 1 Upperstructure W2-1
Group 2 Pump DeviceW2-2
Group 3 Control Valve W2-3
Group 4 Swing Device W2-4
Group 5 Pilot Valve W2-5
Section 3 UNDERCARRIAGE
Group 1 Swing Bearing W3-1
Group 2 Travel Device W3-2
Group 3 Swivel Joint W3-3
Group 4 Track Adjuster W3-4
Group 5 Front Idler W3-5
Group 6 Upper and Lower Roller W3-6
Group 7 Tracks W3-7
Section 4 FRONT ATTACHMENT
Group 1 Front attachmentW4-1
Group 2 Attachment automatic lubrification systemW4-2
Section 5 ENGINE
Group 1 General W5-1
Group 2 Standard Value W5-2
Group 3 Parts to be prepared W5-3
Group 4 Engine assembly/disassembly W5-4
Group 5 Fuel System W5-5
Group 6 Emission Control W5-6
Group 7 Electrical W5-7
Group 8 Intake W5-8
Group 9 Engine Mechanical W5-9
Group 10 Exhaust W5-10
Group 11 Cooling W5-11
Group 12 Lubrication W5-12
Group 13 Starting and Charging W5-13
Group 14 Turbocharger W5-14
Group 15 Failure Diagnosis for each Engine Status W5-15
Group 16 Engine Diagnosis Code W5-16
