New Holland E485C Crawler Excavator SERVICE MANUAL 47483341A – PDF DOWNLOAD

Description

New Holland E485C Crawler Excavator SERVICE MANUAL 47483341A – PDF DOWNLOAD

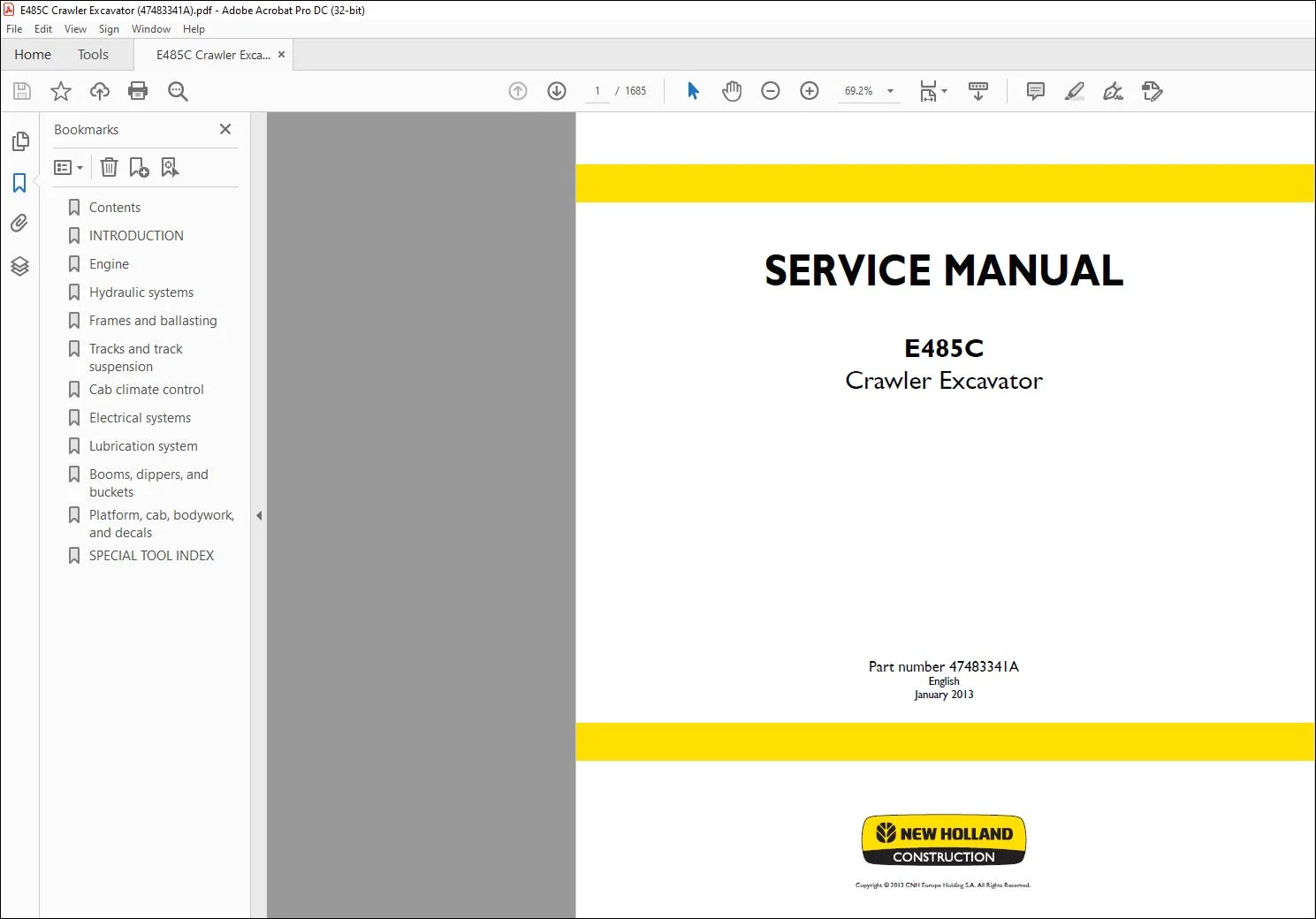

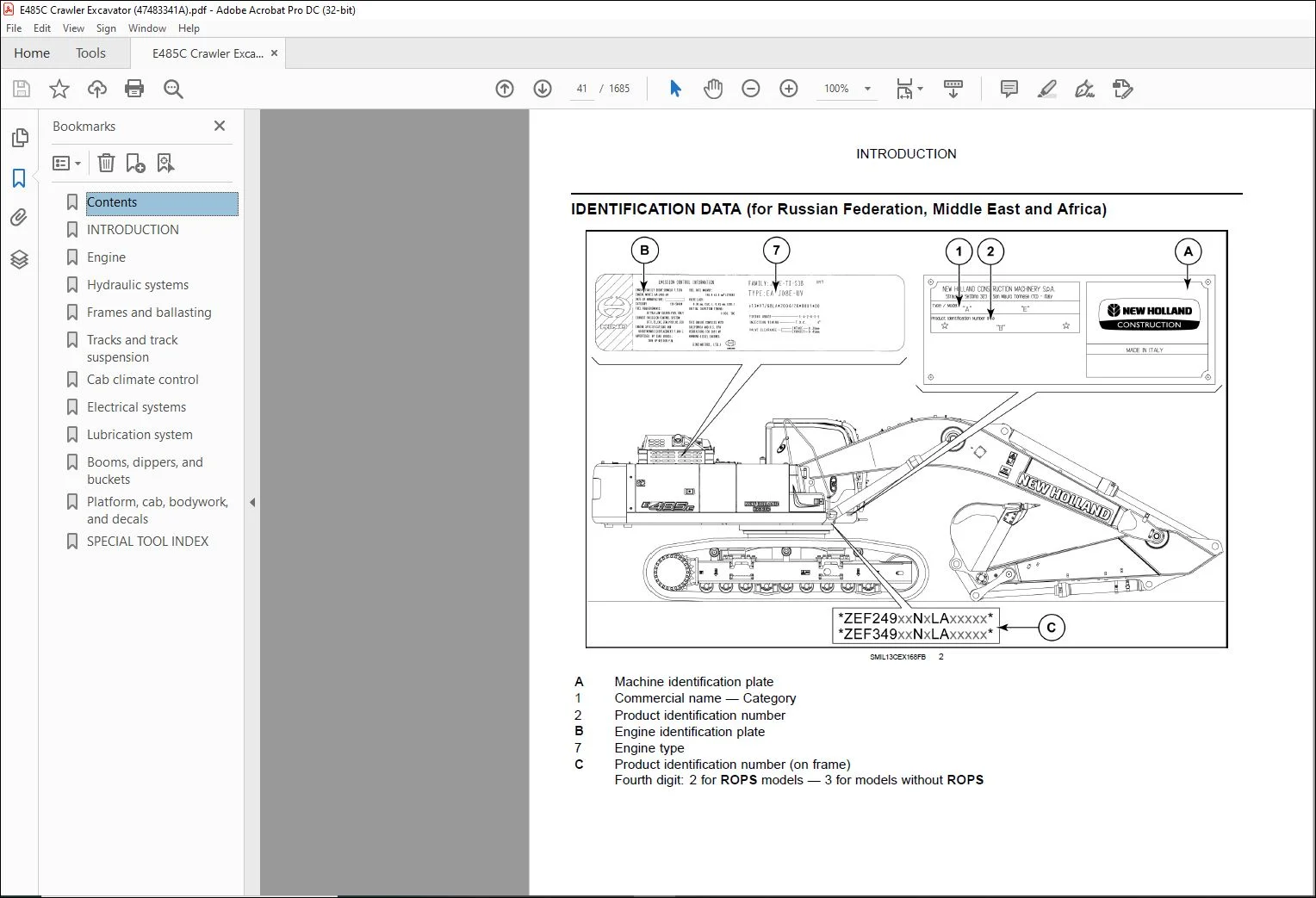

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E485C Crawler Excavator SERVICE MANUAL 47483341A – PDF DOWNLOAD

Personal safety

• Carefully read this Manual before proceeding with maintenance, repairs, refuelling or other machine operations. Repairs have to be carried out only by authorized and instructed staff; specific precautions have to be taken when grinding, welding or when using mallets or heavy hammers. Not authorized persons are not allowed to repair or carry out maintenance on this
• machine. Do not carry out any work on the equipment without prior authorization. Ask your employer about the safety instructions in force and safety equipment. Nobody is allowed to seat on the operator’s place during machine maintenance unless he is a qualified operator helping with the maintenance work. If it is necessary to move the equipment to carry out repairs or maintenance, do not lift or lower the equipment from any other position than the operator’s seat.
• TULI12WEX2004AA 1 Never carry out any operation on the machine when the engine is running, except when specifically indicated. Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc. All repair and maintenance operations should be carried out with the greatest care and attention.
• Service stairs and platforms used in a workshop or in the field should be built in compliance with the safety rules in force. Any functional disorders, especially those affecting the safety of the machine, should therefore be rectified immediately.

Basic instructions – Important notice regarding equipment servicing

• All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel, strictly complying with the instructions given, and using, whenever possible, the special tools. Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent
• damages. The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer, including those used for the servicing or repair of the product manufactured or marketed by the
• manufacturer. In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages caused by parts and/or components not approved by the manufacturer. The information in this manual is up-to-date at the date of the publication. It is the policy of the manufacturer for continuous improvement.
• Some information could not be updated due to modifications of a technical or commercial type, or changes to the laws and regulations of different countries. In case of questions, refer to your NEW HOLLAND CONSTRUCTION Sales and Service Networks

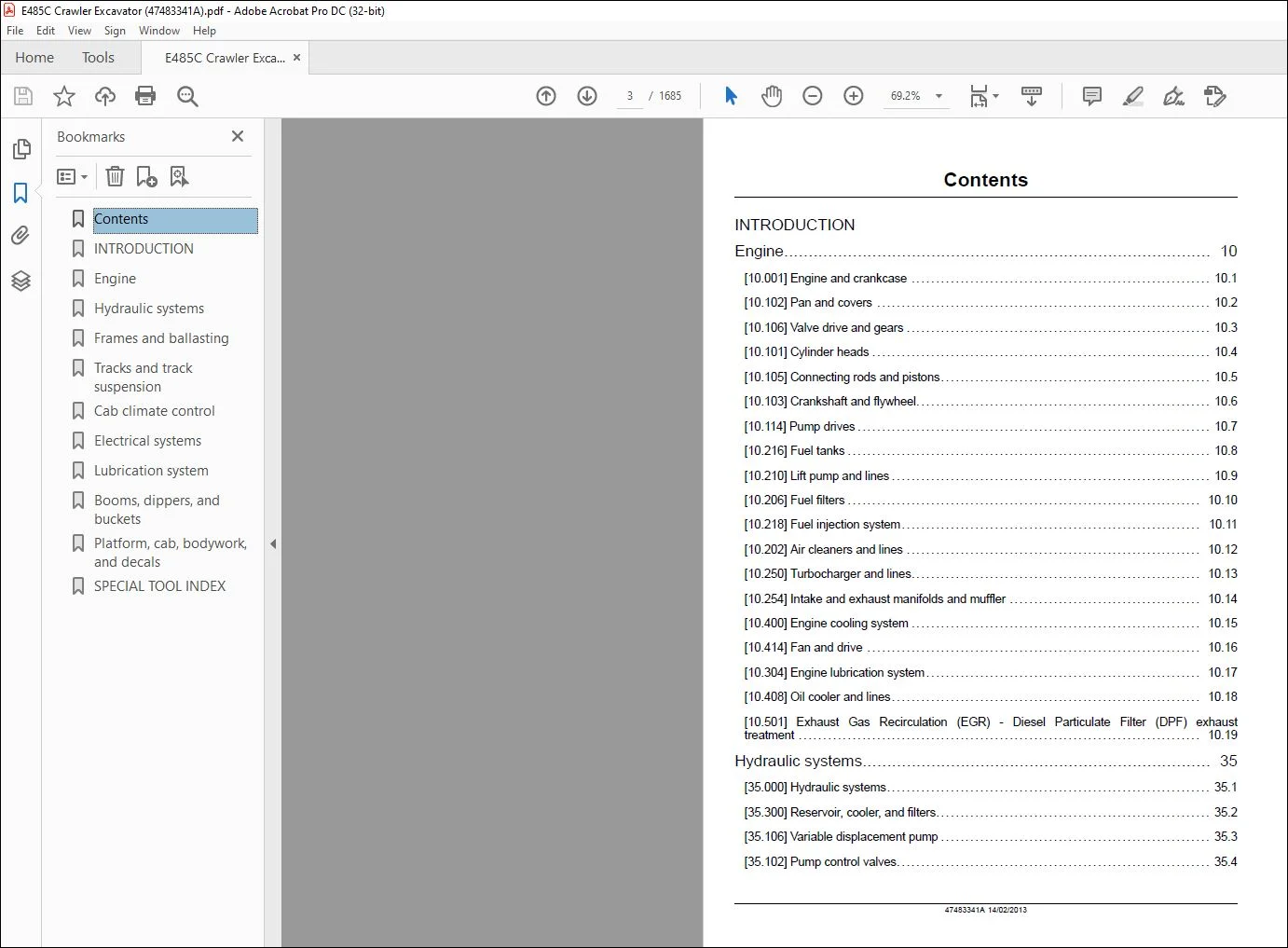

TABLE OF CONTENTS:

New Holland E485C Crawler Excavator SERVICE MANUAL 47483341A – PDF DOWNLOAD

Contents 3
INTRODUCTION 6
Engine 46
Hydraulic systems 438
Frames and ballasting 882
Tracks and track suspension 904
Cab climate control 954
Electrical systems 992
Lubrication system1592
Booms, dippers, and buckets1624
Platform, cab, bodywork, and decals1646
SPECIAL TOOL INDEX1682

Questions? Email us: [email protected]

https://vimeo.com/730980265

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.m
