NEW HOLLAND E485C Crawler Excavator SERVICE REPAIR MANUAL 47483341A – PDF DOWNLOAD

Description

NEW HOLLAND E485C Crawler Excavator SERVICE REPAIR MANUAL

FILE DETAILS:

NEW HOLLAND E485C Crawler Excavator SERVICE REPAIR MANUAL

Size: 88.3 MB
Format: PDF
Language: English
Number of Pages: 1685 pages
Brand: New Holland

DESCRIPTION:

NEW HOLLAND E485C Crawler Excavator SERVICE REPAIR MANUAL

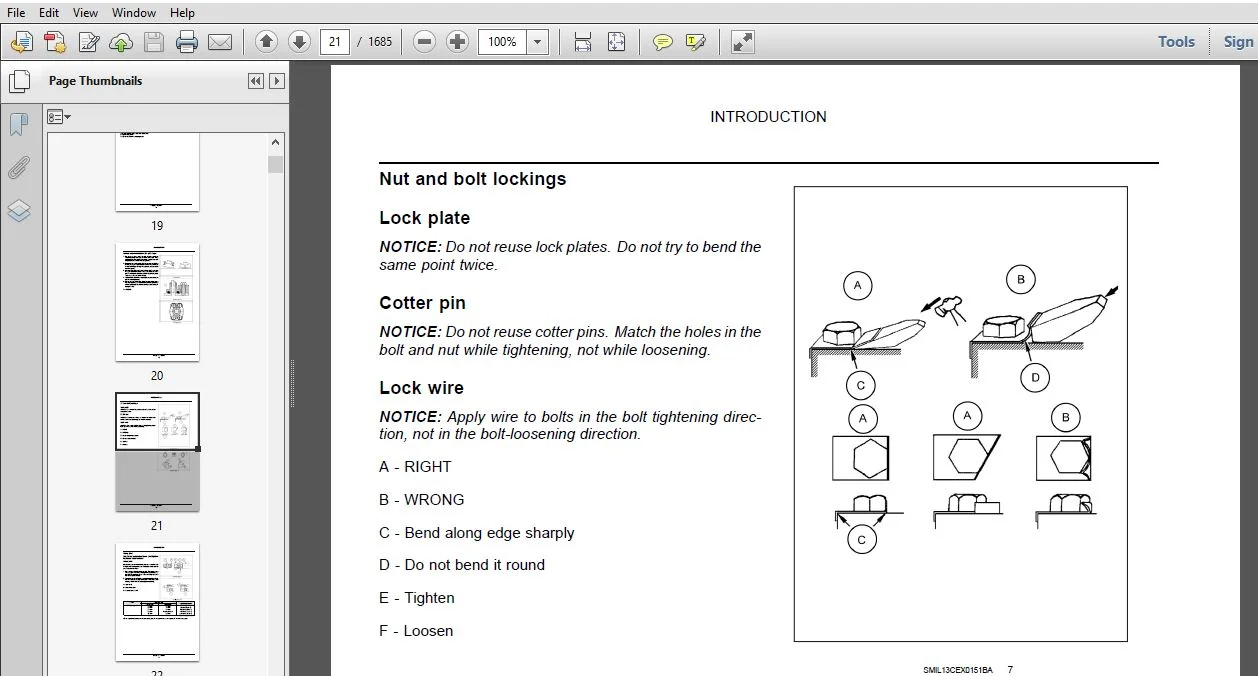

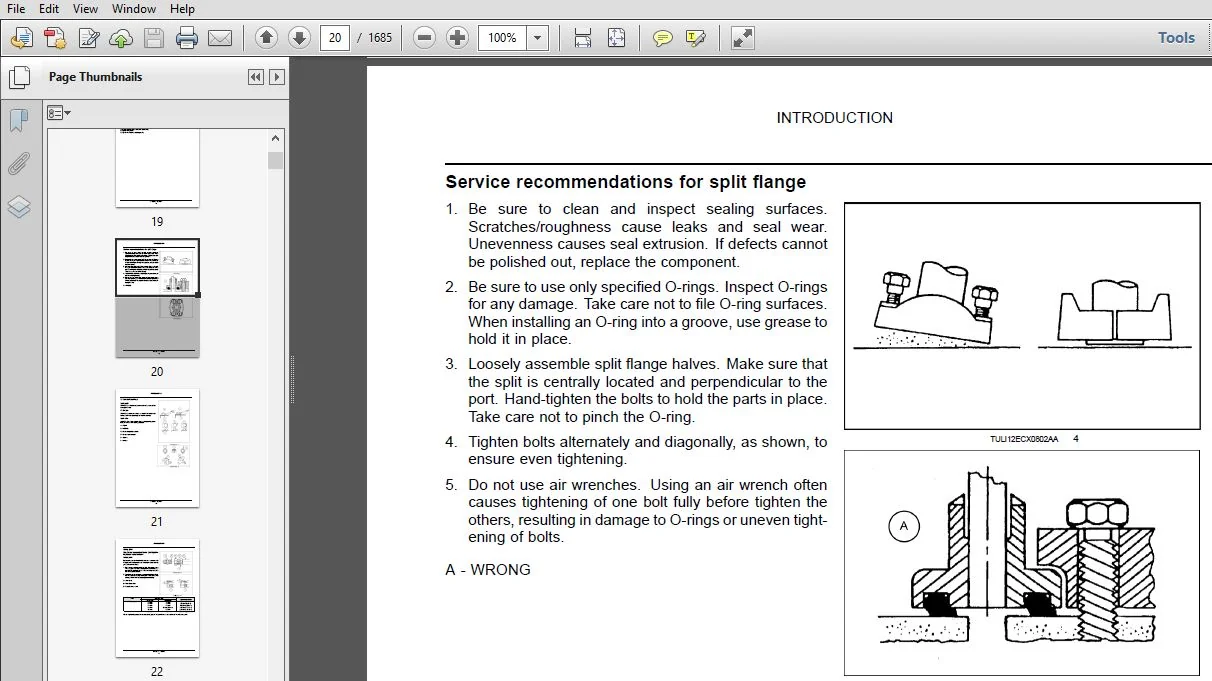

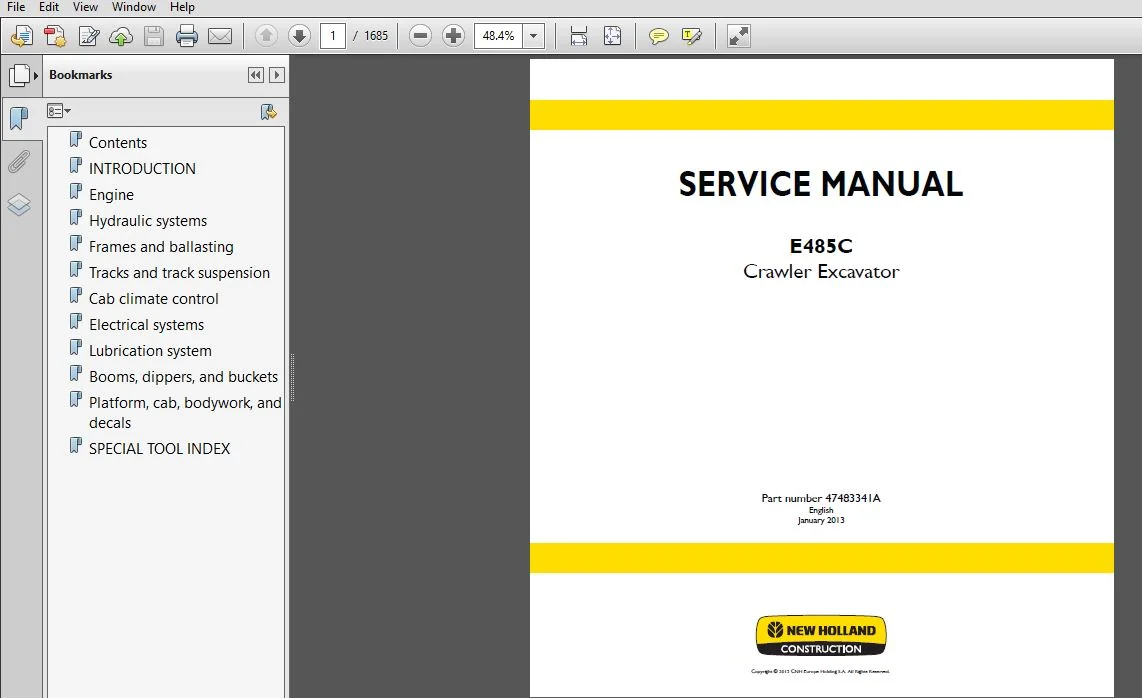

SAMPLE PAGE FROM THE MANUAL:

• Carefully read this Manual before proceeding with maintenance, repairs, refuelling or other machine operations. Repairs have to be carried out only by authorized and instructed staff; specific precautions have to be taken when grinding, welding or when using mallets or heavy hammers. Not authorized persons are not allowed to repair or carry out maintenance on this machine.
• Do not carry out any work on the equipment without prior authorization. Ask your employer about the safety instructions in force and safety equipment. Nobody is allowed to seat on the operator’s place during machine maintenance unless he is a qualified operator helping with the maintenance work.
• If it is necessary to move the equipment to carry out repairs or maintenance, do not lift or lower the equipment from any other position than the operator’s seat. TULI12WEX2004AA 1 Never carry out any operation on the machine when the engine is running, except when specifically indicated. Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc.
• All repair and maintenance operations should be carried out with the greatest care and attention. Service stairs and platforms used in a workshop or in the field should be built in compliance with the safety rules in force. Any functional disorders, especially those affecting the safety of the machine, should therefore be rectified immediately.
• Pay attention to rotary pieces and do not allow to anyone to approach to avoid becoming entangled.
• If hands, clothes or tools get caught in the fan blades or in the transmission belt, this can cause amputations, violent tears and generate condition of serious danger; for this reason avoid touching or to come close to all rotary or moving parts.
• A violent jet of the coolant from the radiator can cause damages and scalds. If you are to check the coolant level, you have to shut-off the engine previously and to let cool down the radiator and its pipes. Slowly unscrew the cap to release the inside pressure. TULI12WEX2010AA 7 If necessary, remove the cap with hot engine, wear safety clothes and equipment, then loosen the cap slowly to relieve the pressure gradually. When checking the fuel, oil and coolant levels, use exclusively explosion proof classified lamps.
• If this kind of lamps are not used fires or explosions may occur.

IMAGES PREVIEW OF THE MANUAL:

NEW HOLLAND E485C CRAWLER EXCAVATOR SERVICE REPAIR MANUAL 47483341A – PDF DOWNLOAD:

TABLE OF CONTENTS:

NEW HOLLAND E485C Crawler Excavator SERVICE REPAIR MANUAL

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 102] Pan and covers 10 2
[10 106] Valve drive and gears 10 3
[10 101] Cylinder heads 10 4
[10 105] Connecting rods and pistons 10 5
[10 103] Crankshaft and flywheel 10 6
[10 114] Pump drives 10 7
[10 216] Fuel tanks 10 8
[10 210] Lift pump and lines 10 9
[10 206] Fuel filters 10 10
[10 218] Fuel injection system 10 11
[10 202] Air cleaners and lines 10 12
[10 250] Turbocharger and lines 10 13
[10 254] Intake and exhaust manifolds and muffler 10 14
[10 400] Engine cooling system 10 15
[10 414] Fan and drive 10 16
[10 304] Engine lubrication system 10 17
[10 408] Oil cooler and lines 10 18
[10 501] Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) exhaust
treatment 10 19
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 300] Reservoir, cooler, and filters 35 2
[35 106] Variable displacement pump 35 3
[35 102] Pump control valves 35 4
47483341A 14/02/2013
[35 359] Main control valve 35 5
[35 355] Hydraulic hand control 35 6
[35 356] Hydraulic foot control 35 7
[35 352] Hydraulic swing system 35 8
[35 353] Hydraulic travel system 35 9
[35 736] Boom hydraulic system 35 10
[35 737] Dipper hydraulic system 35 11
[35 738] Excavator and backhoe bucket hydraulic system 35 12
[35 354] Hydraulic central joint 35 13
Frames and ballasting 39
[39 101] Upper frame 39 1
[39 103] Swing ring assembly 39 2
[39 140] Ballasts and supports 39 3
Tracks and track suspension 48
[48 100] Tracks 48 1
[48 134] Track tension units 48 2
[48 138] Track rollers 48 3
Cab climate control 50
[50 200] Air conditioning 50 1
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 015] Engine control system 55 3
[55 201] Engine starting system 55 4
[55 301] Alternator 55 5
[55 302] Battery 55 6
[55 010] Fuel injection system 55 7
[55 012] Engine cooling system 55 8
[55 013] Engine oil system 55 9
47483341A 14/02/2013
[55 640] Electronic modules 55 10
[55 036] Hydraulic system control 55 11
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 12
[55 DTC] FAULT CODES 55 13
Lubrication system 71
[71 460] Grease lubrication system 71 1
Booms, dippers, and buckets 84
[84 910] Boom 84 1
[84 100] Bucket 84 2
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
[90 124] Pneumatically-adjusted operator seat 90 2
[90 105] Machine shields and guards 90 3
[90 116] Fenders and guards
