New Holland E50B Compact Hydraulic Excavator Operator’s Manual S2PJ00047ZE01 – PDF DOWNLOAD

Description

New Holland E50B Compact Hydraulic Excavator Operator’s Manual S2PJ00047ZE01 – PDF DOWNLOAD

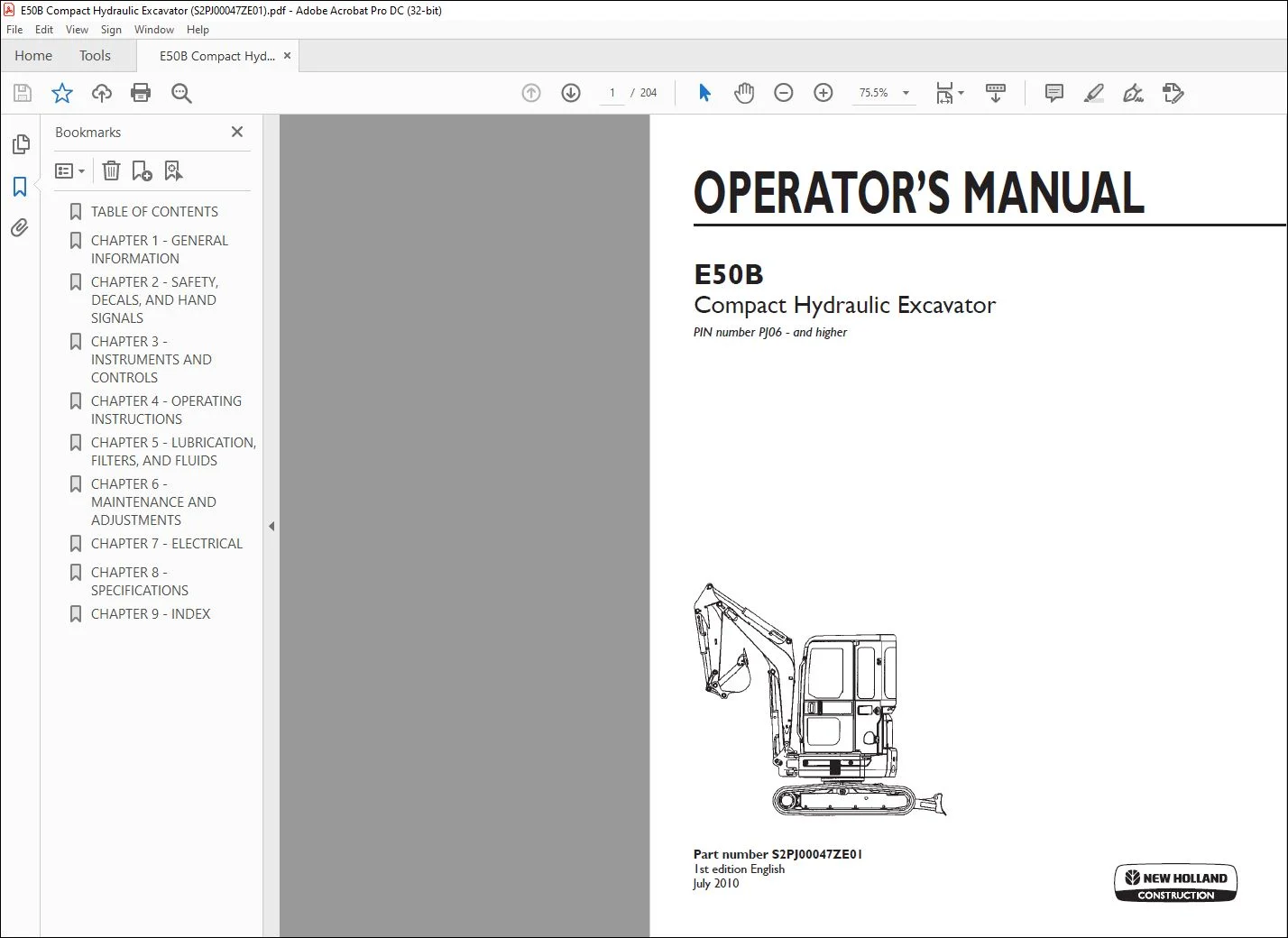

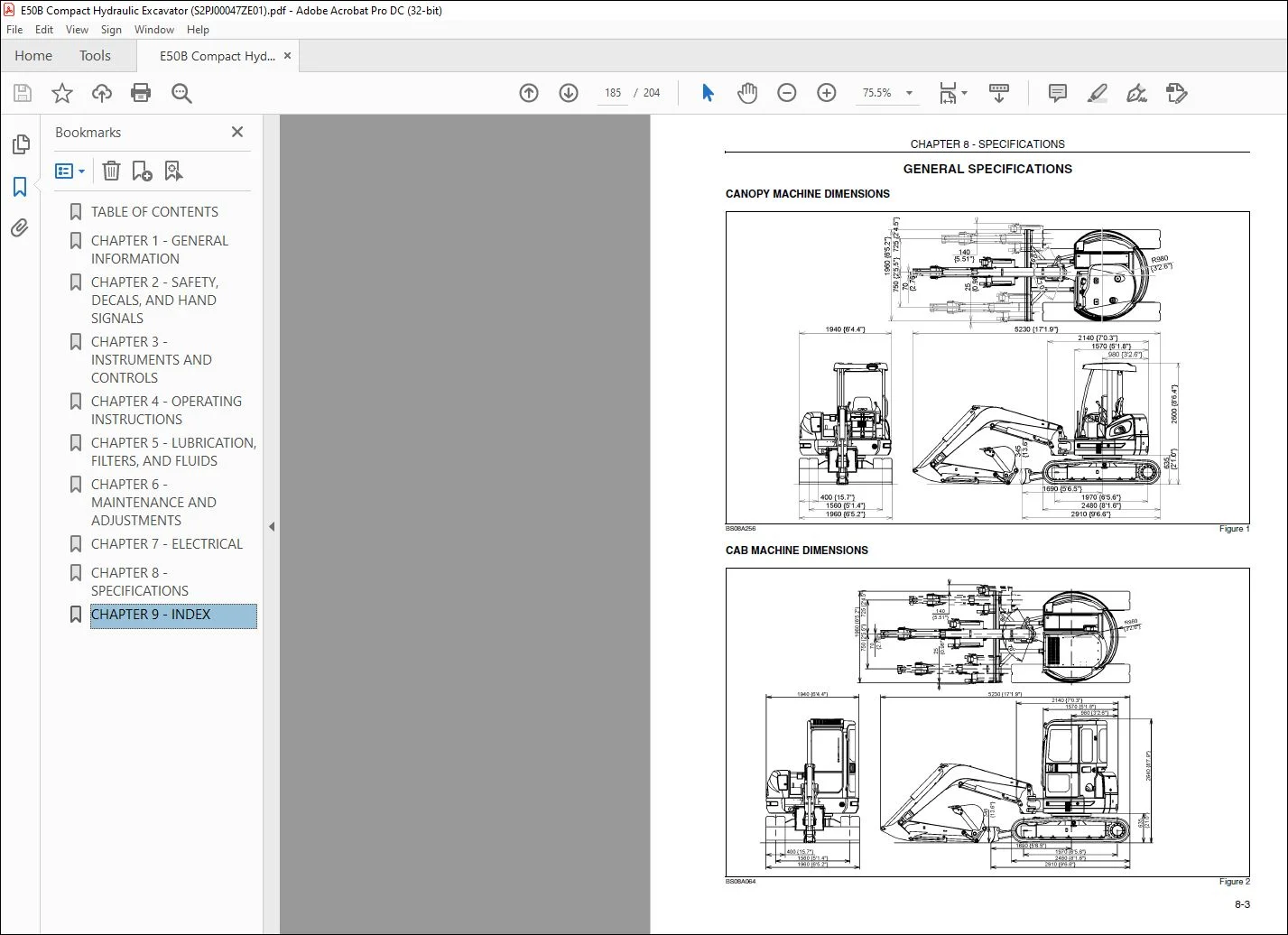

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E50B Compact Hydraulic Excavator Operator’s Manual S2PJ00047ZE01 – PDF DOWNLOAD

PIN number PJ06 – and higher

GENERAL INFORMATION:
TO THE OWNER:
E50B NEW HOLLAND COMPACT HYDRAULIC EXCAVATOR

• Your machine has been designed and built to the highest standards of quality. It conforms to all current safety
  regulations. The risk of accidents can never be completely excluded. That is why it is essential to observe
  elementary safety rules and precautions.
• Read this manual carefully, paying particular attention to the instructions concerning safety, operation and
  maintenance so as to avoid the risk of injury while operating or servicing the machine.
• The standard attachments and tools of this machine are designed to carry out all kinds of earth moving and
  rehandling operations. If you want to use this machine to handle a load (pipes, culverts, formwork, etc.), make sure
  that it is equipped to carry out this kind of work. For this type of application, the machine must be equipped with
  safety valves, a load handling chart corresponding to the type of machine and its attachment and a load fixing
  point. All legal requirements must also be strictly observed.
• Do not use this machine for any application or purpose other than those described in this manual. If the machine is
  to be used for work involving the use of special attachments, accessories or equipment, consult your New Holland
• Construction Dealer in order to make sure that any adaptations or modifications made are in keeping with the
  machine’s technical specifications and with prevailing safety requirements.
  Any modification or adaptation which is not approved by the manufacturer may invalidate the machine’s initial
  conformity with safety requirements.
  The machine must undergo regular inspections, the frequency of which varies according to the type of use. Consult
  your authorized New Holland Construction Dealer.
• Do not operate or permit anyone to operate or service this machine until you or the other persons have read and
  understand the safety, operation, and maintenance instructions in this manual. Use only trained operators who
  have demonstrated the ability to operate and service this machine correctly and safely. All persons who will be
  operating this machine shall possess a valid local vehicle operating permit and/or other applicable local age work
  permit.
• Always keep this manual in the operator’s compartment (in the seat back, behind the operator’s seat). Make sure it
  is complete and in good condition. If you wish to obtain extra copies, or copies in languages other than that of the
  country of use, consult your authorized New Holland Construction, LLC Dealer. Your New Holland Construction
  Dealer is available for any further information. They will also provide any after sales service you may need, and
  genuine New Holland spare parts, your guarantee of quality and match. Contact your dealer for operator manuals
  translated into Spanish or French Canadian.
• The information in this manual is provided on the basis of information that was available at the time the manual was
  written. Settings, procedures, part numbers, software and other items can change. These changes can affect the
  service that is given to the machine. Ensure that you have complete and current information from your dealer
  before you start any machine operation. Your New Holland Construction Dealer is available for any further
  information.

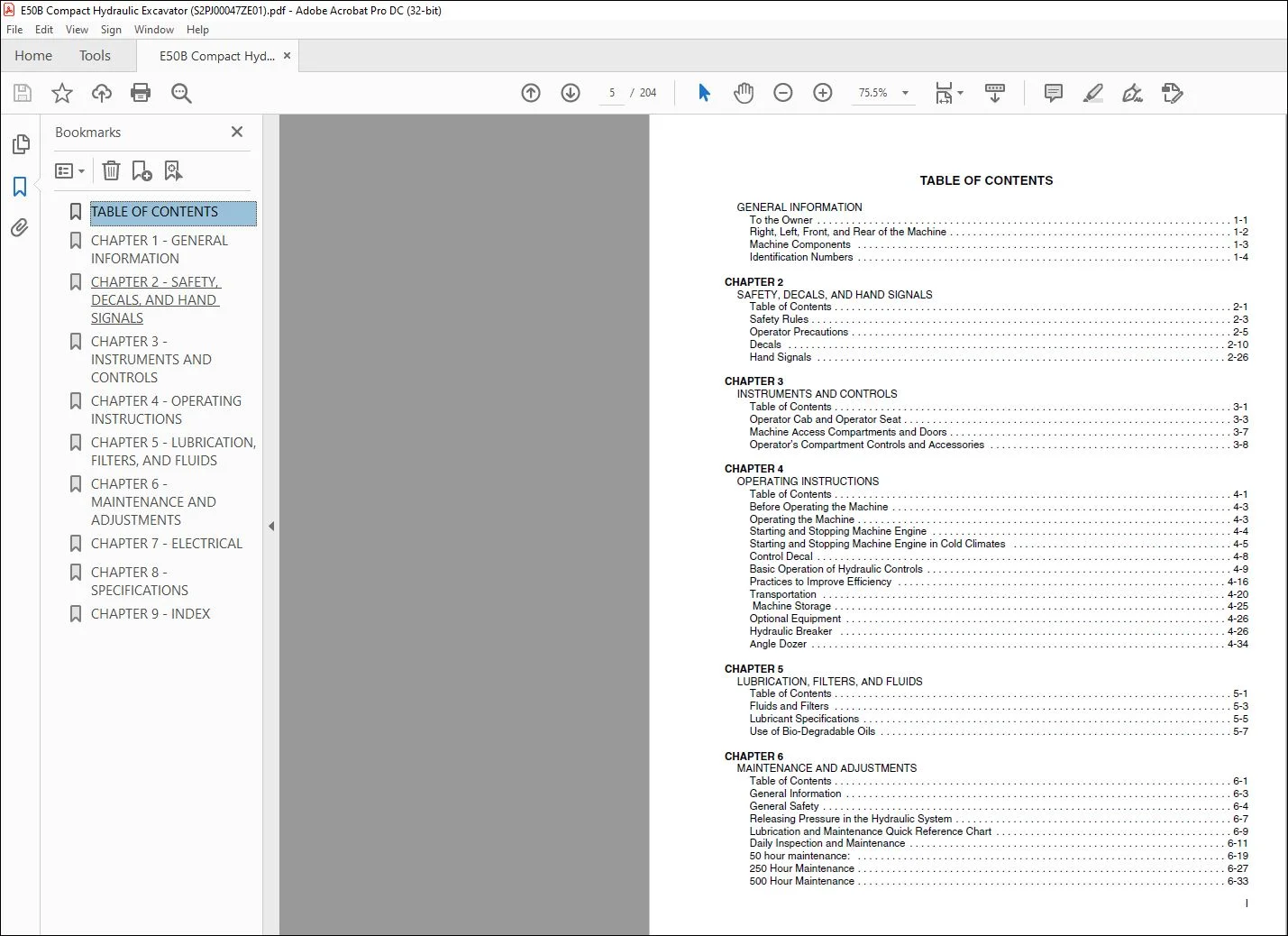

TABLE OF CONTENTS:

New Holland E50B Compact Hydraulic Excavator Operator’s Manual S2PJ00047ZE01 – PDF DOWNLOAD

GENERAL INFORMATION
To the Owner 1-1
Right, Left, Front, and Rear of the Machine 1-2
Machine Components 1-3
Identification Numbers 1-4
CHAPTER 2
SAFETY, DECALS, AND HAND SIGNALS
Table of Contents 2-1
Safety Rules 2-3
Operator Precautions 2-5
Decals 2-10
Hand Signals 2-26
CHAPTER 3
INSTRUMENTS AND CONTROLS
Table of Contents 3-1
Operator Cab and Operator Seat 3-3
Machine Access Compartments and Doors 3-7
Operator’s Compartment Controls and Accessories 3-8
CHAPTER 4
OPERATING INSTRUCTIONS
Table of Contents 4-1
Before Operating the Machine 4-3
Operating the Machine 4-3
Starting and Stopping Machine Engine 4-4
Starting and Stopping Machine Engine in Cold Climates 4-5
Control Decal 4-8
Basic Operation of Hydraulic Controls 4-9
Practices to Improve Efficiency 4-16
Transportation 4-20
Machine Storage 4-25
Optional Equipment 4-26
Hydraulic Breaker 4-26
Angle Dozer 4-34
CHAPTER 5
LUBRICATION, FILTERS, AND FLUIDS
Table of Contents 5-1
Fluids and Filters 5-3
Lubricant Specifications 5-5
Use of Bio-Degradable Oils 5-7
CHAPTER 6
MAINTENANCE AND ADJUSTMENTS
Table of Contents 6-1
General Information 6-3
General Safety 6-4
Releasing Pressure in the Hydraulic System 6-7
Lubrication and Maintenance Quick Reference Chart 6-9
Daily Inspection and Maintenance 6-11
50 hour maintenance: 6-19
250 Hour Maintenance 6-27
500 Hour Maintenance 6-33
1000 Hour Maintenance 6-37
1500 Hour Maintenance 6-41
2000 Hour Maintenance 6-42
5000 Hour Maintenance 6-51
Special Procedures 6-52
CHAPTER 7
ELECTRICAL
Table of Contents 7-1
CHAPTER 8
SPECIFICATIONS
Table of Contents 8-1
General Specifications 8-3
Lifting Capacities 8-10
Torque Specifications 8-11
CHAPTER 9
INDEX
