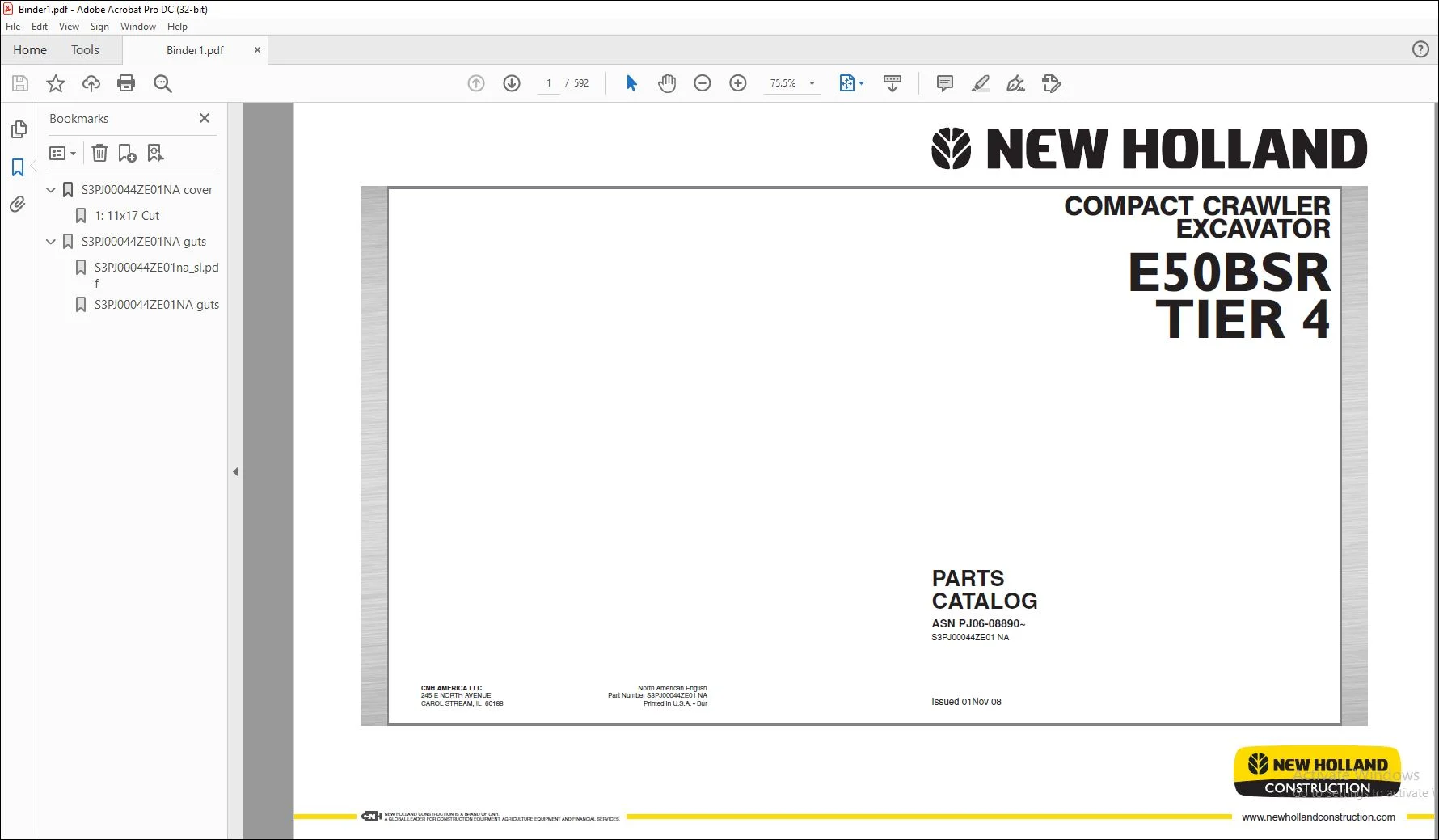

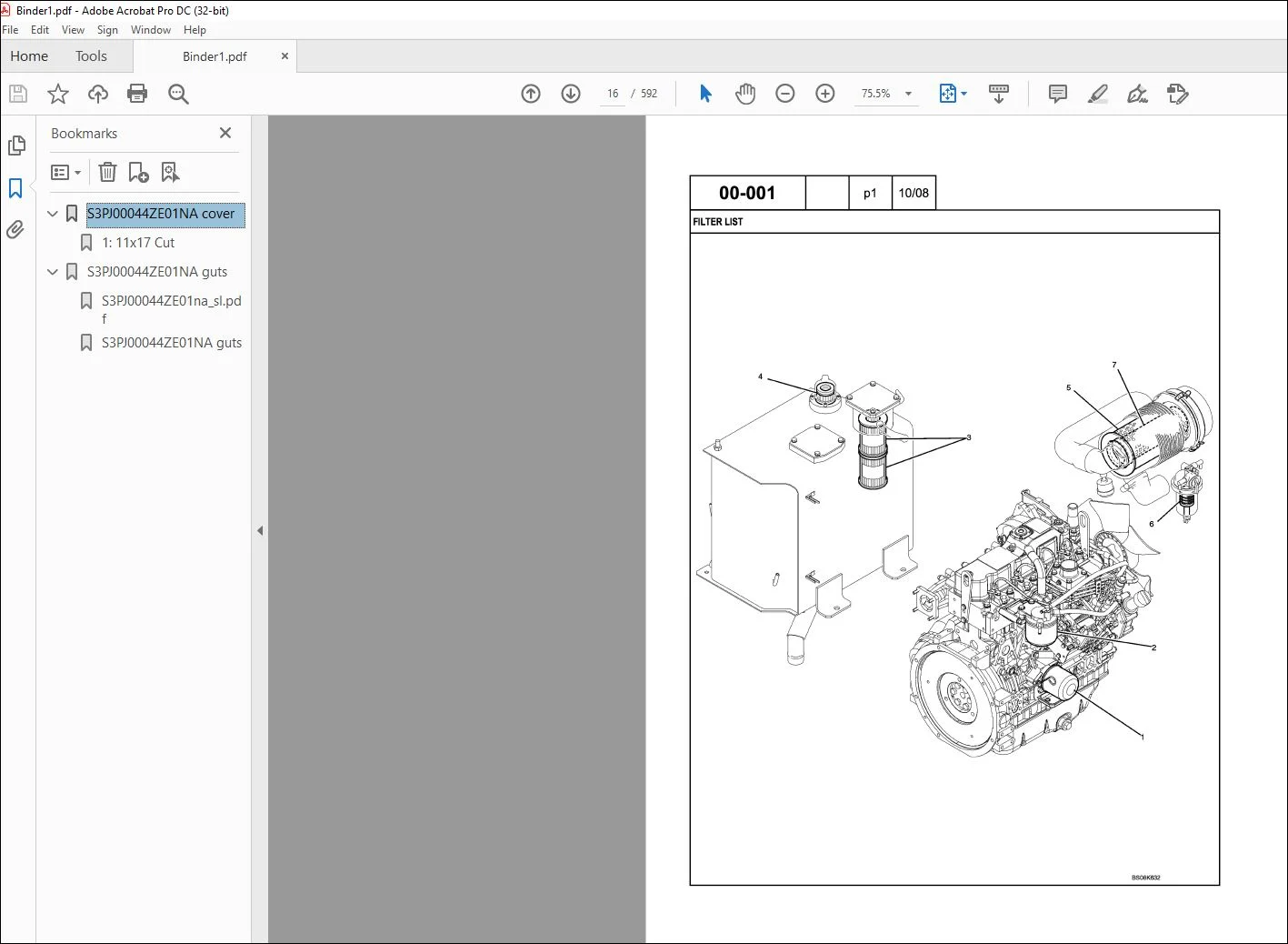

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E50BSR TIER 4 Compact Crawler Excavator Parts Catalog Manual S3PJ00044ZE01 – PDF DOWNLOAD

GENERAL INFORMATION
PROPRIETARY NOTICE:
The contents of this manual are proprietary data of this company. Reproduction or use of any part for other than the operation and maintenance of our equipment is permissible only if expressly authorized in writing. Additional copies may be obtained from your dealer. Address requests for copies to your Dealer and refer to the publication part number appearing on the bottom of the rear catalog cover or on the title page.
COMPANY POLICY:
Company policy, which is one of continuous improvement, reserves the right to change prices and to make changes in design and specification at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condit ion. For exact information about any particular machine please consult your dealer.
PARTS AND ACCESSORIES:
Genuine parts and accessories have been specifically designed for these machines. We would like to point out that “non-genuine”  parts and accessories have NOT been examined and released by the Company. The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety. The company is not liable for any damage caused by the use of “non-genuine” parts and accessories.

HOW TO USE YOUR PARTS CATALOG:
1. Figure Number
2. Sequence Code within the Figure Number
3. Page Number within the Sequence Code
4. Date of Printing (month I year)
5. Figure Description
6. General information regarding the figure
7. Parts supplied in repair kits per symbol reference
8. Figure call-out of the part number (REF)
9. Technical specifications relating to the part indicated
10. Figure call-out includes bracketed items, the included items may also be listed in the additional description
area
11 . Orientation – Arrow indicates front of the machine
12. Footnote – Additional information relating to the part number. In this example, 08-20 equals another figure that
this part is shown on
13. Part Number
NSS = Not Serviced Separately (Non-serviced parts)
Bracketed numbers = not available as service parts in this market
14. Not Available as service part in this market
15. YR/SN
Year
Before 01/85 = Part valid for production January 1985 and before
From 01/85 = Part valid for production from January 1985 and after
BTW 01 /85 & 02/02 = Part valid for machines produced between January 1985 and February 2002.
Serial Number (P.I.N.)
BSN JJC0268800 = Part valid for serial number JJC0268800 and below
ASN JJC0268800 = Part valid for serial number JJC0268800 and above
BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000
16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications:
AR = As Required
X = As required
17. Part Description
18. Additional description of the part to help confirm identification
19. Figure Notes
20. Model Number(s)

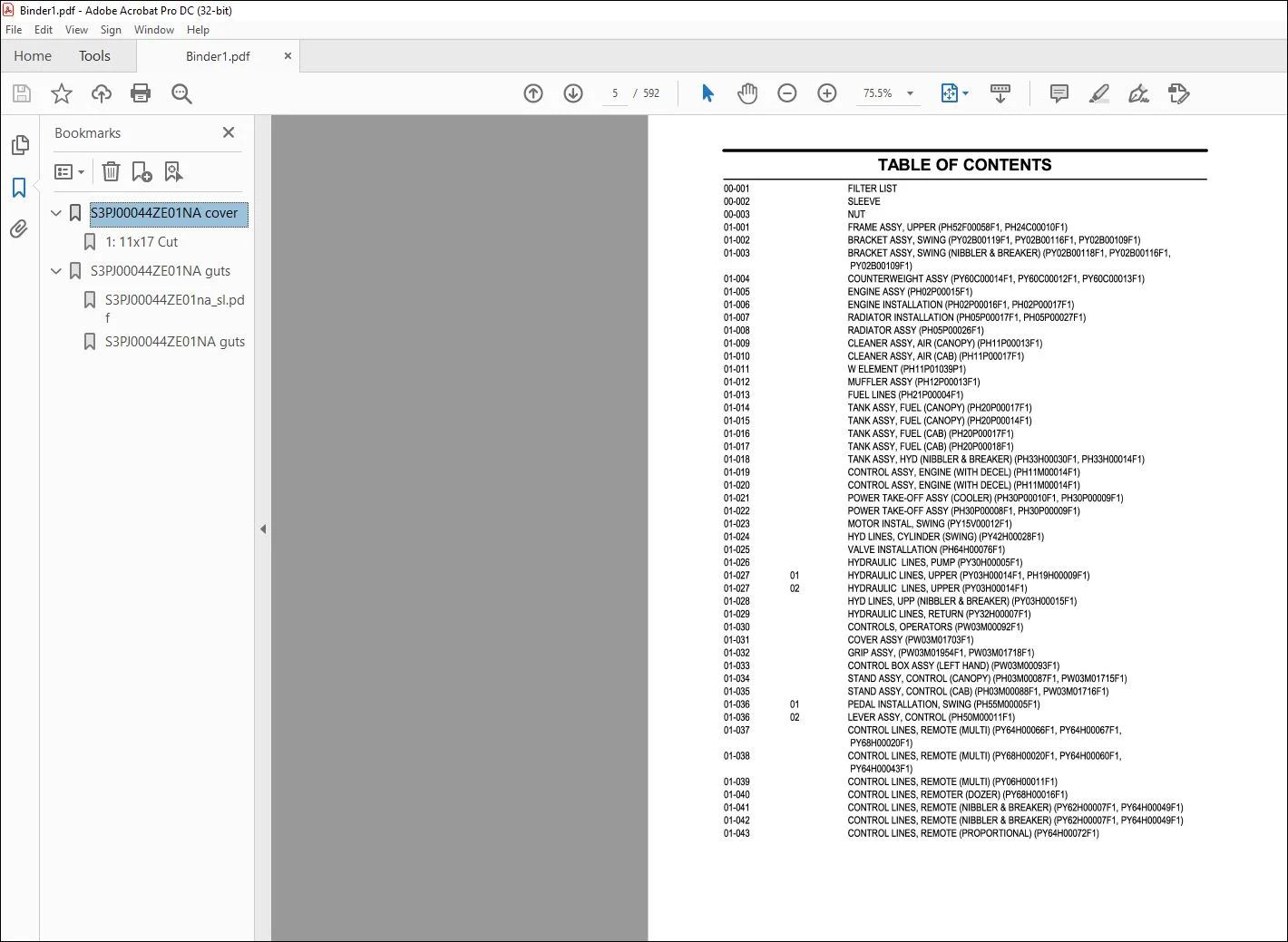

TABLE OF CONTENTS:

New Holland E50BSR TIER 4 Compact Crawler Excavator Parts Catalog Manual S3PJ00044ZE01 – PDF DOWNLOAD

FILTER LIST
SLEEVE
NUT
FRAME ASSY, UPPER (PH52F00058F1, PH24C00010F1)
BRACKET ASSY, SWING (PY02B00119F1, PY02B00116F1, PY02B00109F1)
BRACKET ASSY, SWING (NIBBLER & BREAKER) (PY02B00118F1, PY02B00116F1,
PY02B00109F1)
COUNTERWEIGHT ASSY (PY60C00014F1, PY60C00012F1, PY60C00013F1)
ENGINE ASSY (PH02P00015F1)
ENGINE INSTALLATION (PH02P00016F1, PH02P00017F1)
RADIATOR INSTALLATION (PH05P00017F1, PH05P00027F1)
RADIATOR ASSY (PH05P00026F1)
CLEANER ASSY, AIR (CANOPY) (PH11P00013F1)
CLEANER ASSY, AIR (CAB) (PH11P00017F1)
W ELEMENT (PH11P01039P1)
MUFFLER ASSY (PH12P00013F1)
FUEL LINES (PH21 P00004F1)
TANKASSY, FUEL (CANOPY) (PH20P00017F1)
TANKASSY, FUEL (CANOPY) (PH20P00014F1)
TANKASSY, FUEL (CAB) (PH20P00017F1)
TANKASSY, FUEL (CAB) (PH20P00018F1)
TANKASSY, HYD (NIBBLER & BREAKER) (PH33H00030F1, PH33H00014F1)
CONTROLASSY, ENGINE (WITH DECEL) (PH11M00014F1)
CONTROLASSY, ENGINE (WITH DECEL) (PH11M00014F1)
POWER TAKE-OFF ASSY (COOLER) (PH30P00010F1, PH30P00009F1)
POWER TAKE-OFF ASSY (PH30P00008F1, PH30P00009F1)
MOTOR INSTAL, SWING (PY15V00012F1)
HYD LINES, CYLINDER (SWING) (PY42H00028F1)
VALVE INSTALLATION (PH64H00076F1)
HYDRAULIC LINES, PUMP (PY30H00005F1)
HYDRAULIC LINES, UPPER (PY03H00014F1, PH19H00009F1)
HYDRAULIC LINES, UPPER (PY03H00014F1)
HYD LINES, UPP (NIBBLER & BREAKER) (PY03H00015F1)
HYDRAULIC LINES, RETURN (PY32H00007F1)
CONTROLS, OPERATORS (PW03M00092F1)
COVER ASSY (PW03M01703F1)
GRIP ASSY, (PW03M01954F1, PW03M01718F1)
CONTROL BOX ASSY (LEFT HAND) (PW03M00093F1)
STAND ASSY, CONTROL (CANOPY) (PH03M00087F1, PW03M01715F1)
STAND ASSY, CONTROL (CAB) (PH03M00088F1, PW03M01716F1)
PEDAL INSTALLATION, SWING (PH55M00005F1)
LEVER ASSY, CONTROL (PH50M00011 F1)
CONTROL LINES, REMOTE (MULTI) (PY64H00066F1, PY64H00067F1,
PY68H00020F1)
CONTROL LINES, REMOTE (MULTI) (PY68H00020F1, PY64H00060F1,
PY64H00043F1)
CONTROL LINES, REMOTE (MULTI) (PY06H00011F1)
CONTROL LINES, REMOTER (DOZER) (PY68H00016F1)
CONTROL LINES, REMOTE (NIBBLER & BREAKER) (PY62H00007F1, PY64H00049F1)
CONTROL LINES, REMOTE (NIBBLER & BREAKER) (PY62H00007F1, PY64H00049F1)
CONTROL LINES, REMOTE (PROPORTIONAL) (PY64H00072F1)
PLATE GROUP, CONTROL (CANOPY) (PH03M00095F1)
PLATE GROUP, FLOOR (CAB) (PH03M00094F1)
CAB INSTALLATION (PW02C00039F1, PW02C00050F1%KS)
CAB INSTALLATION (PW02C00024F1)
CAB ASSY (PW02C00068F1)
CAB ASSY (PW02C00068F1)
CAB ASSY (PW02C00068F1)
CAB ASSY (PW02C00068F1)
CAB ASSY (PW02C00068F1)
GUARD ASSY, HEAD (PW25C00003F1)
WINDOW ASSY, FRONT (PW50C00002F1)
DOOR ASSY, CAB (PM51 C00006F1 %LD)
HOLDER ASSY (PW02C01344F1)
CANOPY ASSY (PH06C00019F1, PW80E00006F1, PW22T00169F1)
CANOPY INSTALLATION (PW06C00027F1)
HOLDER ASSY (PW21C01778F1)
LIGHT INSTALLATION (CAB) (PW80E00007F1)
LIGHT ASSY, (PW80S00003F1)
LIGHT ASSY (PW80S00004F1)
LIGHT ASSY, WORKING, (PM80S000008F1)
SEAT INSTALLATION (PW25M00029F1)
GUARD INSTALLATION (CANOPY) (PH21C00020F1)
GUARD INSTALLATION (CANOPY) (PH21C00020F1)
GUARD INSTALLATION (CANOPY) (PH21C00020F1)
GUARD INSTALLATION (PH21C00018F1) (CAB)
GUARD INSTALLATION (PH21C00018F1) (CAB)
GUARD INSTALLATION (PH21C00018F1) (CAB)
KEY ASSY (PW03M01870F1, PW22T00112F1)
GAUGE ASSY, CLUSTER (PH59S00005F1)
BATTERY ASSY (PH72E0001 0F1, PH72E00009F1)
HOSE ASSY, HEATER (WITH HEATER) (PH21M00011F1)
HOSE ASSY, HEATER (WITHOUT HEATER) (PH21M00010F1)
ELEC ASSY, UPPER (PH03E00008F1)
HARNESS ASSY, CAB (PW14E00002F1)
HARNESS ASSY (CLEANER AIR) (PH11 E00011 F1)
HARNESS ASSY (PROPORTIONAL) (PH11E00021F1)
HARNESS ASSY, (PROPORTIONAL) (PH11 E00021 F1)
HARNESS ASSY, ENGINE (PH16E00003F1)
RELAY ASSY (PH24E00034F1)
LOW GROUP (PY01F00015F1, PY53D00003F1, YJ19H00002F1)
LOW GROUP (PY01F00016F1, PY53D00003F1, YJ19H00002F1)
RING ASSY, SLEWING (PH40F00005F1)
IDLER ASSY, CRAWLER (PY52D00022F1)
IDLER ASSY, CRAWLER (PY52D00023F1)
IDLER ASSY (PY52D00024F1)
IDLER ADJUST ASSY (PY54D00006F1)
ROLLER ASSY, TRACK, PY64D00007F1
ROLLER ASSY, UPPER (Y J64D00002F3)
SHOE ASSY (PY60D00007F1)
SHOE ASSY (PY61D00015F1)
SHOE ASSY (PY61D00014P1)
HYD LINES, LOW (PY02H00013F1, PH19H00007F1, PH12H00005F1, PH13H00002F1)
DOZER ASSY (PY51 B00052F1, PY51 B00055F1, PH51 B00003F1, PY51 B00045F1)
BOOM ASSY, STD 2.79M (9FT 2IN) (PY02B00099F1, PH02B00084F1, PY02B00137F1)
HYD LINES, BOOM 2.79M (9FT 2IN) (PY42H00042F1, PY42H00059F1, PY42H00050F1,
PY42H00027F1)
HYDRAULIC LINES, BOOM 2.79M (9FT 2IN) (PY42H00058F1, PY43H00019F1)
CYLINDER INSTALLATION (PY02B00110F1, PY02B00117F1, PY02B00120F1)
LIGHT INSTAL (BOOM) (PW80E00012F1, PH15E00004F1)
ARM ASSY, STD 1.56M (5FT 1IN) (PY12B00095F1, PY12B00117F1, PY12B00073F1)
HYD LINES, ARM 1.56M (5FT 1IN) (PY43H00024F1, PH12B00103F1, PY43H00023F1,
PX43H01011 F1, PX43H01021 F1)
BUCKET INSTALLATION (PH61 B00033F1)
BUCKET ASSY, 650W (PY61B00095F1)
TOOL & ACCESSORY (PM01T00002FA)
COUNTERWEIGHT ASSY (GAIN) (PH60C00013F2)
ENGINE INSTAL (COOLER) (PH02P00018F1, PH02P00019F1)
RADIATOR INSTALLATION (COOLER) (PH05P00024F1, PH05P00027F1)
CONTROL LINES, REMOTE (WITH A PUMP Z PORT) (PY64H00061F1)
CONTROL LINES, REMOTE (WITH A PUMP Z PORT) (PY64H00061F1)
CONTROL LINES, REMOTE (COOLER) (PY64H00052F1)
CONTROL LINES, REMOTE (COOLER) (PY64H00052F1)
CAB INSTAL (COOLER) (PW0200073F1)
CAB INSTAL (COOLER) (PW0200041F1)
CAB ASSY (COOLER) (PW02C00069F1)
CAB ASSY (COOLER) (PW02C00069F1)
CAB ASSY (COOLER) (PW02C00069F1)
CAB ASSY (COOLER) (PW02C00069F1)
CAB ASSY (COOLER) (PW02C00069F1)
RADIO INSTAL (WITHOUT RADIO)
STOPPER ASSY (COOLER) (PW25H01067F1)
GUARD INSTALLATION CAB (COOLER) (PH21C00019F1)
GUARD INSTAL [CAB (COOLER)]
GUARD INSTALLATION CAB (COOLER) (PH21C00019F1)
COOLER ASSY (PH20M00024F1)
CONDITIONER INSTALLATION (PH20M00021 F1)
COOLER ASSY (PH20M00017F1)
DRYER ASSY, AIR (PH96V00004F1)
COOLER ASSY (PH20M00016F1)
COOLER ASSY (PH20M00019F1)
HARNESS ASSY (COOLER) (PH11E00012F1)
NAME PLATE INSTALLATION (PW22T00083F3), PAGE 1 OF 2
NAME PLATE INSTALLATION (PW22T00083F3), PAGE 2 OF 2
NAME PLATE INSTALLATION (PW22T00123F1)
NAME PLATE INSTALLATION (PW22T00117F1)
NAME PLATE INSTALLATION (PW22T00111 F1)
NAME PLATE INSTALLATION (PW22T00185F1)
NAME PLATE INSTALLATION (PW22T00113F1)
NAME PLATE INSTALLATION (PW22T00183F1)
NAME PLATE INSTALLATION (PW22T00182F1)
NAME PLATE INSTALLATION (CEMA MARK) (YN22T00288F1)
NAME PLATE INSTALLATION (PH22T00094F1)
NAME PLATE INSTALLATION (CAB) (PW22T00085F1)
NAME PLATE INSTALLATION (PH22T00083F2)
NAME PLATE INSTALLATION (PW22T00170F2)
NAME PLATE INSTALLATION (JOHN DEERE) (PW22T00172F1)
NAME PLATE INSTALLATION (CANOPY) (PY22T00109F3)
NAME PLATE INSTALLATION (CAB) (PY22T00110F3)
NAME PLATE INSTALLATION (NIBBLER & BREAKER) (PW22T00087F1 &
PW22T00087F2)
NAME PLATE INSTALLATION (ATTACHMENTS) (PW22T00166F2)
VALVE ASSY, CONTROL (PY30V00054F1)
VALVE ASSY, CONTROL (DOZER) (PH30V00063F1)
VALVE ASSY, CONTROL (SLEWING) (PH30V00061F1, PH30V00062F1)
VALVE ASSY, CONTROL (ARM CONFLUENCE) (PH30V00061F1)
VALVE ASSY, CONTROL (ARM) (PH30V00060F1)
VALVE ASSY, CONTROL (SERVICE) (PH30V00059F1)
VALVE ASSY, CONTROL (BOOM SWING) (PY30V00058F1)
VALVE ASSY, CONTROL (TRAVEL RIGHT) (PH30V00057F1)
VALVE ASSY, CONTROL (SUPPLY, CONNECTING) (PH30V00064F1)
VALVE ASSY, CONTROL (TRAVEL LEFT) (PH30V00055F1)
VALVE ASSY, CONTROL (BOOM) (PH30V00054F1)
VALVE ASSY, CONTROL (BUCKET) (PH30V00053F1)
VALVE ASSY, CONTROL (INLET) (PH30V00056F1)
VALVE ASSY, MAIN RELIEF (PH22V00014F1, PH22V00014F2)
VALVE ASSY, MAIN RELIEF (PY22V00010F1, PY22V00010F2)
VALVE ASSY, ANTI VOID (PH22V00013F1)
VALVE ASSY, SHUT-OFF (PH50T00002F1)
VALVE ASSY, SHUTTLE (PH26V00001F1)
MOTOR ASSY (SWING) (PY15V00012F1)
VALVE ASSY, RELIEF (PY20V00003F1)
VALVE ASSY, RELIEF (PY22V00009F1)
VALVE ASSY, REDUCTION (PY64H00003F1)
MOTOR ASSY (PROPELLING) (PH15V00012F1)
MOTOR ASSY (PROPELLING) (PH15V00012F1)
MOTOR ASSY (PROPELLING) (PH15V00012F1)
PUMP ASSY (PH10V00013F1)
PUMP ASSY (PH10V00015F1)
SHAFT ASSY (YJ10V01001F1)
BLOCKASSY
ROTARY ASSY (PY10V01005F1)
COVER ASSY (PH10V01007F1)
COVERASSY (YJ10V01002F1)
PISTON ASSY (PH10V01009F1)
PISTON ASSY (PH10V01010F1)
PUMP ASSY (PX10V00015F1)
PUMP ASSY, GEAR (PH10V00011F1)
CYLINDER ASSY, BOOM (CANOPY) (PY01V00043F1)
CYLINDER ASSY, BOOM (CAB) (PY01V00045F1)
CYLINDER ASSY, ARM (PY01V00042F1, PY01V00042F2)
CYLINDER ASSY, BUCKET (PY01V00047F1)
CYLINDER ASSY, DOZER (PY01V00040F1)
CYLINDER ASSY, SWING (PH01V00031 F1)
VALVE ASSY, PILOT (PX30V00043F1, PX30V00043F3, PX30V00043F4)
VALVE ASSY, PILOT (PROPELLING) (PM30V00019F6, PM30V00019F7)
VALVE ASSY, PILOT (PB30V00002F1, PB30V00002F2)
VALVE ASSY, SOLENOID (PX35V00003F1)
VALVE ASSY, SOLENOID (PW35V00002F1)
VALVE ASSY, RELi EF (YR22V00001 F1)
VALVE ASSY, SOLENOID (Y J35V00004F1, Y J35V00004F2)
VALVE ASSY, SELECTOR (PX30V00060F1)
JOINT ASSY, SWIVEL (24100J12703F1)
CYLINDER BLOCK
GEAR HOUSING
FLYWHEEL HOUSING & OIL SUMP
CYLINDER HEAD & BONNET
SUCTION MANIFOLD
EXHAUST MANIFOLD
CAMSHAFT & DRIVING GEAR
CRANKSHAFT & PISTON
LUB. OIL SYSTEM
COOLING WATER SYSTEM
FUEL INJECTION PUMP
GOVERNOR
FUEL INJECTION VALVE
FUEL LINE
STARTING MOTOR
GENERATOR
GASKET SET

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
