New Holland E55Bx Tier 3 Compact Hydraulic Excavator SERVICE MANUAL S5HS0014E01 – PDF DOWNLOAD

Description

New Holland E55Bx Tier 3 Compact Hydraulic Excavator SERVICE MANUAL S5HS0014E01 – PDF DOWNLOAD

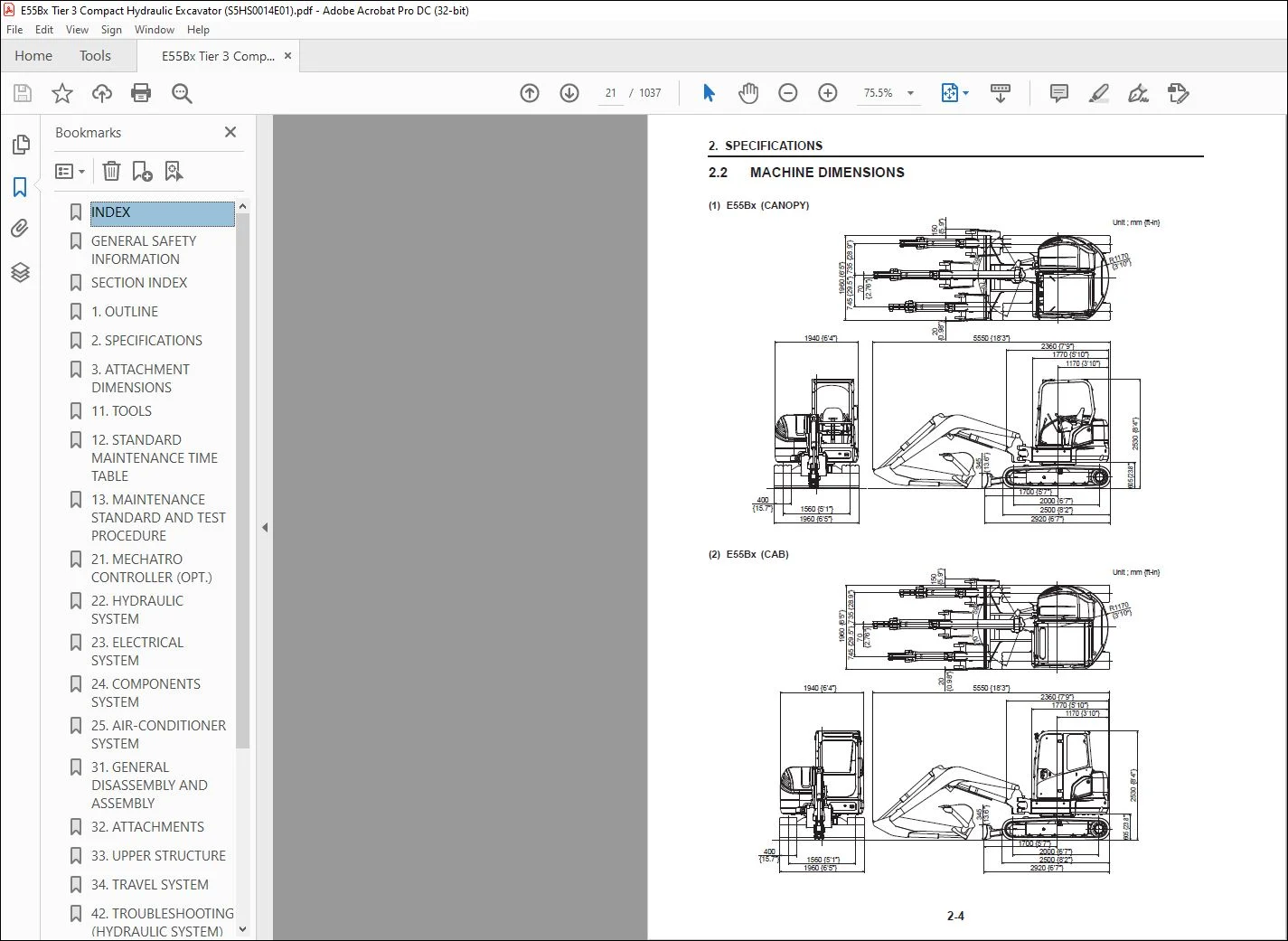

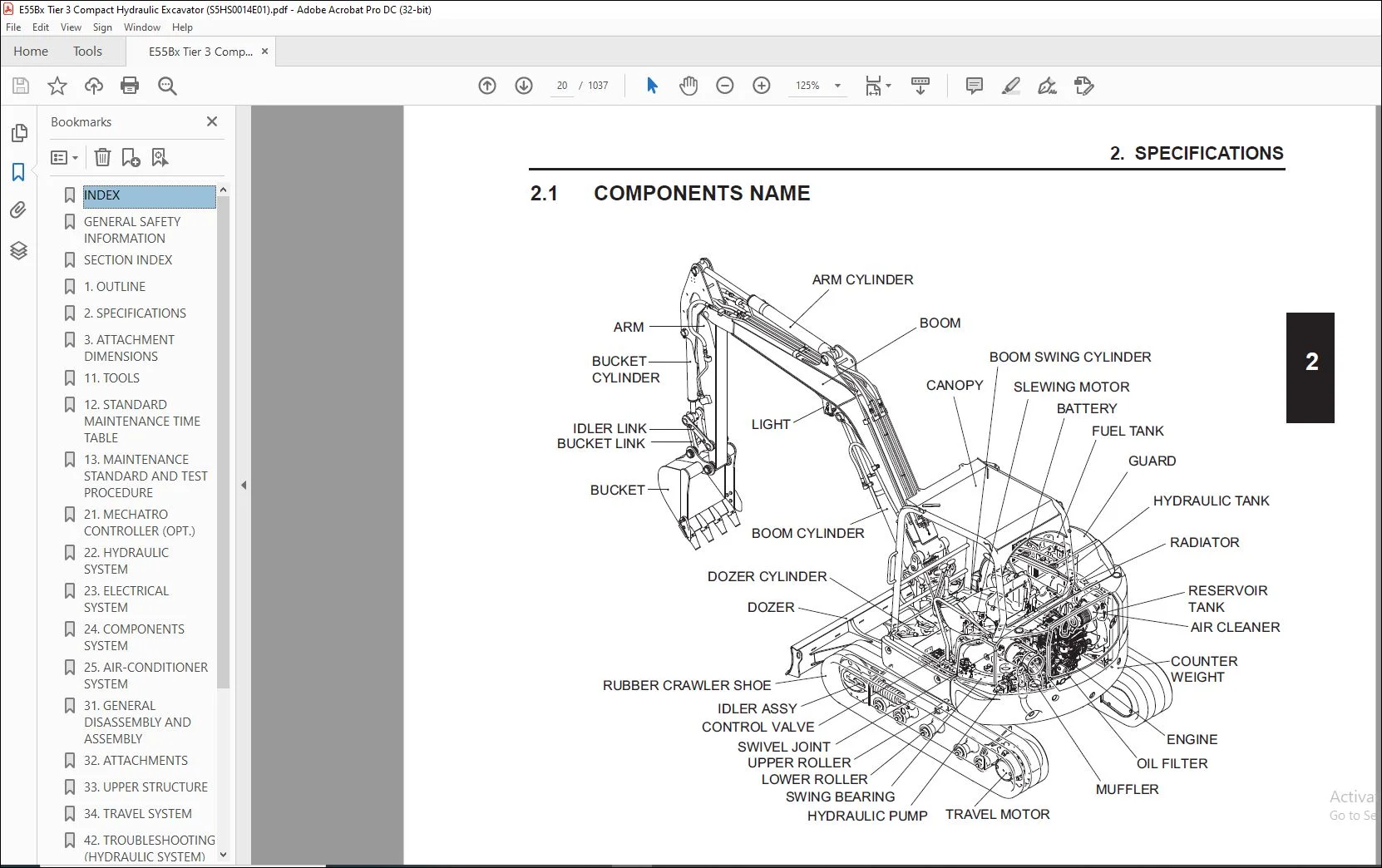

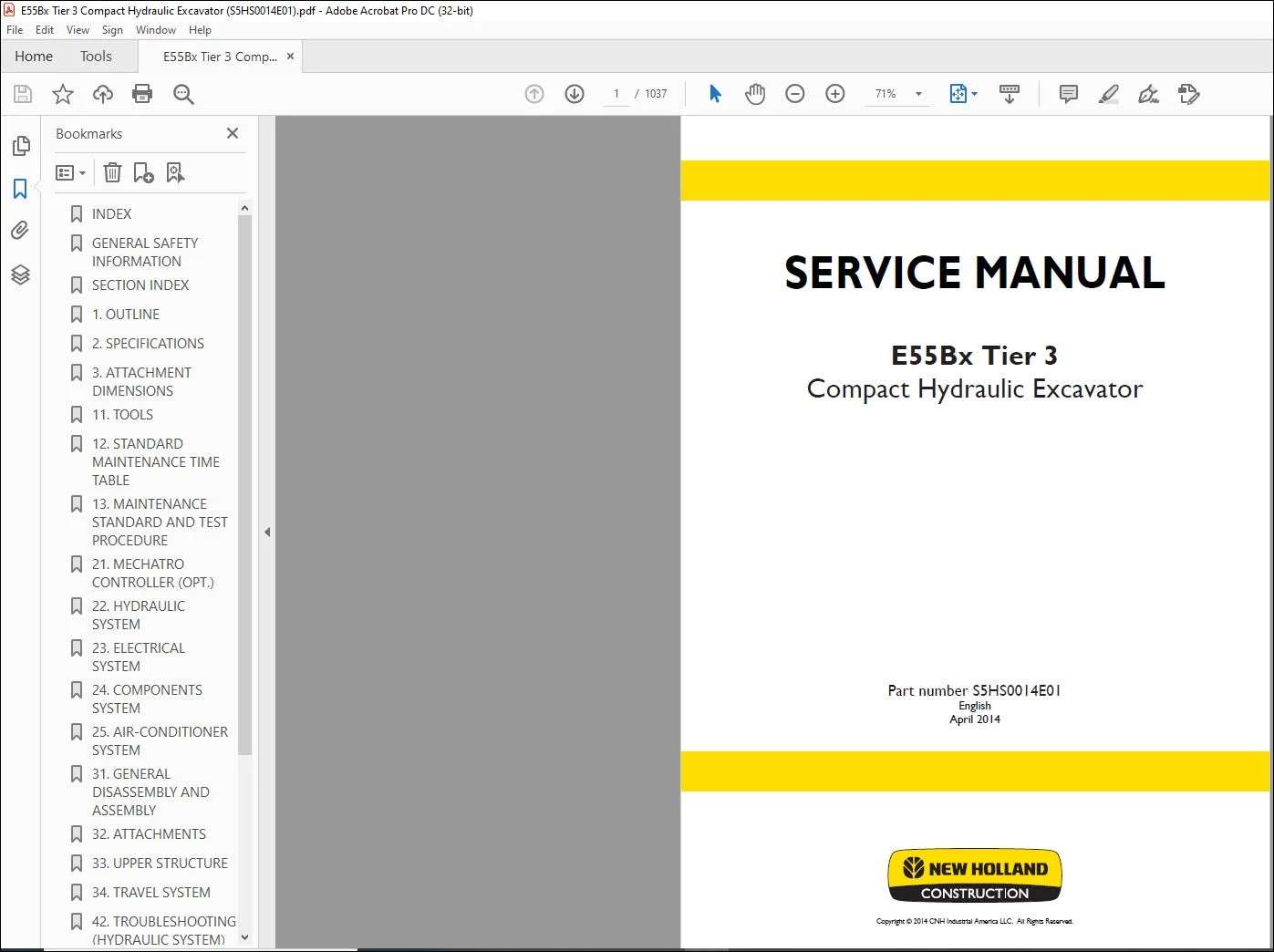

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E55Bx Tier 3 Compact Hydraulic Excavator SERVICE MANUAL S5HS0014E01 – PDF DOWNLOAD

GENERAL SAFETY INFORMATION

WARNING:

Do not operate or perform any maintenance on this machine until all instructions found in the OPERATOR’S MANUAL and this MANUAL have been thoroughly read and understood. Improper operation or maintenance of this machine may cause accidents and could result in serious injury or death. Always keep the manual in storage. If it is missing or damaged, place an order with an authorized our Distributor for a replacement. If you have any questions, please consult an authorized our Distributor.

1. Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in the manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.
2. Operation, inspection, and maintenance should be carefully carried out, and safety must be given the first priority. Messages of safety are indicated with marks. The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations.
3. Messages of safety appear in the manual and on the machine : All messages of safety are identified by either word of “DANGER”, “WARNING” and “CAUTION”.

SAFETY PRECAUTIONS

WARNING:

The proper and safe lubrication and maintenance for this machine, recommended by Manufacturer, are outlined in the OPERATOR’S MANUAL for the machine. Improper performance of lubrication or maintenance procedures are dangerous and could result in injury or death. Read and understand the MANUAL before performing any lubrication or maintenance.

The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ; SPECIFICATIONS.

The following is a list of basic precautions that must always be observed.

1.  Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
3. Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
4. If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
5. Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack

TABLE OF CONTENTS:

New Holland E55Bx Tier 3 Compact Hydraulic Excavator SERVICE MANUAL S5HS0014E01 – PDF DOWNLOAD

INDEX 2
GENERAL SAFETY INFORMATION 3
SECTION INDEX 6
1 OUTLINE 8
2 SPECIFICATIONS 18
3 ATTACHMENT DIMENSIONS 34
11 TOOLS 56
12 STANDARD MAINTENANCE TIME TABLE 70
13 MAINTENANCE STANDARD AND TEST PROCEDURE 86
21 MECHATRO CONTROLLER (OPT)108
22 HYDRAULIC SYSTEM134
23 ELECTRICAL SYSTEM170
24 COMPONENTS SYSTEM220
25 AIR-CONDITIONER SYSTEM302
31 GENERAL DISASSEMBLY AND ASSEMBLY332
32 ATTACHMENTS336
33 UPPER STRUCTURE370
34 TRAVEL SYSTEM518
42 TROUBLESHOOTING (HYDRAULIC SYSTEM)592
43 TROUBLESHOOTING (ELECTRICAL SYSTEM)604
44 TROUBLESHOOTING (ENGINE)614
46 TROUBLE SHOOTING (OPT) (BY ERROR CODES)626
51 ENGINE644
YANMAR ENGINE SERVICE MANUAL646
