New Holland E70B TIER 4 Crawler Excavator Parts Catalog Manual 87659355 – PDF DOWNLOAD

Description

New Holland E70B TIER 4 Crawler Excavator Parts Catalog Manual 87659355 – PDF DOWNLOAD

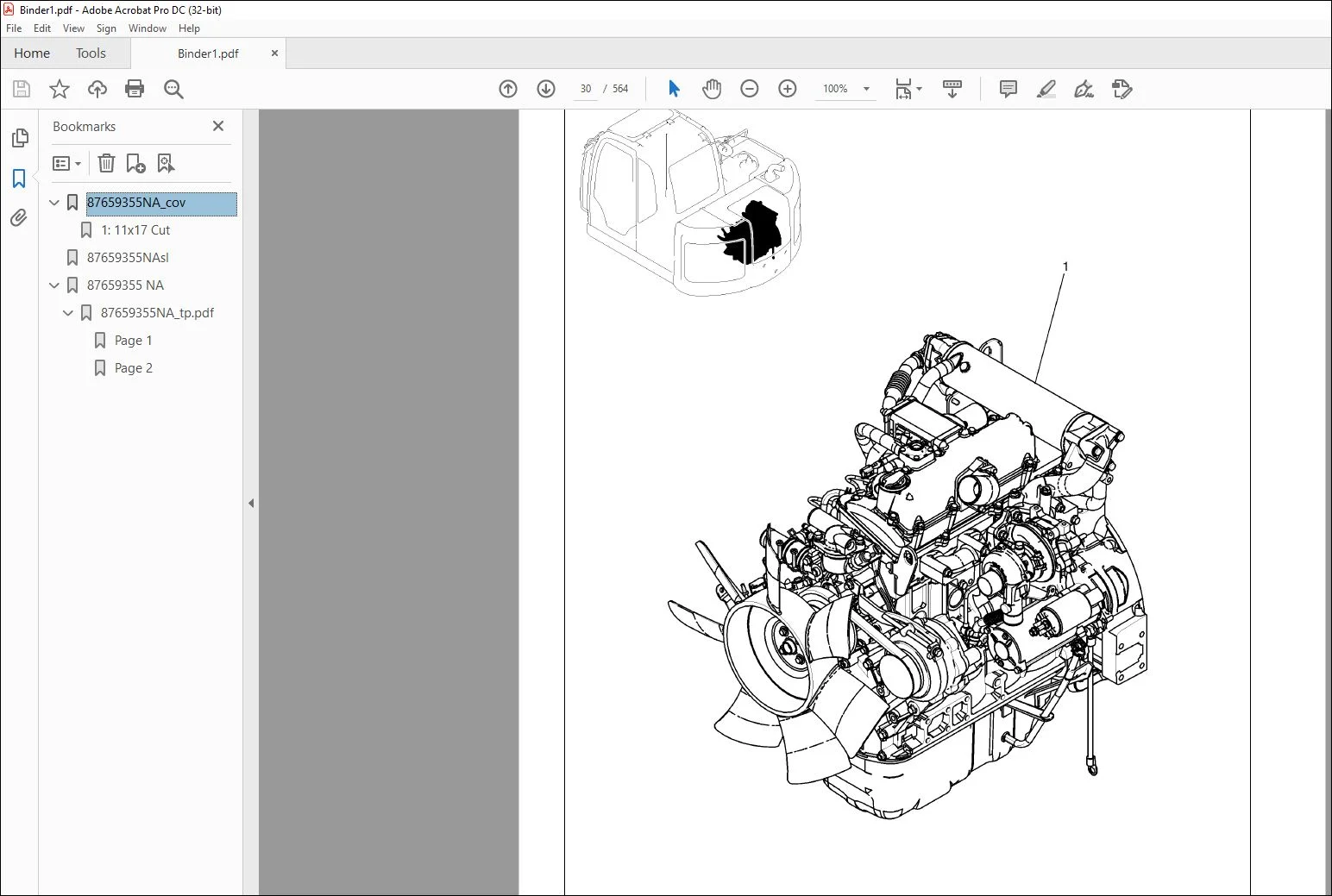

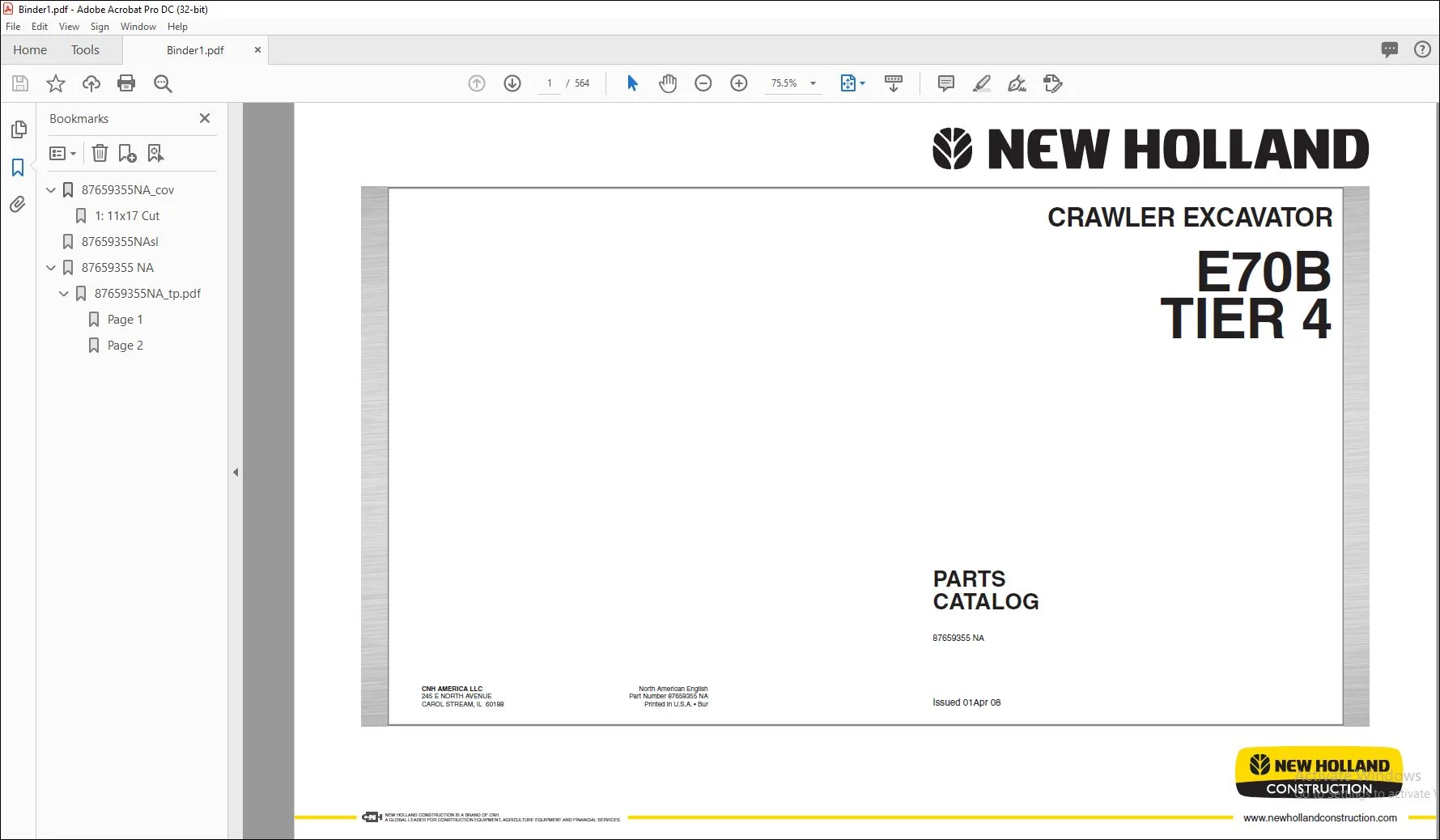

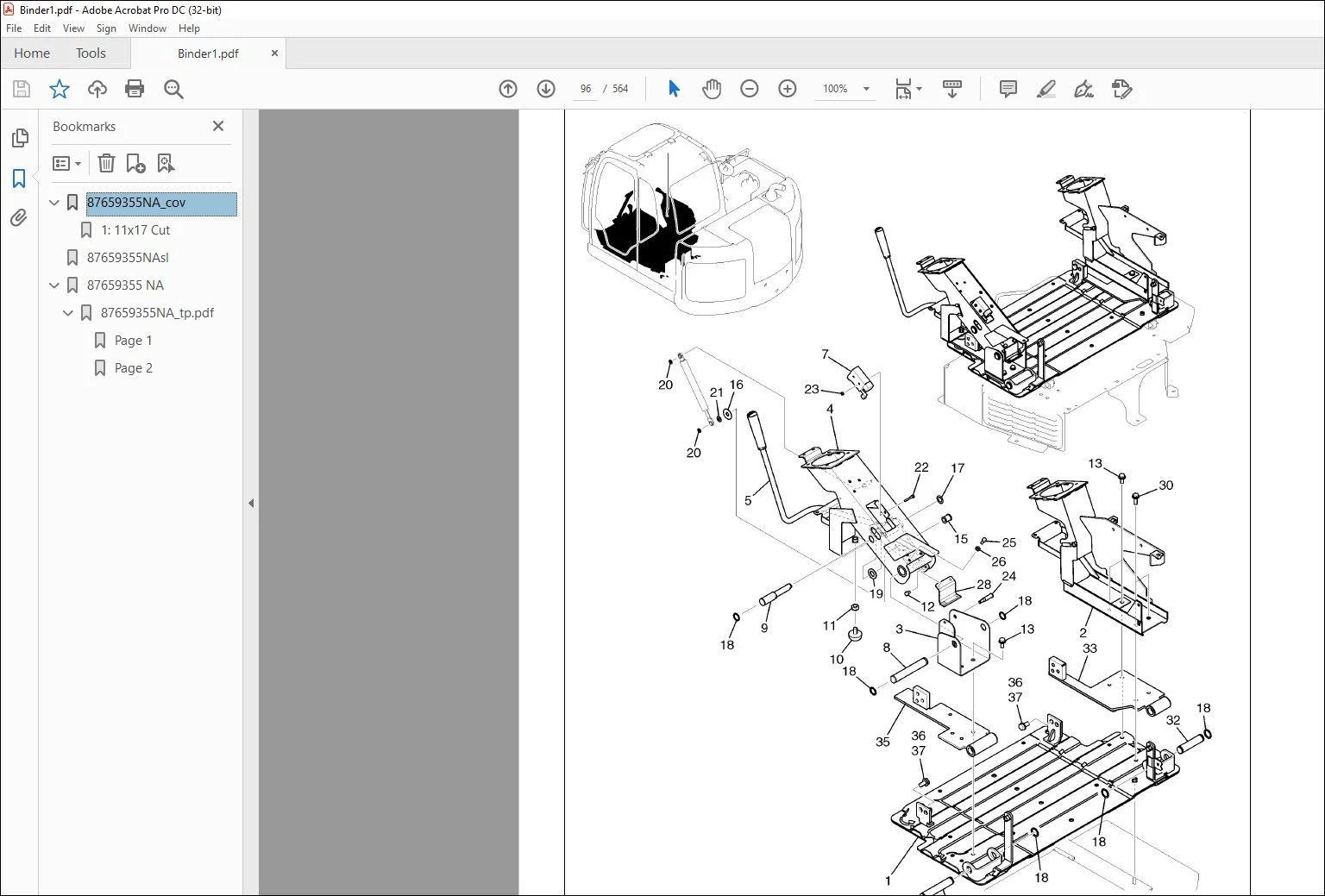

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E70B TIER 4 Crawler Excavator Parts Catalog Manual 87659355 – PDF DOWNLOAD

GENERAL INFORMATION
PROPRIETARY NOTICE:
The contents of this manual are proprietary data of this company. Reproduction or use of any part for other than the operation and maintenance of our equipment is permissible only if expressly authorized in writing. Additional copies may be obtained from your dealer. Address requests for copies to your Dealer and refer to the publication part number appearing on the bottom of the rear catalog cover or on the title page.
COMPANY POLICY:
Company policy, which is one of continuous improvement, reserves the right to change prices and to make changes in design and specification at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condit ion. For exact information about any particular machine please consult your dealer.
PARTS AND ACCESSORIES:
Genuine parts and accessories have been specifically designed for these machines. We would like to point out that “non-genuine”  parts and accessories have NOT been examined and released by the Company. The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety. The company is not liable for any damage caused by the use of “non-genuine” parts and accessories.

HOW TO USE YOUR PARTS CATALOG:
1. Figure Number
2. Sequence Code within the Figure Number
3. Page Number within the Sequence Code
4. Date of Printing (month / year)
5. Figure Description
6. General information regarding the figure
7. Parts supplied in repair kits per symbol reference
8. Figure call-out of the part number (REF)
9. Technical specifications relating to the part indicated
10. Figure call-out includes bracketed items, the included items may also be listed in the additional description
area
11. Orientation – Arrow indicates front of the machine
12. Footnote – Additional information relating to the part number. In this example, 08-20 equals another figure that
this part is shown on
13. Part Number
NSS = Not Serviced Separately (Non-serviced parts)
Bracketed numbers = not available as service parts in this market
14. Not Available as service part in this market
15. YR/SN
Year
Before 01/85 = Part valid for production January 1985 and before
From 01/85 = Part valid for production from January 1985 and after
BTW 01/85 & 02/02 = Part valid for machines produced between January 1985 and February 2002.
Serial Number (P.I.N.)
BSN JJC0268800 = Part valid for serial number JJC0268800 and below
ASN JJC0268800 = Part valid for serial number JJC0268800 and above
BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000
16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications:
AR = As Required
X = As required
17. Part Description
18. Additional description of the part to help confirm identification
19. Figure Notes
20. Model Number(s)

TABLE OF CONTENTS:

New Holland E70B TIER 4 Crawler Excavator Parts Catalog Manual 87659355 – PDF DOWNLOAD

General Information
Section 1 – General Maintenance
Section 2 – Superstructure
Section 3 – Undercarriage
Section 4 – Attachments
Section 5 – Tools and Spare Parts
Section 6 – Optional Parts
Section 7 – Name-Plate
Section 8 – Electrical And Hydraulic Components
Section 9 – Engine Components
Index

01-01-00 00 FILTER LIST
02-01-00 01 UPPER FRAME ASSEMBLY, PAGE 1 OF 2
02-01-00 02 UPPER FRAME ASSEMBLY, PAGE 2 OF 2
02-03-00 00 COUNTERWEIGHT INSTALLATION (YT60C00021F1)
02-04-00 00 ENGINE CONTROL ASSEMBLY (YT11M00010F1)
02-05-00 00 ENGINE ASSEMBLY (YT02P00010F1)
02-06-00 01 ENGINE INSTALLATION (YT02P00011F1), PAGE 1 OF 2
02-06-00 02 ENGINE INSTALLATION (YT02P00011F1), PAGE 2 OF 2
02-07-00 01 RADIATOR INSTALLATION (YT05P00020F1), PAGE 1 OF 2
02-07-00 02 RADIATOR INSTALLATION (YT05P00020F1), PAGE 2 OF 2
02-08-00 01 RADIATOR GROUP (YT05P00018F1), PAGE 1 OF 3
02-08-00 02 RADIATOR GROUP (YT05P00018F1), PAGE 2 OF 3
02-08-00 03 RADIATOR GROUP (YT05P00018F1), PAGE 3 OF 3
02-09-00 00 MUFFLER ASSEMBLY (YT12P00012F1)
02-10-00 00 AIR CLEANER ASSEMBLY (YT11P00008F1)
02-10-01 00 CLEANER ASSEMBLY, AIR (W ELEMENT) (YW11P01021P1)
02-13-00 01 FUEL LINES (YT21P00004F1), PAGE 1 OF 2
02-13-00 02 FUEL LINES (YT21P00004F1), PAGE 2 OF 2
02-14-00 00 FUEL TANK INSTALLATION (YT20P00035F1)
02-15-00 00 HYDRAULIC TANK ASSEMBLY (YT33H00035F1)
02-16-00 00 POWER TAKE-OFF ASSEMBLY (YT30P00004F1)
02-17-00 00 SWING MOTOR INSTALLATION (YT32W00003F1)
02-18-00 00 VALVE INSTALLATION (MAIN) (YT64H00095F1)
02-19-00 00 HYDRAULIC LINES, PUMP (YT30H00007F1)
02-20-00 01 UPPER HYDRAULIC LINES (YT03H00049F1), PAGE 1 OF 2
02-20-00 02 UPPER HYDRAULIC LINES (YT03H00049F1), PAGE 2 OF 2
02-20-01 00 UPPER HYDRAULIC LINES (DOZER) (YT03H00061F1)
02-21-00 00 UPPER HYDRAULIC LINES (HIGH REACH) (YT03H00059F1)
02-22-01 00 SWIVEL HYDRAULIC LINES (YT19H00022F1)
02-22-02 00 HYDRAULIC LINES (SWING) (DOZER) (YT19H00024F1)
02-23-00 01 HYDRAULIC LINES, RETURN (YT32H00011F1), PAGE 1 OF 2
02-23-00 02 HYDRAULIC LINES, RETURN (YT32H00011F1), PAGE 2 OF 2
02-26-00 01 CONTROLS, OPERATORS (YT03M00064F1), PAGE 1 OF 2
02-26-00 02 CONTROLS, OPERATORS (YT03M00064F1), PAGE 2 OF 2
02-26-02 00 CONTROL BOX ASSEMBLY (YB03M00036F1)
02-26-03 00 GRIP ASSEMBLY (YN03M01974F1)
02-26-06 00 RADIO INSTALLATION & SWITCH INSTALLATION (YN54E00010F1 & LV50E00001F1)
02-26-07 00 ARM REST & CLAMP ASSEMBLY (YN25M01183F1 & YT12P01062F1)
02-26-08 00 PROPEL LEVER ASSEMBLY (LF50M00001F1)
02-26-09 00 PEDAL ASSEMBLY (YT55M00006F1)
02-26-10 00 CONTROL ASSEMBLY (DOZER) (YB14M00001F2)
02-27-01 01 REMOTE CONTROL LINES, PAGE 1 OF 2
02-27-01 02 REMOTE CONTROL LINES, PAGE 2 OF 2
02-27-02 01 REMOTE CONTROL LINES, PAGE 1 OF 2
02-27-02 02 REMOTE CONTROL LINES, PAGE 2 OF 2
02-27-10 00 REMOTE CONTROL LINES (DOZER) (YT68H00064F1)
02-29-00 01 CONTROL LINES, MAIN, PAGE 1 OF 2
02-29-00 02 CONTROL LINES, MAIN, PAGE 2 OF 2
02-29-01 00 CONTROL LINES, MAIN (HIGH REACH) (YT06H00058F1)
02-30-00 01 CONTROL LINES, VALVE (YT64H00102F1), PAGE 1 OF 2
02-30-00 02 CONTROL LINES, VALVE (YT64H00102F1), PAGE 2 OF 2
TABLE OF CONTENTS
02-32-00 00 CONTROL LINES, PUMP (YT06H00037F1)
02-32-01 00 CONTROL LINES, PUMP (HIGH REACH), (YT06H00065F1)
02-33-00 00 CONTROL LINES, PROPEL (YT62H00006F1)
02-34-00 00 PLATE INSTALLATION, FLOOR YT03M00056F1
02-35-00 00 MIRROR INSTALLATION (OPERATOR’S CAB) (YT52C00012F3)
02-35-01 00 MIRROR INSTALLATION (REAR) (YT52C00018F1)
02-37-00 00 CAB INSTALLATION (YT02C00050F1)
02-39-00 01 CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 1 OF 4
02-39-00 02 CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 2 OF 4
02-39-00 03 CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 3 OF 4
02-39-00 04 CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 4 OF 4
02-40-00 00 WINDOW ASSEMBLY, ROOF (YY02C01040F1)
02-41-00 00 WINDOW ASSEMBLY, FRONT (YN50C00005F1)
02-42-00 00 DOOR ASSEMBLY, CAB (YB51C00004F1)
02-43-00 00 SEAT INSTALLATION (YN25M00072F1)
02-43-01 01 SEAT, PNEUMATIC CUSHIONING HEATED – COMPONENTS (YN25M00068F1)
02-44-00 00 SEAT BELT ASSEMBLY (YN25M00053F1)
02-45-00 01 GUARD INSTALLATION, (STANDARD) (YT21C00021F2), PAGE 1 OF 2
02-45-00 02 GUARD INSTALLATION, (STANDARD) (YT21C00021F2), PAGE 2 OF 2
02-45-01 01 GUARD ASSEMBLY (RIGHT) (YT21C00039F1), PAGE 1 OF 3
02-45-01 02 GUARD ASSEMBLY (RIGHT) (YT21C00039F1), PAGE 2 OF 3
02-45-01 03 GUARD ASSEMBLY (RIGHT) (YT21C00039F1), PAGE 3 OF 3
02-45-02 00 GUARD INSTALLATION, (INSIDE) (YT21C00026F1)
02-45-03 01 GUARD INSTALLATION (TOP) (YT21C00037F1), PAGE 1 OF 3
02-45-03 02 GUARD INSTALLATION (TOP) (YT21C00037F1), PAGE 2 OF 3
02-45-03 03 GUARD INSTALLATION (TOP) (YT21C00037F1), PAGE 3 OF 3
02-45-04 00 GUARD INSTALLATION (BACK) (LF21C00010F1)
02-46-00 00 COVER ASSEMBLY, UNDER (YT24C00009F1)
02-56-00 00 CONTROLLER INSTALLATION (YT22E00057F1)
02-57-00 00 RELAY BOX ASSEMBLY (YY24E00008F2)
02-58-00 00 BATTERY ASSEMBLY (YT72E00003F1)
02-59-00 01 INSTRUMENT PANEL ASSEMBLY (YT17M00024F1), PAGE 1 OF 3
02-59-00 02 INSTRUMENT PANEL ASSEMBLY (YT17M00024F1), PAGE 2 OF 3
02-59-00 03 INSTRUMENT PANEL ASSEMBLY (YT17M00024F1), PAGE 3 OF 3
02-60-00 00 GAUGE ASSEMBLY, CLUSTER (YN59S00021F3)
02-63-00 01 AIR CONDITIONER INSTALLATION (YT20M00016F1), PAGE 1 OF 3
02-63-00 02 AIR CONDITIONER INSTALLATION (YT20M00016F1), PAGE 2 OF 3
02-63-00 03 AIR CONDITIONER INSTALLATION (YT20M00016F1), PAGE 3 OF 3
02-64-00 00 AIR CONDITIONER ASSEMBLY (YN20M00118F1)
02-65-00 00 DRIER ASSEMBLY, AIR (YT96V00004F1)
02-66-00 00 COMPRESSOR ASSEMBLY (YX91V00001F1)
02-67-00 01 AIR CONDITIONER ASSEMBLY (YN20M00107F3), PAGE 1 OF 2
02-67-00 02 AIR CONDITIONER ASSEMBLY (YN20M00107F3), PAGE 2 OF 2
02-68-00 00 ELECTRICAL ASSEMBLY, UPPER (YT03E00009F1)
02-69-00 00 LIGHT INSTALLATION (FRONT) (YT80E00012F1)
02-70-00 00 LAMP ASSEMBLY (YT80S00002F1)
02-71-00 00 LIGHT INSTALLATION (REAR) (YT80E00015F1)
02-73-00 01 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 1 OF 12
02-73-00 02 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 2 OF 12
02-73-00 03 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 3 OF 12
02-73-00 04 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 4 OF 12
TABLE OF CONTENTS
02-73-00 05 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 5 OF 12
02-73-00 06 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 6 OF 12
02-73-00 07 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 7 OF 12
02-73-00 08 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 8 OF 12
02-73-00 09 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 9 OF 12
02-73-00 10 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 10 OF 12
02-73-00 11 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 11 OF 12
02-73-00 12 HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 12 OF 12
02-74-00 00 HARNESS ASSEMBLY, CAB (YT14E00029F1)
02-75-00 00 HARNESS ASSEMBLY, UPPER (FLOOR PLATE) (YT13E00049F1)
03-01-00 00 LOWER GROUP
03-02-00 00 CAP ASSEMBLY (YT01F01020F1)
03-04-00 00 SLEWING RING ASSEMBLY (YT40F00005F1)
03-06-00 00 CRAWLER IDLER ASSEMBLY (YT52D00007F1)
03-07-00 00 IDLER ASSEMBLY (YT52D00002F1)
03-08-00 00 IDLER ADJUST ASSEMBLY (YT54D00002F1)
03-09-00 00 TRACK ROLLER ASSEMBLY (YT64D00005F1)
03-10-00 00 UPPER ROLLER ASSEMBLY (YT64D00002F1)
03-11-00 00 SHOE ASSEMBLY (YT60D00016F2)
03-13-00 01 LOWER HYDRAULIC LINES, PAGE 1 OF 2
03-13-00 02 LOWER HYDRAULIC LINES, PAGE 2 OF 2
03-20-00 00 DOZER ASSEMBLY (YT51B00067F2)
04-01-00 00 BOOM GROUP, 3.84M (12FT 7IN)
04-02-00 00 BOOM ASSEMBLY (STANDARD, NIBBLER & BREAKER), 3.84M (12FT 7IN)
04-03-00 01 HYDRAULIC LINES, BOOM, 3.84M (12FT 7IN), PAGE 1 OF 2
04-03-00 02 HYDRAULIC LINES, BOOM, 3.84M (12FT 7IN), PAGE 2 OF 2
04-04-00 00 BOOM LIGHT & HARNESS INSTALLATION (LE80E00002F1 & YT15E00003F1)
04-05-00 00 LIGHT ASSEMBLY, BOOM (YN80S00012F1)
04-06-00 01 ARM GROUP – 1.71M (5FT 7IN), PAGE 1 OF 2
04-06-00 02 ARM GROUP – 1.71M (5FT 7IN), PAGE 2 OF 2
04-07-00 00 ARM ASSEMBLY – 1.71M (5FT 7IN) (YT12B00177F1)
04-08-00 00 HYDRAULIC LINES, ARM – 1.71M (5FT 7IN)
04-09-00 00 BUCKET INSTALLATION (YR61B00005F1)
04-10-00 00 BUCKET ASSEMBLY, STANDARD – 0.28M³ (0.37CU YD) – 0.25M³ (0.33CU YD)
(YT61B00046F1)
05-01-00 00 ELEMENT KIT (YT30T00006F3)
06-01-00 00 ALARM ASSEMBLY (YT53E00004F2)
06-02-00 00 NAME PLATE INSTALLATION (NIBBLER & BREAKER) (YT22T00133F3)
06-02-01 00 NAME PLATE INSTALLATION (NIBBLER & BREAKER) (YB22T00065F5)
06-03-00 00 UPPER HYDRAULIC LINES (NIBBLER & BREAKER) (YT03H00054F1)
06-05-00 00 HYDRAULIC LINES, BOOM – 3.84M (12FT 7IN) (NIBBLER & BREAKER)
(YT42H00103F1)
06-06-00 00 HYDRAULIC LINES, ARM (NIBBLER & BREAKER) – 1.71M (5FT 7IN) (YT43H00063F1)
06-07-00 00 CONNECTOR ASSEMBLY (NIBBLER & BREAKER) (YT43H01143F1)
07-01-00 01 NAME PLATE INSTALLATION (YT22T00140F1 & YT22T00140F2), PAGE 1 OF 2
07-01-00 02 NAME PLATE INSTALLATION (YT22T00140F1 & YT22T00140F2), PAGE 2 OF 2
07-02-00 01 NAME PLATE INSTALLATION (YF22T00052F5), PAGE 1 OF 2
07-02-00 02 NAME PLATE INSTALLATION (YF22T00052F5), PAGE 2 OF 2
07-03-00 00 NAME PLATE INSTALLATION (YF22T00055F3)
07-04-00 00 NAME PLATE INSTALLATION (YN22T00288F1)
07-05-00 00 NAME PLATE INSTALLATION (YT22T00137F1, YT22T00137F2 & YT22T00137F4)
TABLE OF CONTENTS
07-06-00 00 NAME PLATE INSTALLATION (YT22T00058F3)
07-07-00 00 NAME PLATE INSTALLATION (YF22T00052F8)
07-20-00 00 NAME PLATE INSTALLATION (YT22T00144F1)
08-01-00 01 VALVE ASSEMBLY, CONTROL (MAIN) (YT30V00039F1), PAGE 1 OF 4
08-01-00 02 VALVE ASSEMBLY, CONTROL (MAIN) (YT30V00039F1), PAGE 2 OF 4
08-01-00 03 VALVE ASSEMBLY, CONTROL (MAIN) (YT30V00039F1), PAGE 3 OF 4
08-01-00 04 VALVE ASSEMBLY, CONTROL (MAIN) (YT30V00039F1), PAGE 4 OF 4
08-02-00 00 MOTOR ASSEMBLY, SWING (YT15V00015F1)
08-03-00 00 MOTOR ASSEMBLY, SWING (YT15V00016F1)
08-03-01 00 VALVE ASSEMBLY, BYPASS (2436R1746F1)
08-03-02 00 VALVE ASSEMBLY, RELIEF (YT22V00001F1)
08-04-00 00 REDUCTION ASSEMBLY, SWING (YT32W00006F1)
08-05-00 01 MOTOR ASSEMBLY (PROPELLING), (YT15V00012F1), PAGE 1 OF 2
08-05-00 02 MOTOR ASSEMBLY (PROPELLING), (YT15V00012F1), PAGE 2 OF 2
08-14-00 01 PUMP ASSEMBLY, HYDRAULIC (YT10V00016F1), PAGE 1 OF 2
08-14-00 02 PUMP ASSEMBLY, HYDRAULIC (YT10V00016F1), PAGE 2 OF 2
08-23-00 01 VALVE ASSEMBLY, SOLENOID (YF30V00013F1), PAGE 1 OF 2
08-23-00 02 VALVE ASSEMBLY, SOLENOID (YF30V00013F1), PAGE 2 OF 2
08-25-00 00 VALVE ASSEMBLY, PILOT (YN30V00111F1)
08-26-00 00 VALVE ASSEMBLY, PILOT (PROPEL) (YN30V00070F1)
08-27-00 00 VALVE ASSEMBLY, PILOT (DOZER) (YT30V00046F1)
08-30-00 00 VALVE ASSEMBLY, SOLENOID (YT35V00027F1)
08-30-01 00 VALVE ASSEMBLY, SOLENOID (YN35V00050F1)
08-30-02 00 VALVE ASSEMBLY, SOLENOID (YN35V00051F1)
08-36-00 00 SWIVEL JOINT ASSEMBLY (YT55V00009F1)
08-40-00 00 CYLINDER ASSEMBLY, BOOM (YT01V00034F1)
08-50-00 00 CYLINDER ASSEMBLY, ARM (YT01V00031F1)
08-60-00 00 CYLINDER ASSEMBLY, BUCKET (YT01V00032F1)
08-70-00 00 CYLINDER ASSEMBLY, DOZER (YT01V00035F1)
09-00-00 00 ENGINE (YT02P00010F1)
09-02-00 00 KIT, ENGINE GASKET (VI5878151960)
09-03-00 00 CYLINDER HEAD COVER
09-04-00 00 CYLINDER HEAD
09-05-00 01 CYLINDER BLOCK, PAGE 1 OF 2
09-05-00 02 CYLINDER BLOCK, PAGE 2 OF 2
09-06-00 00 OIL PAN AND LEVEL GAUGE
09-07-00 01 CAMSHAFT AND VALVE, PAGE 1 OF 2
09-07-00 02 CAMSHAFT AND VALVE, PAGE 2 OF 2
09-08-00 00 CRANKSHAFT, PISTON AND FLYWHEEL
09-09-00 01 TIMING GEAR CASE AND FLYWHEEL HOUSING, PAGE 1 OF 2
09-09-00 02 TIMING GEAR CASE AND FLYWHEEL HOUSING, PAGE 2 OF 2
09-10-00 00 INTAKE MANIFOLD
09-11-00 00 EXHAUST MANIFOLD
09-12-00 00 WATER PUMP AND CORROSION RESISTOR
09-13-00 00 THERMOSTAT AND HOUSING
09-14-00 00 WATER PIPING, ENGINE
09-15-00 00 FAN AND FAN BELT
09-16-00 00 TURBOCHARGER SYSTEM
09-17-00 01 FUEL INJECTION SYSTEM, PAGE 1 OF 3
09-17-00 02 FUEL INJECTION SYSTEM, PAGE 2 OF 3
09-17-00 03 FUEL INJECTION SYSTEM, PAGE 3 OF 3
TABLE OF CONTENTS
09-18-00 00 FUEL FILTER AND BRACKET
09-19-00 00 OIL COOLER AND OIL FILTER
09-20-00 00 OIL PUMP AND OIL STRAINER
09-21-00 00 ENGINE OIL AND VACUUM PIPING
09-22-00 00 EMISSION PIPING
09-23-00 01 ENGINE ELECTRICAL CONTROL PARTS, PAGE 1 OF 2
09-23-00 02 ENGINE ELECTRICAL CONTROL PARTS, PAGE 2 OF 2
09-24-00 01 TIMING CHAIN CASE, PAGE 1 OF 2
09-24-00 02 TIMING CHAIN CASE, PAGE 2 OF 2
09-25-00 00 ELECTRICAL CONTROL AND OTHER PARTS
09-26-00 00 GENERATOR (VI8971822892)
09-27-00 00 FUEL INJECTION PUMP (VI8980955500)
09-28-00 00 STARTER ASSEMBLY (VI8980723151)

Customer Support: [email protected]

https://vimeo.com/731613591

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
