New Holland E70B TIER 4 CRAWLER EXCAVATOR REPAIR MANUAL 87728508NA – PDF DOWNLOAD

Description

New Holland E70B TIER 4 CRAWLER EXCAVATOR REPAIR MANUAL 87728508NA – PDF DOWNLOAD

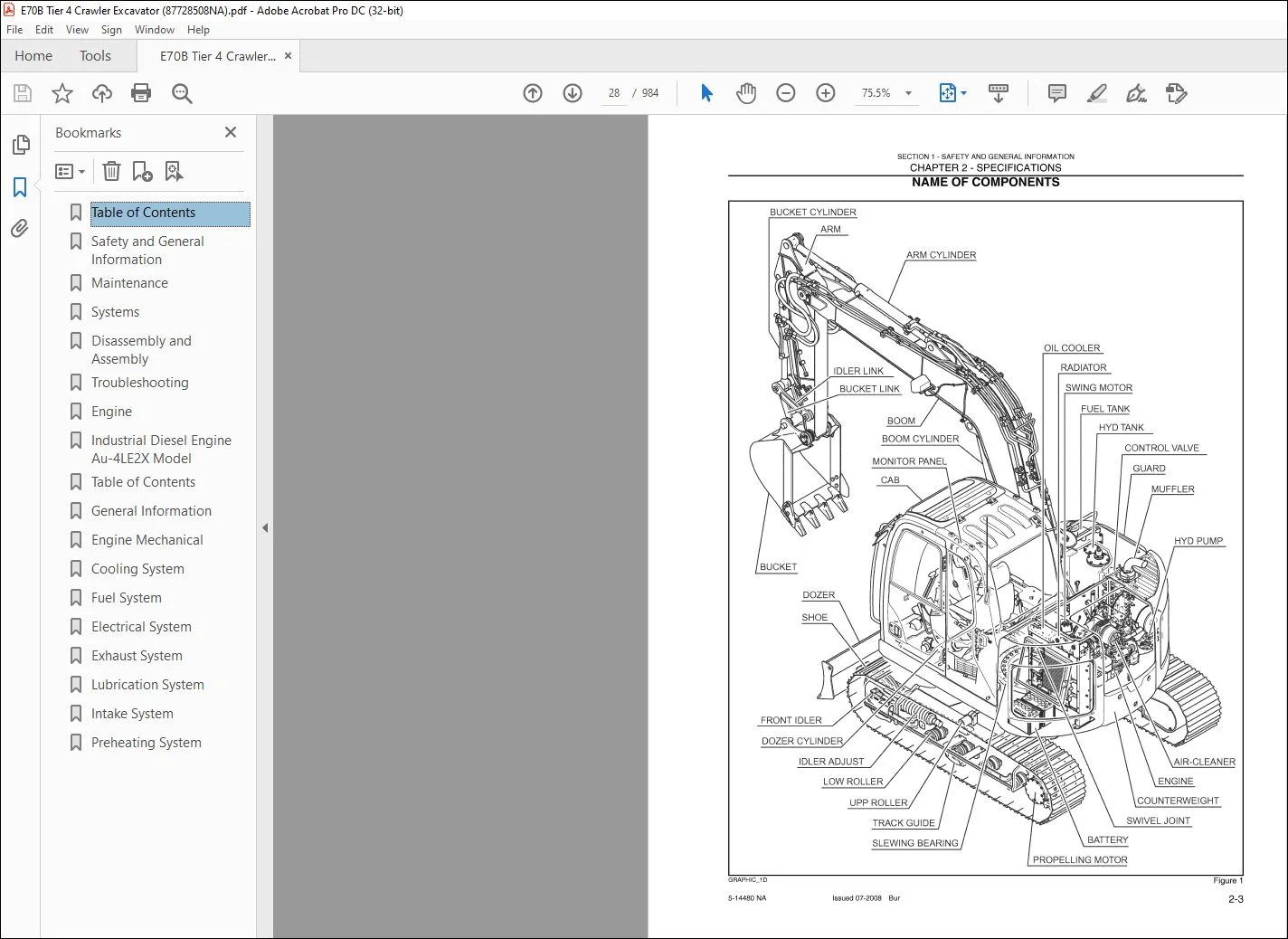

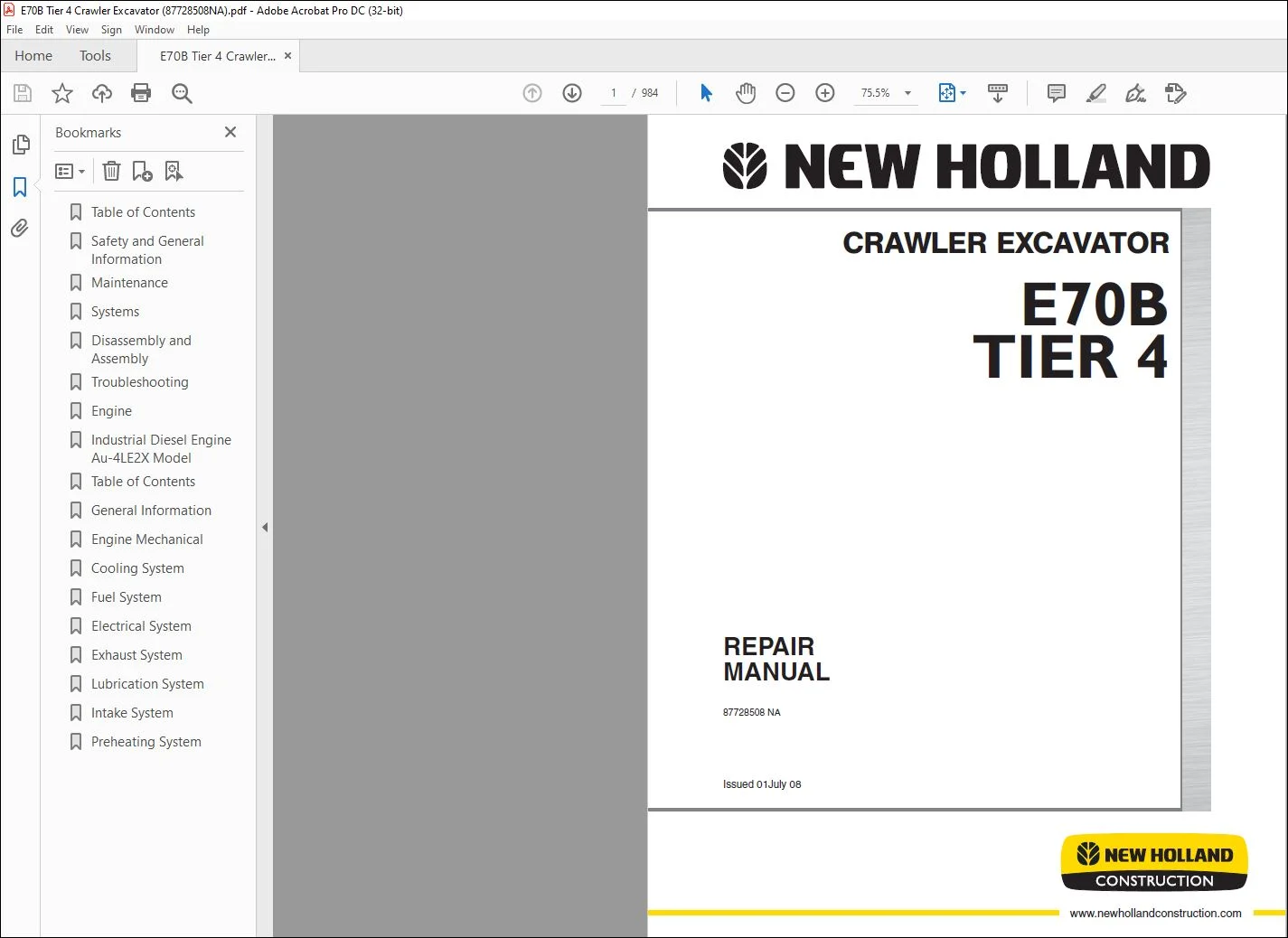

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E70B TIER 4 CRAWLER EXCAVATOR REPAIR MANUAL 87728508NA – PDF DOWNLOAD

GENERAL SAFETY INFORMATION

WARNING

Do not operate or perform any maintenance оп this machine until all instructions found in the OPERATOR’S MANUAL and this MANUAL have been thoroughly read and understood. lmproper operation or maintenance of this machine may cause accidents and could result in serious injury or death. Always keep the manual in storage. lf it is missing or damaged, place an order with an authorized our Distributor for а replacement. lf you have any questions, please consult an authorized our Distributor.

1.  Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient саге should Ье taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in the manual and оп the machine should Ье read and understood Ьу all personnel before starting any work with or оп the machine.
2.  Operation, inspection, and maintenance should Ье carefully carried out, and safety must Ье given the first priority. Messages of safety are indicated with marks. The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations.
3. Messages of safety appear in the manual and оп the machine : AII messages of safety are identified Ьу either word of DANGER, WARNING and CAUTION. DANGER- lndicates an imminently hazardous situation which, if not avoided, will result in death or serious injury and is represented as follows:

SAFETY PRECAUTIONS

WARNING

The proper and safe lubrication and maintenance for this machine, recommended Ьу Manufacturer, are outlined in the OPERATOR’S MANUAL for the machine. lmproper performance of lubrication or maintenance procedures are dangerous and could result in injury or death. Read and understand the MANUAL before performing any lubrication or maintenance.

The serviceman or mechanic may Ье unfamiliar with many of the systems оп this machine. This makes it important to use caution when performing service work. А knowledge of the system and or components is important before the removal or disassemЫy of any component. Because of the size of some of the machine components, the serviceman ог mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components tаЫе is shown in the section; SPECIFICATIONS.

The following is а list of basic precautions that must always Ье observed.

1. 1 . Read and understand all Warning plates and decal оп the machine before Operating, Maintaining or Repairing this machine.
2. . Always wear protective glasses and protective shoes when working around machines. ln particular, wear protective glasses when using hammers, punches or drifts оп any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working оп this machinery.
3. Disconnect the battery and hang а Do Not Operate tag in the Operators Compartment. Remove ignition keys.
4. lf possiЫe, make all repairs with the machine parked оп а firm level surface. Block the machine so it does not roll while working оп or under the machine. Hang а Do Not Operate tag in the Operators Compartment.
5. Do not work оп any machine that is supported only Ьу lift, jacks or а hoist. Always use Ыocks or jack stands, сараЫе of supporting the machine, before performing any disassemЫy

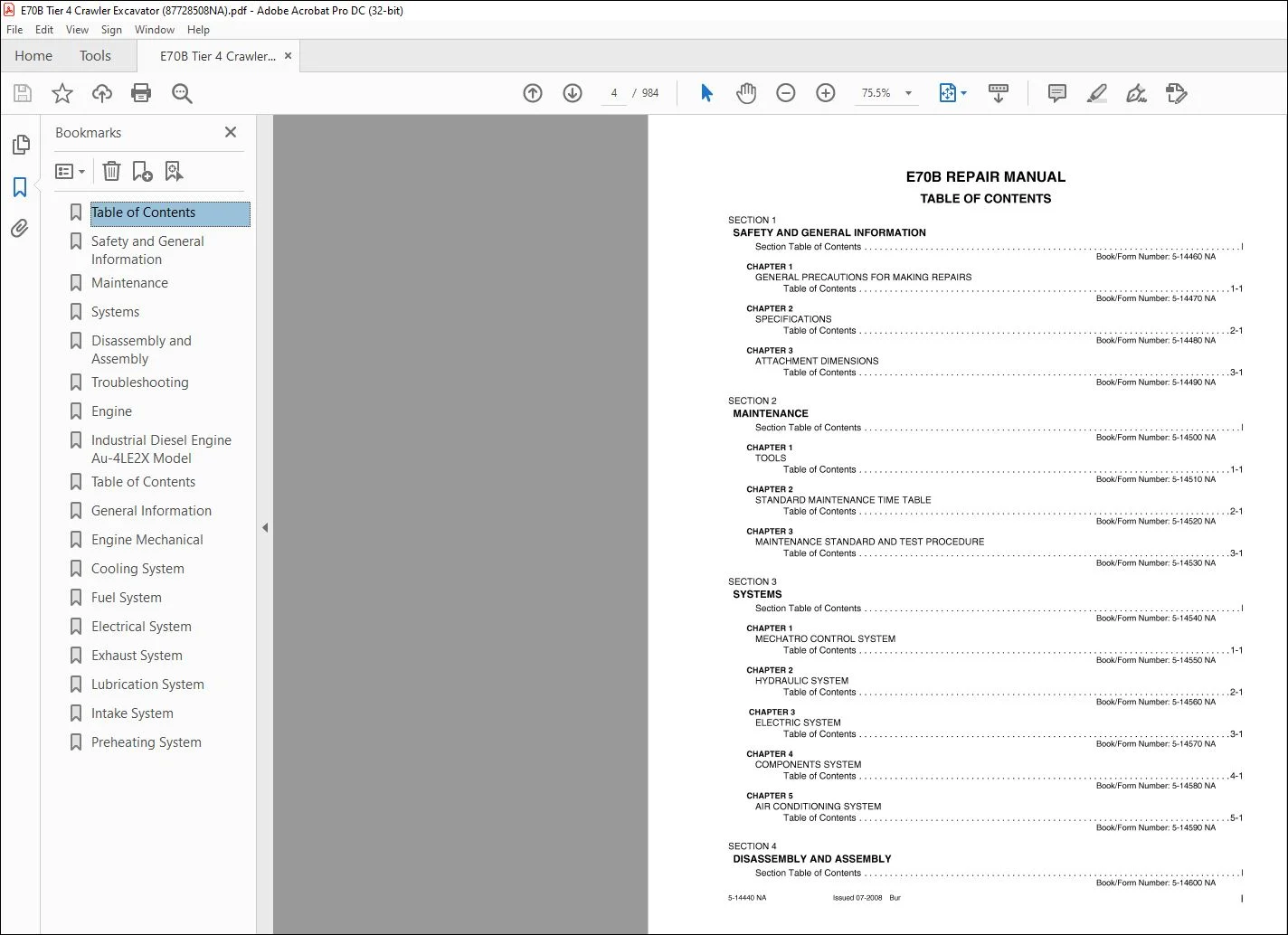

TABLE OF CONTENTS:

New Holland E70B TIER 4 CRAWLER EXCAVATOR REPAIR MANUAL 87728508NA – PDF DOWNLOAD

Table of Contents 4
Safety and General Information 10
Maintenance 56
Systems 130
Disassembly and Assembly 410
Troubleshooting 674
Engine 748
Industrial Diesel Engine Au-4LE2X Model 758
Table of Contents 760
General Information 761
Engine Mechanical 794
Cooling System 892
Fuel System 902
Electrical System 916
Exhaust System 954
Lubrication System 960
Intake System 966
Preheating System 982

Customer Support: [email protected]

https://vimeo.com/730955268

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
