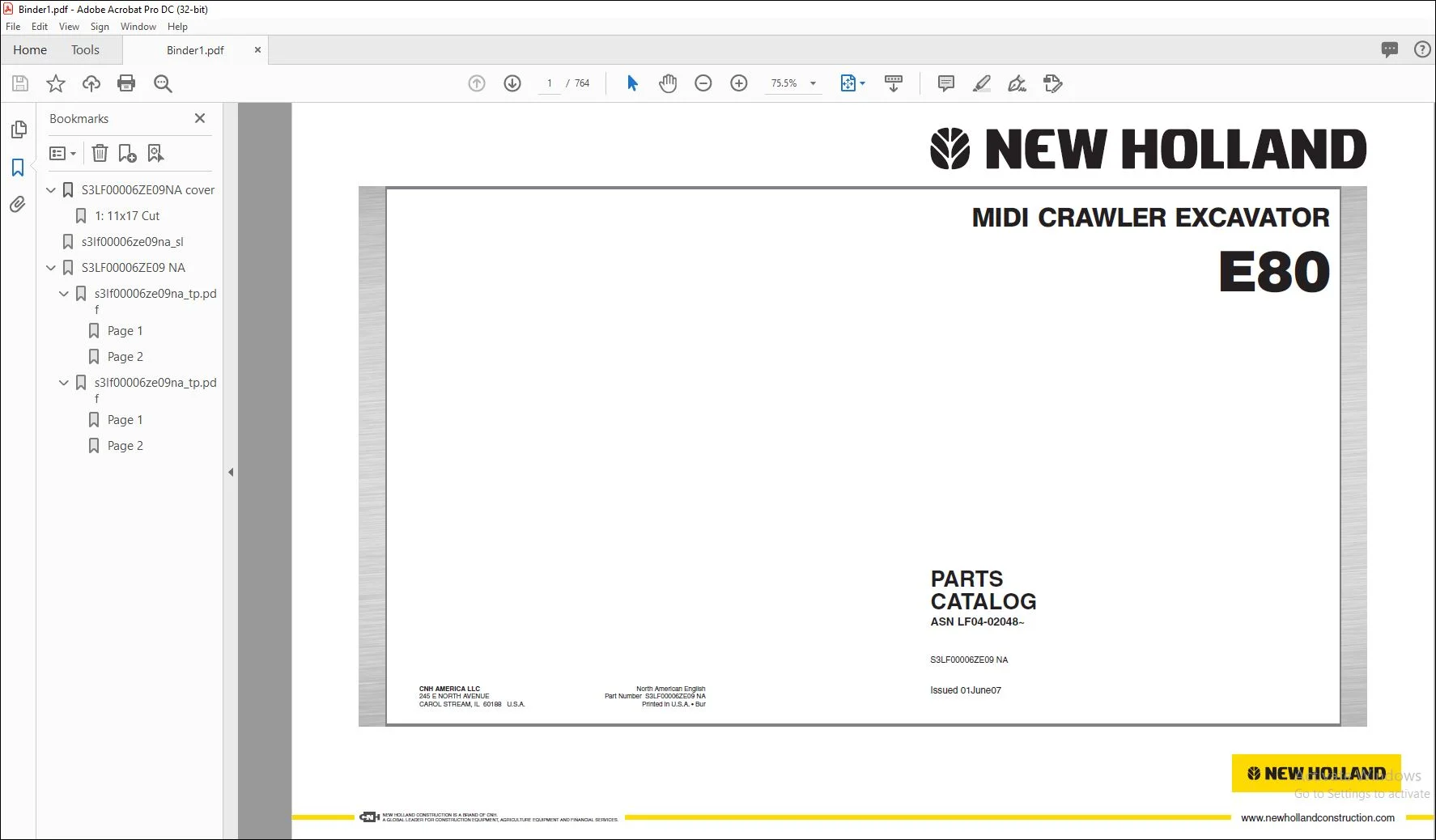

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland E80 Compact Crawler Excavator ASN PJ06-09807 PARTS CATALOG MANUAL ASN LF04-02048 – PDF DOWNLOAD

GENERAL INFORMATION

COMPANY POLICY Company policy, which is one of continuous improvement, reserves the right to change prices and to make changes in design and specification at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condit ion. For exact information about any particular machine please consult your dealer.

PARTS AND ACCESSORIES

Genuine par ts and accessories have been specifically designed for these machines. We would like to point out that “non-genuine” parts and accessories have NOT been examined and released by the Company. The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety. The company is not liable for any damage caused by the use of “non-genuine” parts and accessories.

IMPROVEMENTS

We are continually striving to improve our products. We reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously. MODEL CODES The range of machines listed may not be available in all countries or markets therefore, for the latest information consult your local dealer.

OWNER ASSISTANCE

We want you to be completely satisfied with your investment. Normally any problems with your equipment will be handled by your dealer’s Service Department; however, misunderstandings can occur. If your problem has not been handled to your satisfaction, we suggest the following:

1. Contact the owner or General Manager of the dealership, explain the problem, and request assistance. When additional assistance is needed, your dealer has direct access to our office.

2. Provide your dealer with:

1.  Your Name, Address, and Telephone number
2.  Machine Model and Serial Number
3.  Dealership Name and Address
4.  Machine purchase date and amount of use

Nature of problem Be aware that your problem will likely be resolved in the dealership using the dealer’s faci l i t ies, equipment, and personnel. So it is important that your initial contact be with the dealer. SPARE PARTS To maintain operating efficiency, use original spare parts. When ordering parts, give the following information:

•  Machine Model
• Machine and Engine Serial Numbers
•  Part Number from the Parts Catalog

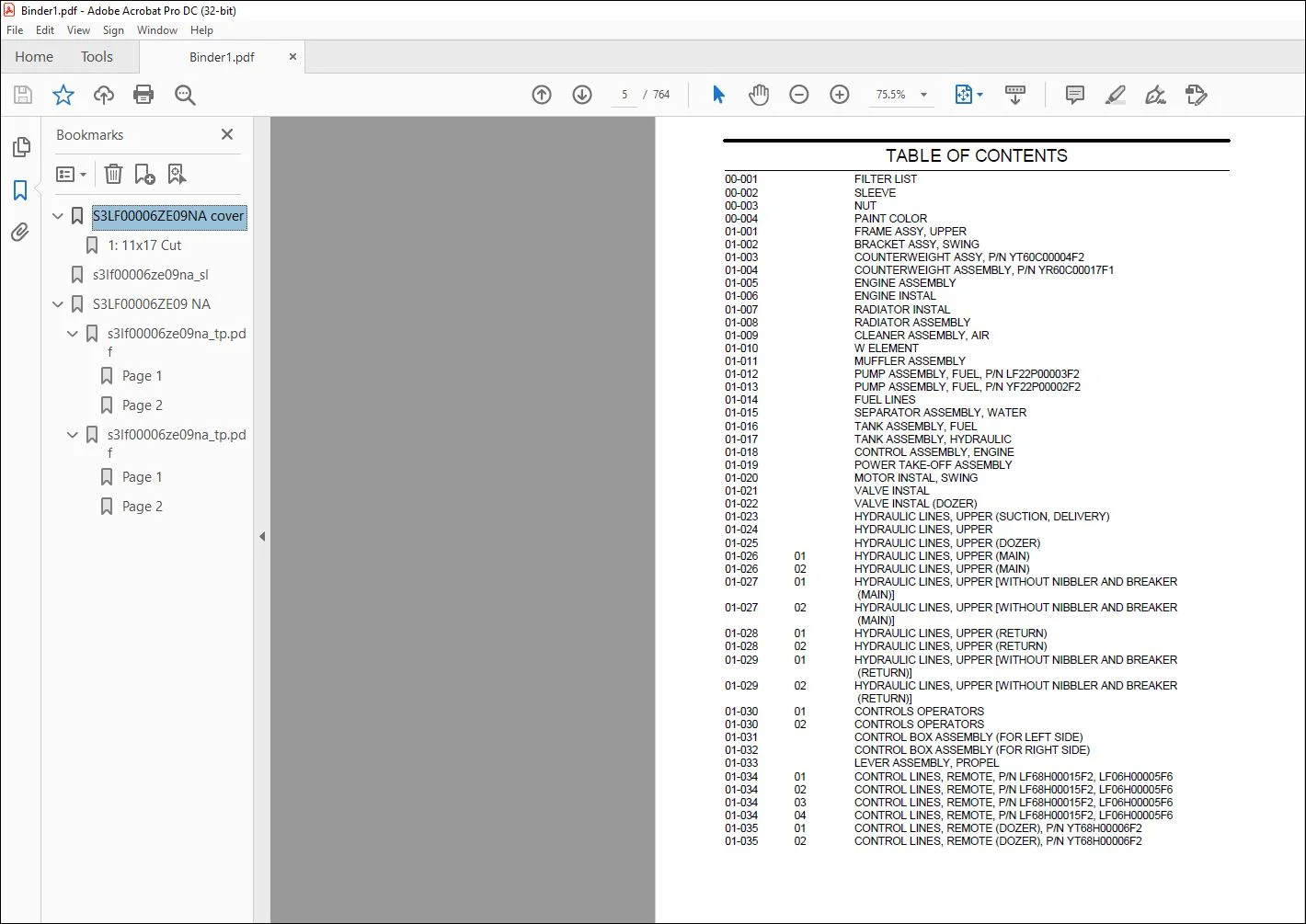

TABLE OF CONTENTS:

New Holland E80 Compact Crawler Excavator ASN PJ06-09807 PARTS CATALOG MANUAL ASN LF04-02048 – PDF DOWNLOAD

00-001 FILTER LIST
00-002 SLEEVE
00-003 NUT

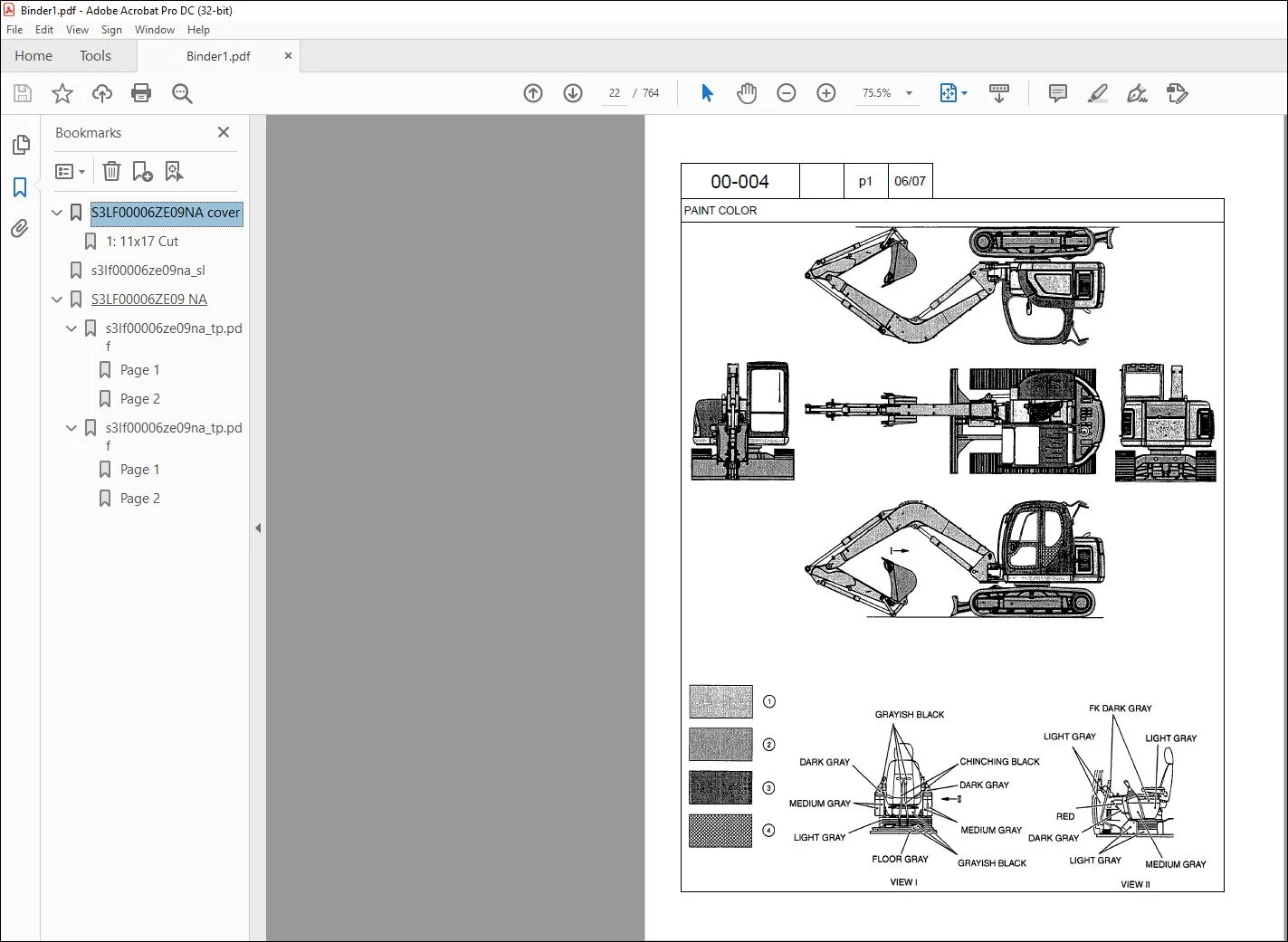

00-004 PAINT COLOR
01-001 FRAME ASSY, UPPER
01-002 BRACKET ASSY, SWING
01-003 COUNTERWEIGHT ASSY, P/N YT60C00004F2
01-004 COUNTERWEIGHT ASSEMBLY, P/N YR60C00017F1
01-005 ENGINE ASSEMBLY
01-006 ENGINE INSTAL
01-007 RADIATOR INSTAL
01-008 RADIATOR ASSEMBLY
01-009 CLEANER ASSEMBLY, AIR
01-010 W ELEMENT
01-011 MUFFLER ASSEMBLY
01-012 PUMP ASSEMBLY, FUEL, P/N LF22P00003F2
01-013 PUMP ASSEMBLY, FUEL, P/N YF22P00002F2
01-014 FUEL LINES
01-015 SEPARATOR ASSEMBLY, WATER
01-016 TANK ASSEMBLY, FUEL
01-017 TANK ASSEMBLY, HYDRAULIC
01-018 CONTROL ASSEMBLY, ENGINE
01-019 POWER TAKE-OFF ASSEMBLY
01-020 MOTOR INSTAL, SWING
01-021 VALVE INSTAL
01-022 VALVE INSTAL (DOZER)
01-023 HYDRAULIC LINES, UPPER (SUCTION, DELIVERY)
01-024 HYDRAULIC LINES, UPPER
01-025 HYDRAULIC LINES, UPPER (DOZER)
01-026 01 HYDRAULIC LINES, UPPER (MAIN)
01-026 02 HYDRAULIC LINES, UPPER (MAIN)
01-027 01 HYDRAULIC LINES, UPPER [WITHOUT NIBBLER AND BREAKER
(MAIN)]
01-027 02 HYDRAULIC LINES, UPPER [WITHOUT NIBBLER AND BREAKER
(MAIN)]
01-028 01 HYDRAULIC LINES, UPPER (RETURN)
01-028 02 HYDRAULIC LINES, UPPER (RETURN)
01-029 01 HYDRAULIC LINES, UPPER [WITHOUT NIBBLER AND BREAKER
(RETURN)]
01-029 02 HYDRAULIC LINES, UPPER [WITHOUT NIBBLER AND BREAKER
(RETURN)]
01-030 01 CONTROLS OPERATORS
01-030 02 CONTROLS OPERATORS
01-031 CONTROL BOX ASSEMBLY (FOR LEFT SIDE)
01-032 CONTROL BOX ASSEMBLY (FOR RIGHT SIDE)
01-033 LEVER ASSEMBLY, PROPEL
01-034 01 CONTROL LINES, REMOTE, P/N LF68H00015F2, LF06H00005F6
01-034 02 CONTROL LINES, REMOTE, P/N LF68H00015F2, LF06H00005F6
01-034 03 CONTROL LINES, REMOTE, P/N LF68H00015F2, LF06H00005F6
01-034 04 CONTROL LINES, REMOTE, P/N LF68H00015F2, LF06H00005F6
01-035 01 CONTROL LINES, REMOTE (DOZER), P/N YT68H00006F2
01-035 02 CONTROL LINES, REMOTE (DOZER), P/N YT68H00006F2
01-036 01 CONTROL LINES, REMOTE (WITHOUT NIBBLER & BREAKER), P/N
LF68H00015F2, LF06H00005F8
01-036 02 CONTROL LINES, REMOTE (WITHOUT NIBBLER & BREAKER), P/N
LF68H00015F2, LF06H00005F8
01-036 03 CONTROL LINES, REMOTE (WITHOUT NIBBLER & BREAKER), P/N
LF68H00015F2, LF06H00005F8
01-036 04 CONTROL LINES, REMOTE (WITHOUT NIBBLER & BREAKER), P/N
LF68H00015F2, LF06H00005F8
01-037 01 CONTROL LINES, REMOTE, P/N LF68H00010F1
01-037 02 CONTROL LINES, REMOTE, P/N LF68H00010F1
01-038 CONTROL LINES, REMOTE (WITHOUT NIBBLER & BREAKER), P/N
LF68H00009F1
01-039 01 CONTROL LINES, REMOTE, P/N LF64H00010F3
01-039 02 CONTROL LINES, REMOTE, P/N LF64H00010F3
01-040 01 CONTROL LINES, REMOTE (WITHOUT NIBBLER & BREAKER), P/N
LF64H00010F4
01-040 02 CONTROL LINES, REMOTE (WITHOUT NIBBLER & BREAKER), P/N
LF64H00010F4
01-041 01 CONTROL LINES, REMOTE, P/N YT06H00015F2
01-041 02 CONTROL LINES, REMOTE, P/N YT06H00015F2
01-042 PLATE GROUP, FLOOR
01-043 MIRROR INSTAL, P/N YT52C00005F1
01-044 MIRROR INSTAL, P/N YT52C00008F3
01-045 CAB INSTAL
01-046 01 CAB ASSEMBLY
01-046 02 CAB ASSEMBLY
01-046 03 CAB ASSEMBLY
01-047 WINDOW ASSEMBLY, FR.
01-048 DOOR ASSEMBLY, CAB
01-049 SEAT GROUP
01-050 SEAT ASSEMBLY
01-051 BELT ASSEMBLY, SEAT
01-052 01 GUARD INSTAL
01-052 02 GUARD INSTAL
01-053 COVER ASSEMBLY
01-054 BOX ASSEMBLY
01-055 GUARD ASSEMBLY
01-056 BONNET ASSEMBLY
01-057 GUARD INSTAL (COUNTERWEIGHT)
01-058 COVER ASSEMBLY, UNDER
01-059 01 PANEL ASSY, INSTRUMENT (5 LIGHT)
01-059 02 PANEL ASSY, INSTRUMENT (5 LIGHT)
01-060 01 PANEL ASSEMBLY, INSTRUMENT (AIR-CON)
01-060 02 PANEL ASSEMBLY, INSTRUMENT (AIR-CON)
01-061 GAUGE ASSEMBLY, CLUSTER
01-062 01 CONTROLLER GROUP
01-062 02 CONTROLLER GROUP
01-062 03 CONTROLLER GROUP
01-062 04 CONTROLLER GROUP
01-063 BATTERY INSTAL
01-064 CONDITIONER ASSEMBLY, AIR
01-065 01 CONDITIONER INSTAL
01-065 02 CONDITIONER INSTAL
01-066 CONDITIONER ASSEMBLY, AIR
01-067 CONDITIONER ASSEMBLY, AIR
01-068 DRYER ASSEMBLY, AIR
01-069 COMPRESSOR ASSEMBLY, AIR
01-070 FILTER ASSEMBLY, AIR
01-071 01 CONDITIONER ASSEMBLY, AIR
01-071 02 CONDITIONER ASSEMBLY, AIR
01-072 01 ELECTRICAL ASSY, UPPER
01-072 02 ELECTRICAL ASSY, UPPER
01-073 LIGHT INSTAL, UPPER
01-074 LIGHT ASSY, P/N YN80S00010F1
01-075 LIGHT ASSY, P/N YN80S00012F1
01-076 01 HARNESS ASSEMBLY, UPPER
01-076 02 HARNESS ASSEMBLY, UPPER
01-076 03 HARNESS ASSEMBLY, UPPER
01-076 04 HARNESS ASSEMBLY, UPPER
01-076 05 HARNESS ASSEMBLY, UPPER
01-077 01 HARNESS ASSY, CAB
01-077 02 HARNESS ASSY, CAB
01-078 01 HARNESS ASSY, UPPER (FLOOR PLATE)
01-078 02 HARNESS ASSY, UPPER (FLOOR PLATE)
01-079 01 HARNESS ASSY, ENGINE
01-079 02 HARNESS ASSY, ENGINE
02-001 LOW GROUP (FOR RUBBER)
02-002 LOW GROUP (FOR IRON)
02-003 SLEWING RING ASSEMBLY
02-004 IDLER ASSY, CRAWLER
02-005 IDLER ASSY
02-006 IDLER ADJUST ASSY
02-007 TRACK ROLLER ASSY
02-008 ROLLER ASSY, UPPER
02-009 SHOE ASSY
02-010 RUBBER, CRAWLER BELT
02-011 HYDRAULIC LINES, LOW
02-012 DOZER ASSY
02-013 DOZER ASSY P/N LF51B00024F2
02-014 DOZER ASSY (BOLT-ON CUTTING EDGE TYPE)
02-015 DOZER ASSY (BOLT-ON CUTTING EDGE TYPE) P/N LF51B00028F2
03-001 BOOM ASSY, STANDARD 3.72M
03-002 HYDRAULIC LINES, BOOM 3.72M (WITHOUT NIBBLER AND
BREAKER)
03-003 HYDRAULIC LINES, BOOM 3.72M
03-004 LIGHT INSTAL
03-005 ARM ASSY, 1.8M
03-006 HYDRAULIC LINES, ARM 1.8M
03-007 HYDRAULIC LINES, ARM 1.8M ((NIBBLER & BREAKER)
03-008 BUCKET INSTAL
04-001 TOOL & ACCESSORY
04-002 ELEMENT KIT
05-001 01 CONTROL LINES REMOTE (BOOM SAFETY)
05-001 02 CONTROL LINES REMOTE (BOOM SAFETY)
05-001 03 CONTROL LINES REMOTE (BOOM SAFETY)
05-002 01 CONTROL LINES REMOTE (BOOM & ARM SAFETY)
05-002 02 CONTROL LINES REMOTE (BOOM & ARM SAFETY)
05-002 03 CONTROL LINES REMOTE (BOOM & ARM SAFETY)
05-003 LIGHT INSTAL (5 LIGHT)
05-004 ALARM ASSY (WITH OVERLOAD ALARM)
05-005 01 ELECTRICAL ASSY, UPPER (FOR ANTITHEFT)
05-005 02 ELECTRICAL ASSY, UPPER (FOR ANTITHEFT)
05-006 HYDRAULIC LINES, CYLINDER [WITH SENSOR, PRESS. (BOOM
SAFETY)]
05-007 01 HYDRAULIC LINES, CYLINDER (ARM SAFETY)
05-007 02 HYDRAULIC LINES, CYLINDER (ARM SAFETY)
05-008 ARM ASSY, LONG 2.07M
05-009 HYDRAULIC LINES, ARM 2.07M
05-010 HYDRAULIC LINES, ARM 2.07M (NIBBLER & BREAKER)
05-011 CONNECTOR ASSY
06-001 01 NAME PLATE INSTAL
06-001 02 NAME PLATE INSTAL
06-002 NAME PLATE INSTAL (CAB) P/N YB22T00006F4
06-003 NAME PLATE INSTAL (CAB) P/N YT22T00055F4
06-004 NAME PLATE INSTAL (CAB) P/N YT22T00081F2
06-005 NAME PLATE INSTAL (MACHINE NAME)
06-006 NAME PLATE INSTAL (CAB) P/N LF22T00006F3
06-007 NAME PLATE INSTAL (LONG ARM)
06-008 NAME PLATE INSTAL (ATTACHMENT)
07-001 01 VALVE ASSY, CONTROL, P/N LF30V00001F2
07-001 02 VALVE ASSY, CONTROL, P/N LF30V00001F2
07-001 03 VALVE ASSY, CONTROL, P/N LF30V00001F2
07-002 01 VALVE ASSY, CONTROL, P/N YT30V00017F1
07-002 02 VALVE ASSY, CONTROL, P/N YT30V00017F1
07-003 01 VALVE ASSY, CONTROL, P/N YT30V00019F3
07-003 02 VALVE ASSY, CONTROL, P/N YT30V00019F3
07-004 VALVE ASSY, MAIN RELIEF
07-005 VALVE ASSY, OVERLOAD RELIEF
07-006 VALVE ASSY, CONTROL, P/N YR30V00014F1
07-007 VALVE ASSY, RELIEF, P/N 2436R1119F1
07-008 SECTION ASSY, INLET
07-009 SECTION ASSY, SPOOL
07-010 VALVE ASSY, RELIEF, P/N YT22V00006F1
07-011 VALVE ASSY, CONTROL P/N YT30V00021F1
07-012 SECTION ASSY, SPOOL P/N YT30V00027F1
07-013 MOTOR ASSY (SWING)
07-014 REDUCTION ASSY (SWING)
07-015 VALVE ASSY, RELIEF, P/N YT22V00001F1
07-016 VALVE ASSY, BYPASS
07-017 01 MOTOR ASSY (PROPELLING)
07-017 02 MOTOR ASSY (PROPELLING)
07-018 PUMP ASSY
07-019 VALVE ASSY, PUMP
07-020 PUMP ASSY, GEAR
07-021 CYLINDER ASSY, BOOM
07-022 CYLINDER ASSY, ARM
07-023 01 CYLINDER ASSY, BUCKET
07-023 02 CYLINDER ASSY, BUCKET
07-024 CYLINDER ASSY, DOZER
07-025 CYLINDER ASSY, SWING
07-026 VALVE ASSY, PILOT
07-027 CYLINDER ASSY, PILOT (PROPELLING)
07-028 VALVE ASSY, PILOT
07-029 VALVE ASSY, SOLENOID P/N YT35V00017F1
07-030 VALVE ASSY, SOLENOID P/N YT35V00013F1
07-031 VALVE ASSY, SOLENOID P/N YT35V00014F1
07-032 VALVE ASSY, SOLENOID P/N YT35V00018F1
07-033 VALVE ASSY, SOLENOID P/N YB35V00005F1
07-034 VALVE ASSY, SOLENOID P/N YR35V00009F1
07-035 VALVE ASSY, HOLDING
07-036 JOINT ASSY, SWIVEL
08-001 ENGINE GASKET KIT
08-002 CYLINDER HEAD COVER
08-003 CYLINDER HEAD
08-004 CYLINDER BLOCK
08-005 OIL PAN AND LEVEL GAUGE
08-006 CAMSHAFT AND VALVE
08-007 CRANKSHAFT, PISTON AND FLYWHEEL
08-008 TIMING GEAR CASE AND FLYWHEEL HOUSING
08-009 ENGINE MOUNTING
08-010 INLET MANIFOLD
08-011 EXHAUST MANIFOLD
08-012 VENTILATION SYSTEM
08-013 WATER PUMP AND CORROSION RESISTOR
08-014 THERMOSTAT AND HOUSING
08-015 WATER PIPING, ENGINE
08-016 FAN AND FAN BELT
08-017 01 FUEL INJECTION SYSTEM
08-017 02 FUEL INJECTION SYSTEM
08-018 FUEL FILTER AND BRACKET
08-019 FUEL PUMP AND PIPE
08-020 OIL COOLER AND OIL FILTER
08-021 OIL PUMP AND OIL STRAINER
08-022 OIL AND VACUUM PIPING, ENGINE
08-023 ENGINE ELECTRICAL CONTROL PARTS
08-024 STARTER
08-025 GENERATOR
08-026 INJECTION PUMP
08-027 GOVERNOR, INJECTION PUMP
08-028 FEED PUMP, INJECTION PUMP
08-029 MISCELLANEOUS PARTS, INJECTION PUMP
08-030 COUPLING, INJECTION PUMP
08-031 FUEL PIPING, CHASSIS
08-032 WATER SEDIMENTER, FUEL
08-033 SWITCH AND RELAY, INSTRUMENT PANEL
