New Holland E80B CRAWLER EXCAVATOR TIER 4 SERVICE MANUAL 87480998 – PDF DOWNLOAD

Description

New Holland E80B CRAWLER EXCAVATOR TIER 4 SERVICE MANUAL

FILE DETAILS:

New Holland E80B CRAWLER EXCAVATOR TIER 4 SERVICE MANUAL

Size: 38.5 MB
Format: PDF
Language: English
Number of Pages: 772 pages
Brand: New Holland
Type of document: Repair Manual
Model: E80B TIER 4
Part No: 87480998NA

DESCRIPTION:

New Holland E80B CRAWLER EXCAVATOR TIER 4 SERVICE MANUAL

SAMPLE PAGE FROM THE MANUAL:

• Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel . Therefore a l l precautionar y measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in the manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.
• Operation, inspection, and maintenance should be carefully carried out, and safety must be given the first priority. Messages of safety are indicated with marks. The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations.
• Messages of safety appear in the manual and on the machine : All messages of safety are identified by either word of DANGER, WARNING and CAUTION. DANGER- Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury and is represented as follows:
• Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury and is represented as follows:  Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against possible damage to the machine and its components and is represented as follows:
• It is very difficult to forecast every danger that may occur during operation. However, safety can be ensured by fully understanding proper operating procedures for this machine according to methods recommended by Manufacturer.
• While operating the machine, be sure to perform work with great care, so as not to damage the machine, or allow accidents to occur. Continue studying the manual until all Safety, Operation and Maintenance procedures are completely understood by all persons working with the machine.
• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ; SPECIFICATIONS.
• The following is a list of basic precautions that must always be observed.  Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.  Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments.
• Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
• Disconnect the battery and hang a Do Not Operate tag in the Operators Compartment. Remove ignition keys.  If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine.
• Hang a Do Not Operate tag in the Operators Compartment. 5. Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly

NEW HOLLAND E80B CRAWLER EXCAVATOR TIER 4 SERVICE MANUAL 87480998 – PDF DOWNLOAD:

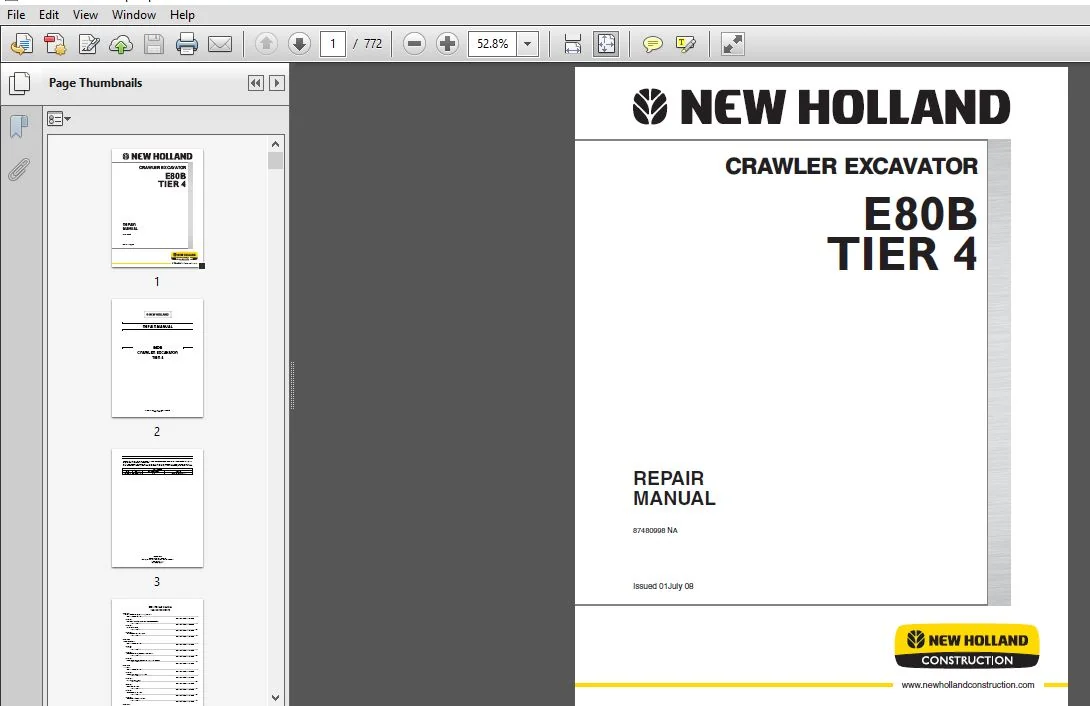

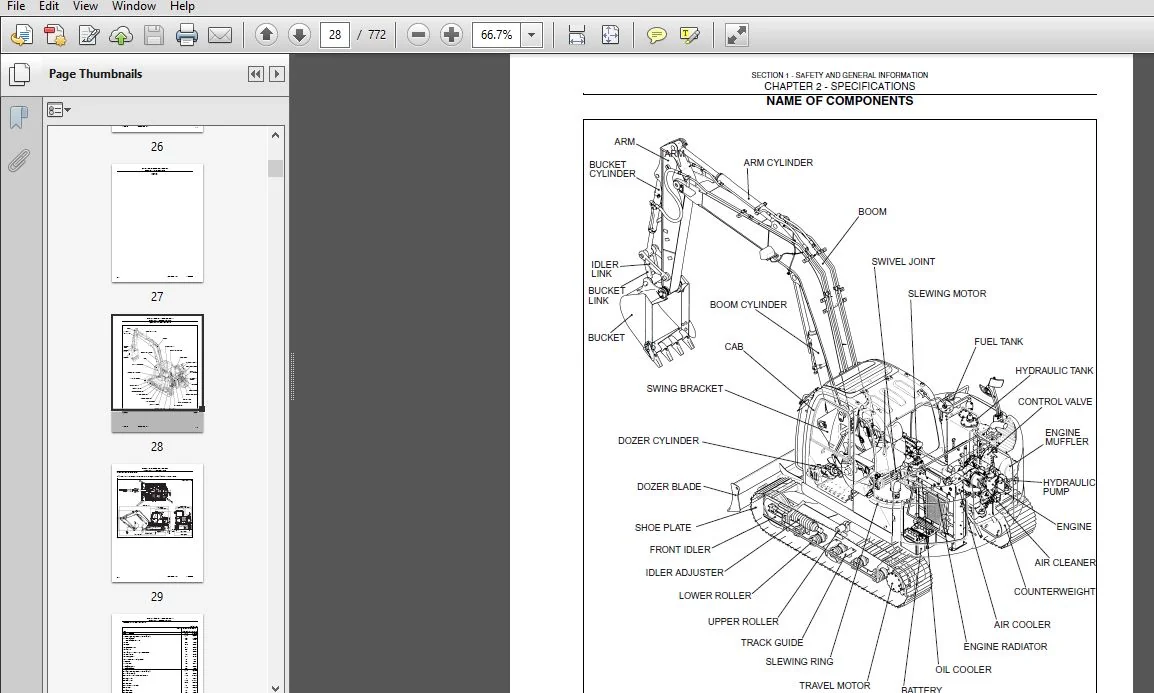

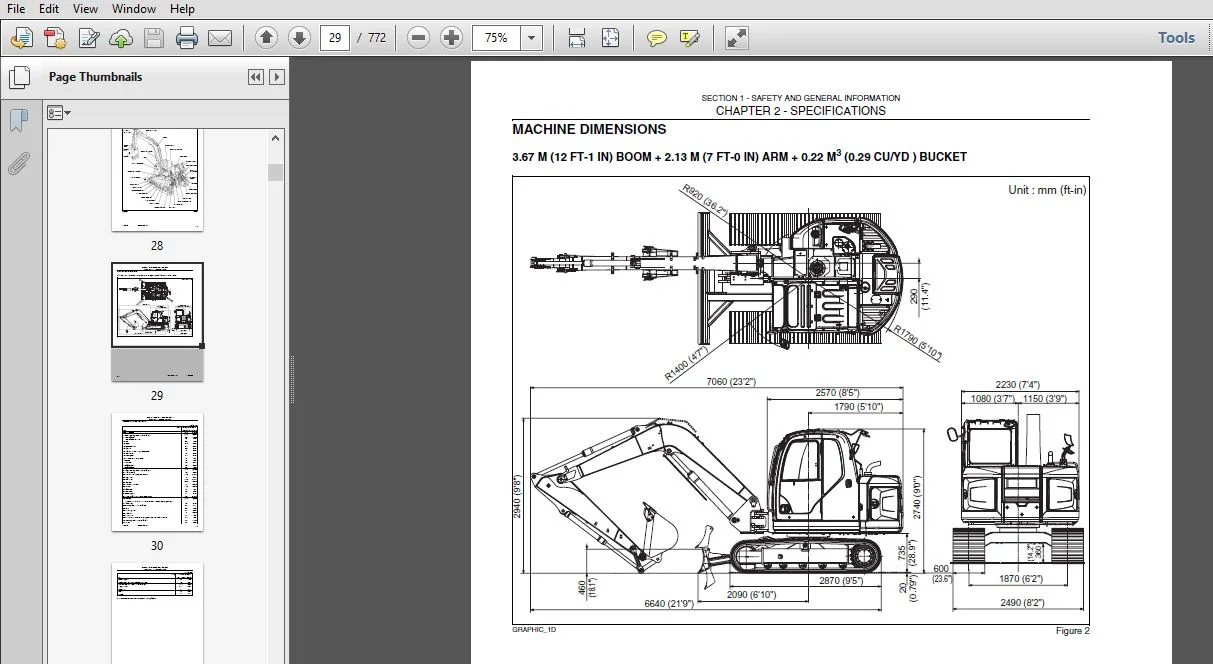

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland E80B CRAWLER EXCAVATOR TIER 4 SERVICE MANUAL

SAFETY AND GENERAL INFORMATION
Section Table of Contents I
Book/Form Number: 5-14960 NA
CHAPTER 1
GENERAL PRECAUTIONS FOR MAKING REPAIRS
Table of Contents 1-1
Book/Form Number: 5-14970 NA
CHAPTER 2
SPECIFICATIONS
Table of Contents 2-1
Book/Form Number: 5-14980 NA
CHAPTER 3
ATTACHMENT DIMENSIONS
Table of Contents 3-1
Book/Form Number: 5-14990 NA
SECTION 2
MAINTENANCE
Section Table of Contents I
Book/Form Number: 5-15000 NA
CHAPTER 1
TOOLS
Table of Contents 1-1
Book/Form Number: 5-15010 NA
CHAPTER 2
STANDARD MAINTENANCE TIME TABLE
Table of Contents 2-1
Book/Form Number: 5-15020 NA
CHAPTER 3
MAINTENANCE STANDARD AND TEST PROCEDURE
Table of Contents 3-1
Book/Form Number: 5-15030 NA
SECTION 3
SYSTEMS
Section Table of Contents I
Book/Form Number: 5-15040 NA
CHAPTER 1
MECHATRO CONTROL SYSTEM
Table of Contents 1-1
Book/Form Number: 5-15050 NA
CHAPTER 2
HYDRAULIC SYSTEM
Table of Contents 2-1
Book/Form Number: 5-15060 NA
CHAPTER 3
ELECTRIC SYSTEM
Table of Contents 3-1
Book/Form Number: 5-15070 NA
CHAPTER 4
COMPONENTS SYSTEM
Table of Contents 4-1
Book/Form Number: 5-15080 NA
CHAPTER 5
AIR CONDITIONING SYSTEM
Table of Contents 5-1
Book/Form Number: 5-15090 NA
SECTION 4
DISASSEMBLY AND ASSEMBLY
Section Table of Contents I
Book/Form Number: 5-15100 NA
5-14940 NA
E80B
II Issued 07-2008 Bur 5-14940 NA
CHAPTER 1
ATTACHMENTS
Table of Contents 1-1
Book/Form Number: 5-15110 NA
CHAPTER 2
UPPER STRUCTURE
Table of Contents 2-1
Book/Form Number: 5-15120 NA
CHAPTER 3
TRAVEL SYSTEM
Table of Contents 3-1
Book/Form Number: 5-15130 NA
SECTION 5
TROUBLESHOOTING
Section Table of Contents I
Book/Form Number: 5-15140 NA
CHAPTER 1
TROUBLESHOOTING BY ERROR CODES
Table of Contents 1-1
Book/Form Number: 5-15150 NA
CHAPTER 2
TROUBLESHOOTING BY TROUBLE
Table of Contents 2-1
Book/Form Number: 5-15160 NA
SECTION 6
ENGINE
Section Table of Contents I
Book/Form Number: 5-15170 NA
CHAPTER 1
ENGINE
Table of Contents
