New Holland E80MSR Crawler Excavator Service Repair Manual 604.13.421 – PDF DOWNLOAD

Description

New Holland E80MSR Crawler Excavator Service Repair Manual

FILE DETAILS:

New Holland E80MSR Crawler Excavator Service Repair Manual

Language : English
Pages : 940
Downloadable : YES
Format : PDF
Size : 53.6 MB
Print No. 604.13.421

DESCRIPTION:

New Holland E80MSR Crawler Excavator Service Repair Manual

SAFETY PRECAUTIONS:

The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section .The following is a list of basic precautions that must always be observed.

(1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
(2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
(3) Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
(4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
(5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly. Do not operate this machine unless you have read and understand the instructions in the OPERATOR’S MANUAL. Improper machine operation is dangerous and could result in injury or death.
(6) Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.
(7) Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.
(8) Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.
(9) To avoid back injury, use a hoist when lifting components which weigh 20kg (45lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation.
(10)To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and compartments.

TABLE OF CONTENTS:

New Holland E80MSR Crawler Excavator Service Repair Manual

OUTLINE 1
SPECIFICATIONS 2
ATTACHMENT DIMENSIONS 3
MAINTENANCE
TOOLS 11
STANDARD MAINTENANCE TIME SCHEDULE 12
MAINTENANCE STANDARDS AND TEST PROCEDURES 13
SYSTEM
MECHATRO CONTROL SYSTEM 21
HYDRAULIC SYSTEM 22
ELECTRICAL SYSTEM 23
COMPONENTS SYSTEM 24
AIR-CONDITIONER SYSTEM 25
DISASSEMBLING
DISASSEMBLING & ASSEMBLING 31
ATTACHMENTS 32
UPPER SWING BODY 33
TRAVEL FRAME 34
TROUBLESHOOTING
MECHATRO CONTROL 41
HYDRAULIC SYSTEM 42
ELECTRICAL SYSTEM 43
ENGINE 44
ENGINE

NEW HOLLAND E80MSR CRAWLER EXCAVATOR SERVICE REPAIR MANUAL 604.13.421 – PDF DOWNLOAD:

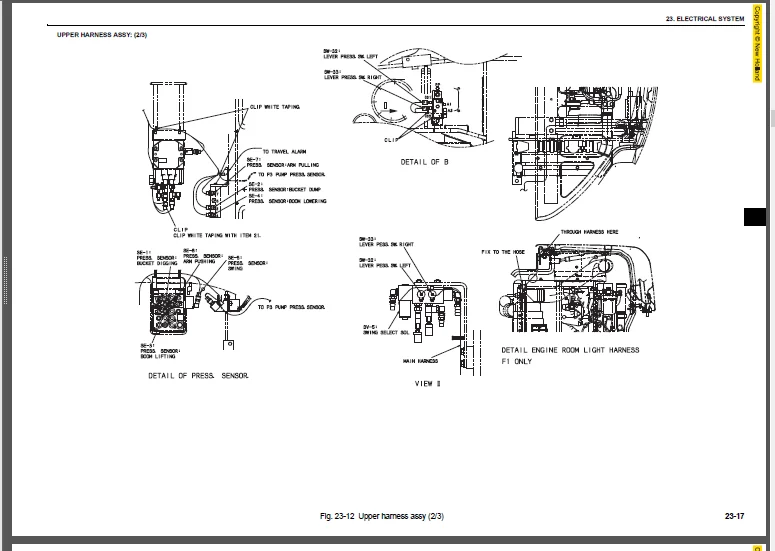

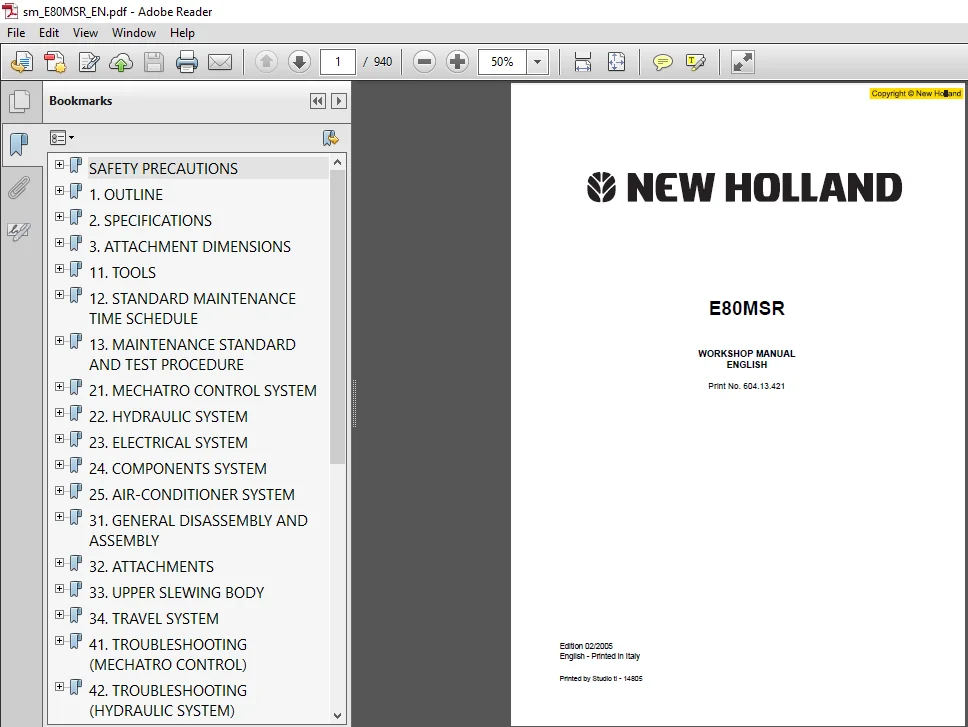

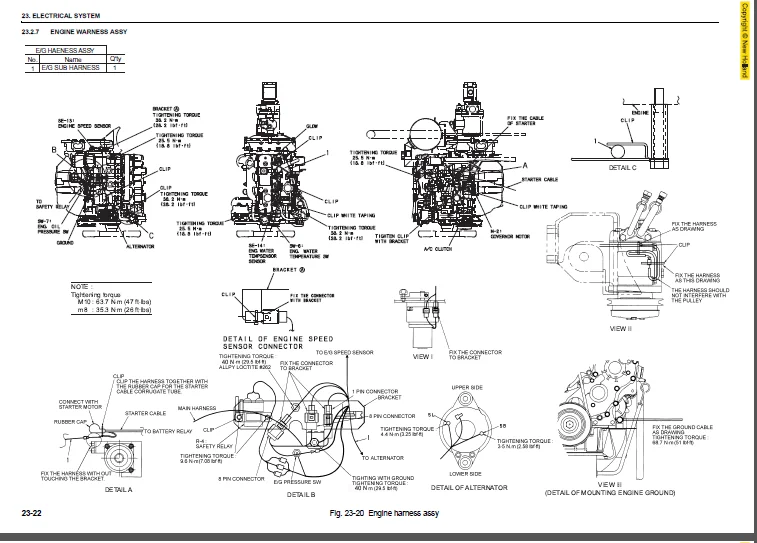

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
