New holland EC240 Excavator Parts Manual 73179386 – PDF DOWNLOAD

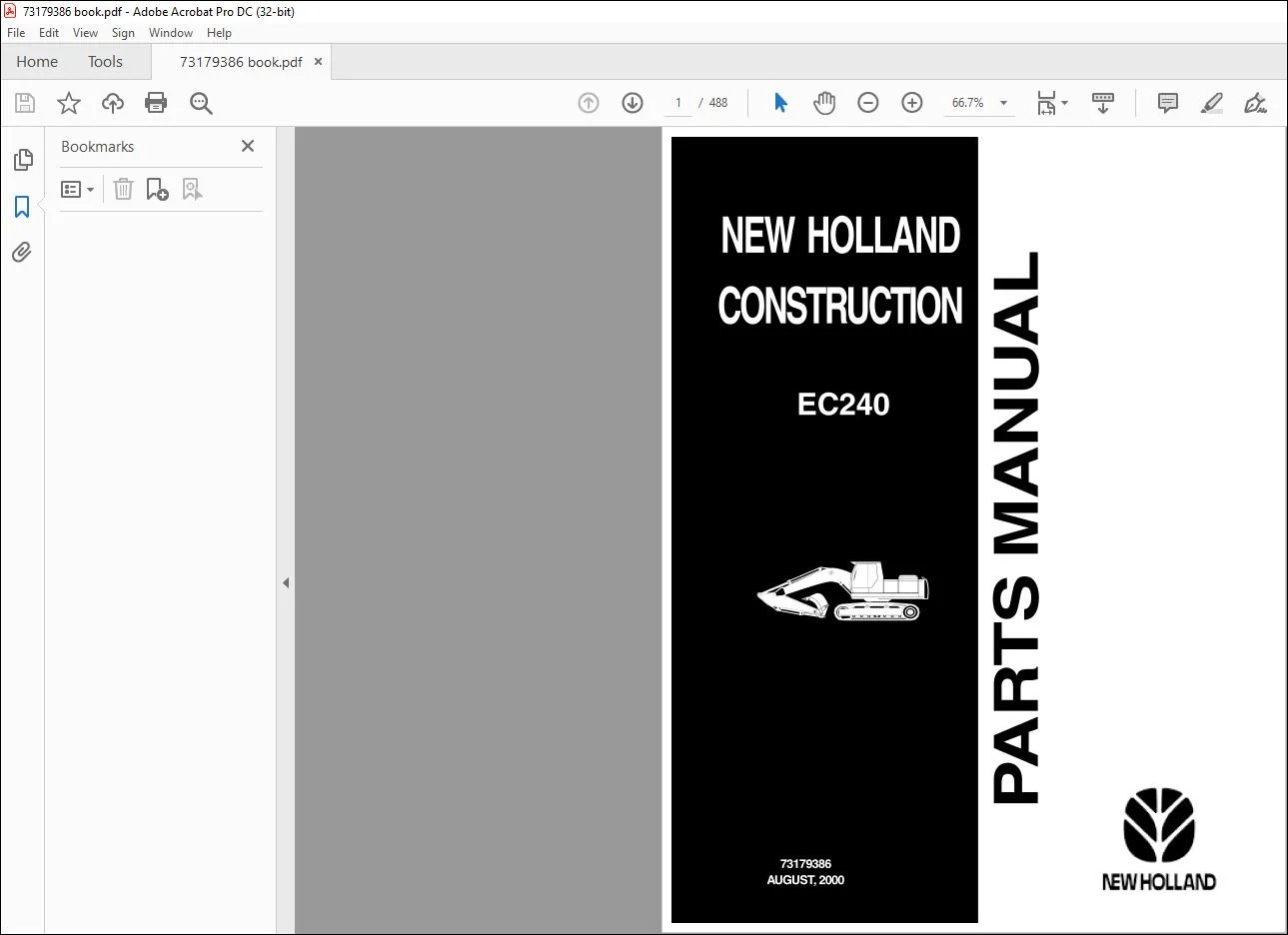

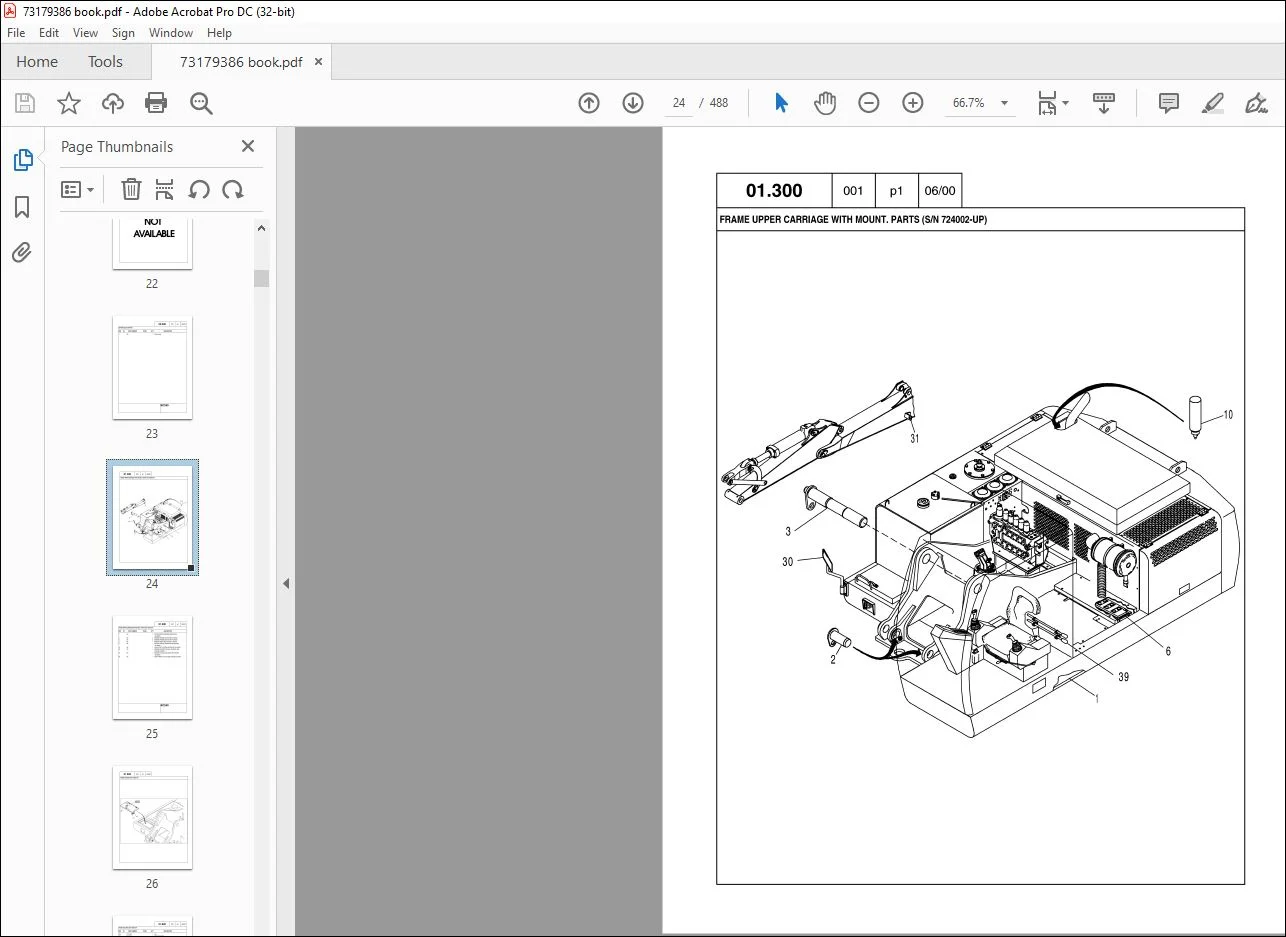

IMAGES PREVIEW OF THE MANUAL:

Β DESCRIPTION:

New holland EC240 Excavator Parts Manual 73179386 – PDF DOWNLOAD

GENERAL INFORМATION

1. Whenever the terms left or right are used, it should Π¬Π΅ understood to mean from Π° position facing in direction of travel.

2. Π’hroughout this manual you fmd common hardware not illustrated, but listed in the description column. Π’hΠ΅ service part immediately preceding hardware is not included with the service part or assemΠ«y when ordered as Π° replacement.

3. NEW HOLLAND CONSTRUCΠ’ION is continually striving to improve its products. We must, therefore, reserve the right to make improvements or changes when it becomes practical and possiΠ«e to do so, without incurring any oΠ«igation to make changes or additions to the equipment sold previously.

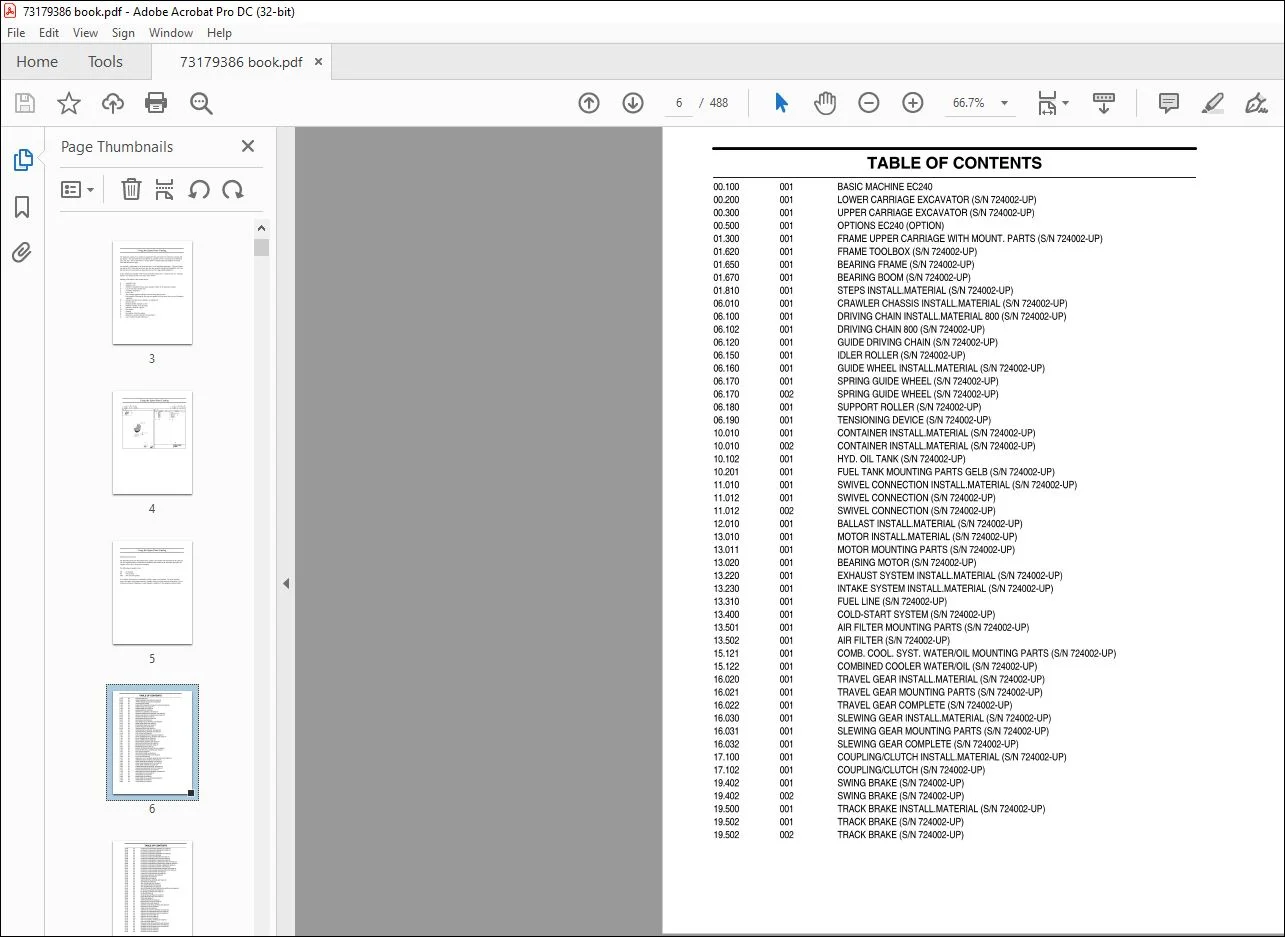

TABLE OF CONTENTS:

New holland EC240 Excavator Parts Manual 73179386 – PDF DOWNLOAD

00.100 001 BASIC MACHINE Π•Π‘240
00.200 001 LOWER CARRIAGE EXCAVATOR (S/N 724002-UP)
00.300 001 UPPER CARRIAGE EXCAVATOR (S/N 724002-UP)
00.500 001 OPTIONS Π•Π‘240 (OPTION)
01.300 001 FRAME UPPER CARRIAGE WITH MOUNT. PARTS (S/N 724002-UP)
01.620 001 FRAME TOOLBOX (S/N 724002-UP)
01.650 001 BEARING FRAME (S/N 724002-UP)
01.670 001 BEARING Π’ΠžΠžΠœ (S/N 724002-UP)
01.81 О 001 STEPS INSTALL.MATERIAL (S/N 724002-UP)
06.010 001 CRAWLER CHASSIS INSTALL.MATERIAL (S/N 724002-UP)
06.100 001 DRIVING CHAIN INSTALL.MATERIAL 800 (S/N 724002-UP)
06.102 001 DRIVING CHAIN 800 (S/N 724002-UP)
06.120 001 GUIDE DRIVING CHAIN (S/N 724002-UP)
06.150 001 IDLER ROLLER (S/N 724002-UP)
06.160 001 GUIDE WHEEL INSTALL.MATERIAL (S/N 724002-UP)
06.170 001 SPRING GUIDE WHEEL (S/N 724002-UP)
06.170 002 SPRING GUIDE WHEEL (S/N 724002-UP)
06.180 001 SUPPORT ROLLER (S/N 724002-UP)
06.190 001 TENSIONING DEVICE (S/N 724002-UP)
10.010 001 CONTAINER INSTALL.MATERIAL (S/N 724002-UP)
10.010 002 CONTAINER INSTALL.MATERIAL (S/N 724002-UP)
10.102 001 HYD. OIL TANK (S/N 724002-UP)
10.201 001 FUEL TANK MOUNTING PARTS GELB (S/N 724002-UP)
11.01 О 001 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 724002-UP)
11.012 001 SWIVEL CONNECTION (S/N 724002-UP)
11.012 002 SWIVEL CONNECTION (S/N 724002-UP)
12.010 001 BALLAST INSTALL.MATERIAL (S/N 724002-UP)
13.010 001 MOTOR INSTALL.MATERIAL (S/N 724002-UP)
13.011 001 MOTOR MOUNTING PARTS (S/N 724002-UP)
13.020 001 BEARING MOTOR (S/N 724002-UP)
13.220 001 EXHAUST SYSTEM INSTALL.MATERIAL (S/N 724002-UP)
13.230 001 INTAKE SYSTEM INSTALL.MATERIAL (S/N 724002-UP)
13.310 001 FUEL LINE (S/N 724002-UP)
13.400 001 COLD-START SYSTEM (S/N 724002-UP)
13.501 001 AIR FIL TER MOUNTING PARTS (S/N 724002-UP)
13.502 001 AIR FIL TER (S/N 724002-UP)
15.121 001 Π‘ΠžΠœΠ’. COOL. SYST. WATER/OIL MOUNTING PARTS (S/N 724002-UP)
15.122 001 COMBINED COOLER WATER/OIL (S/N 724002-UP)
16.020 001 TRAVEL GEAR INSTALL.MATERIAL (S/N 724002-UP)
16.021 001 TRAVEL GEAR MOUNTING PARTS (S/N 724002-UP)
16.022 001 TRAVEL GEAR COMPLETE (S/N 724002-UP)
16.030 001 SLEWING GEAR INSTALL.MATERIAL (S/N 724002-UP)
16.031 001 SLEWING GEAR MOUNTING PARTS (S/N 724002-UP)
16.032 001 SLEWING GEAR COMPLETE (S/N 724002-UP)
17.100 001 COUPLING/CLUTCH INSTALL.MATERIAL (S/N 724002-UP)
17.102 001 COUPLING/CLUTCH (S/N 724002-UP)
19.402 001 SWING BRAKE (S/N 724002-UP)
19.402 002 SWING BRAKE (S/N 724002-UP)
19.500 001 TRACK BRAKE INSTALL.MATERIAL (S/N 724002-UP)
19.502 001 TRACK BRAKE (S/N 724002-UP)
19.502 002 TRACK BRAKE (S/N 724002-UP)
TABLE OF CONTENTS
20.020 001 HYDRAULIC SYSTEM LOWER CARRIAGE (S/N 724002-UP)
20.030 001 HYDRAULIC SYSTEM UPPER CARRIAGE (S/N 724002-UP)
20.260 001 OIL SUCTION SYSTEM (S/N 724002-UP)
20.280 001 HYDRAULIC SYSTEM PUMP GOVERNING (S/N 724002-UP)
20.310 001 HYDRAULIC SYSTEM HIGH PRESSURE
20.320 001 HYDRAULIC SYSTEM LOW PRESSURE (S/N 724002-UP)
20.330 001 HYDRAULIC SYSTEM BLOCКING VALVE (S/N 724002-UP)
20.600 001 HYDRAULIC SYSTEM Π’ΠžΠžΠœ CYLINDERS (S/N 724002-UP)
20.600 002 HYDRAULIC SYSTEM Π’ΠžΠžΠœ CYLINDERS LEFT-HAND (S/N 724002-UP)
20.600 003 HYDRAULIC SYSTEM Π’ΠžΠžΠœ CYLINDERS RIGHT-HAND (S/N 724002-UP)
20.610 001 HYDRAULIC SYSTEM SERVO CONTROL HAMMER (S/N 724002-UP)
20.610 002 HYDRAULIC SYSTEM SERVO CONTROL (S/N 724002-UP)
20.640 001 HYDRAULIC SYSTEM CASCADE INSTALL.MATERIAL (S/N 724002-UP)
20.641 001 HYDRAULIC SYSTEM CASCADE MOUNTING PARTS (S/N 724002-UP)
20.642 001 HYDRAULIC SYSTEM CASCADE (S/N 724002-UP)
20.642 002 HYDRAULIC SYSTEM CASCADE (S/N 724002-UP)
22.010 001 PUMP INSTALL.MATERIAL (S/N 724002-UP)
22.020 001 DOUBLEPUMP (S/N 724002-UP)
22.030 001 SWING PUMP (S/N 724002-UP)
22.050 001 GEAR PUMP INSTALL.MATERIAL (S/N 724002-UP)
22.052 001 GEAR PUMP (S/N 724002-UP)
22.060 001 AXIAL PISTON PUMP (S/N 724002-UP)
22.110 001 AXIAL PISTON MOTOR (S/N 724002-UP)
22.110 002 AXIAL PISTON MOTOR (S/N 724002-UP)
22.120 001 AXIAL PISTON MOTOR ADJUSTABLE INSTALL.MATERIAL (S/N 724002-UP)
22.200 001 FILTER INSTALL.MATERIAL (S/N 724002-UP)
22.200 002 FILTER INSTALL.MATERIAL (S/N 724002-UP)
22.202 001 FIL TER (S/N 724002-UP)
22.500 001 ROTOR INSTALL.MATERIAL (S/N 724002-UP)
22.501 001 ROTOR MOUNTING PARTS (S/N 724002-UP)
22.502 001 ROTOR (S/N 724002-UP)
22.510 001 ARRESTOR ROTOR (S/N 724002-UP)
22.520 001 RODS TREADLE VALVE (S/N 724002-UP)
23.032 001 PRESS.REL.VALVE (S/N 724002-UP)
23.120 001 BLOCКING VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.122 001 BLOCКING VALVE (S/N 724002-UP)
23.152 001 Π‘ΠΠ•Π‘Πš VALVE (S/N 724002-UP)
23.180 001 CONTROL VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.181 001 CONTROL VALVE MOUNTING PARTS (S/N 724002-UP)
23.181 002 CONTROL VALVE MOUNTING PARTS (S/N 724002-UP)
23.182 001 CONTROL VALVE (S/N 724002-UP)
23.182 002 CONTROL VALVE (S/N 724002-UP)
23.182 003 CONTROL VALVE (S/N 724002-UP)
23.210 001 SHIFT VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.212 001 SHIFTVALVE (S/N 724002-UP)
23.230 001 SOLENOID VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.231 001 SOLENOID VALVE MOUNTING PARTS (S/N 724002-UP)
23.231 002 SOLENOID VALVE MOUNTING PARTS (S/N 724002-UP)
23.232 001 SOLENOID VALVE (S/N 724002-UP)
23.232 002 SOLENOID VALVE (S/N 724002-UP)
23.232 003 SOLENOID VALVE (S/N 724002-UP)
TABLE OF CONTENTS
23.232 004 SOLENOID VALVE
23.240 001 VALVE INTERCONN. INSTALL.MATERIAL
23.241 001 VALVE INTERCONN. MOUNTING PARTS
23.242 001 VALVE INTERCONN. (S/N 724002-UP)
23.270 001 SERVO VALVE INSTALL.MATERIAL RIGHT-HAND (S/N 724002-UP)
23.270 002 SERVO VALVE INSTALL.MATERIAL LEFT-HAND (S/N 724002-UP)
23.271 001 SERVO VALVE MOUNTING PARTS RIGHT-HAND (S/N 724002-UP)
23.271 002 SERVO VALVE MOUNTING PARTS LEFΠ’-HAND (S/N 724002-UP)
23.272 001 SERVO VALVE (S/N 724002-UP)
23.290 001 TREADLE VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.291 001 TREADLE VALVE MOUNTING PARTS (S/N 724002-UP)
23.292 001 TREADLE VALVE (S/N 724002-UP)
23.312 001 PROPORTIONAL VALVE (S/N 724002-UP)
23.610 001 CONTROL BLOCK INSTALL.MATERIAL (S/N 724002-UP)
23.610 002 CONTROL BLOCK INSTALL.MATERIAL (S/N 724002-UP)
23.611 001 CONTROL BLOCK MOUNTING PARTS (S/N 724002-UP)
23.611 002 CONTROL BLOCK MOUNTING PARTS (S/N 724002-UP)
23.612 001 CONTROL BLOCK (S/N 724002-UP)
24.020 001 Π’ΠžΠžΠœ CYLINDERS INSTALL.MATERIAL (S/N 724002-UP)
24.022 001 Π’ΠžΠžΠœ CYLINDERS (S/N 724002-UP)
24.030 001 STICK CYLINDER INSTALL.MATERIAL (S/N 724002-UP)
24.032 001 STICK CYLINDER (S/N 724002-UP)
24.050 001 Π’ΠΠ‘ΠšΠΠžΠ• CYLINDER INSTALL.MATERIAL (S/N 724002-UP)
24.052 001 Π’ΠΠ‘ΠšΠΠžΠ• CYLINDER (S/N 724002-UP)
26.010 001 COMPRESSOR INSTALL.MATERIAL (S/N 724002-UP)
26.012 001 COMPRESSOR (S/N 724002-UP)
27.010 001 HEATING INSTALL.MATERIAL (S/N 724002-UP)
27.012 001 HEATING (S/N 724002-UP)
27.400 001 AIR CONDITION INSTALL.MATERIAL (S/N 724002-UP)
27.400 002 AIR CONDITION INSTALL.MATERIAL (S/N 724002-UP)
27.401 001 AIR CONDITION MOUNTING PARTS (S/N 724002-UP)
27.402 001 AIR CONDITION
27.420 001 LIQUEFIER INSTALL.MATERIAL (S/N 724002-UP)
27.422 001 LIQUEFIER (S/N 724002-UP)
27.432 001 DRYER (S/N 724002-UP)
30.010 001 GREASING SYSTEM (S/N 724002-UP)
30.020 001 GREASING SYSTEM SWIVEL CONNECTION (S/N 724002-UP)
31.020 001 ELECTRICAL SYSTEM REGENERATIV (S/N 724002-UP)
31.050 001 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 01 (S/N 724002-UP)
31.050 002 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 02 (S/N 724002-UP)
31.050 003 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 03 (S/N 724002-UP)
31.050 004 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 04 (S/N 724002-UP)
31.050 005 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 05 (S/N 724002-UP)
31.050 006 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 06 (S/N 724002-UP)
31.050 007 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 07 (S/N 724002-UP)
31.050 008 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 08 (S/N 724002-UP)
31.050 009 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 09 (S/N 724002-UP)
31.050 010 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 10 (S/N 724002-UP)
31.050 011 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 11 (S/N 724002-UP)
31.050 012 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 12 (S/N 724002-UP)
31.050 013 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 13 (S/N 724002-UP)
TABLE OF CONTENTS
31.050 014 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 14 (S/N 724002-UP)
31.300 001 ВАВВЕRΠ£ INSTALL.MATERIAL (S/N 724002-UP)
31.530 001 SIGNAL GENERAL TRAVEL-ALAR (S/N 724002-UP)
31.530 002 SIGNAL GENERAL TRAVEL-ALAR (S/N 724002-UP)
31.530 003 SIGNAL GENERAL TRAVEL-ALAR (S/N 724002-UP)
31.600 001 DASHBOARD INSTALL.MATERIAL (S/N 724002-UP)
34.010 001 БАВ MODULE INSTALL.MATERIAL (S/N 724002-UP)
34.020 001 OPERATORS БАВ INSTALL.MATERIAL (S/N 724002-UP)
34.022 001 OPERATORS БАВ (S/N 724002-UP)
34.100 001 PLATFORM PLATE INSTALL.MATERIAL (S/N 724002-UP)
34.101 001 PLATFORM PLATE MOUNTING PARTS BRACKET (S/N 724002-UP)
34.105 001 FOOT REST PLATFORM (S/N 724002-UP)
34.130 001 CONTROL COLUMN INSTALL.MATERIAL (S/N 724002-UP)
34.131 001 CONTROL COLUMN MOUNTING PARTS (S/N 724002-UP)
34.140 001 BRACKET INSTALL.MATERIAL (S/N 724002-UP)
34.140 002 BRACKET INSTALL.MATERIAL
34.141 001 BRACKET MOUNTING PARTS (S/N 724002-UP)
34.141 002 BRACKET MOUNTING PARTS (S/N 724002-UP)
34.220 001 БАВ DOOR (S/N 724002-UP)
34.300 001 BEARING OPERATORS БАВ
34.500 001 SEAT INSTALL.MATERIAL (S/N 724002-UP)
34.502 001 SEAT (S/N 724002-UP)
34.502 002 OPERATORS SEAT ADDITIONAL PARTS (S/N 724002-UP)
34.640 001 WINDSCREEN WASHER INSTALL.MATERIAL (S/N 724002-UP)
34.642 001 WATER RESERVOIR WINDSCREEN WASHER (S/N 724002-UP)
35.020 001 BRACKET INSTALL.MATERIAL (S/N 724002-UP)
35.060 001 MIRROR SUPPORT INSTALL.MATERIAL (S/N 724002-UP)
36.010 001 PANELING INSTALL.MATERIAL (S/N 724002-UP)
36.500 001 COVER UPPER CARRIAGE (S/N 724002-UP)
36.510 001 COVER SWING BEARING INSTALL.MATERIAL (S/N 724002-UP)
36.512 001 COVER SWING BEARING (S/N 724002-UP)
36.540 001 COVER TRAVEL GEAR (S/N 724002-UP)
60.150 001 MONOBLOC Π’ΠžΠžΠœ INSTALL.MATERIAL 6,0 М (S/N 724002-UP)
60.160 001 HYDRAULIC SYSTEM MONOBLOC Π’ΠžΠžΠœ (S/N 724002-UP)
60.160 002 HYDRAULIC SYSTEM MONOBLOC Π’ΠžΠžΠœ 6,ОМ (S/N 724002-UP)
60.160 003 HYDRAULIC SYSTEM MONOBLOC Π’ΠžΠžΠœ 6,0 М (S/N 724002-UP)
61.010 001 STICK INSTALL.MATERIAL 3,0 М (S/N 724002-UP)
61.032 001 HYDRAULIC SYSTEM STICK 3,0 М (S/N 724002-UP)
62.010 001 TOGGLE/LINКAGE INSTALL.MATERIAL (S/N 724002-UP)
89.020 001 TRANSPORT LOCK (S/N 724002-UP)
90.100 001 LINING ARRANGEMENT (S/N 724002-UP)
91.010 001 DECAL КIВ (S/N 724002-UP)
91.010 002 DECAL КIВ (S/N 724002-UP)
91.010 003 DECAL КIВ (S/N 724002-UP)
92.010 001 TOOL SET (S/N 724002-UP)
92.010 002 TOOL SET (S/N 724002-UP)
92.020 001 MAINTENANCE MATER. (S/N 724002-UP)
SECTION INDEX
00.100 001 BASIC MACHINE Π•Π‘240
00.200 001 LOWER CARRIAGE EXCAVATOR (S/N 724002-UP)
00.300 001 UPPER CARRIAGE EXCAVATOR (S/N 724002-UP)
00.500 001 OPTIONS Π•Π‘240 (OPTION)
01.300 001 FRAME UPPER CARRIAGE WITH MOUNT. PARTS (S/N 724002-UP)
01.620 001 FRAME TOOLBOX (S/N 724002-UP)
01.650 001 BEARING FRAME (S/N 724002-UP)
01.670 001 BEARING Π’ΠžΠžΠœ (S/N 724002-UP)
01.81 О 001 STEPS INSTALL.MATERIAL (S/N 724002-UP)
06.010 001 CRAWLER CHASSIS INSTALL.MATERIAL (S/N 724002-UP)
06.100 001 DRIVING CHAIN INSTALL.MATERIAL 800 (S/N 724002-UP)
06.102 001 DRIVING CHAIN 800 (S/N 724002-UP)
06.120 001 GUIDE DRIVING CHAIN (S/N 724002-UP)
06.150 001 IDLER ROLLER (S/N 724002-UP)
06.160 001 GUIDE WHEEL INSTALL.MATERIAL (S/N 724002-UP)
06.170 001 SPRING GUIDE WHEEL (S/N 724002-UP)
06.170 002 SPRING GUIDE WHEEL (S/N 724002-UP)
06.180 001 SUPPORT ROLLER (S/N 724002-UP)
06.190 001 TENSIONING DEVICE (S/N 724002-UP)
10.010 001 CONTAINER INSTALL.MATERIAL (S/N 724002-UP)
10.010 002 CONTAINER INSTALL.MATERIAL (S/N 724002-UP)
10.102 001 HYD. OIL TANK (S/N 724002-UP)
10.201 001 FUEL TANK MOUNTING PARTS GELB (S/N 724002-UP)
11.01 О 001 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 724002-UP)
11.012 001 SWIVEL CONNECTION (S/N 724002-UP)
11.012 002 SWIVEL CONNECTION (S/N 724002-UP)
12.010 001 BALLAST INSTALL.MATERIAL (S/N 724002-UP)
13.010 001 MOTOR INSTALL.MATERIAL (S/N 724002-UP)
13.011 001 MOTOR MOUNTING PARTS (S/N 724002-UP)
13.020 001 BEARING MOTOR (S/N 724002-UP)
13.220 001 EXHAUST SYSTEM INSTALL.MATERIAL (S/N 724002-UP)
13.230 001 INTAKE SYSTEM INSTALL.MATERIAL (S/N 724002-UP)
13.310 001 FUEL LINE (S/N 724002-UP)
13.400 001 COLD-START SYSTEM (S/N 724002-UP)
13.501 001 AIR FIL TER MOUNTING PARTS (S/N 724002-UP)
13.502 001 AIR FIL TER (S/N 724002-UP)
15.121 001 Π‘ΠžΠœΠ’. COOL. SYST. WATER/OIL MOUNTING PARTS (S/N 724002-UP)
15.122 001 COMBINED COOLER WATER/OIL (S/N 724002-UP)
16.020 001 TRAVEL GEAR INSTALL.MATERIAL (S/N 724002-UP)
16.021 001 TRAVEL GEAR MOUNTING PARTS (S/N 724002-UP)
16.022 001 TRAVEL GEAR COMPLETE (S/N 724002-UP)
16.030 001 SLEWING GEAR INSTALL.MATERIAL (S/N 724002-UP)
16.031 001 SLEWING GEAR MOUNTING PARTS (S/N 724002-UP)
16.032 001 SLEWING GEAR COMPLETE (S/N 724002-UP)
17.100 001 COUPLING/CLUTCH INSTALL.MATERIAL (S/N 724002-UP)
17.102 001 COUPLING/CLUTCH (S/N 724002-UP)
19.402 001 SWING BRAKE (S/N 724002-UP)
19.402 002 SWING BRAKE (S/N 724002-UP)
19.500 001 TRACK BRAKE INSTALL.MATERIAL (S/N 724002-UP)
19.502 001 TRACK BRAKE (S/N 724002-UP)
19.502 002 TRACK BRAKE (S/N 724002-UP)
SECTION INDEX
20.020 001 HYDRAULIC SYSTEM LOWER CARRIAGE (S/N 724002-UP)
20.030 001 HYDRAULIC SYSTEM UPPER CARRIAGE (S/N 724002-UP)
20.260 001 OIL SUCTION SYSTEM (S/N 724002-UP)
20.280 001 HYDRAULIC SYSTEM PUMP GOVERNING (S/N 724002-UP)
20.310 001 HYDRAULIC SYSTEM HIGH PRESSURE
20.320 001 HYDRAULIC SYSTEM LOW PRESSURE (S/N 724002-UP)
20.330 001 HYDRAULIC SYSTEM BLOCКING VALVE (S/N 724002-UP)
20.600 001 HYDRAULIC SYSTEM Π’ΠžΠžΠœ CYLINDERS (S/N 724002-UP)
20.600 002 HYDRAULIC SYSTEM Π’ΠžΠžΠœ CYLINDERS LEFT-HAND (S/N 724002-UP)
20.600 003 HYDRAULIC SYSTEM Π’ΠžΠžΠœ CYLINDERS RIGHT-HAND (S/N 724002-UP)
20.610 001 HYDRAULIC SYSTEM SERVO CONTROL HAMMER (S/N 724002-UP)
20.610 002 HYDRAULIC SYSTEM SERVO CONTROL (S/N 724002-UP)
20.640 001 HYDRAULIC SYSTEM CASCADE INSTALL.MATERIAL (S/N 724002-UP)
20.641 001 HYDRAULIC SYSTEM CASCADE MOUNTING PARTS (S/N 724002-UP)
20.642 001 HYDRAULIC SYSTEM CASCADE (S/N 724002-UP)
20.642 002 HYDRAULIC SYSTEM CASCADE (S/N 724002-UP)
22.010 001 PUMP INSTALL.MATERIAL (S/N 724002-UP)
22.020 001 DOUBLEPUMP (S/N 724002-UP)
22.030 001 SWING PUMP (S/N 724002-UP)
22.050 001 GEAR PUMP INSTALL.MATERIAL (S/N 724002-UP)
22.052 001 GEAR PUMP (S/N 724002-UP)
22.060 001 AXIAL PISTON PUMP (S/N 724002-UP)
22.110 001 AXIAL PISTON MOTOR (S/N 724002-UP)
22.110 002 AXIAL PISTON MOTOR (S/N 724002-UP)
22.120 001 AXIAL PISTON MOTOR ADJUSTABLE INSTALL.MATERIAL (S/N 724002-UP)
22.200 001 FILTER INSTALL.MATERIAL (S/N 724002-UP)
22.200 002 FILTER INSTALL.MATERIAL (S/N 724002-UP)
22.202 001 FIL TER (S/N 724002-UP)
22.500 001 ROTOR INSTALL.MATERIAL (S/N 724002-UP)
22.501 001 ROTOR MOUNTING PARTS (S/N 724002-UP)
22.502 001 ROTOR (S/N 724002-UP)
22.510 001 ARRESTOR ROTOR (S/N 724002-UP)
22.520 001 RODS TREADLE VALVE (S/N 724002-UP)
23.032 001 PRESS.REL.VALVE (S/N 724002-UP)
23.120 001 BLOCКING VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.122 001 BLOCКING VALVE (S/N 724002-UP)
23.152 001 Π‘ΠΠ•Π‘Πš VALVE (S/N 724002-UP)
23.180 001 CONTROL VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.181 001 CONTROL VALVE MOUNTING PARTS (S/N 724002-UP)
23.181 002 CONTROL VALVE MOUNTING PARTS (S/N 724002-UP)
23.182 001 CONTROL VALVE (S/N 724002-UP)
23.182 002 CONTROL VALVE (S/N 724002-UP)
23.182 003 CONTROL VALVE (S/N 724002-UP)
23.210 001 SHIFT VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.212 001 SHIFTVALVE (S/N 724002-UP)
23.230 001 SOLENOID VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.231 001 SOLENOID VALVE MOUNTING PARTS (S/N 724002-UP)
23.231 002 SOLENOID VALVE MOUNTING PARTS (S/N 724002-UP)
23.232 001 SOLENOID VALVE (S/N 724002-UP)
23.232 002 SOLENOID VALVE (S/N 724002-UP)
23.232 003 SOLENOID VALVE (S/N 724002-UP)
SECTION
23.232 004 SOLENOID VALVE
23.240 001 VALVE INTERCONN. INSTALL.MATERIAL
23.241 001 VALVE INTERCONN. MOUNTING PARTS
23.242 001 VALVE INTERCONN. (S/N 724002-UP)
23.270 001 SERVO VALVE INSTALL.MATERIAL RIGHT-HAND (S/N 724002-UP)
23.270 002 SERVO VALVE INSTALL.MATERIAL LEFT-HAND (S/N 724002-UP)
23.271 001 SERVO VALVE MOUNTING PARTS RIGHT-HAND (S/N 724002-UP)
23.271 002 SERVO VALVE MOUNTING PARTS LEFΠ’-HAND (S/N 724002-UP)
23.272 001 SERVO VALVE (S/N 724002-UP)
23.290 001 TREADLE VALVE INSTALL.MATERIAL (S/N 724002-UP)
23.291 001 TREADLE VALVE MOUNTING PARTS (S/N 724002-UP)
23.292 001 TREADLE VALVE (S/N 724002-UP)
23.312 001 PROPORTIONAL VALVE (S/N 724002-UP)
23.610 001 CONTROL BLOCK INSTALL.MATERIAL (S/N 724002-UP)
23.610 002 CONTROL BLOCK INSTALL.MATERIAL (S/N 724002-UP)
23.611 001 CONTROL BLOCK MOUNTING PARTS (S/N 724002-UP)
23.611 002 CONTROL BLOCK MOUNTING PARTS (S/N 724002-UP)
23.612 001 CONTROL BLOCK (S/N 724002-UP)
24.020 001 Π’ΠžΠžΠœ CYLINDERS INSTALL.MATERIAL (S/N 724002-UP)
24.022 001 Π’ΠžΠžΠœ CYLINDERS (S/N 724002-UP)
24.030 001 STICK CYLINDER INSTALL.MATERIAL (S/N 724002-UP)
24.032 001 STICK CYLINDER (S/N 724002-UP)
24.050 001 Π’ΠΠ‘ΠšΠΠžΠ• CYLINDER INSTALL.MATERIAL (S/N 724002-UP)
24.052 001 Π’ΠΠ‘ΠšΠΠžΠ• CYLINDER (S/N 724002-UP)
26.010 001 COMPRESSOR INSTALL.MATERIAL (S/N 724002-UP)
26.012 001 COMPRESSOR (S/N 724002-UP)
27.010 001 HEATING INSTALL.MATERIAL (S/N 724002-UP)
27.012 001 HEATING (S/N 724002-UP)
27.400 001 AIR CONDITION INSTALL.MATERIAL (S/N 724002-UP)
27.400 002 AIR CONDITION INSTALL.MATERIAL (S/N 724002-UP)
27.401 001 AIR CONDITION MOUNTING PARTS (S/N 724002-UP)
27.402 001 AIR CONDITION
27.420 001 LIQUEFIER INSTALL.MATERIAL (S/N 724002-UP)
27.422 001 LIQUEFIER (S/N 724002-UP)
27.432 001 DRYER (S/N 724002-UP)
30.010 001 GREASING SYSTEM (S/N 724002-UP)
30.020 001 GREASING SYSTEM SWIVEL CONNECTION (S/N 724002-UP)
31.020 001 ELECTRICAL SYSTEM REGENERATIV (S/N 724002-UP)
31.050 001 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 01 (S/N 724002-UP)
31.050 002 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 02 (S/N 724002-UP)
31.050 003 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 03 (S/N 724002-UP)
31.050 004 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 04 (S/N 724002-UP)
31.050 005 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 05 (S/N 724002-UP)
31.050 006 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 06 (S/N 724002-UP)
31.050 007 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 07 (S/N 724002-UP)
31.050 008 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 08 (S/N 724002-UP)
31.050 009 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 09 (S/N 724002-UP)
31.050 010 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 10 (S/N 724002-UP)
31.050 011 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 11 (S/N 724002-UP)
31.050 012 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 12 (S/N 724002-UP)
31.050 013 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 13 (S/N 724002-UP)
SECTION INDEX
31.050 014 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 14 (S/N 724002-UP)
31.300 001 ВАВВЕRΠ£ INSTALL.MATERIAL (S/N 724002-UP)
31.530 001 SIGNAL GENERAL TRAVEL-ALAR (S/N 724002-UP)
31.530 002 SIGNAL GENERAL TRAVEL-ALAR (S/N 724002-UP)
31.530 003 SIGNAL GENERAL TRAVEL-ALAR (S/N 724002-UP)
31.600 001 DASHBOARD INSTALL.MATERIAL (S/N 724002-UP)
34.010 001 БАВ MODULE INSTALL.MATERIAL (S/N 724002-UP)
34.020 001 OPERATORS БАВ INSTALL.MATERIAL (S/N 724002-UP)
34.022 001 OPERATORS БАВ (S/N 724002-UP)
34.100 001 PLATFORM PLATE INSTALL.MATERIAL (S/N 724002-UP)
34.101 001 PLATFORM PLATE MOUNTING PARTS BRACKET (S/N 724002-UP)
34.105 001 FOOT REST PLATFORM (S/N 724002-UP)
34.130 001 CONTROL COLUMN INSTALL.MATERIAL (S/N 724002-UP)
34.131 001 CONTROL COLUMN MOUNTING PARTS (S/N 724002-UP)
34.140 001 BRACKET INSTALL.MATERIAL (S/N 724002-UP)
34.140 002 BRACKET INSTALL.MATERIAL
34.141 001 BRACKET MOUNTING PARTS (S/N 724002-UP)
34.141 002 BRACKET MOUNTING PARTS (S/N 724002-UP)
34.220 001 БАВ DOOR (S/N 724002-UP)
34.300 001 BEARING OPERATORS БАВ
34.500 001 SEAT INSTALL.MATERIAL (S/N 724002-UP)
34.502 001 SEAT (S/N 724002-UP)
34.502 002 OPERATORS SEAT ADDITIONAL PARTS (S/N 724002-UP)
34.640 001 WINDSCREEN WASHER INSTALL.MATERIAL (S/N 724002-UP)
34.642 001 WATER RESERVOIR WINDSCREEN WASHER (S/N 724002-UP)
35.020 001 BRACKET INSTALL.MATERIAL (S/N 724002-UP)
35.060 001 MIRROR SUPPORT INSTALL.MATERIAL (S/N 724002-UP)
36.010 001 PANELING INSTALL.MATERIAL (S/N 724002-UP)
36.500 001 COVER UPPER CARRIAGE (S/N 724002-UP)
36.510 001 COVER SWING BEARING INSTALL.MATERIAL (S/N 724002-UP)
36.512 001 COVER SWING BEARING (S/N 724002-UP)
36.540 001 COVER TRAVEL GEAR (S/N 724002-UP)
60.150 001 MONOBLOC Π’ΠžΠžΠœ INSTALL.MATERIAL 6,0 М (S/N 724002-UP)
60.160 001 HYDRAULIC SYSTEM MONOBLOC Π’ΠžΠžΠœ (S/N 724002-UP)
60.160 002 HYDRAULIC SYSTEM MONOBLOC Π’ΠžΠžΠœ 6,ОМ (S/N 724002-UP)
60.160 003 HYDRAULIC SYSTEM MONOBLOC Π’ΠžΠžΠœ 6,0 М (S/N 724002-UP)
61.010 001 STICK INSTALL.MATERIAL 3,0 М (S/N 724002-UP)
61.032 001 HYDRAULIC SYSTEM STICK 3,0 М (S/N 724002-UP)
62.010 001 TOGGLE/LINКAGE INSTALL.MATERIAL (S/N 724002-UP)
89.020 001 TRANSPORT LOCK (S/N 724002-UP)
90.100 001 LINING ARRANGEMENT (S/N 724002-UP)
91.010 001 DECAL КIВ (S/N 724002-UP)
91.010 002 DECAL КIВ (S/N 724002-UP)
91.010 003 DECAL КIВ (S/N 724002-UP)
92.010 001 TOOL SET (S/N 724002-UP)
92.010 002 TOOL SET (S/N 724002-UP)
92.020 001 MAINTENANCE MATER. (S/N 724002-UP

Contact us: [email protected]

https://vimeo.com/731649500

PLEASE NOTE:

  • This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
  • You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
  • Need any other service / repair / parts manual, please feel free to contactΒ [email protected]Β . We still have 50,000 manuals unlisted

S.M

What Our Customers Say

β˜…β˜…β˜…β˜…β˜… Live reviews from customers
Loading customer reviews...

🌟 Related Products

Discover more professional manuals for your equipment

-78% OFF
New Holland 278 Hayliner Baler Operators Manual - PDF Download

New Holland 278 Hayliner Baler Operators Manual - PDF Download

β˜…β˜…β˜…β˜…β˜… (274 reviews)
$89.00 $19.95
DOWNLOAD
-55% OFF
New Holland T4020 T4030 T4040 T4050 Tractor Operators Manual - PDF Download

New Holland T4020 T4030 T4040 T4050 Tractor Operators Manual - PDF Download

β˜…β˜…β˜…β˜…β˜… (76 reviews)
$89.00 $39.95
DOWNLOAD
-58% OFF
new holland 320 hayliner operators manual - PDF Download

new holland 320 hayliner operators manual - PDF Download

β˜…β˜…β˜…β˜…β˜… (143 reviews)
$89.00 $36.95
DOWNLOAD
-58% OFF
New Holland Super 66 Twine Tie Baler Operators Manual - PDF Download

New Holland Super 66 Twine Tie Baler Operators Manual - PDF Download

β˜…β˜…β˜…β˜…β˜… (201 reviews)
$89.00 $36.95
DOWNLOAD
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    Start Downloading your Manual immediately by proceeding to checkout page
    Continue Shopping
    πŸ›’
    Recently Purchased
    πŸ•’ verified order
