New holland EC450 Excavator Parts Manual 73179398 – PDF DOWNLOAD

Description

New holland EC450 Excavator Parts Manual 73179398 – PDF DOWNLOAD

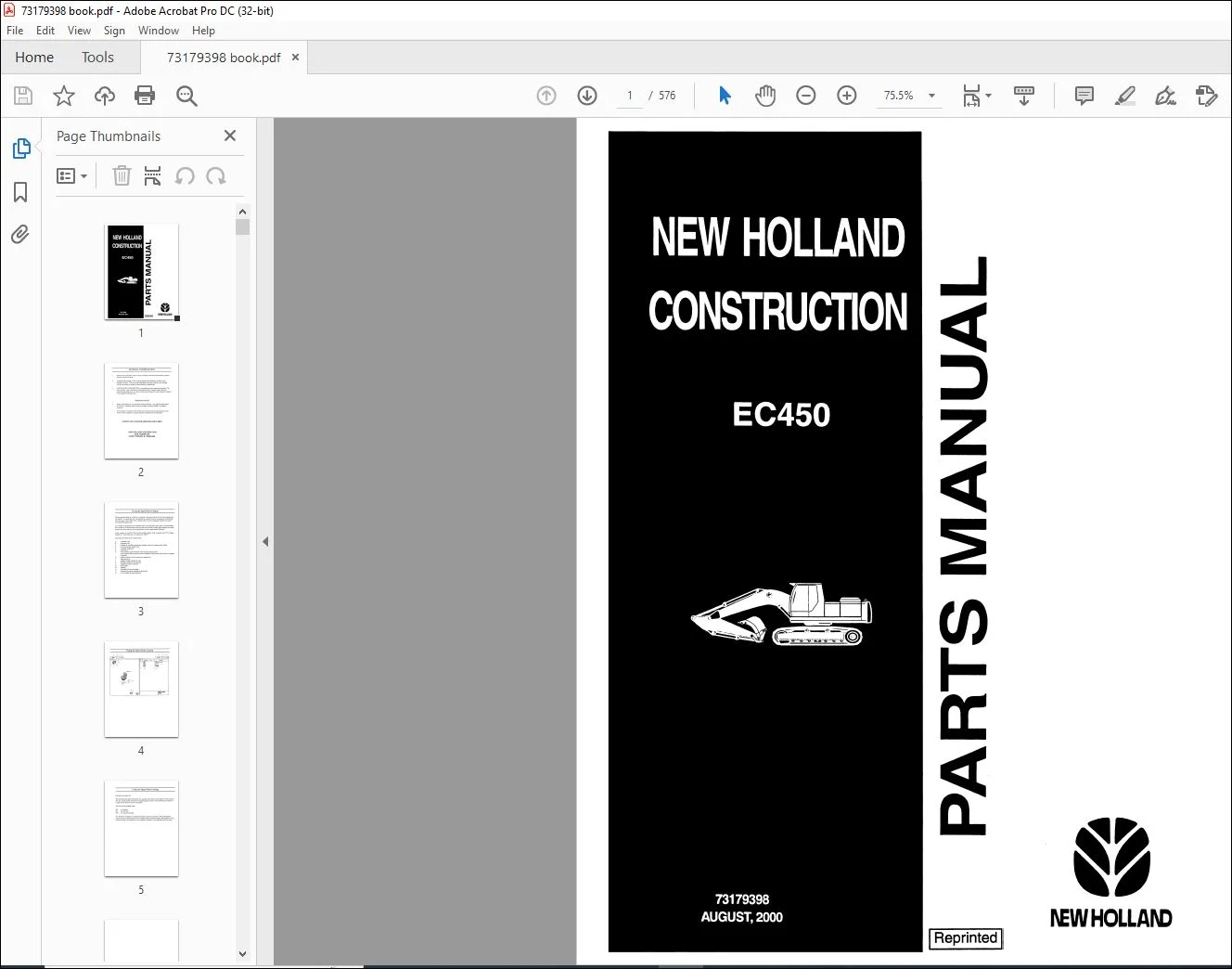

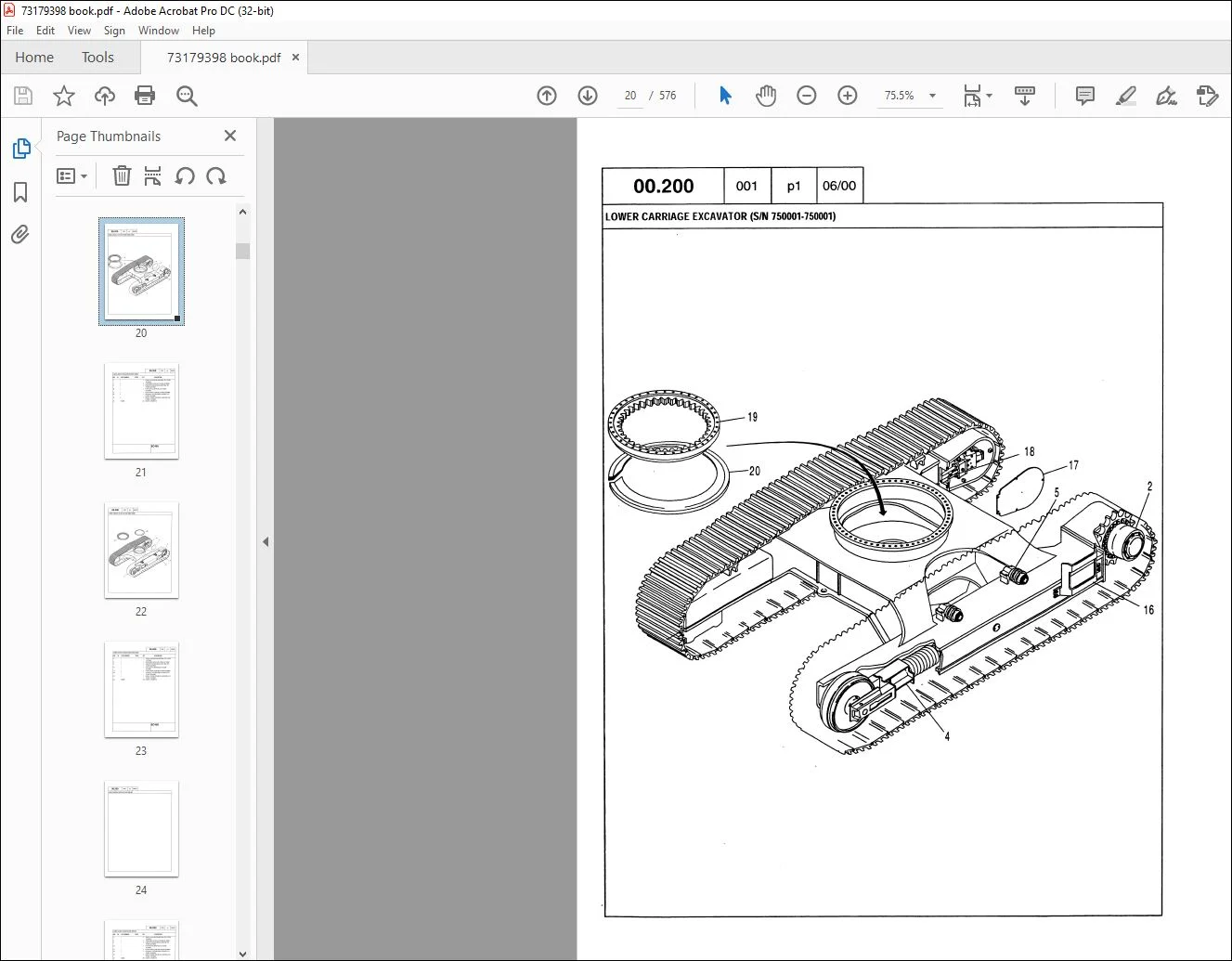

IMAGES PREVIEW OF THE MANUAL:

 DESCRIPTION:

New holland EC450 Excavator Parts Manual 73179398 – PDF DOWNLOAD

GENERAL INFORМATION

1. Whenever the terms left or right are used, it should Ье understood to mean from а position facing in direction of travel.

2. Тhroughout this manual you fmd common hardware not illustrated, but listed in the description column. Тhе service part immediately preceding hardware is not included with the service part or assemЫy when ordered as а replacement.

3. NEW HOLLAND CONSTRUCТION is continually striving to improve its products. We must, therefore, reserve the right to make improvements or changes when it becomes practical and possiЫe to do so, without incurring any oЫigation to make changes or additions to the equipment sold previously.

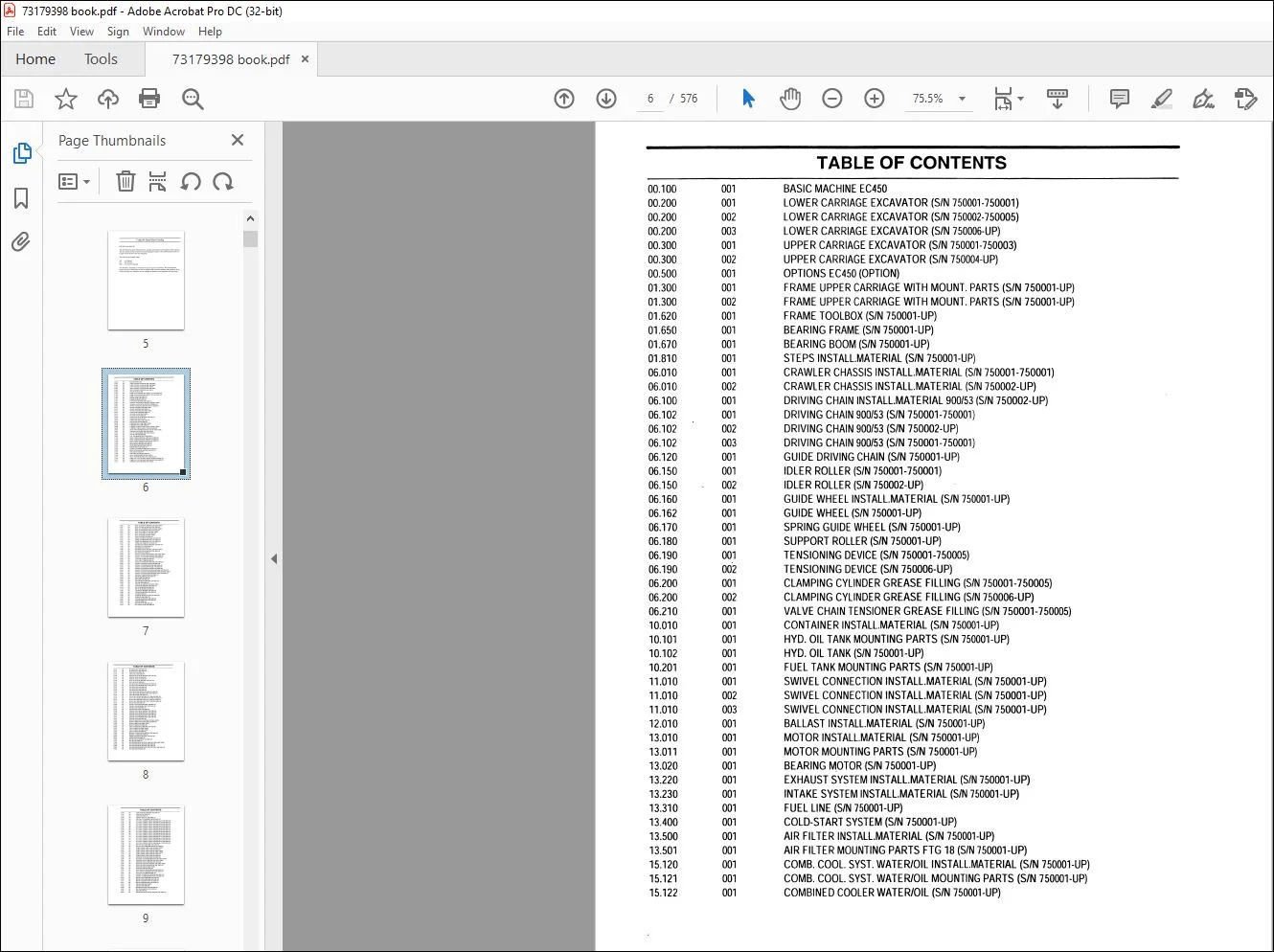

TABLE OF CONTENTS:

New holland EC450 Excavator Parts Manual 73179398 – PDF DOWNLOAD

BASIC MACHINE ЕС450
00.200 001 LOWER CARRIAGE EXCAVATOR (S/N 750001-750001)
00.200 002 LOWER CARRIAGE EXCAVATOR (S/N 750002-750005)
00.200 003 LOWER CARRIAGE EXCAVATOR (S/N 750006-UP)
00.300 001 UPPER CARRIAGE EXCAVATOR (S/N 750001-750003)
00.300 002 UPPER CARRIAGE EXCAVATOR (S/N 750004-UP)
00.500 001 OPTIONS ЕС450 (OPTION)
01.300 001 FRAME UPPER CARRIAGE WITH MOUNT. PARTS (S/N 750001-UP)
01.300 002 FRAME UPPER CARRIAGE WITH MOUNT. PARTS (S/N 750001-UP)
01.620 001 FRAME TOOLBOX (S/N 750001-UP)
01.650 001 BEARING FRAME (S/N 750001-UP)
01.670 001 BEARING ВООМ (S/N 750001-UP)
01.810 001 STEPS INSTALL.MATERIAL (S/N 750001-UP)
06.010 001 CRAWLER CHASSIS INSTALL.MATERIAL (S/N 750001-750001)
06.010 002 CRAWLER CHASSIS INSTALL.MATERIAL (S/N 750002-UP)
06.100 001 DRIVING CHAIN INSTALL.MATERIAL 900/53 (S/N 750002-UP)
06.102 001 DRIVING CHAIN 900/53 (S/N 750001-750001)
06.102 002 DRIVING CHAIN 900/53 (S/N 750002-UP)
06.102 003 DRIVING CHAIN 900/53 (S/N 750001-750001)
06.120 001 GUIDE DRIVING CHAIN (S/N 750001-UP)
06.150 001 IDLER ROLLER (S/N 750001-750001)
06.150 002 IDLER ROLLER (S/N 750002-UP)
06.160 001 GUIDE WHEEL INSTALL.MATERIAL (S/N 750001-UP)
06.162 001 GUIDE WHEEL (S/N 750001-UP)
06.170 001 SPRING GUIDE WHEEL (S/N 750001-UP)
06.180 001 SUPPORT ROLLER (S/N 750001-UP)
06.190 001 TENSIONING DEVICE (S/N 750001-750005)
06.190 002 TENSIONING DEVICE (S/N 750006-UP)
06.200 001 CLAMPING CYLINDER GREASE FILLING (S/N 750001-750005)
06.200 002 CLAMPING CYLINDER GREASE FILLING (S/N 750006-UP)
06.210 001 VALVE CHAIN TENSIONER GREASE FILLING (S/N 750001-750005)
10.010 001 CONTAINER INSTALL.MATERIAL (S/N 750001-UP)
10.101 001 HYD. OIL TANK MOUNТING PARTS (S/N 750001-UP)
10.102 001 HYD. OIL TANK (S/N 750001-UP)
10.201 001 FUEL TANK MOUNTING PARTS (S/N 750001-UP)
11.010 001 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 750001-UP)
11.010 002 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 750001-UP)
11.010 003 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 750001-UP)
12.010 001 BALLAST INSTALL.MATERIAL (S/N 750001-UP)
13.010 001 MOTOR INSTALL.MATERIAL (S/N 750001-UP)
13.011 001 MOTOR MOUNТING PARTS (S/N 750001-UP)
13.020 001 BEARING М_ОТОR (S/N 750001-UP)
13.220 001 EXHAUST SYSTEM INSTALL.MATERIAL (S/N 750001-UP)
13.230 001 INTAKE SYSTEM INSTALL.MATERIAL (S/N 750001-UP)
13.310 001 FUEL LINE (S/N 750001-UP)
13.400 001 COLD-START SYSTEM (S/N 750001-UP)
13.500 001 AIR FILTER INSTALL.MATERIAL (S/N 750001-UP)
13.501 001 AIR FILTER MOUNTING PARTS FTG 18 (S/N 750001-UP)
15.120 001 СОМВ. COOL. SYST. WATER/OIL INSTALL.MATERIAL (S/N 750001-UP)
15.121 001 СОМВ. COOL. SYST. WATER/OIL MOUNTING PARTS (S/N 750001-UP)
15.122 001 COMBINED COOLER WATER/OIL (S/N 750001-UP)
TABLE OF CONTENTS
16.020 001 TRAVEL GEAR INSTALL.MATERIAL (S/N 750001-750001)
16.020 002 TRAVEL GEAR INSTALL.MATERIAL (S/N 750002-UP)
16.021 001 TRAVEL GEAR MOUNTING PARTS (S/N 750001-750001)
16.021 002 TRAVEL GEAR MOUNTING PARTS (S/N 750002-UP)
16.022 001 TRAVEL GEAR СОМРLЕТЕ (S/N 750001-750001)
16.022 002 TRAVEL GEAR COMPLETE (S/N 750002-UP)
16.023 001 TRAVEL GEAR BASE (S/N 750001-750001)
16.023 002 TRAVEL GEAR BASE (S/N 750002-UP)
16.030 001 SLEWING GEAR INSTALL.MATERIAL (S/N 750001-UP)
16.031 001 SLEWING GEAR MOUNTING PARTS (S/N 750001-UP)
16.031 002 SLEWING GEAR MOUNTING PARTS (S/N 750001-UP)
16.032 001 SLEWING GEAR COMPLETE (S/N 750001-UP)
17.100 001 COUPLING/CLUTCH INSTALL.MATERIAL (S/N 750001-UP)
17.102 001 COUPLING/CLUTCH (S/N 750001-UP)
19.402 001 SWING BRAKE (S/N 750001-UP)
19.500 001 TRACK BRAKE INSTALL.MATERIAL (S/N 750001-750001)
19.500 002 TRACK BRAKE INSTALL.MATERIAL (S/N 750002-UP)
19.502 001 TRACK BRAKE (S/N 750002-UP)
20.020 001 HYDRAULIC SYSTEM LOWER CARRIAGE (S/N 750001-750001)
20.020 002 HYDRAULIC SYSTEM LOWER CARRIAGE (S/N 750002-UP)
20.030 001 HYDRAULIC SYSTEM UPPER CARRIAGE (S/N 750001-UP)
20.260 001 OIL SUCTION SYSTEM (S/N 750001-UP)
20.260 002 OIL SUCTION SYSTEM (S/N 750001-UP)
20.280 001 HYDRAULIC SYSTEM PUMP GOVERNING (S/N 750001-UP)
20.290 001 HYDRAULIC SYSTEM OIL COOLER (S/N 750001-UP)
20.310 001 HYDRAULIC SYSTEM HIGH PRESSURE (S/N 750001-UP)
20.320 001 HYDRAULIC SYSTEM LOW PRESSURE (S/N 750001-UP)
20.610 001 HYDRAULIC SYSTEM SERVO CONTROL (S/N 750001-UP)
20.640 001 HYDRAULIC SYSTEM CASCADE INSTALL.MATERIAL (S/N 750001-UP)
20.641 001 HYDRAULIC SYSTEM CASCADE MOUNТING PARTS (S/N 750001-750001)
20.641 002 HYDRAULIC SYSTEM CASCADE MOUNTING PARTS (S/N 750001-UP)
20.642 001 HYDRAULIC SYSTEM CASCADE (S/N 750001-UP)
22.010 001 PUMP INSTALL.MATERIAL (S/N 750001-UP)
22.020 001 DOUBLE PUMP (S/N 750001-UP)
22.030 001 SWING PUMP (S/N 750001-UP)
22.050 001 GEAR PUMP INSTALL.MATERIAL (S/N 750001-UP)
22.052 001 GEAR PUMP (S/N 750001-UP)
22.100 001 МОТОR INSTALL.MATERIAL (S/N 750001-750001)
22.100 002 МОТОR INSTALL.MATERIAL (S/N 750002-UP)
22.110 001 AXIAL PISTON MOTOR (S/N 750001-UP)
22.110 002 AXIAL PISTON MOTOR (S/N 750001-UP)
22.200 001 FIL TER INST ALL.MA TERIAL (S/N 750001-UP)
22.200 002 FIL TER INST ALL.MA TERIAL (S/N 750001-UP)
22.202 001 FILTER (S/N 750001-UP)
22.400 001 DISTRIBUTOR INSTALL.MATERIAL (S/N 750001-UP)
22.402 001 DISTRIВUTOR (S/N 750001-UP)
22.500 001 ROТOR INSTALL.MATERIAL (S/N 750001-UP)
22.501 001 ROТOR MOUNTING PARTS (S/N 750001-UP)
22.502 001 ROТOR (S/N 750001-UP)
22.510 001 ARRESTOR ROTOR (S/N 750001-UP)
22.520 001 RODS TREADLE VALVE (S/N 750001-UP)
Т ABLE OF CONTENTS
23.122 001 -BLOCКING VALVE (S/N 750001-UP)
23.122 002· BLOCКING VALVE (S/N 750001-UP)
23.142 001 STOP VALVE (S/N 750001-UP)
23.152 001 СНЕСК VALVE (S/N 750001-UP)
23.180 001 CONTROL VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.182 001 CONTROL VALVE (S/N 750001-UP)
23.182 002 CONTROL VALVE (S/N 750001-UP)
23.210 001 SHIFТ VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.212 001 SHIFТ VALVE (S/N 750001-UP)
23.230 001 SOLENOID VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.231 001 SOLENOID VALVE MOUNTING PARTS (S/N 750001-UP)
23.232 001 SOLENOID VALVE (S/N 750001-UP)
23.232 002 SOLENOID VALVE (S/N 750001-UP)
23.232 003 SOLENOID VALVE (S/N 750001-UP)
23.240 001 VALVE INTERCONN. INSTALL.MATERIAL (S/N 750001-UP)
23.241 001 VALVE INTERCONN. MOUNTING PARTS (S/N 750001-UP)
23.242 001 VALVE INTERCONN. (S/N 750001-UP)
23.270 001 SERVO VALVE INSTALL.MATERIAL LEFТ-HAND (S/N 750001-UP)
23.270 002 SERVO VALVE INSTALL.MATERIAL RIGHT-HAND (S/N 750001-UP)
23.271 001 SERVO VALVE MOUNTING PARTS LEFТ-HAND (S/N 750001-UP)
23.271 002 SERVO VALVE MOUNTING PARTS RIGHT-HAND (S/N 750001-UP)
23.272 001 SERVO VALVE (S/N 750001-UP)
23.290 001 TREADLE VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.291 001 TREADLE VALVE MOUNTING PARTS (S/N 750001-UP)
23.292 001 TREADLE VALVE (S/N 750001-UP)
23.312 001 PROPORTIONAL VALVE (S/N 750001-UP)
23.610 001 CONTROL BLOCK INSTALL.MATERIAL (S/N 750001-UP)
23.610 002 CONTROL BLOCK INSTALL.MATERIAL (S/N 750001-UP)
23.610 003 CONTROL BLOCK INSTALL.MATERIAL (S/N 750001-UP)
23.611 001 CONTROL BLOCK MOUNTING PARTS (S/N 750001-UP)
23.611 002 CONTROL BLOCK MOUNTING PARTS (S/N 750001-UP)
23.612 001 CONTROL BLOCK (S/N 750001-UP)
24.020 001 ВООМ CVLINDERS INSTALL.MATERIAL (S/N 750001-750001)
24.020 002 ВООМ CVLINDERS INSTALL.MATERIAL (S/N 750002-UP)
24.022 001 ВООМ CYLINDERS (S/N 750001-750001)
24.022 002 ВООМ CYLINDERS (S/N 750002-UP)
24.030 001 SТICK CYLINDER INSTALL.MATERIAL (S/N 750005-UP)
24.032 001 STICK CYLINDER (S/N 750001-750004)
24.032 002 SТICK CYLINDER (S/N 750001-750004)
24.032 003 STICK CYLINDER (S/N 750005-UP)
24.050 001 ВАСКНОЕ CYLINDER INSTALL.MATERIAL (S/N 750001-UP)
24.052 001 ВАСКНОЕ CVLINDER (S/N 750001-UP)
26.010 001 COMPRESSOR INSTALL.MATERIAL (S/N 750001-UP)
26.012 001 COMPRESSOR (S/N 750001-UP)
27.010 001 HEATING INSTALL.MATERIAL (S/N 750001-UP)
27.012 001 HEATING (S/N 750001-UP)
27.400 001 AIR CONDIТION INSTALL.MATERIAL SAME PARTS (S/N 750001-750001)
27.400 002 AIR CONDIТION INSTALL.MATERIAL (S/N 750001-UP)
27.400 003 AIR CONDIТION INSTALL.MATERIAL (S/N 750002-UP)
27.401 001 AIR CONDIТION MOUNTING PARTS SCOPE OF SUPPLY (S/N 750001-UP)
27.402 001 AIR CONDIТION (S/N 750001-UP)
TABLE OF CONTENTS
27.420 001 LIQUEFIER INSTALL.MATERIAL (S/N 750001-UP)
27.422 001 LIQUEFIER (S/N 750001-UP)
27.432 001 DRYER (S/N 750001-UP)
30.040 001 CENTRAL ШВЕ SYST. (S/N 750001-UP)
30.200 001 GREASING SYSTEM MONO 7,7М (S/N 750001-UP)
31.050 001 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 01 (S/N 750001-UP)
31.050 002 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 02 (S/N 750001-UP)
31.050 003 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 03 (S/N 750001-UP)
31.050 004 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 04 (S/N 750001-UP)
31.050 005 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 05 (S/N 750001-UP)
31.050 006 ELECTRICAL COMPON. •.CIRCUIТ DIAGRAM Page 06 (S/N 750001-UP)
31.050 007 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 07 (S/N 750001-UP)
31.050 008 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 08 (S/N 750001-UP)
31.050 009 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 09 (S/N 750001-UP)
31.050 010 ELECTRICAL COMPON. I.CIRCUIТ D1.AGRAM Page 10 (S/N 750001-UP)
31.050 011 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 11 (S/N 750001-UP)
31.050 012 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 12 (S/N 750001-UP)
31.050 013 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 13 (S/N 750001-UP)
31.050 014 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 14 (S/N 750001-UP)
31.050 015 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 15 (S/N 750001-UP)
31.300 001 ВАТТЕRУ INSTALL.MATERIAL (S/N 750001-UP)
31 .300 002 ВАТТЕRУ INSTALL.MATERIAL SWIТCH (S/N 750003-UP)
31.530 001 SIGNAL GENERAL TRAVEL-ALAR (S/N 750001-750001)
31.530 002 SIGNAL GENERAL TRAVEL-ALAR (S/N 750001-UP)
31.530 003 SIGNAL GENERAL TRAVEL-ALAR (S/N 750002-750004)
31.530 004 SIGNAL GENERAL TRAVEL-ALAR (S/N 750002-750004)
31.530 005 SIGNAL GENERAL TRAVEL-ALAR (S/N 750005-UP)
31.530 006 SIGNAL GENERAL TRAVEL-ALAR (S/N 750005-UP)
31.600 001 DASHBOARD INSTALL.MATERIAL (S/N 750001-UP)
32.999 001 ELECTRICAL SYSTEM ADDITION OTHER (S/N 750001-750001)
34.010 001 САВ MODULE INSTALL.MATERIAL (S/N 750001-750003)
34.010 002 САВ MODULE INSTALL.MATERIAL (S/N 750004-UP)
34.020 001 OPERAТORS САВ INSTALL.MATERIAL (S/N 750001-750001)
34.020 002 OPERAТORS САВ INSTALL.MATERIAL (S/N 750002-UP)
34.022 001 OPERAТORS САВ (S/N 750001-750001)
34.022 002 OPERAТORS САВ (S/N 750002-UP)
34.100 001 PLATFORM PLATE INSTALL.MATERIAL (S/N 750001-UP)
34.101 001 PLATFORM PLATE MOUNTING PARTS (S/N 750001-UP)
34.105 001 FOOT REST PLATFORM (S/N 750001-UP)
34.130 001 CONTROL COLUMN INSTALL.MATERIAL (S/N 750001-UP)
34.131 001 CONTROL COLUMN MOUNTING PARTS (S/N 750001-UP)
34.140 001 ВRАСКЕТ INSTALL.MATERIAL (S/N 750001-UP)
34.140 002 ВRАСКЕТ INSTALL.MATERIAL (S/N 750001-UP)
34.141 001 ВRАСКЕТ MOUNTING PARTS (S/N 750001-UP)
34.141 002 ВRАСКЕТ MOUNTING PARTS (S/N 750001-UP)
34.220 001 САВ DOOR (S/N 750001-750001)
34.220 002 САВ DOOR (S/N 750002-UP)
34.300 001 BEARING OPERAТORS САВ (S/N 750001-UP)
34.500 001 SEAT INSTALL.MATERIAL (S/N 750001-UP)
34.502 001 SEAT (S/N 750001-UP)
34.640 001 WINDSCREEN WASHER INSTALL.MATERIAL (S/N 750001-UP)
TABLE OF CONTENTS
34.642 001 WATER RESERVOIR WINDSCREEN WASHER (S/N 750001-UP)
35.060 001 MIRROR SUPPORT INSTALL.MATERIAL (S/N 750001-UP)
36.010 001 PANELING INSTALL.MATERIAL (S/N 750001-UP)
36.500 001 COVER UPPER CARRIAGE (S/N 750001-UP)
36.510 001 COVER SWING BEARING INSTALL.MATERIAL (S/N 750001-UP)
36.512 001 COVER SWING BEARING (S/N 750001-UP)
36.540 001 COVER TRAVEL GEAR (S/N 750001-UP)
60.150 001 MONOBLOC ВООМ INSTALL.MATERIAL 7,7М (S/N 750001-750001)
60.150 002 MONOBLOC ВООМ INSTALL.MATERIAL 7,7М (S/N 750002-UP)
60.160 001 HYDRAULIC SYSTEM MONOBLOC ВООМ O.RBS (S/N 750001-UP)
60.160 002 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7М (S/N 750001-UP)
60.160 003 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7 М (S/N 750001-UP)
60.160 004 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7М (S/N 750001-750002)
60.160 005 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7М (S/N 750003-UP)
61.010 001 STICK INSTALL.MATERIAL 3,4М (S/N 750001-UP)
61.010 002 STICK INSTALL.MATERIAL 4,4М (OPTION) (S/N 750001-UP)
61.032 001 HYDRAULIC SYSTEM STICK 3,4М (S/N 750001-UP)
61.032 002 HYDRAULIC SYSTEM STICK 4,4М (OPTION) (S/N 750001-UP)
62.012 001 ТOGGLE & LINКAGE (S/N 750001-750001П50003-750003)
62.012 002 ТOGGLE & LINKAGE (S/N 750002-750002П50004-UР)
62.210 001 PIN N0.1 (S/N-750001-UP)
89.020 001 TRANSPORT LOCK (S/N 750001-UP)
90.100 001 LINING ARRANGEMENT (S/N 750001-UP)
91.010 001 DECAL КIТ ЕС450 (S/N 750001-UP)
91.010 002 DECAL КIТ (S/N 750001-UP)
91.010 003 DECAL КIТ DESIGN ЕС45 (S/N 75000_1-UP)
92.010 001 TOOL SЕТ (S/N 750001-UP)
92.010 002 ТООL SЕТ (S/N 750001-UP)
92.020 001 MAINTENANCE MATER. (S/N 750001-UP)
SECTION INDEX
00.100 001 BASIC MACHINE ЕС450
00.200 001 LOWER CARRIAGE EXCAVATOR (S/N 750001-750001)
00.200 002 LOWER CARRIAGE EXCAVATOR (S/N 750002-750005)
00.200 003 LOWER CARRIAGE EXCAVATOR (S/N 750006-UP)
00.300 001 UPPER CARRIAGE EXCAVATOR (S/N 750001-750003)
00.300 002 UPPER CARRIAGE EXCAVATOR (S/N 750004-UP)
00.500 001 OPTIONS ЕС450 (OPTION)
01.300 001 FRAME UPPER CARRIAGE WIТH MOUNT. PARTS (S/N 750001-UP)
01.300 002 FRAME UPPER CARRIAGE WIТH MOUNT. PARTS (S/N 750001-UP)
01.620 001 FRAME TOOLBOX (S/N 750001-UP)
01.650 001 BEARING FRAME (S/N 750001-UP)
01.670 001 BEARING ВООМ (S/N 750001-UP)
01.810 001 STEPS INSTALL.MATERIAL (S/N 750001-UP)
06.010 001 CRAWLER CHASSIS INSTALL.MATERIAL (S/N 750001-750001)
06.010 002 CRAWLER CHASSIS INSTALL.MATERIAL (S/N 750002-UP)
06.100 001 DRIVING CHAIN INSTALL.MATERIAL 900/53 (S/N 750002-UP)
06.102 001 DRIVING CHAIN 900/53 (S/N 750001-750001)
06.102 002 DRIVING CHAIN 900/53 (S/N 750002-UP)
06.102 003 DRIVING CHAIN 900/53 (S/N 750001-750001)
06.120 001 GUIDE DRIVING CHAIN (S/N 750001-UP)
06.150 001 IDLER ROLLER (S/N 750001-750001)
06.150 002 IDLER ROLLER (S/N 750002-UP)
06.160 001 GUIDE WHEEL INSTALL.MATERIAL (S/N 750001-UP)
06.162 001 GUIDE WHEEL (S/N 750001-UP)
06.170 001 SPRING GUIDE WHEEL (S/N 750001-UP)
06.180 001 SUPPORT ROLLER (S/N 750001-UP)
06.190 001 TENSIONING DEVICE (S/N 750001-750005)
06.190 002 TENSIONING DEVICE (S/N 750006-UP)
06.200 001 CLAMPING CYLINDER GREASE FILLING (S/N 750001-750005)
06.200 002 CLAMPING CYLINDER GREASE FILLING (S/N 750006-UP)
06.210 001 VALVE CHAIN TENSIONER GREASE FILLING (S/N 750001-750005)
10.010 001 CONTAINER INSTALL.MATERIAL (S/N 750001-UP)
10.101 001 HYD. OIL TANK MOUNTING PARTS (S/N 750001-UP)
10.102 001 HYD. OIL TANK (S/N 750001-UP)
10.201 001 FUEL TANK MOUNТING PARTS (S/N 750001-UP)
11.010 001 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 750001-UP)
11.010 002 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 750001-UP)
11.010 003 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 750001-UP)
12.010 001 BALLAST INSTALL.MATERIAL (S/N 750001-UP)
13.010 001 MOTOR INSTALL.MATERIAL (S/N 750001-UP)
13.011 001 MOTOR MOUNTING PARTS (S/N 750001-UP)
13.020 001 BEARING MOTOR (S/N 750001-UP)
13.220 001 EXHAUST SYSTEM INSTALL.MATERIAL (S/N 750001-UP)
13.230 001 INTAKE SYSTEM INSTALL.MATERIAL (S/N 750001-UP)
13.310 001 FUEL LINE (S/N 750001-UP)
13.400 001 COLD-START SYSTEM (S/N 750001-UP)
13.500 001 AIR FILTER INSTALL.MATERIAL (S/N 750001-UP)
13.501 001 AIR FIL TER MOUNТING PARTS FTG 18 (S/N 750001-UP)
15.120 001 СОМВ. COOL. SYST. WATER/OIL INSTALL.MATERIAL (S/N 750001-UP)
15.121 001 СОМВ. COOL. SYST. WATER/OIL MOUNТING PARTS (S/N 750001-UP)
15.122 001 COMBINED COOLER WATER/OIL (S/N 750001-UP)
SECTION INDEX
16.020 001 TRAVEL GEAR INSTALL.MATERIAL (S/N 750001-750001)
16.020 002 TRAVEL GEAR INSTALL.MATERIAL (S/N 750002-UP)
16.021 001 TRAVEL GEAR MOUNTING PARTS (S/N 750001-750001)
16.021 002 TRAVEL GEAR MOUNTING PARTS (S/N 750002-UP)
16.022 001 TRAVEL GEAR СОМРLЕТЕ (S/N 750001-750001)
16.022 002 TRAVEL GEAR COMPLETE (S/N 750002-UP)
16.023 001 TRAVEL GEAR BASE (S/N 750001-750001)
16.023 002 TRAVEL GEAR BASE (S/N 750002-UP)
16.030 001 SLEWING GEAR INSTALL.MATERIAL (S/N 750001-UP)
16.031 001 SLEWING GEAR MOUNTING PARTS (S/N 750001-UP)
16.031 002 SLEWING GEAR MOUNTING PARTS (S/N 750001-UP)
16.032 001 SLEWING GEAR COMPLETE (S/N 750001-UP)
17.100 001 COUPLING/CLUTCH INSTALL.MATERIAL (S/N 750001-UP)
17.102 001 COUPLING/CLUTCH (S/N 750001-UP)
19.402 001 SWING BRAKE (S/N 750001-UP)
19.500 001 TRACK BRAKE INSTALL.MATERIAL (S/N 750001-750001)
19.500 002 TRACK BRAKE INSTALL.MATERIAL (S/N 750002-UP)
19.502 001 TRACK BRAKE (S/N 750002-UP)
20.020 001 HYDRAULIC SYSTEM LOWER CARRIAGE (S/N 750001-750001)
20.020 002 HYDRAULIC SYSTEM LOWER CARRIAGE (S/N 750002-UP)
20.030 001 HYDRAULIC SYSTEM UPPER CARRIAGE (S/N 750001-UP)
20.260 001 OIL SUCTION SYSTEM (S/N 750001-UP)
20.260 002 OIL SUCTION SYSTEM (S/N 750001-UP)
20.280 001 HYDRAULIC SYSTEM PUMP GOVERNING (S/N 750001-UP)
20.290 001 HYDRAULIC SYSTEM OIL COOLER (S/N 750001-UP)
20.310 001 HYDRAULIC SYSTEM HIGH PRESSURE (S/N 750001-UP)
20.320 001 HYDRAULIC SYSTEM LOW PRESSURE (S/N 750001-UP)
20.610 001 HYDRAULIC SYSTEM SERVO CONTROL (S/N 750001-UP)
20.640 001 HYDRAULIC SYSTEM CASCADE INSTALL.MATERIAL (S/N 750001-UP)
20.641 001 HYDRAULIC SYSTEM CASCADE MOUNTING PARТS (S/N 750001-750001)
20.641 002 HYDRAULIC SYSTEM CASCADE MOUNTING PARTS (S/N 750001-UP)
20.642 001 HYDRAULIC SYSTEM CASCADE (S/N 750001-UP)
22.010 001 PUMP INSTALL.MATERIAL (S/N 750001-UP)
22.020 001 DOUBLE PUMP (S/N 750001-UP)
22.030 001 SWING PUMP (S/N 750001-UP)
22.050 001 GEAR PUMP INSTALL.MATERIAL (S/N 750001-UP)
22.052 001 GEAR PUMP (S/N 750001-UP)
22.100 001 MOTOR INSTALL.MATERIAL (S/N 750001-750001)
22.100 002 MOTOR INSTALL.MATERIAL (S/N 750002-UP)
22.110 001 AXIAL PISТON MOTOR (S/N 750001-UP)
22.110 002 AXIAL PISТON MOTOR (S/N 750001-UP)
22.200 001 FIL TER INSTALL.MATERIAL (S/N 750001-UP)
22.200 002 FIL TER INSTALL.MATERIAL (S/N 750001-UP)
22.202 001 FIL TER (S/N 750001-UP)
22.400 001 DISTRIBUТOR INSTALL.MATERIAL (S/N 750001-UP)
22.402 001 DISTRIBUТOR (S/N 750001-UP)
22.500 001 ROTOR INSTALL.MATERIAL (S/N 750001-UP)
22.501 001 ROTOR MOUNTING PARTS (S/N 750001-UP)
22.502 001 ROTOR (S/N 750001-UP)
22.510 001 ARRESTOR ROTOR (S/N 750001-UP)
22.520 001 RODS TREADLE VALVE (S/N 750001-UP)
SECTION INDEX
23.122 001 BLOCКING VALVE (S/N 750001-UP)
23.122 002 BLOCКING VALVE (S/N 750001-UP)
23.142 001 SТОР VALVE (S/N 750001-UP)
23.152 001 СНЕСК VALVE (S/N 750001-UP)
23.180 001 CONTROL VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.182 001 CONTROL VALVE (S/N 750001-UP)
23.182 002 CONTROL VALVE (S/N 750001-UP)
23.210 001 SHIFТ VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.212 001 SHIFТ VALVE (S/N 750001-UP)
23.230 001 SOLENOID VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.231 001 SOLENOID VALVE MOUNTING PARTS (S/N 750001-UP)
23.232 001 SOLENOID VALVE (S/N 750001-UP)
23.232 002 SOLENOID VALVE (S/N 750001-UP)
23.232 003 SOLENOID VALVE (S/N 750001-UP)
23.240 001 VALVE INTERCONN. INSTALL.MATERIAL (S/N 750001-UP)
23.241 001 VALVE INTERCONN. MOUNТING PARTS (S/N 750001-UP)
23.242 001 VALVE INTERCONN. (S/N 750001-UP)
23.270 001 SERVO VALVE INSTALL.MATERIAL LEFТ-HAND (S/N 750001-UP)
23.270 002 SERVO VALVE INSTALL.MATERIAL RIGHT-HAND (S/N 750001-UP)
23.271 001 SERVO VALVE MOUNTING PARTS LEFT-HAND (S/N 750~01-UP)
23.271 002 SERVO VALVE MOUNTING PARTS RIGHT-HAND (S/N 750001-UP)
23.272 001 SERVO VALVE (S/N 750001-UP)
23.290 001 TREADLE VALVE INSTALL.MATERIAL (S/N 750001-UP)
23.291 001 TREADLE VALVE MOUNТING PARTS (S/N 750001-UP)
23.292 001 TREADLE VALVE (S/N 750001-UP)
23.312 001 PROPORTIONAL VALVE (S/N 750001-UP)
23.610 001 CONTROL BLOCK INSTALL.MATERIAL (S/N 750001-UP)
23.610 002 CONTROL BLOCK INSTALL.MATERIAL (S/N 750001-UP)
23.610 003 CONTROL BLOCK INSTALL.MATERIAL (S/N 750001-UP)
23.611 001 CONTROL BLOCK MOUNTING PARTS (S/N 750001-UP)
23.611 002 CONTROL BLOCK MOUNTING PARTS (S/N 750001-UP)
23.612 001 CONTROL BLOCK (S/N 750001-UP)
24.020 001 ВООМ CYLINDERS INSTALL.MATERIAL (S/N 750001-750001)
24.020 002 ВООМ CYLINDERS INSTALL.MATERIAL (S/N 750002-UP)
24.022 001 ВООМ CYLINDERS (S/N 750001-750001)
24.022 002 ВООМ CYLINDERS (S/N 750002-UP)
24.030 001 STICK CYLINDER INSTALL.MATERIAL (S/N 750005-UP)
24.032 001 STICK CYLINDER (S/N 750001-750004)
24.032 002 STICK CYLINDER (S/N 750001-750004)
24.032 003 STICK CYLINDER (S/N 750005-UP)
24.050 001 ВАСКНОЕ CYLINDER INSTALL.MATERIAL (S/N 750001-UP)
24.052 001 ВАСКНОЕ CYLINDER (S/N 750001-UP)
26.010 001 COMPRESSOR INSTALL.MATERIAL (S/N 750001-UP)
26.012 001 COMPRESSOR (S/N 750001-UP)
27.010 001 HEATING INSTALL.MATERIAL (S/N 750001-UP)
27.012 001 HEATING (S/N 750001-UP)
27.400 001 AIR CONDITION INSTALL.MATERIAL SAME PARTS (S/N 750001-750001)
27.400 002 AIR CONDITION INSTALL.MATERIAL (S/N 750001-UP)
27.400 003 AIR CONDIТION INSTALL.MATERIAL (S/N 750002-UP)
27.401 001 AIR CONDIТION MOUNTING PARTS SCOPE OF SUPPL У (S/N 750001-UP)
27.402 001 AIR CONDITION (S/N 750001-UP)
SECTION INDEX
27.420 001 LIQUEFIER INSTALL.MATERIAL (S/N 750001-UP)
27.422 001 LIQUEFIER (S/N 750001-UP)
27.432 001 DRYER (S/N 750001-UP)
30.040 001 CENTRAL ШВЕ SVST. (S/N 750001-UP)
30.200 001 GREASING SYSTEM MONO 7,7М (S/N 750001-UP)
31.050 001 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 01 (S/N 750001-UP)
31.050 002 ELECTRICAL COMPON. I.C/RCUIТ DIAGRAM Page 02 (S/N 750001-UP)
31.050 003 ELECTRICAL COMPON. /.CIRCUIТ DIAGRAM Page 03 (S/N 750001-UP)
31.050 004 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 04 (S/N 750001-UP)
31.050 005 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 05 (S/N 750001-UP)
31.050 006 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 06 (S/N 750001-UP)
31.050 007 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 07 (S/N 750001-UP)
31.050 008 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 08 (S/N 750001-UP)
31.050 009 ELECTRICAL COMPON. I.CIRCUIТ D/AGRAM Page 09 (S/N 750001-UP)
31.050 010 ELECTRICAL COMPON. I.C/RCUIТ DIAGRAM Page 10 (S/N 750001-UP)
31.050 o1i ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 11 (S/N 750001-UP)
31.050 012 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 12 (S/N 750001-UP)
31.050 013 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM Page 13 (S/N 750001-UP)
31.050 014 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 14 (S/N 750001-UP)
31.050 015 ELECTRICAL COMPON. I.CIRCUIТ DIAGRAM Page 15 (S/N 750001-UP)
31.300 001 ВАТТЕRУ INSTALL.MATERIAL (S/N 750001-UP)
31.300 002 ВАТТЕRУ INSTALL.MATERIAL SWIТCH (S/N 750003-UP)
31.530 001 SIGNAL GENERAL TRAVEL-ALAR (S/N 750001-750001)
31.530 002 SIGNAL GENERAL TRAVEL-ALAR (S/N 750001-UP)
31.530 003 SIGNAL GENERAL TRAVEL-ALAR (S/N 750002-750004)
31.530 004 SIGNAL GENERAL TRAVEL-ALAR (S/N 750002-750004)
31.530 005 SIGNAL GENERAL TRAVEL-ALAR (S/N 750005-UP)
31.530 006 SIGNAL GENERAL TRAVEL-ALAR (S/N 750005-UP)
31.600 001 DASHBOARD INSTALL.MATERIAL (S/N 750001-UP)
32.999 001 ELECTRICAL SVSTEM ADDITION OTHER (S/N 750001-750001)
34.010 001 САВ MODULE INSTALL.MATERIAL (S/N 750001-750003)
34.010 002 САВ MODULE INSTALL.MATERIAL (S/N 750004-UP)
34.020 001 OPERATORS САВ INSTALL.MATERIAL (S/N 750001-750001)
34.020 002 OPERATORS САВ INSTALL.MATERIAL (S/N 750002-UP)
34.022 001 OPERATORS САВ (S/N 750001-750001)
34.022 002 OPERATORS САВ (S/N 750002-UP)
34.100 001 PLATFORM PLATE INSTALL.MATERIAL (S/N 750001-UP)
34.101 001 PLATFORM PLATE MOUNTING PARTS (S/N 750001-UP)
34.105 001 FOOT REST PLATFORM (S/N 750001-UP)
34.130 001 CONTROL COLUMN INSTALL.MATERIAL (S/N 750001-UP)
34.131 001 CONTROL COLUMN MOUNTING PARTS (S/N 750001-UP)
34.140 001 BRACKET INSTALL.MATERIAL (S/N 750001-UP)
34.140 002 ВRАСКЕТ INSTALL.MATERIAL (S/N 750001-UP)
34.141 001 ВRАСКЕТ MOUNTING PARTS (S/N 750001-UP)
34.141 002 BRACKET MOUNTING PARTS (S/N 750001-UP)
34.220 001 САВ DOOR (S/N 750001-750001)
34.220 002 САВ DOOR (S/N 750002-UP)
34.300 001 BEARING OPERATORS САВ (S/N 750001-UP)
34.500 001 SEAT INSTALL.MATERIAL (S/N 750001-UP)
34.502 001 SEAT (S/N 750001-UP)
34.640 001 WINDSCREEN WASHER INSTALL.MATERIAL (S/N 750001-UP)
SECTION INDEX
34.642 001 WATER RESERVOIR WINDSCREEN WASHER (S/N 750001-UP)
35.060 001 MIRROR SUPPORT INSTALL.MATERIAL (S/N 750001-UP)
36.010 001 PANELING INSTALL.MATERIAL (S/N 750001-UP)
36.500 001 COVER UPPER CARRIAGE (S/N 750001-UP)
36.510 001 COVER SWING BEARING INSTALL.MATERIAL (S/N 750001-UP)
36.512 001 COVER SWING BEARING (S/N 750001-UP)
36.540 001 COVER TRAVEL GEAR (S/N 750001-UP)
60.150 001 MONOBLOC ВООМ INSTALL.MATERIAL 7,7М (S/N 750001-750001)
60.150 002 MONOBLOC ВООМ INSTALL.MATERIAL 7,7М (S/N 750002-UP)
60.160 001 HYDRAULIC SYSTEM MONOBLOC ВООМ O.RBS (S/N 750001-UP)
60.160 002 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7М (S/N 750001-UP)
60.160 003 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7 М (S/N 750001,UP)
60.160 004 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7М (S/N 750001-750002)
60.160 005 HYDRAULIC SYSTEM MONOBLOC ВООМ 7,7М (S/N 750003-UP)
61.010 001 STICK INSTALL.MATERIAL 3.4М (S/N 750001-UP)
61.010 002 STICK INSTALL.MATERIAL 4.4М (OPTION) (S/N 750001-UP)
61.032 001 HYDRAULIC SYSTEM STICK 3,4М (S/N 750001-UP)
61.032 002 HYDRAULIC SYSTEM STICK 4,4М (OPTION) (S/N 750001-UP)
62.012 001 TOGGLE & LINKAGE (S/N 750001-750001/750003-750003)
62.012 002 TOGGLE & LINKAGE (S/N 750002-750002/750004-UP)
62.210 001 PIN NO.1 (S/N 750001-UP)
89.020 001 TRANSPORT LOCK (S/N 750001-UP)
90.100 001 LINING ARRANGEMENT (S/N 750001-UP)
91.010 001 DECAL KIT ЕС450 (S/N 75Щ)О1-UР)
91.010 002 DECAL КIТ (S/N 750001-UP)
91.010 003 DECAL КIТ DESlGN ЕС45 (S/N 750001-UP)
92.010 001 TOOL SET (S/N 750001-UP)
92.010 002 TOOL SET (S/N 750001-UP)
92.020 001 MAINTENANCE MATER. (S/N 750001-UP)

Questions? Email us: [email protected]

https://vimeo.com/731688610

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
