New Holland EH130 CRAWLER EXCAVATOR SERVICE MANUAL 6-75760NA – PDF DOWNLOAD

Description

New Holland EH130 CRAWLER EXCAVATOR SERVICE MANUAL 6-75760NA – PDF DOWNLOAD

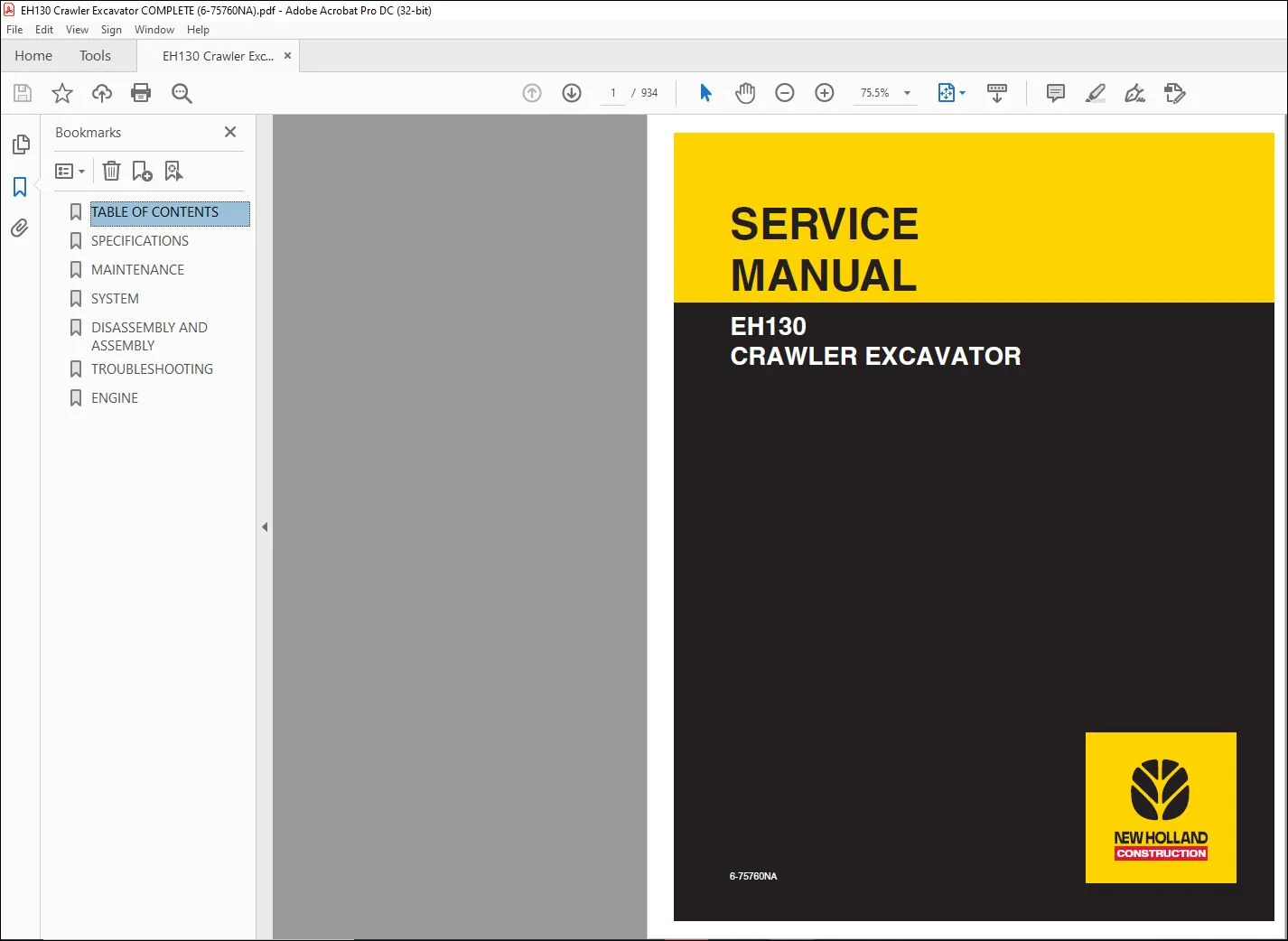

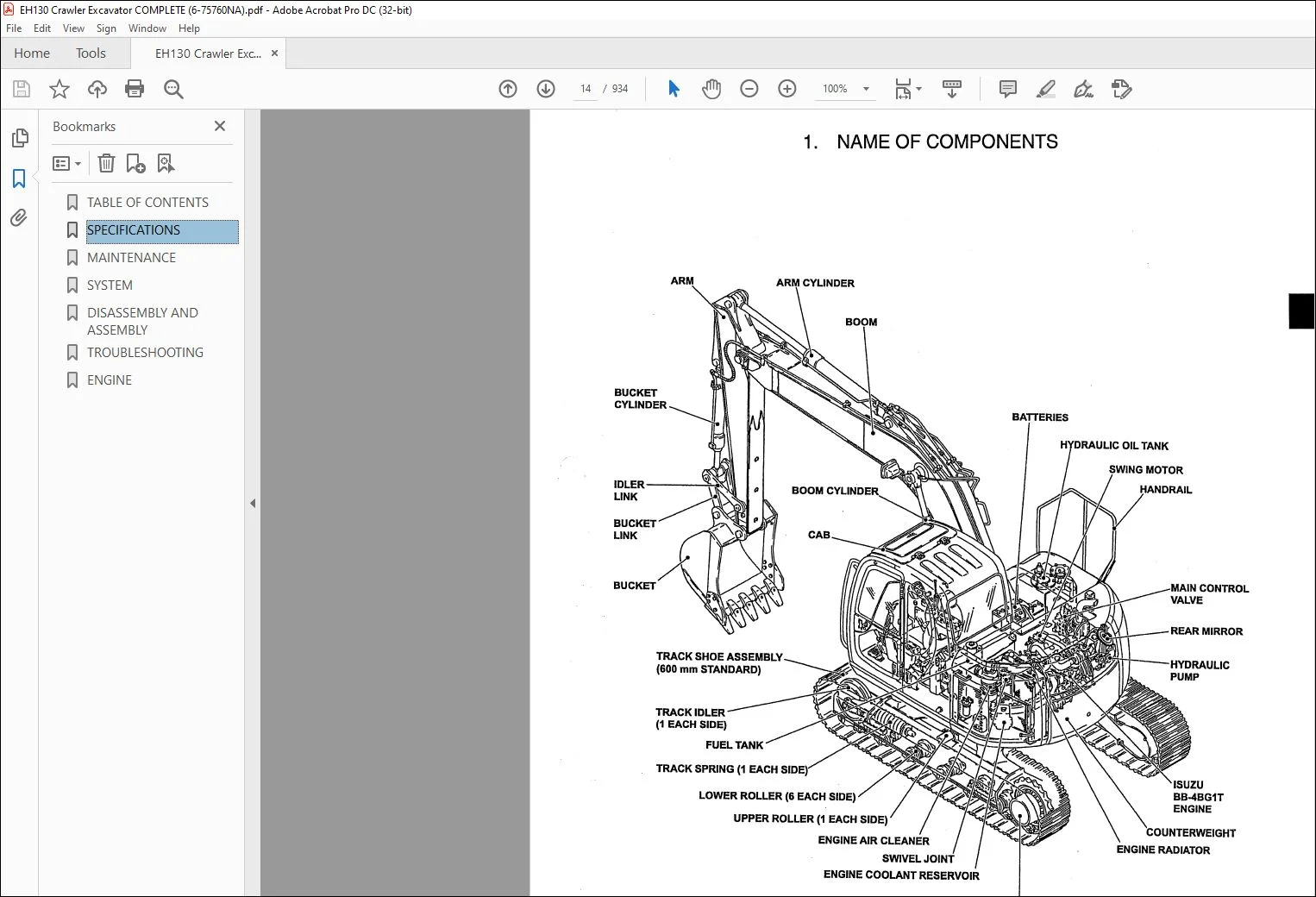

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland EH130 CRAWLER EXCAVATOR SERVICE MANUAL 6-75760NA – PDF DOWNLOAD

1.1 GENERAL SAFETY INFORMATION

WARNING:

Do Not operate or perform any maintenance on this machine until all instructions found in the OPERATION’S MANUAL have been thoroughly read and understood. Improper operation or maintenance of this machine may cause accidents and could result in serious injury or death. Always keep the manual in the operator’s seat pocket. If it is missing or damaged, place an order with an authorized Distributor for a replacement. If you have any questions, please consult an authorized Distributor

1. Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in this manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.

2. Operation, inspection, and maintenance should be carefully carried out, and safety must be given the first priority. Messages of safety are indicated with marks. The safety information contained in this manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations.

3. Messages of safety appear in this manual and on the machine. All messages of safety are identified by the words DANGER, WARNING and CAUTION

a. DANGER – Indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury and is
represented as follows:

b. WARNING – Indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury and
is represented as follows:

1.2 SAFETY PRECAUTIONS

The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in chapter SPECIFICATIONS in this manual.

The following is a list of basic precautions that must always be observed.

1.  Read and understand all warning plates and decals on the machine before operating, maintaining or repairing this machine.
2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
3. Disconnect the battery and hang a “Do Not Operate” tag in the operator’s compartment. remove ignition keys.
4. If possible, make all repairs with the machine parked on a level, hard surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the operator’s compartment.
5.  Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.
6. Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.
7. Lower the bucket, blade or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, blade or other attachment is blocked correctly to prevent it from dropping unexpectedly.
8. Use steps and grab handles when mounting or dismounting a machine. Clean any mud, grease, oil or debris from steps, walkways or work platforms before using. Always face the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.
9.  To avoid back injury, use a hoist when lifting components which weigh 23 kg (50 lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation.
10.  To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and components

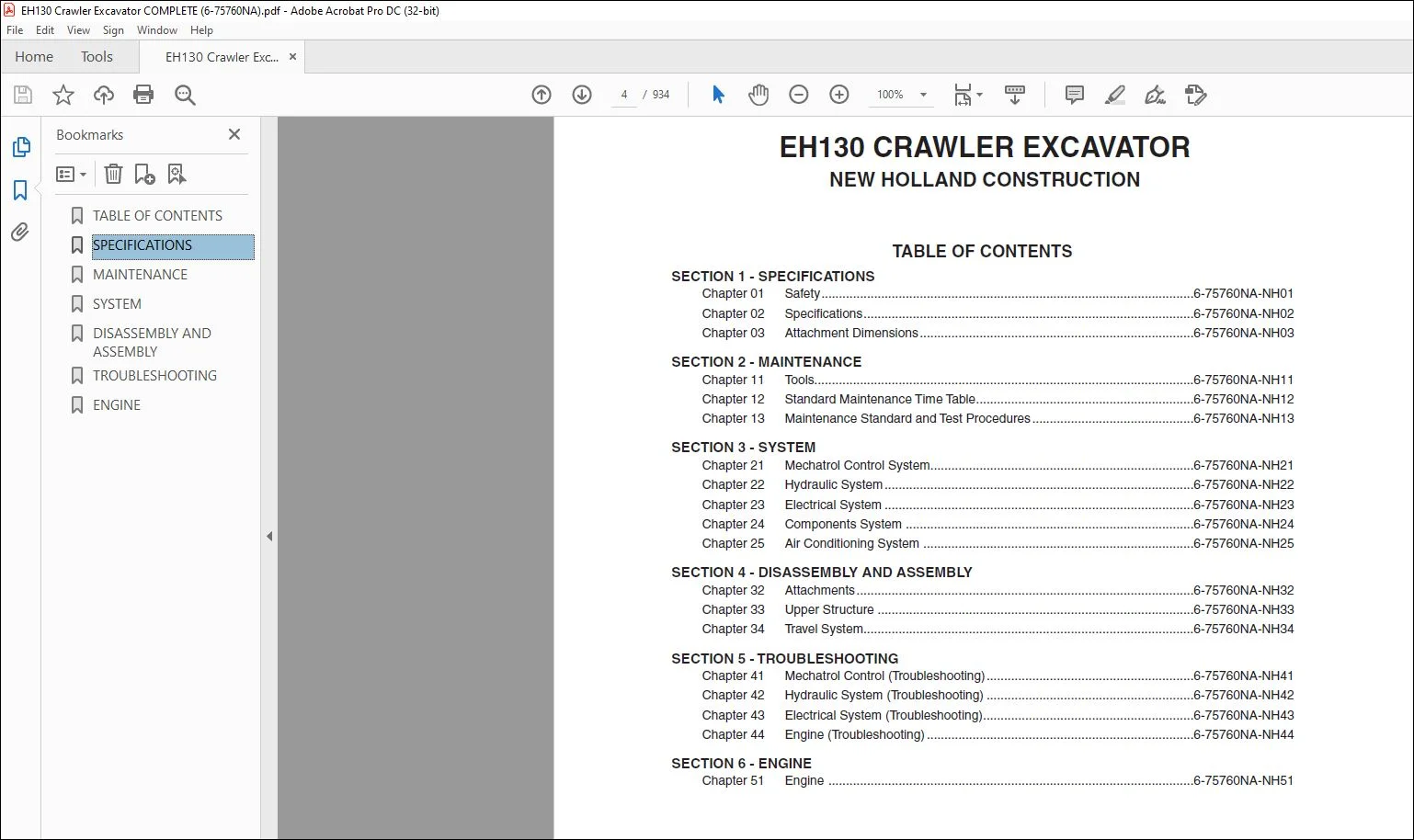

TABLE OF CONTENTS:

New Holland EH130 CRAWLER EXCAVATOR SERVICE MANUAL 6-75760NA – PDF DOWNLOAD

SECTION 1 – SPECIFICATIONS
SECTION 2 – MAINTENANCE
SECTION 3 – SYSTEM
SECTION 4 – DISASSEMBLY AND ASSEMBLY
SECTION 5 – TROUBLESHOOTING
SECTION 6 – ENGINE
Chapter 01 Safety6-75760NA-NH01
Chapter 02 Specifications6-75760NA-NH02
Chapter 03 Attachment Dimensions6-75760NA-NH03
Chapter 11 Tools6-75760NA-NH11
Chapter 12 Standard Maintenance Time Table6-75760NA-NH12
Chapter 13 Maintenance Standard and Test Procedures6-75760NA-NH13
Chapter 21 Mechatrol Control System6-75760NA-NH21
Chapter 22 Hydraulic System6-75760NA-NH22
Chapter 23 Electrical System 6-75760NA-NH23
Chapter 24 Components System 6-75760NA-NH24
Chapter 25 Air Conditioning System 6-75760NA-NH25
Chapter 32 Attachments6-75760NA-NH32
Chapter 33 Upper Structure 6-75760NA-NH33
Chapter 34 Travel System6-75760NA-NH34
Chapter 41 Mechatrol Control (Troubleshooting)6-75760NA-NH41
Chapter 42 Hydraulic System (Troubleshooting) 6-75760NA-NH42
Chapter 43 Electrical System (Troubleshooting)6-75760NA-NH43
Chapter 44 Engine (Troubleshooting) 6-75760NA-NH44
Chapter 51 Engine 6-75760NA-NH51

Contact us: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
