New Holland EH130 Crawler Excavator Service Repair Manual (6-75760) New Holland EH130 – PDF Download

Description

New Holland EH130 Crawler Excavator Service Repair Manual (6-75760) New Holland EH130

File Details:

New Holland EH130 Crawler Excavator Service Manual
Size: 60.2 MB
Format: PDF
Language: English
Number of Pages: 934 pages
Brand: New Holland
Type of document: Shop Manual
Model: EH130
Part No: 6-75760

NEW HOLLAND EH130 CRAWLER EXCAVATOR SERVICE REPAIR MANUAL (6-75760) NEW HOLLAND EH130 – PDF DOWNLOAD:

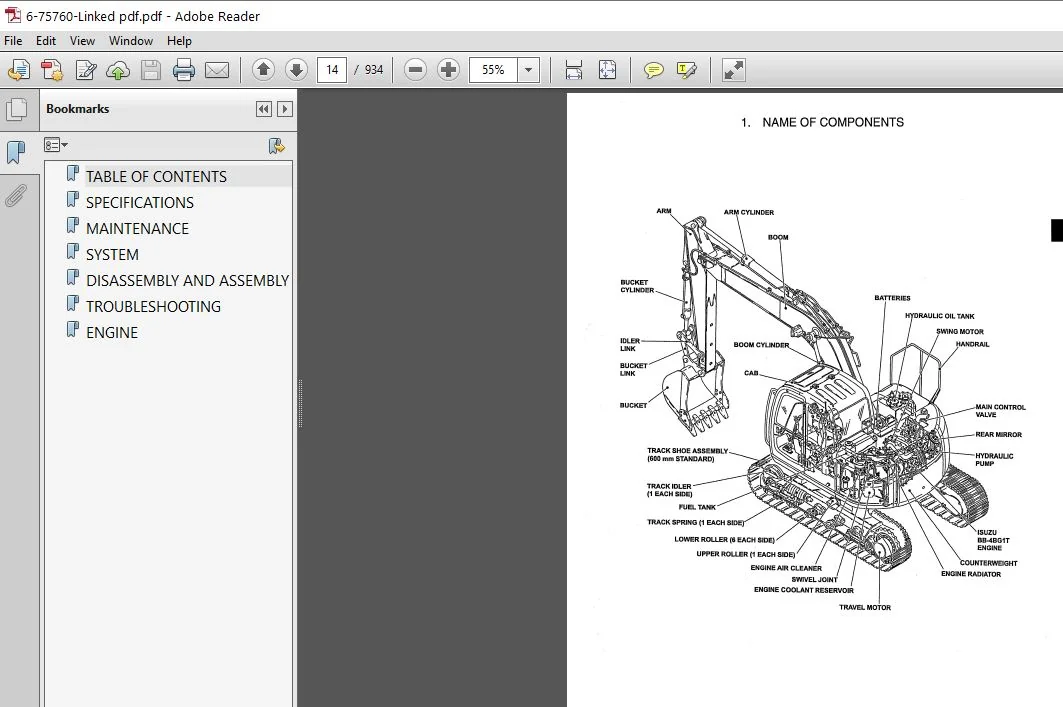

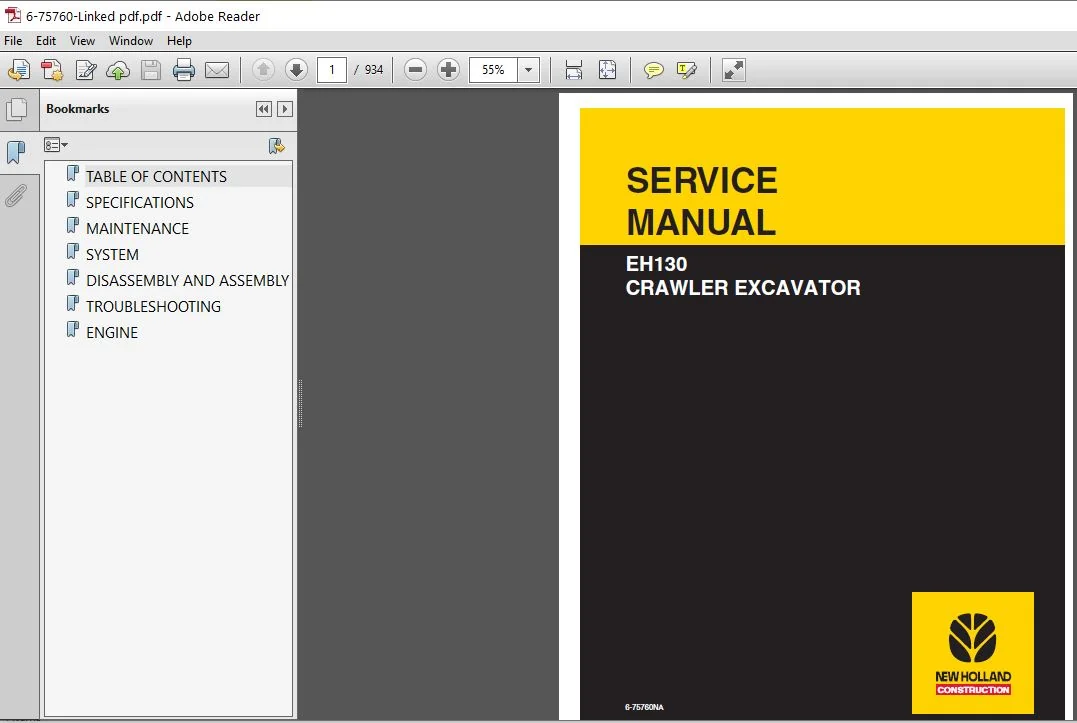

Image Preview:

Description:

New Holland EH130 Crawler Excavator Service Repair Manual (6-75760) New Holland EH130

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
• Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in chapter SPECIFICATIONS in this manual.
  The following is a list of basic precautions that must always be observed.
• 1. Read and understand all warning plates and decals on the machine before operating, maintaining or repairing this machine.
• 2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
• 3. Disconnect the battery and hang a “Do Not Operate” tag in the operator’s compartment. remove ignition keys.
• 4. If possible, make all repairs with the machine parked on a level, hard surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the operator’s compartment.
• 5. Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.

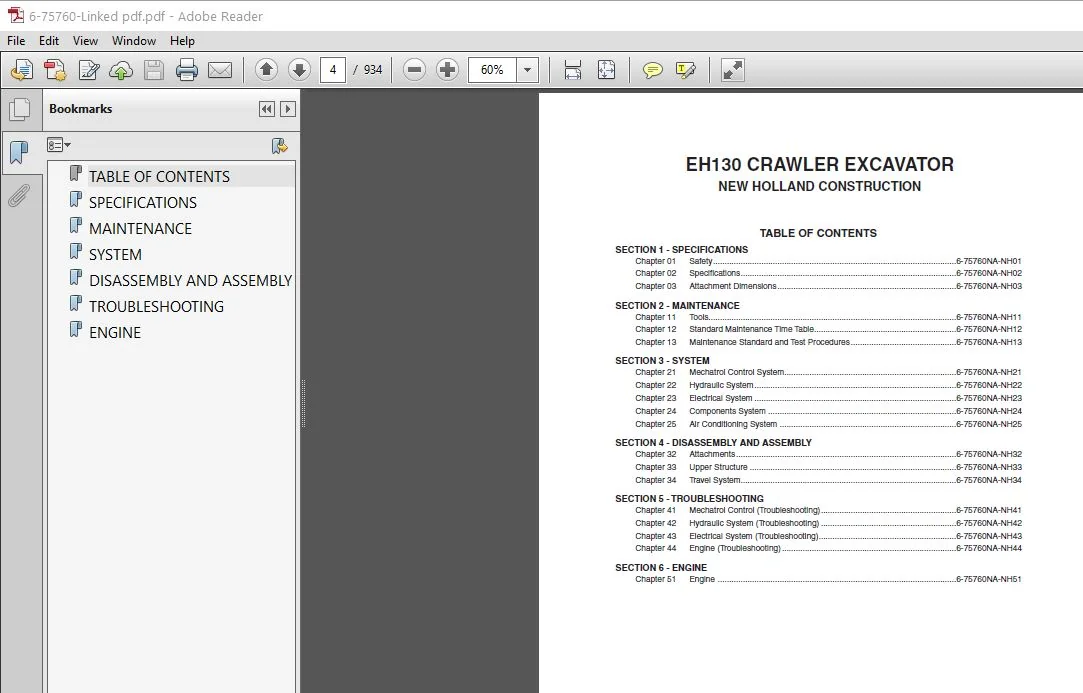

Table of Contents:

New Holland EH130 Crawler Excavator Service Repair Manual (6-75760) New Holland EH130

SECTION 1 – SPECIFICATIONS
SECTION 2 – MAINTENANCE
SECTION 3 – SYSTEM
SECTION 4 – DISASSEMBLY AND ASSEMBLY
SECTION 5 – TROUBLESHOOTING
SECTION 6 – ENGINE
Chapter 01 Safety…………………………………………………………………………………………….6-75760NA-NH01
Chapter 02 Specifications………………………………………………………………………………….6-75760NA-NH02
Chapter 03 Attachment Dimensions……………………………………………………………………6-75760NA-NH03
Chapter 11 Tools………………………………………………………………………………………………6-75760NA-NH11
Chapter 12 Standard Maintenance Time Table……………………………………………………..6-75760NA-NH12
Chapter 13 Maintenance Standard and Test Procedures……………………………………….6-75760NA-NH13
Chapter 21 Mechatrol Control System…………………………………………………………………6-75760NA-NH21
Chapter 22 Hydraulic System…………………………………………………………………………….6-75760NA-NH22
Chapter 23 Electrical System …………………………………………………………………………….6-75760NA-NH23
Chapter 24 Components System ……………………………………………………………………….6-75760NA-NH24
Chapter 25 Air Conditioning System …………………………………………………………………..6-75760NA-NH25
Chapter 32 Attachments……………………………………………………………………………………6-75760NA-NH32
Chapter 33 Upper Structure ………………………………………………………………………………6-75760NA-NH33
Chapter 34 Travel System………………………………………………………………………………….6-75760NA-NH34
Chapter 41 Mechatrol Control (Troubleshooting)…………………………………………………..6-75760NA-NH41
Chapter 42 Hydraulic System (Troubleshooting) …………………………………………………..6-75760NA-NH42
Chapter 43 Electrical System (Troubleshooting)……………………………………………………6-75760NA-NH43
Chapter 44 Engine (Troubleshooting) ………………………………………………………………….6-75760NA-NH44
Chapter 51 Engine …………………………………………………………………………………………..6-75760NA-NH51
