New Holland EH215LC Excavator 2-Way Hand Control with boom & Standard arm Piping Instruction Manual YN32TU1044F2 – PDF DOWNLOAD

Description

New Holland EH215LC Excavator 2-Way Hand Control with boom & Standard arm Piping Instruction Manual YN32TU1044F2 – PDF DOWNLOAD

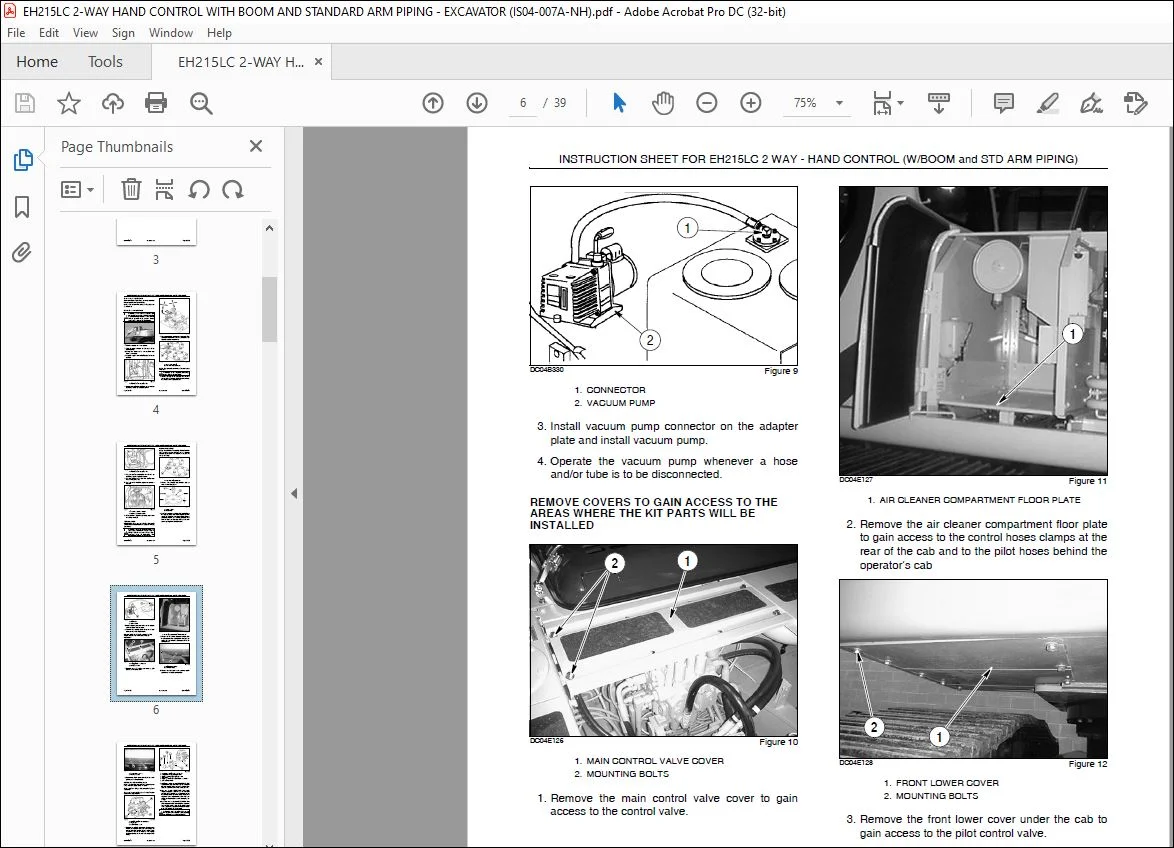

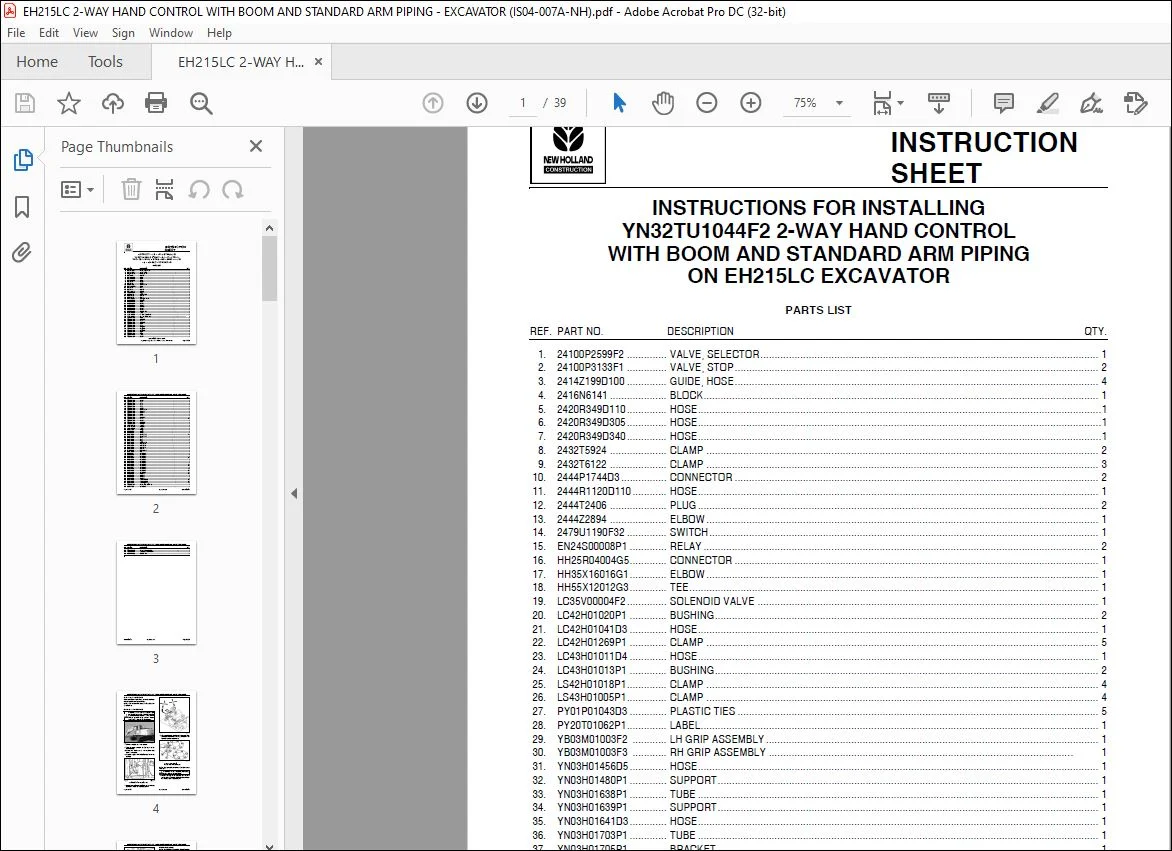

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

New Holland EH215LC Excavator 2-Way Hand Control with boom & Standard arm Piping Instruction Manual YN32TU1044F2 – PDF DOWNLOAD

Language : English
Pages : 39
Downloadable : Yes
File Type : PDF
Size: 9.3 MB

TABLE OF CONTENTS:

New Holland EH215LC Excavator 2-Way Hand Control with boom & Standard arm Piping Instruction Manual YN32TU1044F2 – PDF DOWNLOAD

1 24100P2599F2 VALVE, SELECTOR 1
2 24100P3133F1 VALVE, STOP 2
3 2414Z199D100 GUIDE, HOSE 4
4 2416N6141 BLOCK 1
5 2420R349D110 HOSE 1
6 2420R349D305 HOSE 1
7 2420R349D340 HOSE 1
8 2432T5924 CLAMP 2
9 2432T6122 CLAMP 3
10 2444P1744D3 CONNECTOR 2
11 2444R1120D110 HOSE 1
12 2444T2406 PLUG 2
13 2444Z2894 ELBOW 1
14 2479U1190F32 SWITCH 1
15 EN24S00008P1 RELAY 2
16 HH25R04004G5 CONNECTOR 1
17 HH35X16016G1 ELBOW 1
18 HH55X12012G3 TEE 1
19 LC35V00004F2 SOLENOID VALVE 1
20 LC42H01020P1 BUSHING 2
21 LC42H01041D3 HOSE 1
22 LC42H01269P1 CLAMP 5
23 LC43H01011D4 HOSE 1
24 LC43H01013P1 BUSHING 2
25 LS42H01018P1 CLAMP 4
26 LS43H01005P1 CLAMP 4
27 PY01P01043D3 PLASTIC TIES 5
28 PY20T01062P1 LABEL 1
29 YB03M01003F2 LH GRIP ASSEMBLY 1
30 YB03M01003F3 RH GRIP ASSEMBLY 1
31 YN03H01456D5 HOSE 1
32 YN03H01480P1 SUPPORT 1
33 YN03H01638P1 TUBE 1
34 YN03H01639P1 SUPPORT 1
35 YN03H01641D3 HOSE 1
36 YN03H01703P1 TUBE 1
37 YN03H01705P1 BRACKET 1
38 YN11E01111P1 HARNESS 1
39 YN11E01112P1 HARNESS 1
40 YN12B01321P1 LINK 1
41 YN12B01322P1 LINK 1
42 YN20T01414P1 LABEL 1
43 YN32H01066P1 CLAMP 1
INSTRUCTION SHEET FOR EH215LC 2 WAY – HAND CONTROL (W/BOOM and STD ARM PIPING)
Page 2 of 39 Issued 07-04 Cst IS04-007A-NH NA
REF PART NO DESCRIPTIONQTY
44 YN42H01078P1 CLAMP 1
45 YN42H01348P1 TUBE 1
46 YN42H01970P1 TUBE 1
47 YN42H01971P1 TUBE 1
48 YN42H01972P1 TUBE 1
49 YN42H01990P1 CLAMP 1
50 YN43H01005P1 CONNECTOR 2
51 YN43H01151P1 WASHER 8
52 YN43H01163P1 WASHER 4
53 YN43H01211DB HOSE 1
54 YN43H01425P1 TUBE 1
55 YN43H01426P1 BRACKET 2
56 YN43H01503P1 TUBE 11
57 YN68H01035P1 CLAMP 3
58 YN68H01071P1 SUPPORT 1
59 YN68H01073P1 BRACKET 1
60 YT20T01054P1 LABEL 1
61 YX32H01011P1 BUSHING 1
62 YY20T01039P1 LABEL 1
63 ZD12A02100 O-RING 4
64 ZD12P03400 O-RING 8
65 ZD12P03800 O-RING 6
66 ZE13X16000 CLAMP, HALF 14
67 ZE13X20001 CLAMP, HALF 8
68 ZE72X04000 PLUG 1
69 ZE72X06000 PLUG 1
70 ZE72X16000 PLUG 2
71 ZH22X04000 CONNECTOR 3
72 ZH32X04000 ELBOW, 90° 2
73 ZH32X04006 ELBOW, 90° 2
74 ZH42X04000 ELBOW, 45° 1
75 ZH42X04006 ELBOW 1
76 ZM61C06016 SEMS-BOLT 2
77 ZN18C12010 NUT 1
78 ZS18C08025 CAPSCREW 8
79 ZS18C08065 CAPSCREW 6
80 ZS18C10020 CAPSCREW 4
81 ZS18C10030 CAPSCREW 12
82 ZS18C12030 CAPSCREW 4
83 ZS18C12035 CAPSCREW 2
84 ZS18C12045 CAPSCREW 4
85 ZS18C12060 CAPSCREW 11
86 ZS18C12065 CAPSCREW 12
87 ZS18C12075 CAPSCREW 1
88 ZS28C12040 CAPSCREW 20
89 ZS28C12050 CAPSCREW 12
90 ZS28C14050 CAPSCREW 16
91 ZW16H10000 WASHER 12
92 ZW16H12000 WASHER 9
93 ZW16X08000 WASHER 6
94 ZW16X10000 WASHER 4
95 ZW26K12000 LOCK WASHER 32
96 ZW26K14000 LOCK WASHER 12
97 ZW26X12000 LOCKWASHER 26
98 YN30V00084F1 VALVE, N&B CONTROL 1
99 ZS23C12100 CAPSCREW 4
IS04-007A-NH NA Issued 07-04 Cst Page 3 of 39
INSTRUCTION SHEET FOR EH215LC 2 WAY – HAND CONTROL (W/BOOM and STD ARM PIPING)
REF PART NO DESCRIPTIONQTY
100 YN03M01503P1 HARD RUBBER BOOT 2
101 YN03M01505P1 FLEXIBLE RUBBER BOOT 2
102 PY01P01043D6 PLASTIC TIES 6
