New Holland EH30.B & EH35.B Hydraulic Excavators Service Repair Manual (6-78340NA) NH EH30.B & EH35.B – PDF Download

Description

New Holland EH30.B & EH35.B Hydraulic Excavators Service Repair Manual (6-78340NA) NH EH30.B & EH35.B

File Details:

New Holland EH30.B & EH35.B Hydraulic Excavators Service Manual
Size: 108 MB
Format: PDF
Language: English
Number of Pages: 764 pages
Brand: New Holland
Type of document: Shop Manual
Model: EH30.B & EH35.B
Part No: 6-78340NA

NEW HOLLAND EH30.B & EH35.B HYDRAULIC EXCAVATORS SERVICE REPAIR MANUAL (6-78340NA) NH EH30.B & EH35.B – PDF DOWNLOAD:

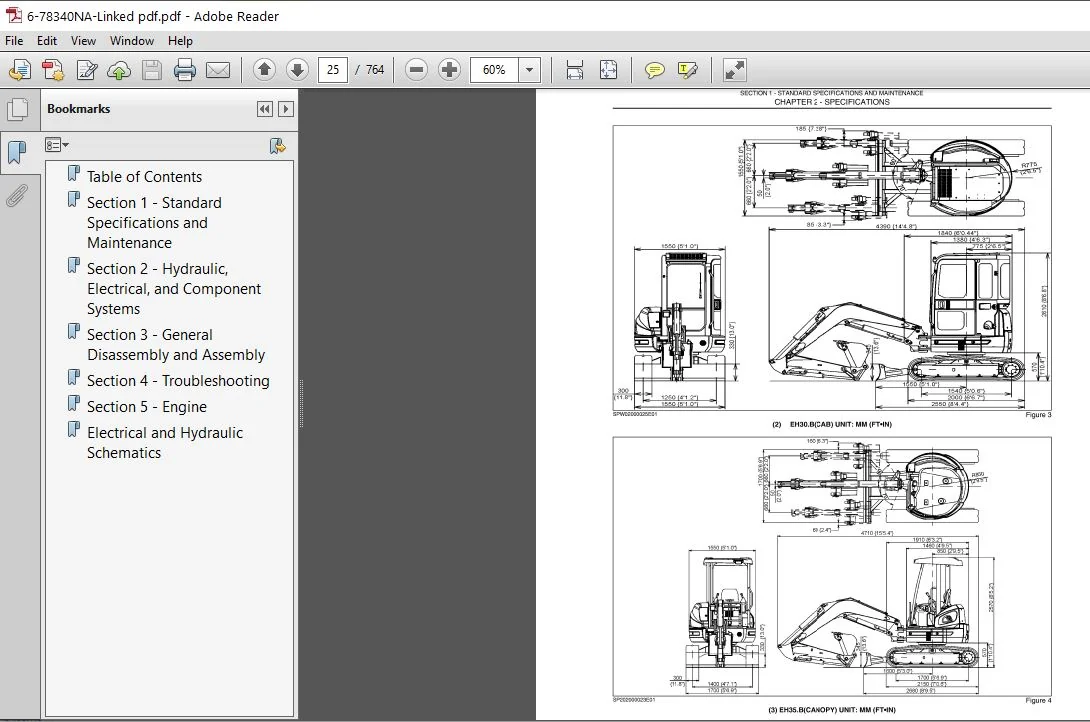

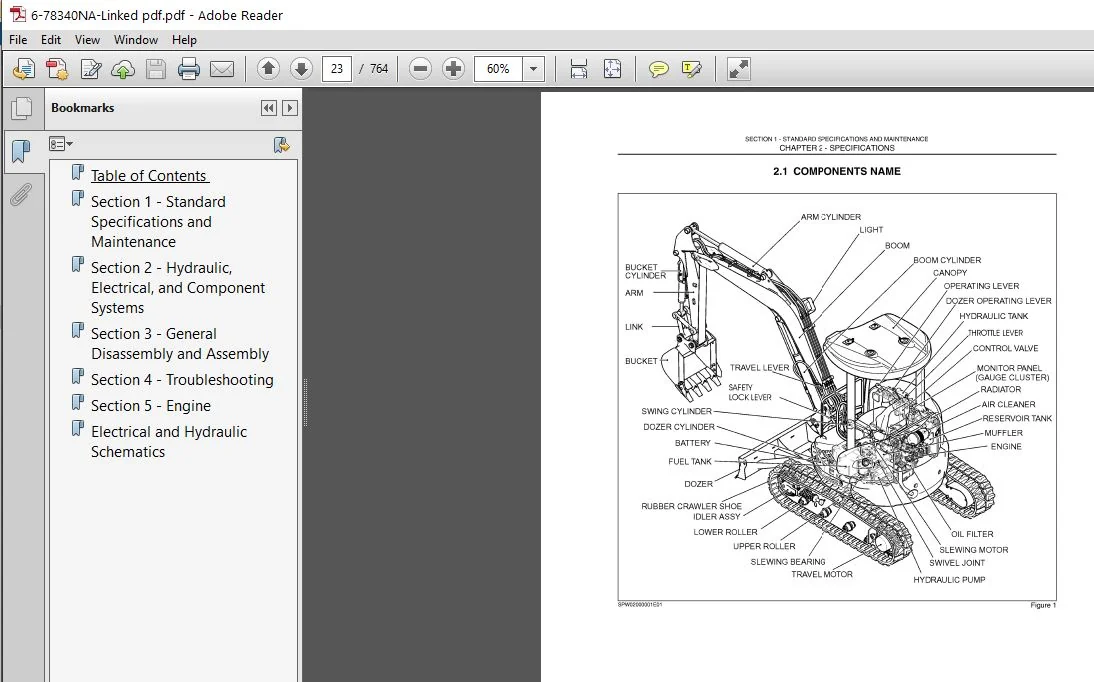

Image Preview:

Description:

New Holland EH30.B & EH35.B Hydraulic Excavators Service Repair Manual (6-78340NA) NH EH30.B & EH35.B

1. Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in the manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.
2. Operation, inspection, and maintenance should be carefully carried out, safety must be given the first priority. The safety information contained in the manual is intended only to supplement safety codes, insurance requirements, local laws, rules and regulations.
3. Messages of safety appear in the manual and on the machine: Ali messages of safety are identified by either word of DANGER, WARNING, and CAUTION.
4. It is very difficult to foresee every danger that may occur during operation. However, safety can be ensured by fully understanding proper operating procedures for this machine according to methods recommended.
5. While operating the machine, be sure to perform work with great care, so no damage to the machine or accidents will occur.
6. Continue studying the manual until all Safety, Operation and Maintenance procedures are completely understood by all persons working with the machine.

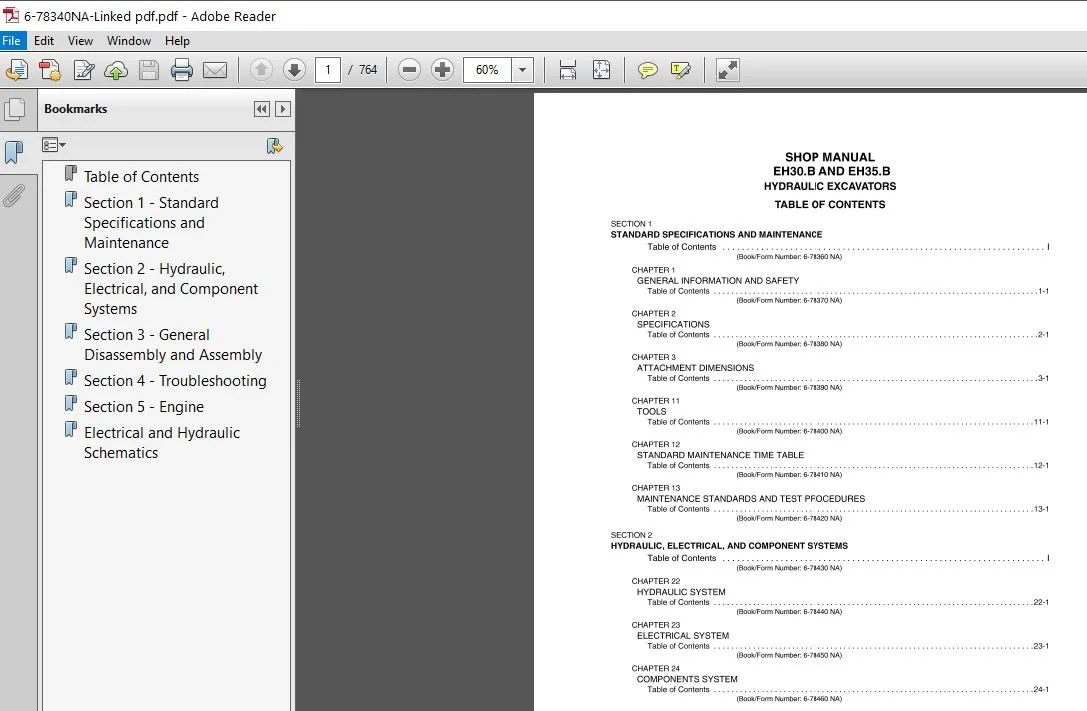

Table of Contents:

New Holland EH30.B & EH35.B Hydraulic Excavators Service Repair Manual (6-78340NA) NH EH30.B & EH35.B

Table of Contents
...........................................  1
Section 1 - Standard Specifications and Maintenance
 ........  3
Section 2 - Hydraulic, Electrical, and Component Systems
....111
Section 3 - General Disassembly and Assembly
................267
Section 4 - Troubleshooting
.................................491
Section 5 - Engine
..........................................539
Electrical and Hydraulic Schematics
.........................761

Please Note:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
