New Holland EH35 Compact Excavator Service Manual (6-75740NA) – New Holland EH35 – PDF Download

Description

New Holland EH35 Compact Excavator Service Manual (6-75740NA) – New Holland EH35

File Details:

New Holland Compact Excavator EH35 Service Manual_6-75740NA
Size: 25.5 MB
Format: PDF
Language: English
Number of Pages: 674 pages
Brand: New Holland
Type of document: Service Manual
Model: EH35 Compact Excavator
Part No: 6-75740NA

NEW HOLLAND EH35 COMPACT EXCAVATOR SERVICE MANUAL (6-75740NA) – NEW HOLLAND EH35 – PDF DOWNLOAD:

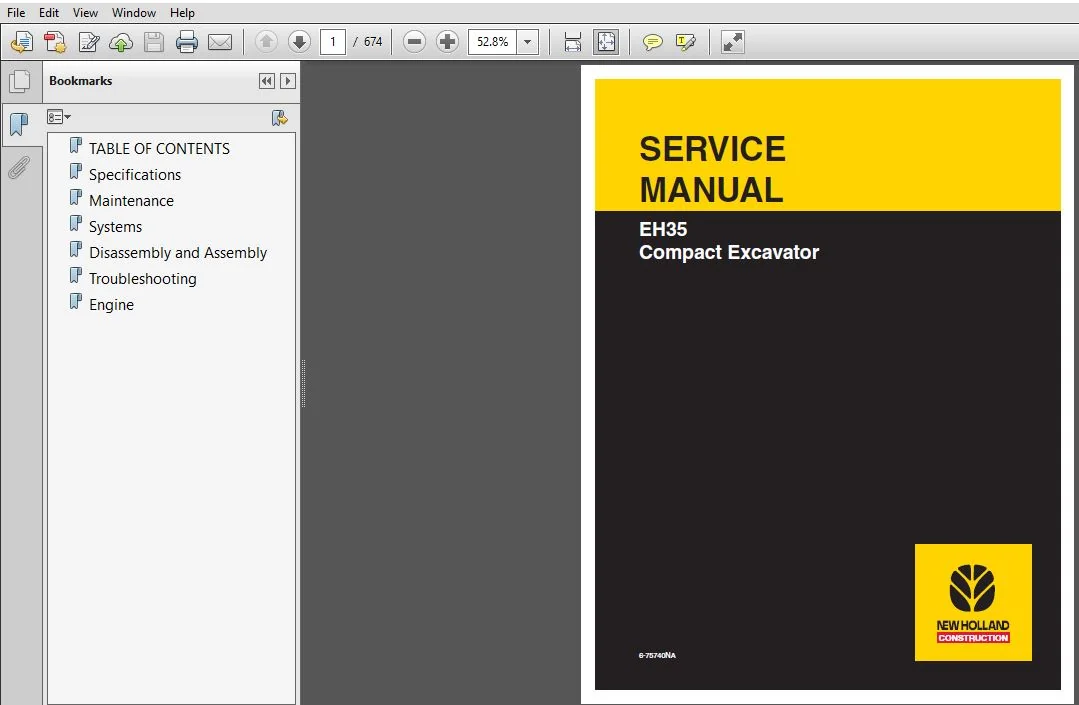

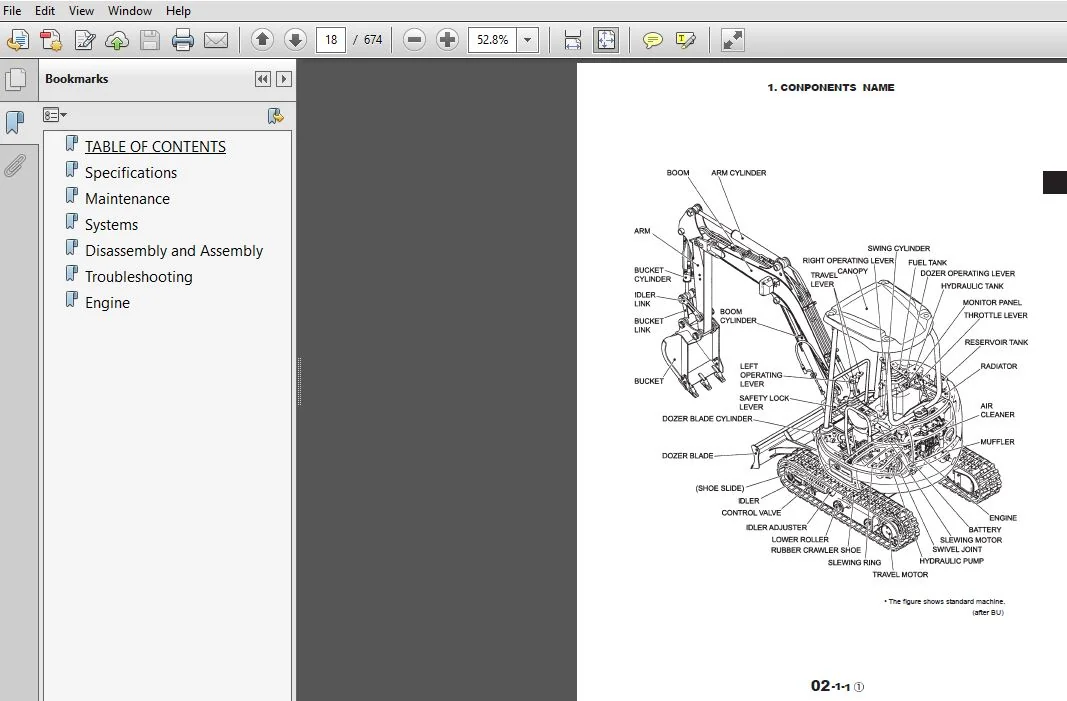

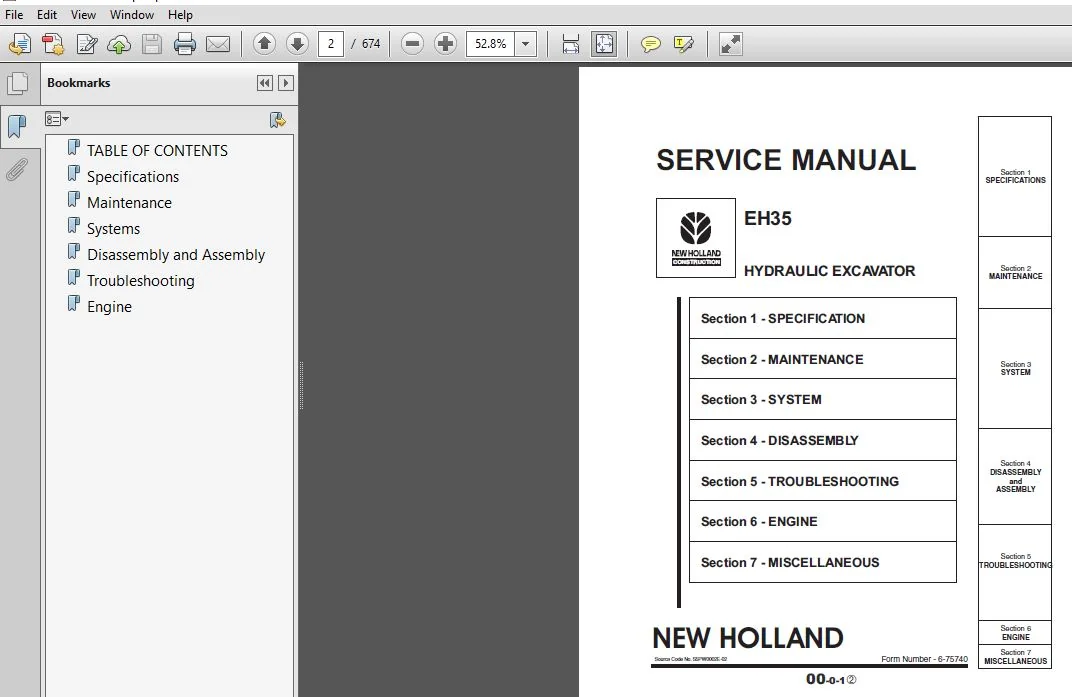

Image Preview:

Description:

New Holland EH35 Compact Excavator Service Manual (6-75740NA) – New Holland EH35

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
• Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table for SK40SR-2 / SK45SR-2 is shown in page 02-1-7, 8 of chapter SPECIFICATIONS in this manual.
• The following is a list of basic precautions that must always be observed.
• 1. Read and understand all warning plates and decals on the machine before operating, maintaining or repairing this machine.
• 2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
• 3. Disconnect the battery and hang a “Do Not Operate” tag in the operator’s compartment. remove ignition keys.
• 4. If possible, make all repairs with the machine parked on a level, hard surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the operator’s compartment.
• 5. Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.

Table of Contents:

New Holland EH35 Compact Excavator Service Manual (6-75740NA) – New Holland EH35

Section 1 – SPECIFICATION
Section 2 – MAINTENANCE
Section 3 – SYSTEM
Section 4 – DISASSEMBLY
Section 5 – TROUBLESHOOTING
Section 6 – ENGINE
Section 7 – MISCELLANEOUS

Please Note:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
