GENERAL INFORMATION:
TO THE OWNER:
EH35 COMPACT HYDRAULIC CRAWLER EXCAVATOR

• Your machine has been designed and built to the highest standards of quality. It conforms to all current safety
  regulations. See Official documents. However, the risk of accidents can never be completely excluded. That is why
  it is essential to observe elementary safety rules and precautions.
• Read this manual carefully, paying particular attention to the instructions concerning safety, operation and
  maintenance so as to avoid the risk of injury while operating or servicing the machine.
• The standard attachments and tools of this machine are designed to carry out all kinds of earth moving and
  rehandling operations. If you want to use this machine to handle a load (pipes, culverts, form work, etc.), make
  sure that it is designed to carry out this kind of work. For this type of application, the machine must be equipped
  with safety valves, an overload indicator, a load handling chart corresponding to the type of machine and its
  attachment and a load fixing point. All legal requirements must also be strictly observed.
• Do not use this machine for any application or purpose other than those described in this manual. If the machine is
  to be used for work involving the use of special attachments, accessories or equipment, consult your New Holland,
  LLC. Dealer in order to make sure that any adaptations or modifications made are in keeping with the machine’s
  technical specifications and with prevailing safety requirements.
• Any modification or adaptation which is not approved by the manufacturer may invalidate the machine’s initial
  conformity with safety requirements.
• The machine must undergo regular inspections, the frequency of which varies according to the type of use. Consult
  your New Holland, LLC. Dealer.

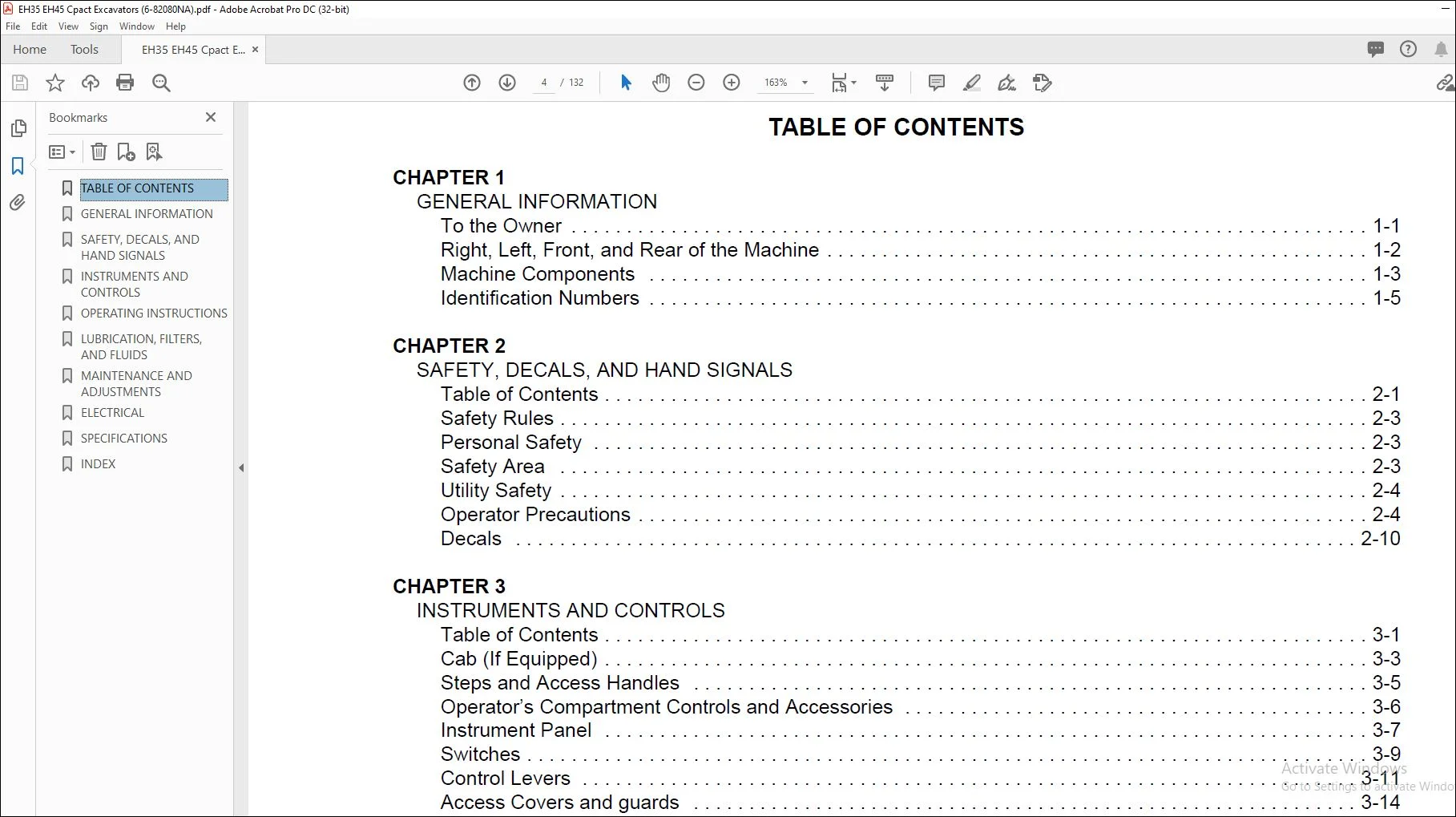

TABLE OF CONTENTS:
