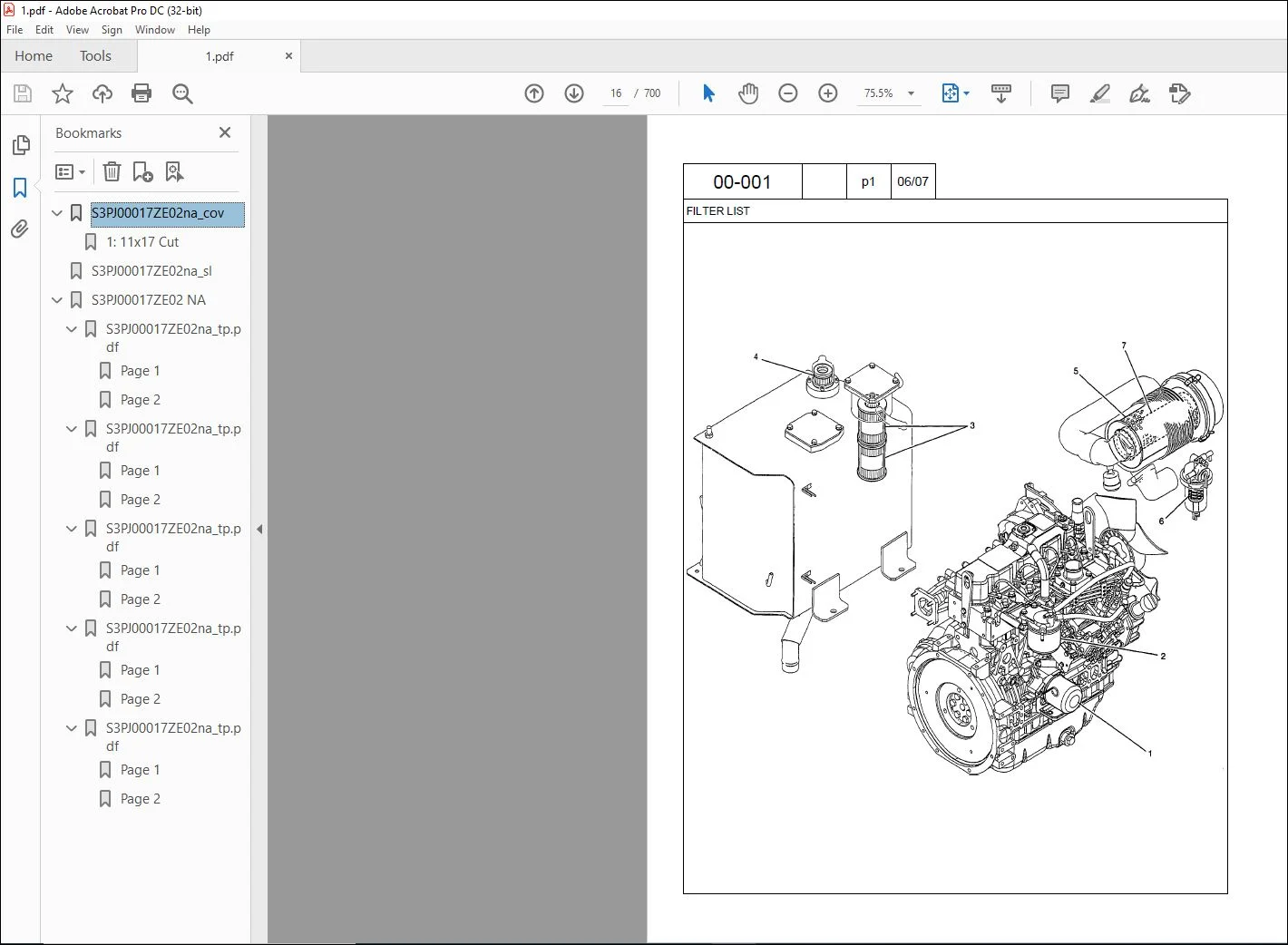

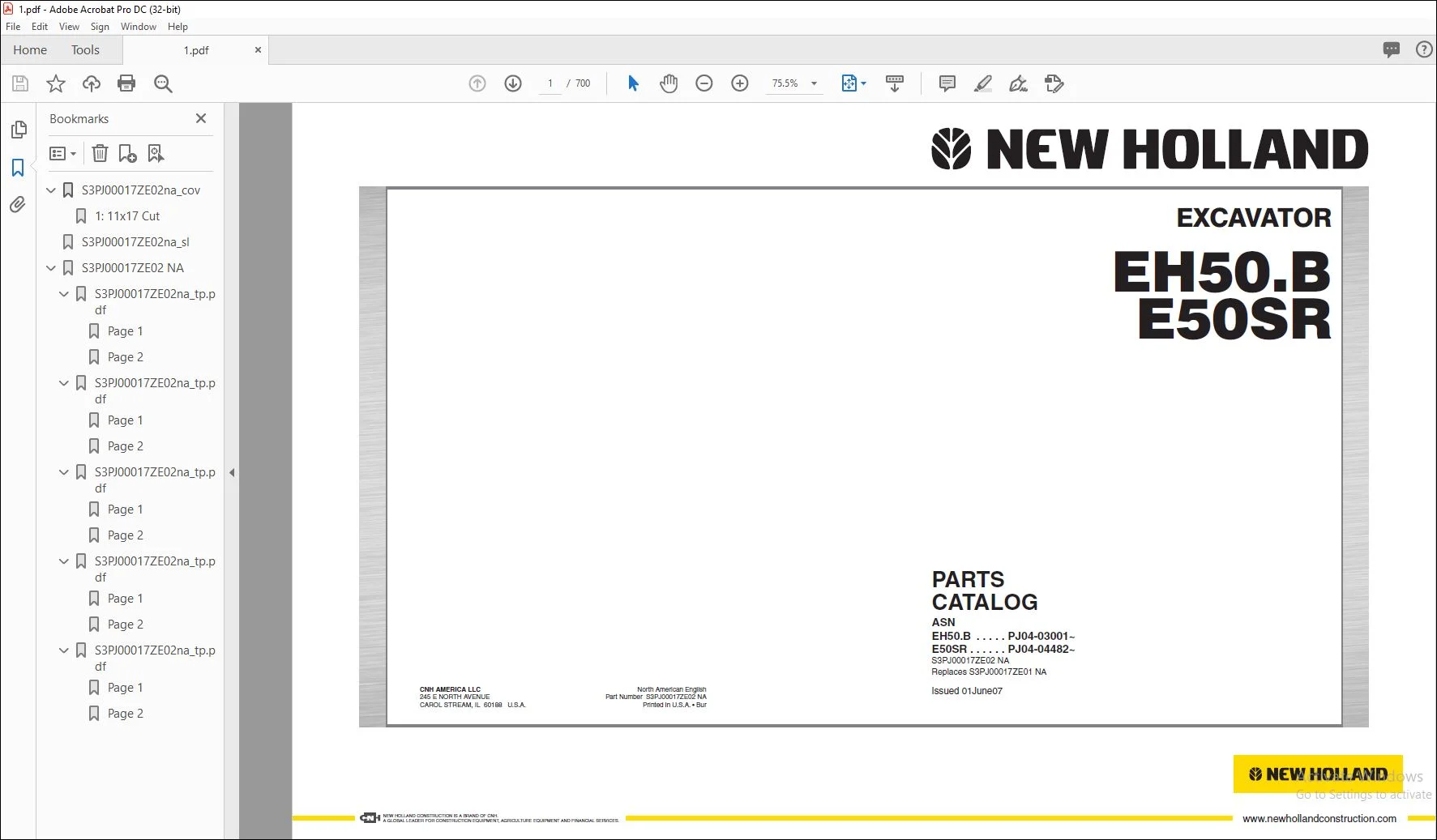

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland EH50.B E50SR Excavator Parts Catalog Manual S3PJ00017ZE02 – PDF DOWNLOAD

GENERAL INFORMATION
PROPRIETARY NOTICE:
The contents of this manual are proprietary data of this company. Reproduction or use of any part for other than the operation and maintenance of our equipment is permissible only if expressly authorized in writing. Additional copies may be obtained from your dealer. Address requests for copies to your Dealer and refer to the publication part number appearing on the bottom of the rear catalog cover or on the title page.
COMPANY POLICY:
Company policy, which is one of continuous improvement, reserves the right to change prices and to make changes in design and specification at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condit ion. For exact information about any particular machine please consult your dealer.
PARTS AND ACCESSORIES:
Genuine parts and accessories have been specifically designed for these machines. We would like to point out that “non-genuine”  parts and accessories have NOT been examined and released by the Company. The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety. The company is not liable for any damage caused by the use of “non-genuine” parts and accessories.

HOW TO USE YOUR PARTS CATALOG:
1. Figure Number
2. Sequence Code within the Figure Number
3. Page Number within the Sequence Code
4. Date of Printing (month / year)
5. Figure Description
6. General information regarding the figure
7. Parts supplied in repair kits per symbol reference
8. Figure call-out of the part number (REF)
9. Technical specifications relating to the part indicated
10. Figure call-out includes bracketed items, the included items may also be listed in the additional description
area
11. Orientation – Arrow indicates front of the machine
12. Footnote – Additional information relating to the part number. In this example, 08-20 equals another figure that
this part is shown on
13. Part Number
NSS = Not Serviced Separately (Non-serviced parts)
Bracketed numbers = not available as service parts in this market
14. Not Available as service part in this market
15. YR/SN
Year
Before 01/85 = Part valid for production January 1985 and before
From 01/85 = Part valid for production from January 1985 and after
BTW 01/85 & 02/02 = Part valid for machines produced between January 1985 and February 2002.
Serial Number (P.I.N.)
BSN JJC0268800 = Part valid for serial number JJC0268800 and below
ASN JJC0268800 = Part valid for serial number JJC0268800 and above
BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000
16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications:
AR = As Required
X = As required
17. Part Description
18. Additional description of the part to help confirm identification
19. Figure Notes
20. Model Number(s)

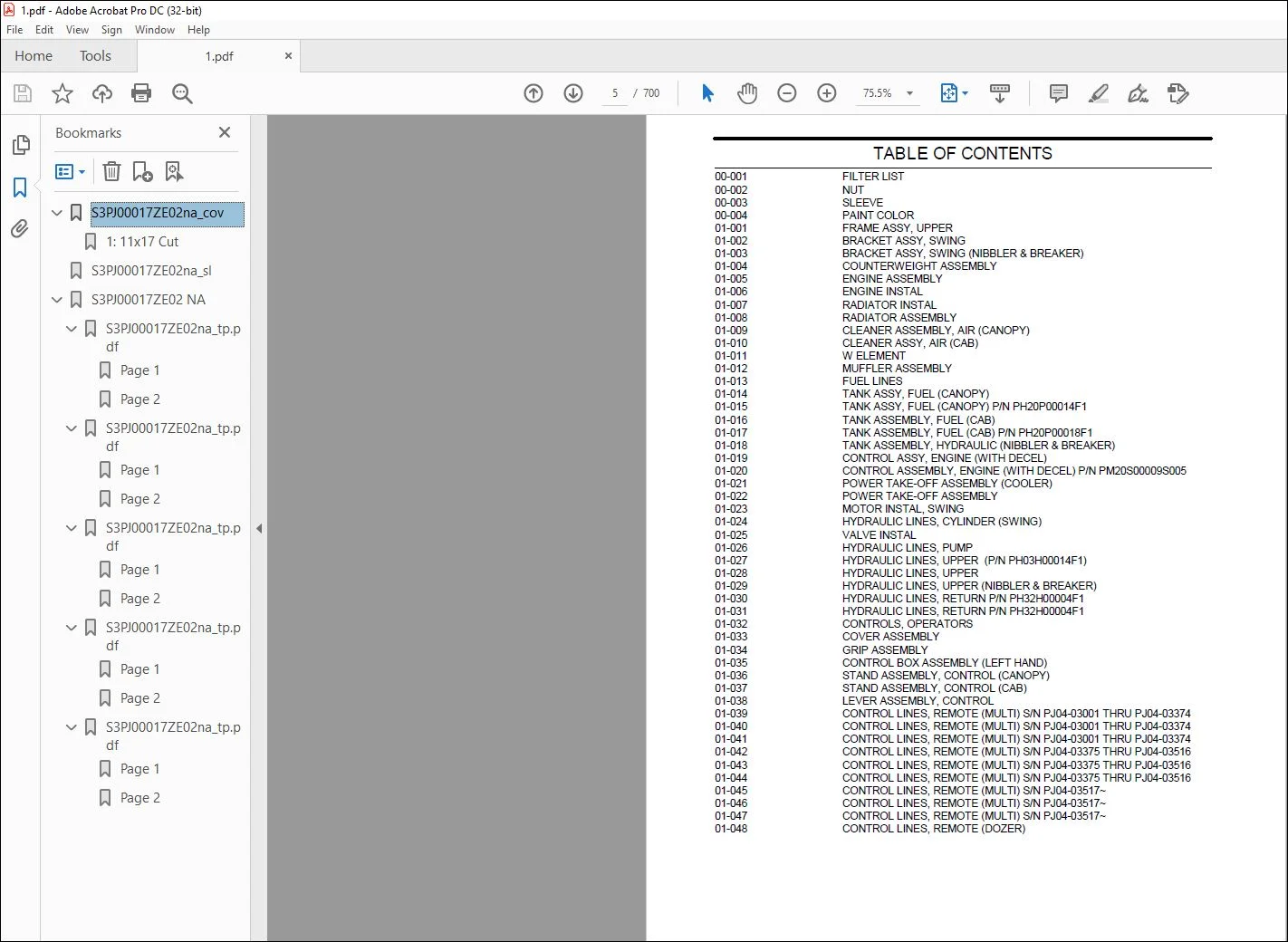

TABLE OF CONTENTS:

New Holland EH50.B E50SR Excavator Parts Catalog Manual S3PJ00017ZE02 – PDF DOWNLOAD

00-001 FILTER LIST
00-002 NUT
00-003 SLEEVE
00-004 PAINT COLOR
01-001 FRAME ASSY, UPPER
01-002 BRACKET ASSY, SWING
01-003 BRACKET ASSY, SWING (NIBBLER & BREAKER)
01-004 COUNTERWEIGHT ASSEMBLY
01-005 ENGINE ASSEMBLY
01-006 ENGINE INSTAL
01-007 RADIATOR INSTAL
01-008 RADIATOR ASSEMBLY
01-009 CLEANER ASSEMBLY, AIR (CANOPY)
01-010 CLEANER ASSY, AIR (CAB)
01-011 W ELEMENT
01-012 MUFFLER ASSEMBLY
01-013 FUEL LINES
01-014 TANK ASSY, FUEL (CANOPY)
01-015 TANK ASSY, FUEL (CANOPY) P/N PH20P00014F1
01-016 TANK ASSEMBLY, FUEL (CAB)
01-017 TANK ASSEMBLY, FUEL (CAB) P/N PH20P00018F1
01-018 TANK ASSEMBLY, HYDRAULIC (NIBBLER & BREAKER)
01-019 CONTROL ASSY, ENGINE (WITH DECEL)
01-020 CONTROL ASSEMBLY, ENGINE (WITH DECEL) P/N PM20S00009S005
01-021 POWER TAKE-OFF ASSEMBLY (COOLER)
01-022 POWER TAKE-OFF ASSEMBLY
01-023 MOTOR INSTAL, SWING
01-024 HYDRAULIC LINES, CYLINDER (SWING)
01-025 VALVE INSTAL
01-026 HYDRAULIC LINES, PUMP
01-027 HYDRAULIC LINES, UPPER (P/N PH03H00014F1)
01-028 HYDRAULIC LINES, UPPER
01-029 HYDRAULIC LINES, UPPER (NIBBLER & BREAKER)
01-030 HYDRAULIC LINES, RETURN P/N PH32H00004F1
01-031 HYDRAULIC LINES, RETURN P/N PH32H00004F1
01-032 CONTROLS, OPERATORS
01-033 COVER ASSEMBLY
01-034 GRIP ASSEMBLY
01-035 CONTROL BOX ASSEMBLY (LEFT HAND)
01-036 STAND ASSEMBLY, CONTROL (CANOPY)
01-037 STAND ASSEMBLY, CONTROL (CAB)
01-038 LEVER ASSEMBLY, CONTROL
01-039 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03001 THRU PJ04-03374
01-040 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03001 THRU PJ04-03374
01-041 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03001 THRU PJ04-03374
01-042 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03375 THRU PJ04-03516
01-043 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03375 THRU PJ04-03516
01-044 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03375 THRU PJ04-03516
01-045 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03517~
01-046 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03517~
01-047 CONTROL LINES, REMOTE (MULTI) S/N PJ04-03517~
01-048 CONTROL LINES, REMOTE (DOZER)
TABLE OF CONTENTS
01-049 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03001 ~
PJ04-03037, S/N PH05-03501 ~ PH05-03538
01-050 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03001 ~
PJ04-03037, S/N PH05-03501 ~ PH05-03538
01-051 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03038 ~
PJ04-03042, S/N PH05-03539 ~ PH05-03542
01-052 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03038 ~
PJ04-03042, S/N PH05-03539 ~ PH05-03542
01-053 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03043 ~
PJ04-03306, S/N PH05-03543 ~ PH05-03709
01-054 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03043 ~
PJ04-03306, S/N PH05-03543 ~ PH05-03709
01-055 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03307 ~
PJ04-03486, S/N PH05-03710 ~ PH05-03891
01-056 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03307 ~
PJ04-03486, S/N PH05-03710 ~ PH05-03891
01-057 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03487~,
S/N PH05-03892~
01-058 CONTROL LINES, REMOTE (NIBBLER & BREAKER) S/N PJ04-03487~,
S/N PH05-03892~
01-059 CONTROL LINES, REMOTE (SWING REMOTE CONTROL)
01-060 CONTROL LINES, REMOTE (HAND CONTROL)
01-061 PLATE GROUP, FLOOR (CANOPY)
01-062 PLATE GROUP, FLOOR (CAB)
01-063 CAB INSTAL
01-064 CAB INSTAL (P/N PW02C00025F1)
01-065 CAB ASSEMBLY
01-066 CAB ASSEMBLY P/N PW50C00002F1
01-067 CAB ASSEMBLY P/N PW02C01145P1
01-068 CAB ASSEMBLY P/N PW02C01071P1
01-069 CAB ASSEMBLY P/N PA33H01057P1
01-070 GUARD ASSEMBLY, HEAD
01-071 WINDOW ASSEMBLY, FRONT
01-072 DOOR ASSEMBLY, CAB
01-073 CANOPY ASSEMBLY
01-074 CANOPY INSTAL
01-075 LIGHT INSTAL (CAB)
01-076 LIGHT ASSY (P/N PW80S00003F1)
01-077 LIGHT ASSY (P/N PW80S00004F1)
01-078 LIGHT ASSY (P/N PM80S00007F1)
01-079 LIGHT ASSY (P/N PM80S00008F1)
01-080 SEAT INSTAL
01-081 GUARD INSTAL (CANOPY) P/N PH21C00013F1
01-082 GUARD INSTAL (CANOPY) P/N PH21C01556F1
01-083 GUARD INSTAL (CANOPY) P/N PH21C01468F1
01-084 GUARD INSTAL (CANOPY) P/N PH22C01136P1
01-085 GUARD INSTAL (CAB) P/N PH21C00007F1
01-086 GUARD INSTAL (CAB) P/N PH21C01484F1
01-087 GUARD INSTAL (CAB) P/N PH21C01468F1
01-088 GUARD INSTAL (CAB) P/N PH22C01136P1
01-089 KEY ASSY
01-090 GAUGE ASSEMBLY, CLUSTER
01-091 BATTERY INSTAL
TABLE OF CONTENTS
01-092 HEATER ASSEMBLY (WITH HEATER)
01-093 HEATER ASSEMBLY (WITHOUT HEATER)
01-094 ELECTRICAL ASSEMBLY, UPPER P/N PH03E00003F1
01-095 ELECTRICAL ASSEMBLY, UPPER (P/N PH03E00004F1)
01-096 HARNESS ASSEMBLY, CAB P/N PW14E00001F1
01-097 HARNESS ASSEMBLY, CAB P/N PW14E00002F1
01-098 HARNESS ASSEMBLY (AT AIR CLEANER)
01-099 HARNESS ASSEMBLY
01-100 HARNESS ASSEMBLY, ENGINE
01-101 RELAY ASSY (P/N PH24E00022F1, PH24E00023F1)
01-102 RELAY ASSY (P/N PH24E00026F1)
02-001 LOW GROUP (FOR RUBBER)
02-002 LOW GROUP (FOR IRON)
02-003 SLEWING RING ASSEMBLY
02-004 IDLER ASSEMBLY, CRAWLER
02-005 IDLER ASSEMBLY
02-006 IDLER ADJUST ASSEMBLY
02-007 TRACK ROLLER ASSEMBLY
02-008 ROLLER ASSEMBLY, UPPER
02-009 SHOE ASSEMBLY P/N PY60D00003F1
02-010 SHOE ASSY P/N PY61D00013P1
02-011 SHOE ASSY P/N PY61D00014P1
02-012 HYDRAULIC LINES, LOW
02-013 DOZER ASSEMBLY
03-001 BOOM ASSY, STD 2.79M (P/N PY02B00076F1)
03-002 BOOM ASSY, STD 2.79M (P/N PY02B00091F1)
03-003 HYDRAULIC LINES, BOOM 2.79M (P/N PY42H00029F1)
03-004 HYDRAULIC LINES, BOOM 2.79M (NIBBLER & BREAKER) (P/N
PY42H00030F1)
03-005 HYDRAULIC LINES, BOOM 2.79M (NIBBLER & BREAKER) (P/N
PY42H00041F1)
03-006 CYLINDER INSTAL
03-007 LIGHT INSTAL (BOOM)
03-008 ARM ASSEMBLY, STANDARD 1.56M
03-009 HYDRAULIC LINES, ARM 1.56M
03-010 BUCKET INSTAL
03-011 BUCKET ASSEMBLY, 650W
04-001 TOOL & ACCESSORY
05-001 ENGINE INSTAL (COOLER)
05-002 RADIATOR INSTAL (COOLER)
05-003 CONTROL LINES, REMOTE (COOLER) (P/N PH64H00041F1)
05-004 CONTROL LINES, REMOTE (COOLER)
05-005 MIRROR INSTAL
05-006 CAB INSTAL (COOLER) (P/N PW02C00043F1)
05-007 CAB INSTAL (COOLER) (P/N PW02C00041F1)
05-008 CAB ASSEMBLY (COOLER) (P/N PW02C00033F1)
05-009 CAB ASSEMBLY (COOLER) P/N PW50C00002F1
05-010 CAB ASSEMBLY (COOLER) P/N PE54C00002F1
05-011 CAB ASSEMBLY (COOLER) P/N PW02C01071P1
05-012 CAB ASSEMBLY (COOLER) P/N PW02C01265F1
05-013 RADIO INSTAL (WITHOUT RADIO)
05-014 STOPPER ASSEMBLY (COOLER)
05-015 GUARD INSTAL CAB (COOLER) P/N PH21C00007F1
TABLE OF CONTENTS
05-016 GUARD INSTAL, CAB (COOLER) P/N PH21C01484F1
05-017 GUARD INSTAL, CAB (COOLER) P/N PH21C01468F1
05-018 GUARD INSTAL, CAB (COOLER) P/N PM21C01268F1
05-019 COOLER ASSEMBLY P/N PH20M00018F1
05-020 COOLER ASSEMBLY (P/N PH20M00024F1)
05-021 CONDITIONER INSTAL
05-022 COOLER ASSEMBLY
05-023 DRYER ASSEMBLY, AIR
05-024 COOLER ASSEMBLY P/N PH20M00016F1
05-025 COOLER ASSEMBLY (P/N PH20M00019F1)
05-026 HARNESS ASSEMBLY (COOLER)
06-001 NAME PLATE INSTAL (P/N PW22T00083F1)
06-002 NAME PLATE INSTAL
06-003 NAME PLATE INSTAL (P/N PW22T00123F1)
06-004 NAME PLATE INSTAL (P/N PW22T00117F1)
06-005 NAME PLATE INSTAL (P/N PW22T00181F1)
06-006 NAME PLATE INSTAL (P/N PW22T00185F1)
06-007 NAME PLATE INSTAL (DECEL)
06-008 NAME PLATE INSTAL (P/N PW22T00183F1)
06-009 NAME PLATE INSTAL (P/N PW22T00182F1)
06-010 NAME PLATE INSTAL (P/N YN22T00288F1)
06-011 NAME PLATE INSTAL (P/N PH22T00084F1)
06-012 NAME PLATE INSTAL (P/N PH22T00093F1)
06-013 NAME PLATE INSTAL (CAB)
06-014 NAME PLATE INSTAL (P/N PH22T00083F2)
06-015 NAME PLATE INSTAL (MODEL) (P/N PY22T00098F1)
06-016 NAME PLATE INSTAL (MODEL) (P/N PY22T00098F2)
06-017 NAME PLATE INSTAL (P/N PW22T00170F2)
06-018 NAME PLATE INSTAL (JOHN-DEERE)
06-019 NAME PLATE INSTAL (CANOPY)
06-020 NAME PLATE INSTAL (CAB) (P/N PY22T00110F1, F2)
06-021 NAME PLATE INSTAL (NIBBLER & BREAKER)
06-022 NAME PLATE INSTAL (ATTACHMENT)
07-001 VALVE ASSEMBLY, CONTROL P/N PY30V00035F1
07-002 VALVE ASSEMBLY, CONTROL
07-003 VALVE ASSEMBLY, CONTROL (DOZER)
07-004 VALVE ASSEMBLY, CONTROL (SLEWING)
07-005 VALVE ASSY, CONTROL (SUPPLY, ARM CONFLUENCE, TRAVEL
INDEPENDENCE)
07-006 VALVE ASSEMBLY, CONTROL (ARM)
07-007 VALVE ASSEMBLY, CONTROL (SERVICE)
07-008 VALVE ASSEMBLY, CONTROL (BOOM SWING)
07-009 VALVE ASSEMBLY, CONTROL (TRAVEL RIGHT)
07-010 VALVE ASSEMBLY, CONTROL (SUPPLY, CONNECTING)
07-011 VALVE ASSEMBLY, CONTROL (TRAVEL LEFT)
07-012 VALVE ASSEMBLY, CONTROL (BOOM)
07-013 VALVE ASSEMBLY, CONTROL (BUCKET)
07-014 VALVE ASSEMBLY, RELIEF, P/N PH22V00003F1-F5
07-015 VALVE ASSEMBLY, RELIEF, P/N PH22V00008F1-F3
07-016 VALVE ASSEMBLY, OVERLOAD RELIEF
07-017 MOTOR ASSEMBLY (SWING)
07-018 VALVE ASSEMBLY, RELIEF P/N PY20V00003F1
07-019 VALVE ASSEMBLY, RELIEF, P/N PY22V00009F1
TABLE OF CONTENTS
07-020 VALVE ASSEMBLY, REDUCTION
07-021 MOTOR ASSEMBLY (PROPELLING) P/N PH15V00012F1
07-022 MOTOR ASSEMBLY (PROPELLING)
07-023 MOTOR ASSEMBLY (PROPELLING)
07-024 PUMP ASSEMBLY
07-025 SHAFT ASSEMBLY
07-026 BLOCK ASSEMBLY
07-027 ROTARY ASSEMBLY
07-028 COVER ASSEMBLY
07-029 PISTON ASSEMBLY
07-030 PUMP ASSEMBLY P/N PH10V00007F1
07-031 PUMP ASSEMBLY, GEAR P/N PH10V00011F1
07-032 PUMP ASSEMBLY P/N PH10V00008F1
07-033 COVER ASSEMBLY, P/N PY10V01007F1
07-034 PISTON ASSEMBLY, P/N PY10V01008F1
07-035 CYLINDER ASSEMBLY, BOOM (CANOPY)
07-036 CYLINDER ASSEMBLY, BOOM (CAB)
07-037 CYLINDER ASSEMBLY, ARM
07-038 CYLINDER ASSEMBLY, BUCKET
07-039 CYLINDER ASSEMBLY, DOZER
07-040 CYLINDER ASSEMBLY, SWING
07-041 VALVE ASSEMBLY, PILOT, P/N PX30V00043F1,F3
07-042 VALVE ASSEMBLY, PILOT (PROPELLING)
07-043 VALVE ASSEMBLY, PILOT, P/N PB30V00002F1
07-044 VALVE ASSEMBLY, SOLENOID, P/N PX35V00003F1
07-045 VALVE ASSEMBLY, RELIEF, P/N YR22V00001F1
07-046 VALVE ASSEMBLY, SOLENOID, P/N YJ35V00004F1, F2
07-047 VALVE ASSEMBLY, SOLENOID, P/N PY35V00005F1, F2
07-048 VALVE ASSEMBLY, SOLENOID, P/N PE35V00001F1, F2
07-049 VALVE ASSEMBLY, SELECTOR
07-050 JOINT ASSEMBLY, SWIVEL
08-001 CYLINDER BLOCK
08-002 GEAR HOUSING
08-003 FLYWHEEL HOUSING & OIL SUMP
08-004 CYLINDER HEAD & BONNET
08-005 SUCTION MANIFOLD
08-006 EXHAUST MANIFOLD
08-007 CAMSHAFT & DRIVING GEAR
08-008 CRANKSHAFT & PISTON
08-009 LUB. OIL SYSTEM
08-010 COOLING WATER SYSTEM
08-011 FUEL INJECTION PUMP
08-012 FUEL INJECTION VALVE
08-013 FUEL LINE
08-014 STARTING MOTOR
08-015 GENERATOR
08-016 GASKET SET
08-017 FUEL INJECTION PUMP (INNER PARTS)
08-018 GOVERNOR (INNER PARTS)

Customer Support: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
