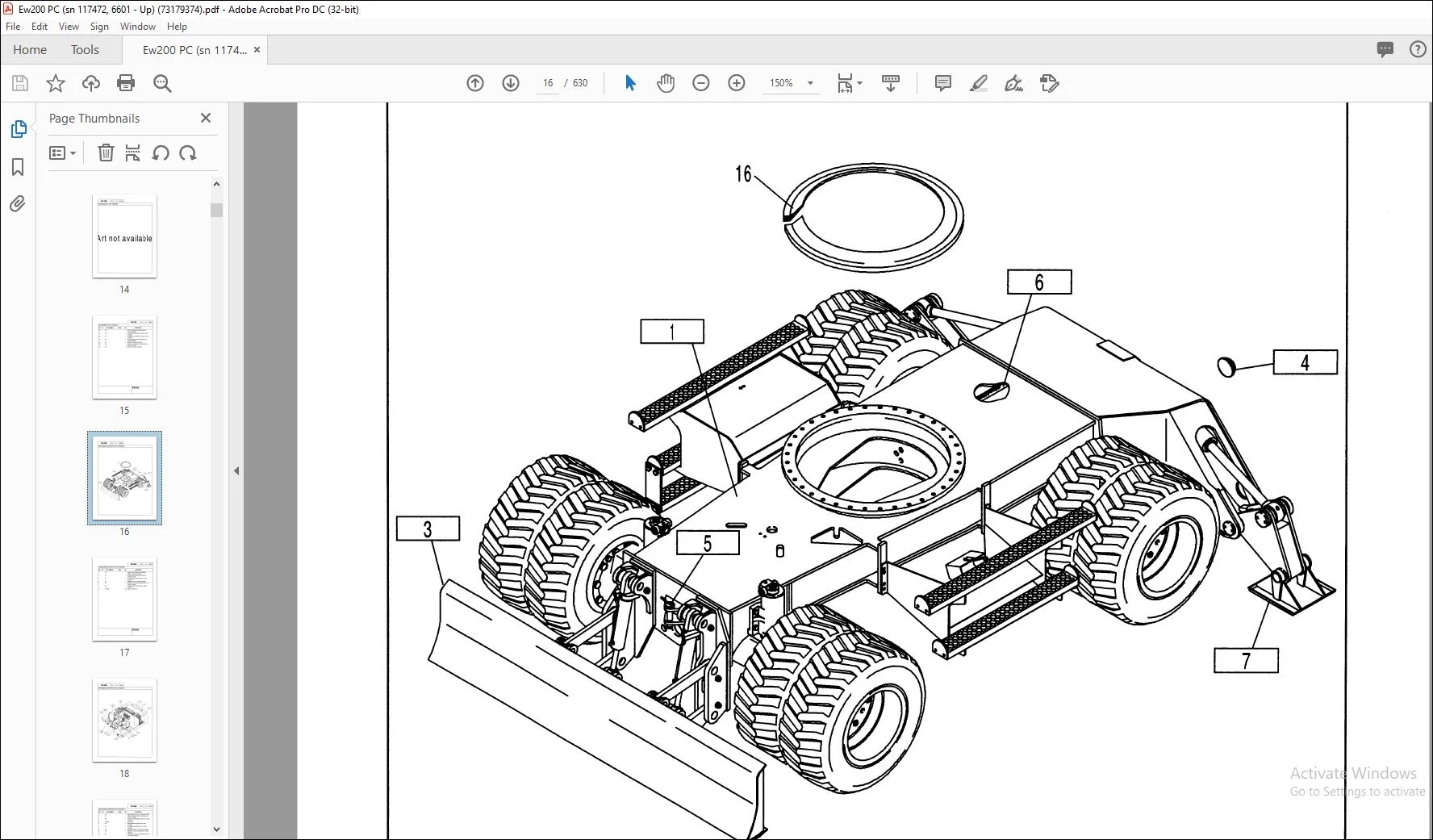

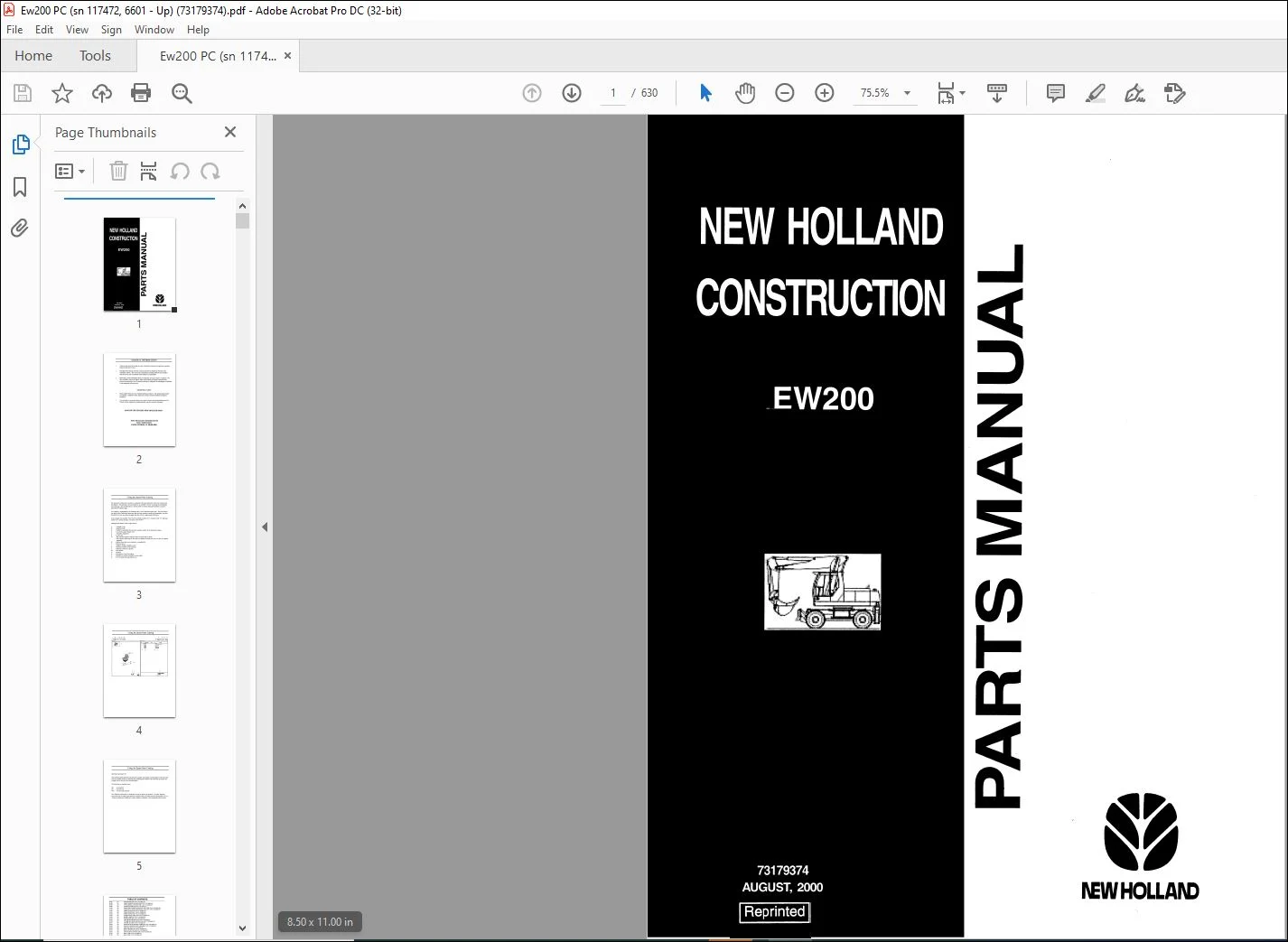

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland EW200 Crawler Excavator Parts Manual 73179374 – PDF DOWNLOAD

GENERAL INFORMATION:
1. Whenever the terms left or right are used, it sh~uld be understood to mean from a position
facing in direction of travel.
2. Throughout this manual you fmd common hardware not illustrated, but listed in the
description column. The service part immediately preceding hardware is not included
with the service part or assembly when ordered as a replacement.
3. NEW HOLLAND CONSTRUCTION is continually striving to improve its products. We
must, therefore, reserve the right to make improvements or changes when it becomes
practical and possible to do so, without incurring any obligation to make changes or additions
to the equipment sold previously.
ORDERING PARTS:
1. Please submit orders per your standard ordering procedures. Any special routing should
be indicated. Telephone orders, being less accurate, should be limited to “emergency
situations.”
2. It is advisable to consult the Service Parts Price List and/or the Historical Reference List
for part number suppression, package quantity and other pertinent information.

Using the Spare-Parts Catalog:
The spare-parts catalog for a machine is composed of the spare-parts lists of the basic machine and
the opttions. The spare-parts list is preceded by an assembly overview consisting of an illustration
and a text page. This is followed by a numeric table of contents listing part numbers in numeric
order and the reference page.
An assembly is represented by an illustration and a list of individuals spare parts. The parts illustration
and the list of individual spare parts bear the same assembly number and designation, but when
the parts list covers more than one page then there will be a page number difference.
In the example, the assembly “Seat” has the assembly number 10.85., sequence code “01” and page
number “pl” and the last date of revisions were “06/99.”
Meaning of the letters in the example shown:
A – Assembly Code
B – Sequence Code
C – Number of assemblies having same assembly number in the spare-parts catalog
D – Last revision date: Month, Year
E – Assembly designation
F – Locator box
G – The assembly numbers indicates where the spare part are listed
– Parts numbers following the first item are supplied with this item; they can also be supplied
separately.
H – Indicate items that can be ordered as a complete Kit
I – Direction arrow
J – Displays number included in a Kit
K – Reference number on the drawling
L – Indicates a footnote is present
M – Part number
N – Quantity
0 – Description, Extra-Description
P – Reference to another assembly for more detail
Q – List of models the page reference to

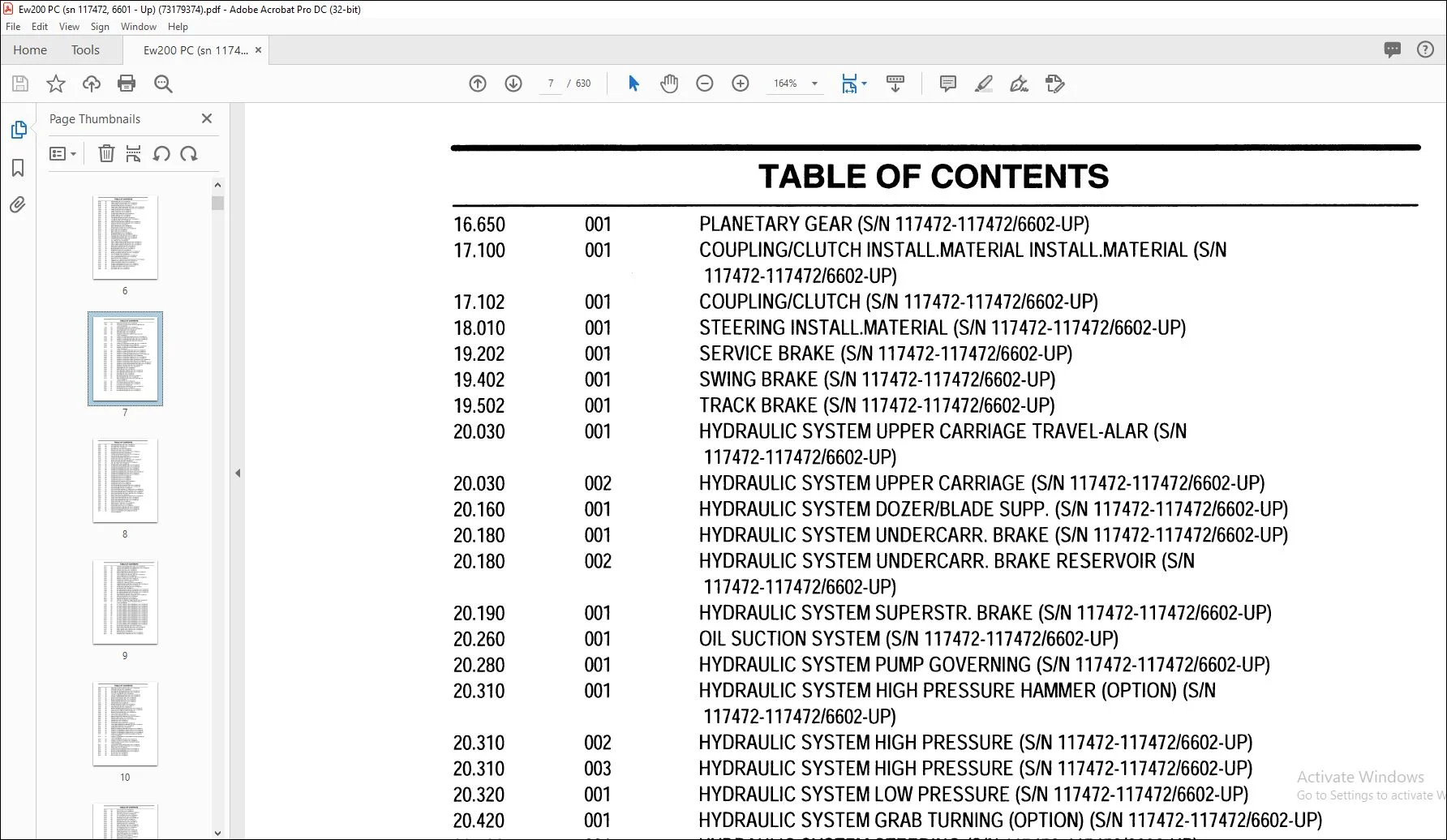

TABLE OF CONTENTS:

New Holland EW200 Crawler Excavator Parts Manual 73179374 – PDF DOWNLOAD

00.100 001 BASIC MACHINE (S/N 117472-117472/6602-UP)
00.200 001 LOWER CARRIAGE EXCAVATOR (S/N 117472-117472/6602-UP)
00.300 001 UPPER CARRIAGE EXCAVATOR (S/N 117472-117472/6602-UP)
00.500 001 OPTIONS (OPTION) (S/N 117472-117472/6602-UP)
01.200 001 FRAME LOWER CARRIAGE WITH MOUNT. PARTS (S/N 117472-117472/6602-UP)
01.300 001 FRAME UPPER CARRIAGE WITH MOUNT. PARTS (S/N 117472-117472/6602-UP)
01.620 001 FRAME TOOLBOX (S/N 117472-117472/6602-UP)
01.620 002 FRAME TOOLBOX (S/N 117472-117472/6602-UP)
01.620 003 FRAME TOOLBOX (S/N 117472-117472/6602-UP)
01.642 001 LOCKING DEVICE FRAME (S/N 117 472-117 472/6602-UP)
01.650 001 BEARING FRAME (S/N 117472-117472/6602-UP)
01.670 001 BEARING BOOM (S/N 117472-117472/6602-UP)
01.810 001 STEPS INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
02.010 001 STEERING AXLE INSTALL.MATERIAL (S/N 117 472-117472/6602-UP)
02.012 001 STEERING AXLE (S/N 117472-117472/6602-UP)
02.060 001 RIGID AXLE INSTALL.MATERIAL 25 KM/H (S/N 117472-117472/6602-UP)
02.061 001 RIGID AXLE MOUNTING PARTS 25 KM/H (S/N 117472-117472/6602-UP)
02.062 001 RIGID AXLE (S/N 117472-117472/6602-UP)
02.220 001 WHEEL HUB LINKS (S/N 117472-117472/6602-UP)
02.220 002 WHEEL HUB RECHTS (S/N 117472-117472/6602-UP)
04.010 001 SUPPORT INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
05.100 001 WHEELS (S/N 117472-117472/6602-UP)
05.100 002 WHEELS (S/N 117472-117472/6602-UP)
05.110 001 WHEEL MOUNTING (S/N 117472-117472/6602-UP)
05.140 001 INTERMEDIATE RING (S/N 117472-117472/6602-UP)
07.010 001 PROP SHAFT INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
10.010 001 CONTAINER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
10.010 002 CONTAINER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
10.102 001 HYD. OIL TANK (S/N 117472-117472/6602-UP)
10.202 001 FUEL TANK (S/N 117472-117472/6602-UP)
11.010 001 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
11.010 002 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
11.010 003 SWIVEL CONNECTION INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
12.010 001 BALLAST INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
13.010 001 MOTOR INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
13.011 001 MOTOR MOUNTING PARTS (S/N 117472-117472/6602-UP)
13.020 001 BEARING MOTOR (S/N 117472-117472/6602-UP)
13.220 001 EXHAUST SYSTEM INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
13.230 001 INTAKE SYSTEM INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
13.300 001 FUEL SYSTEM (S/N 117472-117472/6602-UP)
13.330 001 FUEL FILTER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
13.501 001 AIR FILTER MOUNTING PARTS (S/N 117472-117472/6602-UP)
13.502 001 AIR FILTER (S/N 117472-117472/6602-UP)
15.120 001 COMB. COOL. SYST. WATER/OIL INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
15.122 001 COMBINED COOLER WATER/OIL (S/N 117472-117472/6602-UP)
16.022 001 TRAVEL GEAR COMPLETE (S/N 117472-117472/6602-UP)
16.031 001 SLEWING GEAR MOUNTING PARTS (S/N 117472-117472/6602-UP)
16.031 002 SLEWING GEAR MOUNTING PARTS (S/N 117472-117472/6602-UP)
16.032 001 SLEWING GEAR COMPLETE (S/N 117472-117472/6602-UP)
16.600 001 DIFFERENTIAL (S/N 117472-117472/6602-UP)
16.600 002 DIFFERENTIAL (S/N 117472-117472/6602-UP)
TABLE OF CONTENTS
16.650 001 PLANETARY GEAR (S/N 117472-117472/6602-UP)
17.100 001 COUPLING/CLUTCH INSTALL.MATERIAL INSTALL.MATERIAL (S/N
117472-117472/6602-UP)
17.102 001 COUPLING/CLUTCH (S/N 117 472-117472/6602-UP)
18.010 001 STEERING INSTALL.MATERIAL (S/N 117 472-117472/6602-UP)
19.202 001 SERVICE BRAKE (S/N 117472-117472/6602-UP)
19.402 001 SWING BRAKE (S/N 117472-117472/6602-UP)
19.502 001 TRACK BRAKE (S/N 117472-117472/6602-UP)
20.030 001 HYDRAULIC SYSTEM UPPER CARRIAGE TRAVEL-ALAR (S/N
117472-117472/6602-UP)
20.030 002 HYDRAULIC SYSTEM UPPER CARRIAGE (S/N 117472-117472/6602-UP)
20.160 001 HYDRAULIC SYSTEM DOZER/BLADE SUPP. (S/N 117472-117472/6602-UP)
20.180 001 HYDRAULIC SYSTEM UNDERCARR. BRAKE (S/N 117472-117472/6602-UP)
20.180 002 HYDRAULIC SYSTEM UNDERCARR. BRAKE RESERVOIR (S/N
117472-117472/6602-UP)
20.190 001 HYDRAULIC SYSTEM SUPERSTR. BRAKE (S/N 117472-117472/6602-UP)
20.260 001 OIL SUCTION SYSTEM (S/N 117472-117472/6602-UP)
20.280 001 HYDRAULIC SYSTEM PUMP GOVERNING (S/N 117472-117472/6602-UP)
20.310 001 HYDRAULIC SYSTEM HIGH PRESSURE HAMMER (OPTION) (S/N
117472-117472/6602-UP)
20.310 002 HYDRAULIC SYSTEM HIGH PRESSURE (S/N 117472-117472/6602-UP)
20.310 003 HYDRAULIC SYSTEM HIGH PRESSURE (S/N 117472-117472/6602-UP)
20.320 001 HYDRAULIC SYSTEM LOW PRESSURE (S/N 117472-117472/6602-UP)
20.420 001 HYDRAULIC SYSTEM GRAB TURNING (OPTION) (S/N 117472-117472/6602-UP)
20.530 001 HYDRAULIC SYSTEM STEERING (S/N 117472-117472/6602-UP)
20.600 001 HYDRAULIC SYSTEM BOOM CYLINDERS (S/N 117472-117472/6602-UP)
20.600 002 HYDRAULIC SYSTEM BOOM CYLINDERS (S/N 117472-117472/6602-UP)
20.610 001 HYDRAULIC SYSTEM SERVO CONTROL (OPTION) (S/N 117472-117472/6602-UP)
20.610 002 HYDRAULIC SYSTEM SERVO CONTROL (S/N 117472-117472/6602-UP)
20.640 001 HYDRAULIC SYSTEM CASCADE INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
20.641 001 HYDRAULIC SYSTEM CASCADE MOUNTING PARTS (S/N 117472-117472/6602-UP)
20.642 001 HYDRAULIC SYSTEM CASCADE (S/N 117472-117472/6602-UP)
22.010 001 PUMP INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.020 001 DOUBLEPUMP (S/N 117472-117472/6602-UP)
22.030 001 SWING PUMP (S/N 117472-117472/6602-UP)
22.050 001 GEAR PUMP INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.050 002 GEAR PUMP INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.052 001 GEAR PUMP (S/N 117472-117472/6602-UP)
22.052 002 GEAR PUMP (S/N 117472-117472/6602-UP)
22.100 001 MOTOR INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.110 001 AXIAL PISTON MOTOR (S/N 117472-117472/6602-UP)
22.120 001 AXIAL PISTON MOTOR ADJUSTABLE INSTALL.MATERIAL (S/N
117472-117472/6602-UP)
22.130 001 GEAR MOTOR (S/N 117472-117472/6602-UP)
22.200 001 FILTER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.200 002 FILTER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.202 001 FILTER (S/N 117472-117472/6602-UP)
22.400 001 DISTRIBUTOR INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.402 001 DISTRIBUTOR (S/N 117472-117472/6602-UP)
22.500 001 ROTOR INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
22.500 002 ROTOR INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
TABLE OF CONTENTS
22.501 001 ROTOR MOUNTING PARTS (SIN 117472-11747216602-UP)
22.501 002 ROTOR MOUNTING PARTS (SIN 117472-11747216602-UP)
22.502 001 ROTOR (SIN 117472-11747216602-UP)
23.020 001 PRESS.RED.VALVE (SIN 117472-11747216602-UP)
23.032 001 PRESS.REL.VALVE (SIN 117472-11747216602-UP)
23.040 001 STOPPING BLOCK INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.042 001 STOPPING BLOCK (SIN 117472-11747216602-UP)
23.091 001 STEERING VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.152 001 CHECK VALVE (SIN 117472-11747216602-UP)
23.181 001 CONTROL VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.182 001 CONTROL VALVE (SIN 117472-11747216602-UP)
23.190 001 SWITCH-OVER VALVE INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.192 001 SWITCH-OVER VALVE (SIN 117472-11747216602-UP)
23.210 001 SHIFT VALVE INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.212 001 SHIFT VALVE (SIN 117472-11747216602-UP)
23.230 001 SOLENOID VALVE INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.230 002 SOLENOID VALVE INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.231 001 SOLENOID VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.231 002 SOLENOID VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.231 003 SOLENOID VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.231 004 SOLENOID VALVE MOUNTING PARTS (OPTION) (SIN 117472-11747216602-UP)
23.231 005 SOLENOID VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.231 006 SOLENOID VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.232 001 SOLENOID VALVE (SIN 117472-11747216602-UP)
23.232 002 SOLENOID VALVE (SIN 117472-11747216602-UP)
23.232 003 SOLENOID VALVE (SIN 117472-11747216602-UP)
23.232 004 SOLENOID VALVE (SIN 117472-11747216602-UP)
23.232 005 SOLENOID VALVE (OPTION) (SIN 117472-11747216602-UP)
23.232 006 SOLENOID VALVE (SIN 117472-11747216602-UP)
23.232 007 SOLENOID VALVE (SIN 117472-11747216602-UP)
23.240 001 VALVE INTERCONN. INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.241 001 VALVE INTERCONN. MOUNTING PARTS (SIN 117472-11747216602-UP)
23.242 001 VALVE INTERCONN. (SIN 117472-11747216602-UP)
23.270 001 SERVO VALVE INSTALL.MATERIAL LEFT-HAND (SIN 117472-11747216602-UP)
23.270 002 SERVO VALVE INSTALL.MATERIAL RIGHT-HAND (SIN 117472-11747216602-UP)
23.271 001 SERVO VALVE MOUNTING PARTS LEFT-HAND (SIN 117472-11747216602-UP)
23.271 002 SERVO VALVE MOUNTING PARTS RIGHT-HAND (SIN 117472-11747216602-UP)
23.272 001 SERVO VALVE (SIN 117472-11747216602-UP)
23.290 001 TREADLE VALVE INSTALL.MATERIAL (OPTION) (SIN 117472-11747216602-UP)
23.290 002 TREADLE VALVE INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.290 003 TREADLE VALVE INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.291 001 TREADLE VALVE MOUNTING PARTS (SIN 117472-11747216602-UP)
23.292 001 TREADLE VALVE (SIN 117472-11747216602-UP)
23.292 002 TREADLE VALVE (OPTION) (SIN 117472-11747216602-UP)
23.302 001 TRAVEL RTRDR.VLV. (SIN 117472-11747216602-UP)
23.312 001 PROPORTIONAL VALVE (SIN 117472-11747216602-UP)
23.610 001 CONTROL BLOCK INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.610 002 CONTROL BLOCK INSTALL.MATERIAL (SIN 117472-11747216602-UP)
23.611 001 CONTROL BLOCK MOUNTING PARTS (SIN 117472-11747216602-UP)
23.611 002 CONTROL BLOCK MOUNTING PARTS HAMMER (OPTION) (SIN
117472-11747216602-UP)
TABLE OF CONTENTS
23.611 003 CONTROL BLOCK MOUNTING PARTS (S/N 117472-117472/6602-UP)
23.611 004 CONTROL BLOCK MOUNTING PARTS HAMMER (S/N 117472-117472/6602-UP)
23.612 001 CONTROL BLOCK (S/N 117472-117472/6602-UP)
23.612 002 CONTROL BLOCK (S/N 117472-117472/6602-UP)
24.020 001 BOOM CYLINDERS INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
24.022 001 BOOM CYLINDERS (S/N 117472-117472/6602-UP)
24.030 001 STICK CYLINDER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
24.032 001 STICK CYLINDER (S/N 117472-117472/6602-UP)
24.050 001 BACKHOE CYLINDER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
24.052 001 BACKHOE CYLINDER (S/N 117472-117472/6602-UP)
24.160 001 STABILIZER CYL. PAW (S/N 117472-117472/6602-UP)
24.170 001 CYLINDER (S/N 117472-117472/6602-UP)
24.310 001 STABILIZER CYL. SWING AXLE (S/N 117472-117472/6602-UP)
26.010 001 COMPRESSOR INSTALL.MATERIAL (OPTION) (S/N 117472-117472/6602-UP)
26.012 001 COMPRESSOR (OPTION) (S/N 117472-117472/6602-UP)
27.010 001 HEATING INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
27.012 001 HEATING (S/N 117472-117472/6602-UP)
27.400 001 AIR CONDITION INSTALL.MATERIAL (OPTION) (S/N 117472-117472/6602-UP)
27.400 002 AIR CONDITION INSTALL.MATERIAL (OPTION) (S/N 117472-117472/6602-UP)
27.401 001 AIR CONDITION MOUNTING PARTS (OPTION) (S/N 117472-117472/6602-UP)
27.402 001 AIR CONDITION (OPTION) (S/N 117472-117472/6602-UP)
27.420 001 LIQUEFIER INSTALL.MATERIAL (OPTION) (S/N 117472-117472/6602-UP)
27.422 001 LIQUEFIER (OPTION) (S/N 117472-117472/6602-UP)
27.432 001 DRYER (OPTION) (S/N 117472-117472/6602-UP)
30.010 001 GREASING SYSTEM (S/N 117472-117472/6602-UP)
30.020 001 GREASING SYSTEM SWIVEL CONNECTION (S/N 117472-117472/6602-UP)
31.050 001 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (OPTION) (S/N
117472-117472/6602-UP)
31.050 002 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 003 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 004 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 005 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 006 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 007 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 008 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 009 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 010 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 011 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 012 ELECTRICAL COM PON. I.CIRCUIT DIAGRAM (S/N 117 472-117472/6602-UP)
31.050 013 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 014 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 015 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 016 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.050 017 ELECTRICAL COMPON. I.CIRCUIT DIAGRAM (S/N 117472-117472/6602-UP)
31.300 001 BATTERY INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
31.300 002 BATTERY INSTALL.MATERIAL SWITCH (S/N 117472-117472/6602-UP)
31.530 001 SIGNAL GENERAL TRAVEL-ALAR (S/N 117472-117472/6602-UP)
31.530 002 SIGNAL GENERAL TRAVEL-ALAR (S/N 117472-117472/6602-UP)
31.552 001 SWITCH (S/N 117472-117472/6602-UP)
31.600 001 DASHBOARD INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.010 001 CAB MODULE INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
TABLE OF CONTENTS
34.020 001 OPERATORS CAB INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.022 001 OPERATORS CAB (S/N 117472-117472/6602-UP)
34.100 001 PLATFORM PLATE INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.101 001 PLATFORM PLATE MOUNTING PARTS (S/N 117472-117472/6602-UP)
34.105 001 FOOT REST PLATFORM (S/N 117472-117472/6602-UP)
34.130 001 CONTROL COLUMN INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.131 001 CONTROL COLUMN MOUNTING PARTS (S/N 117472-117472/6602-UP)
34.140 001 BRACKET INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.140 002 BRACKET INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.141 001 BRACKET MOUNTING PARTS (S/N 117472-117472/6602-UP)
34.141 002 BRACKET MOUNTING PARTS (S/N 117472-117472/6602-UP)
34.220 001 CAB DOOR (S/N 117472-117472/6602-UP)
34.300 001 BEARING OPERATORS CAB (SIN 117472-117472/6602-UP)
34.500 001 SEAT INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.502 001 OPERATORS SEAT (S/N 117472-117472/6602-UP)
34.640 001 WINDSCREEN WASHER INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
34.642 001 WATER RESERVOIR WINDSCREEN WASHER (S/N 117472-117472/6602-UP)
35.010 001 LAMP HOLDER LEFT-HAND (S/N 117472-117472/6602-UP)
35.020 001 BRACKET INSTALL.MATERIAL (SIN 117 472-117 472/6602-UP)
35.040 001 LOCK SET (S/N 117472-117472/6602-UP)
35.050 001 CATSEYE INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
35.060 001 MIRROR SUPPORT INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
36.005 001 PANELING COMPLETE (S/N 117472-117472/6602-UP)
36.010 001 PANELING INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
36.012 001 PANELING (S/N 117 472-117 472/6602-UP)
36.012 002 PANELING (S/N 117472-117472/6602-UP)
36.500 001 COVER UPPER CARRIAGE (S/N 117472-117472/6602-UP)
36.510 001 COVER SWING BEARING INSTALL.MATERIAL (S/N 117 472-117 472/6602-UP)
36.512 001 COVER SWING BEARING (S/N 117472-117472/6602-UP)
39.030 001 TOWING DEVICE (S/N 117472-117472/6602-UP)
60.150 001 MONOBLOC BOOM INSTALL.MATERIAL 5,2 M (S/N 117472-117472/6602-UP)
60.160 001 HYDRAULIC SYSTEM MONOBLOC BOOM 5,2 M (S/N 117472-117472/6602-UP)
60.160 002 HYDRAULIC SYSTEM MONOBLOC BOOM 5,2 M (S/N 117472-117472/6602-UP)
60.160 003 HYDRAULIC SYSTEM MONOBLOC BOOM 5,2 M (SIN 117472-117472/6602-UP)
60.170 001 HYDRAULIC SYSTEM MONOBLOC BOOM GRAB TURNING (OPTION) (S/N
117 472-117 472/6602-UP)
60.200 001 HYDRAULIC SYSTEM MONOBLOC BOOM HAMMER ATTACHMT. (OPTION) (S/N
117472-117472/6602-UP)
61.010 001 STICK INSTALL.MATERIAL 2,9 M (S/N 117472-117472/6602-UP)
61.032 001 HYDRAULIC SYSTEM STICK 2,9 M (S/N 117472-117472/6602-UP)
61.040 001 CHANGING DEVICE STICK DEEP DIPPER/ GRA 2,9M (OPTION) (SIN
117472-117472/6602-UP)
62.010 001 TOGGLE/LINKAGE INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
62.020 001 MOUNTING TOGGLE/LINKAGE (OPTION) (S/N 117472-117472/6602-UP)
62.210 001 PIN NO.1 (S/N 117472-117472/6602-UP)
69.010 001 GRADING BLADE INSTALL.MATERIAL (S/N 117472-117472/6602-UP)
90.100 001 ANTI-SKID COATING ARRANGEMENT (S/N 117472-117472/6602-UP)
90.100 002 ANTI-SKID COATING ARRANGEMENT (S/N 117472-117472/6602-UP)
91.010 001 DECAL KIT (S/N 117 472-117 472/6602-UP)
91.010 002 DECAL KIT (S/N 117472-117472/6602-UP)
91.010 003 DECAL KIT (S/N 117472-117472/6602-UP)
TABLE OF CONTENTS
92.010 001 TOOL SET (S/N 117472-117472/6602-UP)
92.010 002 TOOL SET (S/N 117472-117472/6602-UP)
92.020 001 MAINTENANCE MATER. (S/N 117472-117472/6602-UP)
95.005 003 V.BELT PULLEY (S/N 117472-117472/6602-UP)
95.015 001 FILTER CARTRIDGE (S/N 117472-117472/6602-UP)
95.020 001 FUEL PREFILTER (S/N 117472-117472/6602-UP)
95.020 003 THROW-AWAY FILTER (S/N 117472-117472/6602-UP)
95.027 002 REGULATION (S/N 117472-117472/6602-UP)
95.037 003 NARROW V-BELT (S/N 117472-117472/6602-UP)
95.044 001 FASTENING PARTS (S/N 117472-117472/6602-UP)
95.044 002 GENERATOR (S/N 117472-117472/6602-UP)
95.044 003 DRIVE COMPONENTS (S/N 117472-117472/6602-UP)
95.044 004 PARTS OF ALTERNAT. (S/N 117472-117472/6602-UP)
95.044 006 STARTER MOTOR (S/N 117472-117472/6602-UP)
95.048 002 IND. TRANSMITTER (S/N 117472-117472)
95.048 007 PRESSUR.SWITCH (S/N 117472-117472/6602-UP)
95.048 008 CONNECTING LINE (S/N 117472-117472/6602-UP)
95.051 001 TEMP.TRANSMITTER (S/N 117472-117472/6602-UP)
95.056 002 ENGINE SHUT-DOWN (S/N 117472-117472/6602-UP)
95.063 001 SWITCH (S/N 117472-117472/6602-UP)
95.063 002 PENCIL GLOW PLUG (S/N 117472-117472/6602-UP)
95.083 002 GASKET (S/N 117472-117472/6602-UP)
95.090 002 NARROW V-BELT (S/N 117472-117472/6602-UP)

Contact us: [email protected]

https://vimeo.com/730879827

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
