New Holland Excavator E9SR 604 13 391 Repair Manual – PDF DOWNLOAD

Description

New Holland Excavator E9SR 604 13 391 Repair Manual

FILE DETAILS:

New Holland Excavator E9SR 604 13 391 Repair Manual
Size : 25.8 MB
Format : PDF
Language : English
Number of Pages : 546 Pages

NEW HOLLAND EXCAVATOR E9SR 604 13 391 REPAIR MANUAL – PDF DOWNLOAD:

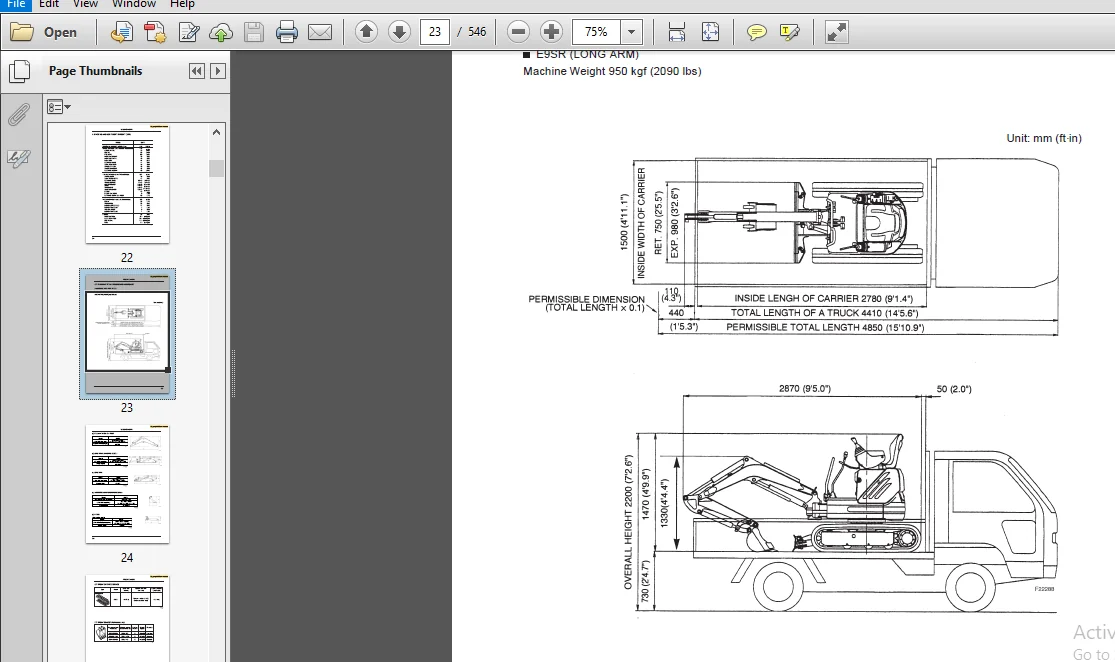

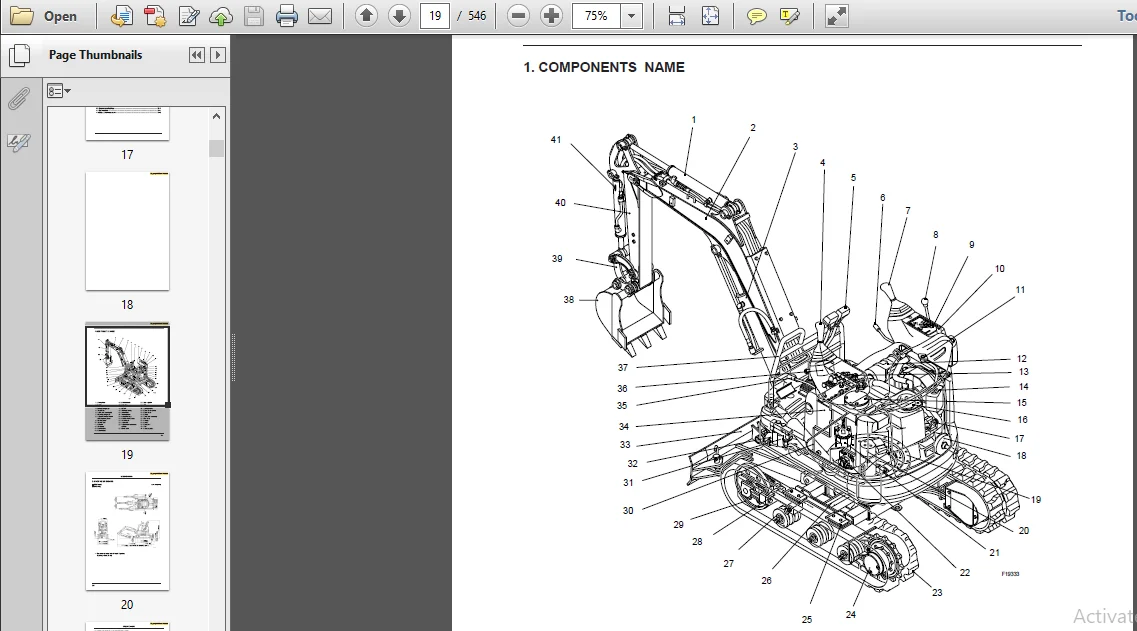

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland Excavator E9SR 604 13 391 Repair Manual

The complete repair manual consists of two volumes:

– E9SR Workshop Manual “Excavator”

• “Excavator” and “Engine” Workshop Manuals contain the technical information necessary for machine/engine service and repair, service equipment, information on maintenance standards, remove and install procedures, disassembly and assembly procedures.
• The following Torque Specifications are provided for use when actual torque value of a fastener is not known. Check the capscrews and nuts for their looseness and dropping off before the start of daily work and at the periodical maintenance.
• Retighten the loosened ones, and install new ones for the dropped off. For the new machine, the check and retightening of them must be carried out at first 50 hours operation. For the replacement of them, make sure to use the same size of genuine parts.

Refer to the table below for the tightening and retightening of capscrews.

• The table below is not applicable for the capscrews to fix the cover, etc., made of plastic. For the tightening torque for such capscrews, consult with an authorized Distributor. Over-tightening may cause damages on the parts to be fixed.
• In case that the tightening torque is specified in the manual, use such torque values regardless to the table below.

HOW TO USE MAINTENANCE STANDARDS AND PRECAUTIONS:

•  Application  For new machine: this manual is to be used to check the actual performance and functions of the machine compared with the PERFORMANCE STANDARDS.  At specific self-inspection (as per LOCAL RULES): the maintenance standards are used to make them as the criteria to determine the time for reconditioning, adjustment and replacement.
• At deterioration of performance: this manual is of the criteria of safe and economical judgment whether the deterioration of performance on the machine would be caused by any faults or normal deterioration due to machine operation for a long period.
• For replacement of major components: this manual is of the standard to determine the time for replacement to recover the performance of major components such as pump, etc.  Terminology Standard values: these are of the standard values to assemble and regulate a new machine.
• Where special notes are not given, these values are based on the machine with standard structure (the machine with standard attachments and shoes). Standard values for repair: these are of the values at which the reconditioning is required. In order to ensure the performance and safety, it is strictly prohibited to use the machine with the parts and components being over the standard values.

TABLE OF CONTENTS:

New Holland Excavator E9SR 604 13 391 Repair Manual

SPECIFICATIONS
Section 1 – Preliminary remarks
Section 2 – Specifications
Section 3 – Attachment dimensions
MAINTENANCE
Section 11 – Tools
Section 12 – Standard maintenance time table
Section 13 – Maintenance standards and tests procedures
SYSTEM
Section 22 – Hydraulic system
Section 23 – Electrical system
Section 24 – Components system
DISASSEMBLING
Section 31 – Whole disassembly and assembly
Section 32 – Attachments
Section 33 – Upper slewing structure
Section 34 – Travel system
TROUBLESHOOTING
Section 42 – Hydraulic system
Section 43 – Electrical system
Section 44 – Engine
ENGINE
Section 51 – Engine

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
