New Holland FiatAllis 545,545H,545B,605B,645,645B,745,745H,745B,745HB Wheel Loaders Axles Service Manual – PDF Download

Description

New Holland FiatAllis 545,545H,545B,605B,645,645B,745,745H,745B,745HB Wheel Loaders Axles Service Manual

FILE DETAILS:

New Holland FiatAllis 545,545H,545B,605B,645,645B,745,745H,745B,745HB Wheel Loaders Axles Service Manual

• Format: PDF
• Language: English
• Brand: Fiat
• Type of machine: Wheel Loaders Axles
• Type of document: Service Manuals
• Model: Fiat Allis 545,545H,545B,605B,645,645B,745,745H,745B,745HB

NEW HOLLAND FIATALLIS 545,545H,545B,605B,645,645B,745,745H,745B,745HB WHEEL LOADERS AXLES SERVICE MANUAL – PDF DOWNLOAD:

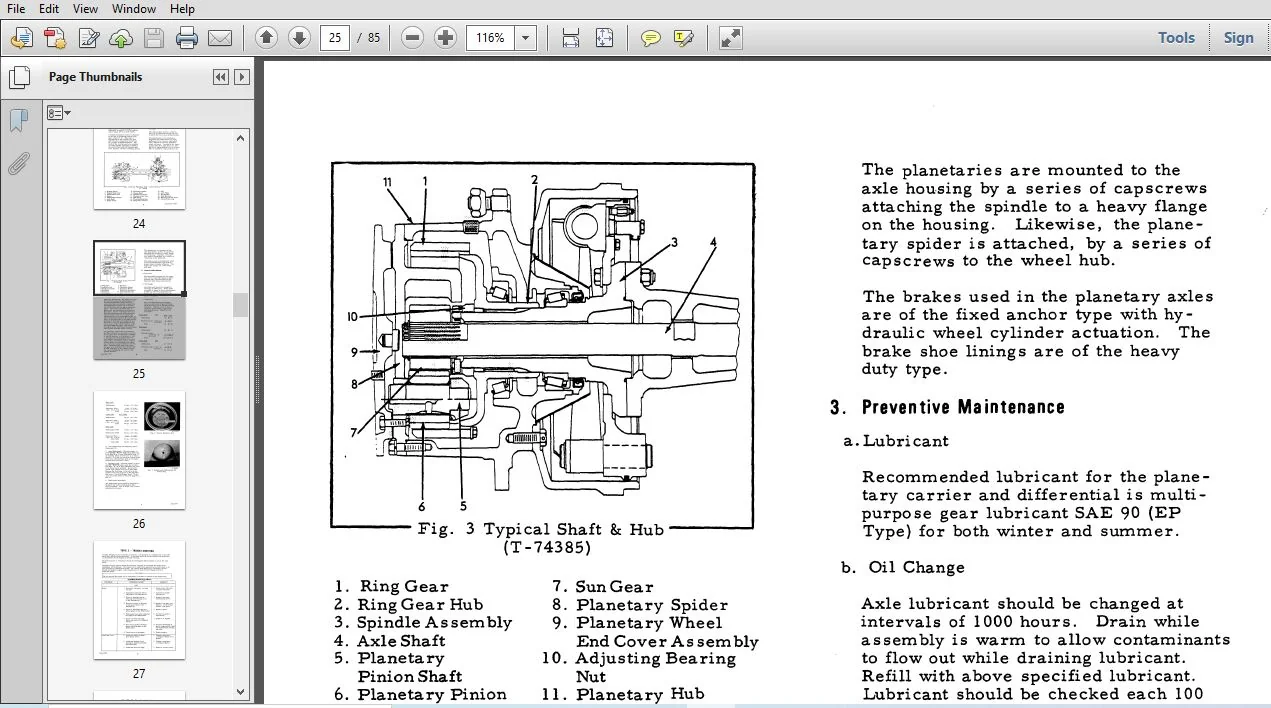

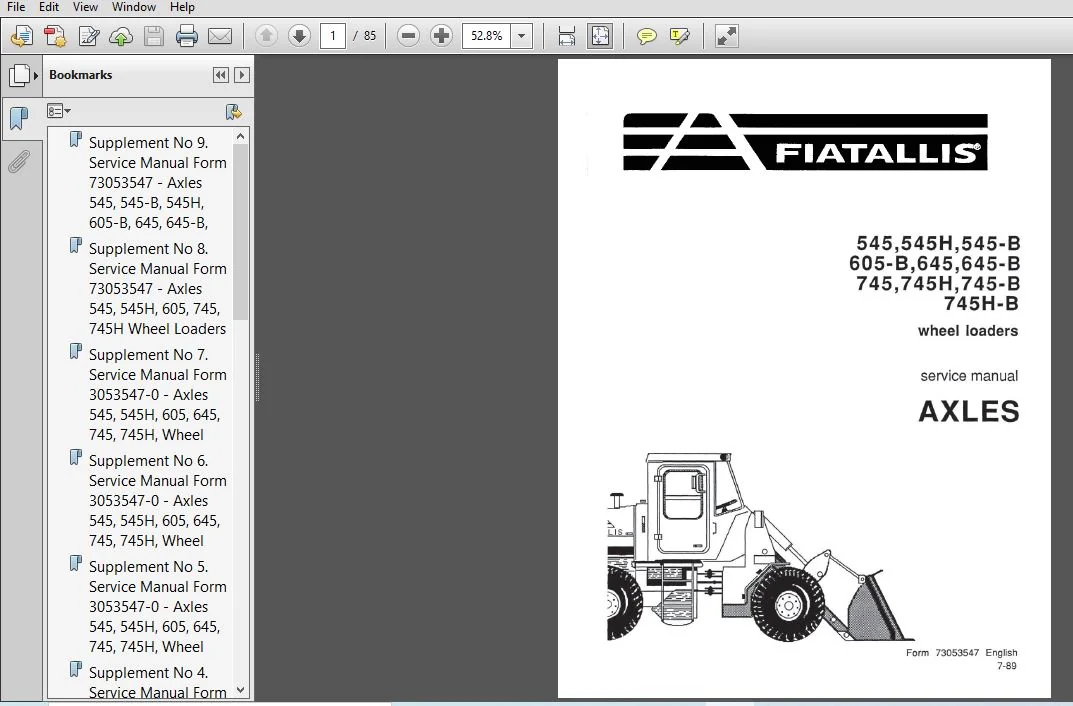

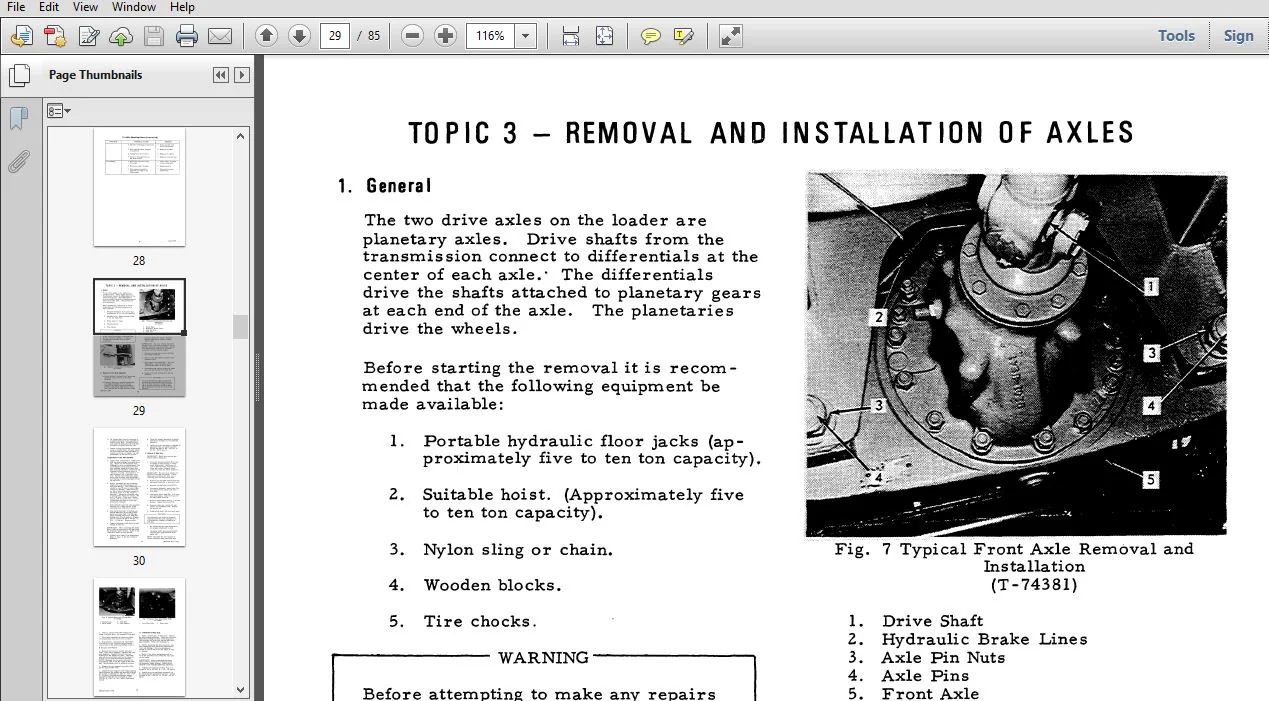

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland FiatAllis 545,545H,545B,605B,645,645B,745,745H,745B,745HB Wheel Loaders Axles Service Manual

• Always furnish serial number if making an inquiry to dealer orfactory about this machine. Many equipment owners employ the Dealer Service Department for all work other than routine lubrication and minor service.
• This practice is encouraged, as our Dealers are well informed and equipped to render efficient service by factory trained mechanics. This manual may not be reprinted or reproduced, either in whole or in part. without written permission of Fiatallis ®. Illustrations show standard and optional items.
• IMPORTANT – The information in this manual was current at the time of publication. it is our policy to constantly improve our product and to make available additional items. These changes may affect procedures outlined in this manual. It variances are observed, verify the infome- tion through your Dealer. Fratallis is not responsible for any liability arising from any damage resulting from defects caused by parts and/or components not approved by Fiatallis for use in maintaining and/or repairing products manufactured or merchandized by Fiatallis.
• In any case. no warranty of any kind is made or shall be imposed with respect to products manufactured or merchandized by Fiataliis when failures are caused by the use of parts and/or components not ap- proved by Fiatallis.
• GENERAL Study the Operation and Maintenance Instruction Manual before starting. operating, maintaining. fueling. or servic- ing machine. Read and need all machine-munted safety signs beiore starting. Operating. msintaimng, fueling or servicing machine. Machine-mounted safety signs have been color coded vei- low with black border: and lettering {or warning and red wrth white harder; and lettering for danger points.
• No unauthorized personnel should be allowed to some or maintain this machine. Do not perform any work on equip- ment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance instruction Manual heiora starting. operating. maintain- ing. iueiinp or servicing this machine. Always iii-oar safety glasses with side shields.
• Do not wear rings. wrist watches. jewelry. or loose or hang- ing apparel. such as ties. torn clothing. scarves. un- buttoned. or uni-oped jecltets ihal can catch on movrng pane Dn wear mania safety mitipmenr as: authorized tor the too.
• Examples: hard hats. solely shoes. heavy glovcz. ear protectors. solely glasses or goggles. reflector vest-‘1. or respirators. Consult your employnrlor specific safety equip- ment requirements.
• Do not use controls or hoses as handhoIds when climbing on or oil machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inedver~ tertiiy moved causing accidental machine or equipment movement 00 not lump on or all machine.
• Keep two hand: and one loot. or two last and one hand. in contact with step: and green-tits and handles at all times Machine should not be serviced with anyone in the opera- tor’s seat unless they are qualified to operate the machine and are assisting in the servicing. Keep operator’s compartment. stepping points, grab-rails and handles clean oi loreign objccm, oil. grease. mud or snow accumulation to minimize the danger of slipping or stumbling.
• Never attempt to operate the machine or its tools from any other position than seated in the operator‘s seat. Keep operator‘s compartment clear oi loose objects.
• If movement of an attachment by means oi the machine’s hydraulic system is required for service or maintenance. do not raise or lower attachmenisirom anyposition other than when seated in the operator’s seaL Belore starting ma- chine or moving attachment or tool, make sure to col brakes. sound horn and call for an all clear. Raise attach- ment slowly.
• Always bloc! vnth external support any linkage or part on machine that requires work under the ratsad linkage. parts. or machine pm OSHA requirements. Neveraliownnyonoto walk under or be near unblocked raised equipment. Avoid nothing or walking tinder raised blocked murpment unions you are ensured oi your salary.

TABLE OF CONTENTS:

New Holland FiatAllis 545,545H,545B,605B,645,645B,745,745H,745B,745HB Wheel Loaders Axles Service Manual

Supplement No 9. Service Manual Form 73053547 – Axles 545, 545-B, 545H, 605-B, 645, 645-B, 745, 745-B, 745H, 745H-B Wheel Loaders …. 4
Supplement No 8. Service Manual Form 73053547 – Axles 545, 545H, 605, 745, 745H Wheel Loaders (Incl. Series B) …………………. 5
Supplement No 7. Service Manual Form 3053547-0 – Axles 545, 545H, 605, 645, 745, 745H, Wheel Loaders (Including Series B) ……….. 6
Supplement No 6. Service Manual Form 3053547-0 – Axles 545, 545H, 605, 645, 745, 745H, Wheel Loaders (Including Series B) ……. 7
Supplement No 5. Service Manual Form 3053547-0 – Axles 545, 545H, 605, 645, 745, 745H, Wheel Loaders (Including Series B) ……. 8
Supplement No 4. Service Manual Form 3053547-0 – Axles 545, 545H, 605, 645, 745, 745H, Wheel Loaders (Including Series B) …….. 9
Supplement No 3. Service Manual Form 3053547-0 – Axles 545, 545H, 605, 645, 745, 745H, Wheel Loaders (Including Series B) ……..10
Supplement No 2. Service Manual Form 3053547-0 – Axles 545, 545H, 605, 645, 745, 745H, Wheel Loaders ……………………………11
Supplement No 1. Service Manual Form 3053547-0 – Axles 545, 545H, 645, 745, Wheel Loaders ……………………………………..12
Table of Contents ……………………………………………………………………………………………………..22
Topic 1 – General Information and Description …………………………………………………………………………….23
Topic 2 – Trouble Shooting ……………………………………………………………………………………………..27
Topic 3 – Removal and Installation of Axles ……………………………………………………………………………..29
Topic 4 – Differential Removal and Disassembly …………………………………………………………………………..32
Topic 5 – Cleaning and Inspection ……………………………………………………………………………………….35
Topic 6 – Assemble Components …………………………………………………………………………………………..36
Topic 7 – Planetary Hubs ………………………………………………………………………………………………44
Topic 8 – Cleaning and Inspection ………………………………………………………………………………………50
Topic 9 – Assembly and Installation ……………………………………………………………………………………..51
Topic 10 – Drive Shafts ………………………………………………………………………………………………..58
Topic 11 – Torque Specifications ………………………………………………………………………………………..65
Topic 12 – Wheels and Tires ……………………………………………………………………………………………68
Topic 13 – No Spin Differential Removal and Disassembly (Special Equipment) …………………………………………………70

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
