NEW HOLLAND FL14 FL14B CRAWLER LOADER 14 14B DOZER 150C CRAWLER TRACTOR SERVICE MANUAL 60406026 – PDF DOWNLOAD

Description

NEW HOLLAND FL14 FL14B CRAWLER LOADER 14 14B DOZER 150C CRAWLER TRACTOR SERVICE MANUAL

FILE DETAILS:

NEW HOLLAND FL14 FL14B CRAWLER LOADER 14 14B DOZER 150C CRAWLER TRACTOR SERVICE MANUAL

Size: 59.2 MB
Format: PDF
Language: English
Number of Pages: 386 pages
Brand: New Holland
Type of document: Service Manual
Model: E80MSR
Part No: 60406026

DESCRIPTION:

NEW HOLLAND FL14 FL14B CRAWLER LOADER 14 14B DOZER 150C CRAWLER TRACTOR SERVICE MANUAL

SAMPLE PAGE FROM THE MANUAL:

• The Imperial weights and measures are given for operators’ convenience and, though the closest approximation is sought, they are normally rounded off for practical reasons. In case of discrepancies only the metric units should be considered.
• The wear allowances indicated for some items are given for guidance only. Any reference made in the manual to “front”, “rear”, “right-hand” and “left-hand” is as viewed facing the direction of forward travel from the driver’ 5 seat. A. M. = Ante-modification — P. M. = Post-modification.
• The commercial designation of the FlAT-ALLIS models was changed recently for standardization reasons. For the dozers. letters AD or BD forming the first part of the designation have been suppressed, the second part remaining unchanged.
• The designation symbols written on the machines and in the technical literature are being progressively updated. The descriptions, data and instructions given in this section apply to Loader Model FL 14. Items applicable to Angledozer AD 14, Bulldozer BD 14 and Crawler Tractor 1506 are described in the subsequent sections. Valvegear Pushrod-operated overhead valves Hourmeter rating . . . . . 1,400 rpm.
• Fuel System Dry air cleaner including centrifugal pre-cleaner and two pairs of in-line paper cartridge elements with associated warning light on the dashboard. Optional oil-bath air cleaner. Twin. in-Iine cloth/paper cartridge element fuel filters inserted in the fuel pump outlet line. FIAT (BOSCH licence) fuel injection pump of the in-line type featuring six pumping elements.
• L.H. helix plungers and fuel recirculation system. Fuel injection spill timing . . 22″ B.T.D.C. Firing order. . . . . . . 1-5-3-6-2-4 Injector nozzles . . . . . Four spray orifices Spray angle = 160“ Lubrication System Forced-feed system featuring gear type feed and scavenge oil pumps. Pump drive ratio . . . . . .880 to 1 Steel gauze suction filters on each oil pump and twin- paper cartridges fitted side-by-side on the pump outlet line.
• Tube type oil cooling heat exchanger branched off the engine cooling system. Cooling System Vane type centrifugal water pump and twin side-by- side-wax type thermostats. Pump drive ratio . . . . . 1.377 to 1 Six-deep vertical tube radiator core and six-bladed blower type radiator fan. TORQUE CONVERTER Hydraulic. 13 in. dia., single-stage, single-phase. Torque multiplication ratio . 2.37 to 1 DOuble universal joint shaft between converter and gearbox.

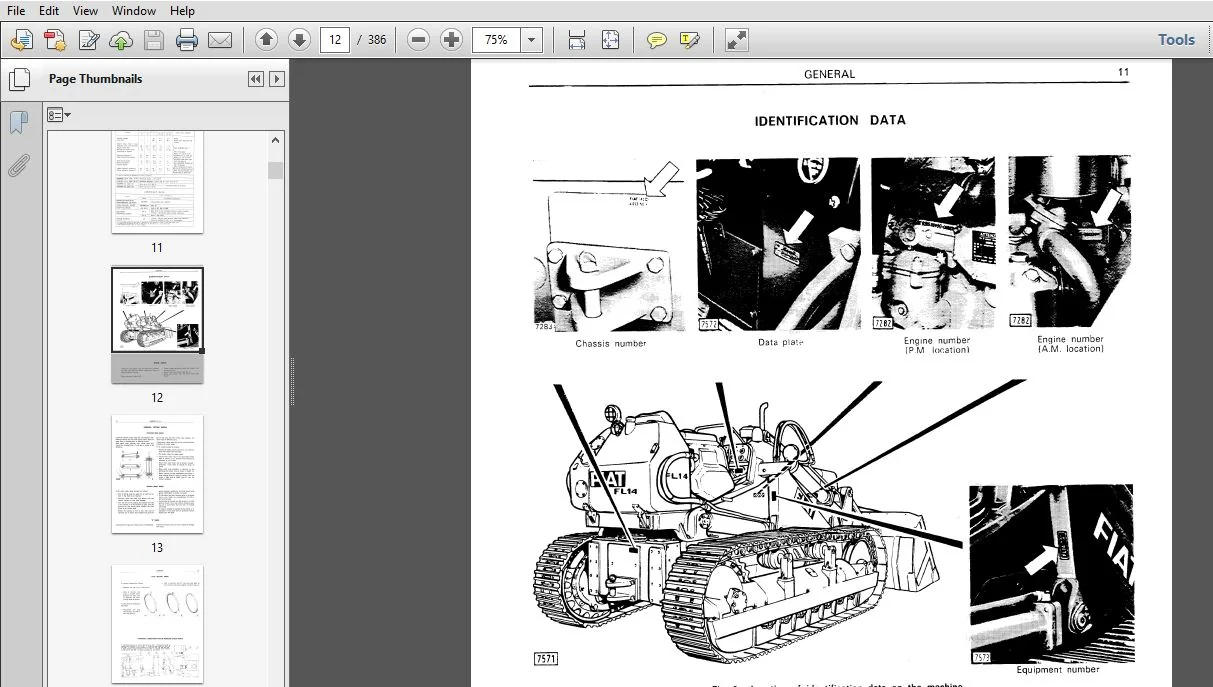

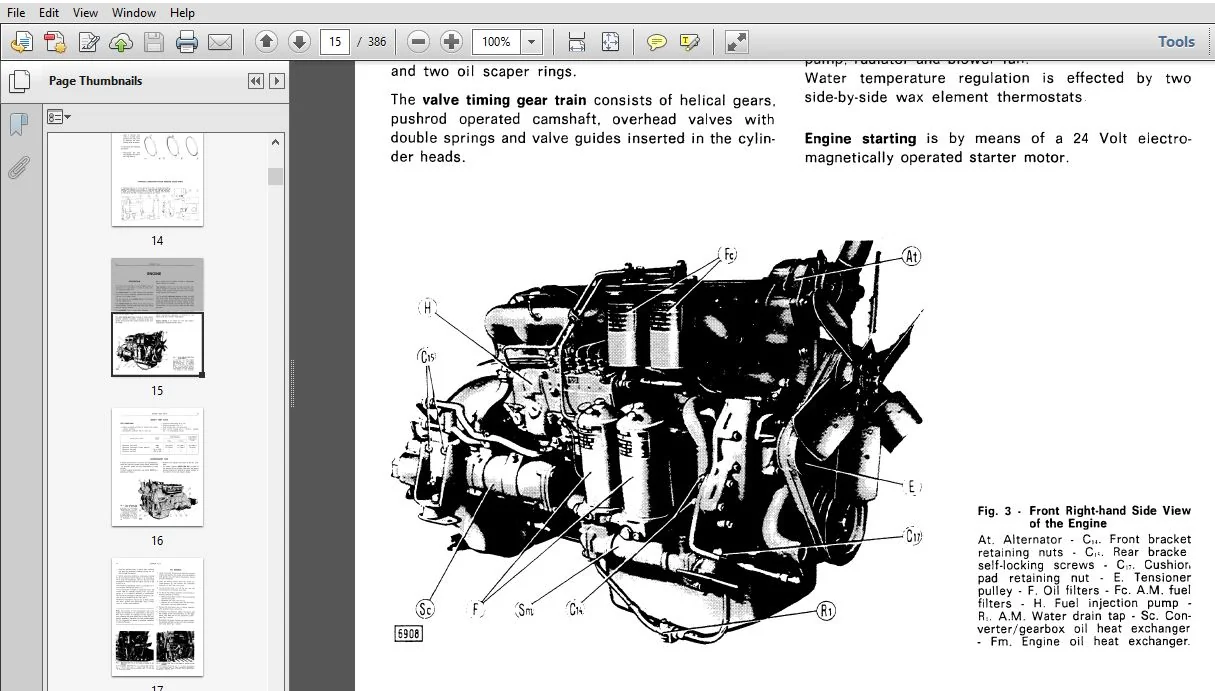

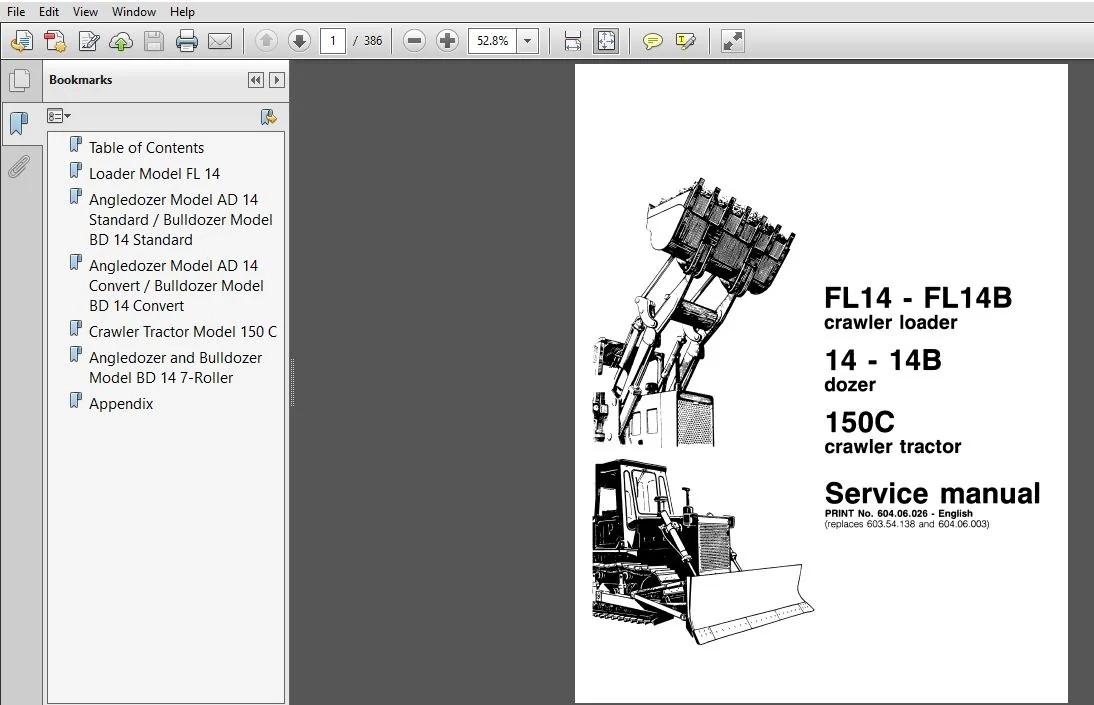

IMAGES PREVIEW OF THE MANUAL:

NEW HOLLAND FL14 FL14B CRAWLER LOADER 14 14B DOZER 150C CRAWLER TRACTOR SERVICE MANUAL 60406026 – PDF DOWNLOAD:

TABLE OF CONTENTS:

NEW HOLLAND FL14 FL14B CRAWLER LOADER 14 14B DOZER 150C CRAWLER TRACTOR SERVICE MANUAL

Table of Contents 2
Loader Model FL 14 4
Angledozer Model AD 14 Standard / Bulldozer Model BD 14 Standard 226
Angledozer Model AD 14 Convert / Bulldozer Model BD 14 Convert 301
Crawler Tractor Model 150 C 324
Angledozer and Bulldozer Model BD 14 7-Roller 340
Appendix 342
