New Holland Ford 70 & 75 Lawn Tractors Service Repair Manual (40007020) NH Ford 70 & 75 – PDF Download

Description

New Holland Ford 70 & 75 Lawn Tractors Service Repair Manual (40007020) NH Ford 70 & 75

FILE DETAILS:

New Holland Ford 70 & 75 Lawn Tractors Service Repair Manual (40007020) NH Ford 70 & 75

• Item Number:40007020
• Description:Ford SE3240 Tractor 70 75 Lawn Trac. .
• Language:English
• Type:Service Manual
• Model:70, 75

NEW HOLLAND FORD 70 & 75 LAWN TRACTORS SERVICE REPAIR MANUAL (40007020) NH FORD 70 & 75 – PDF DOWNLOAD:

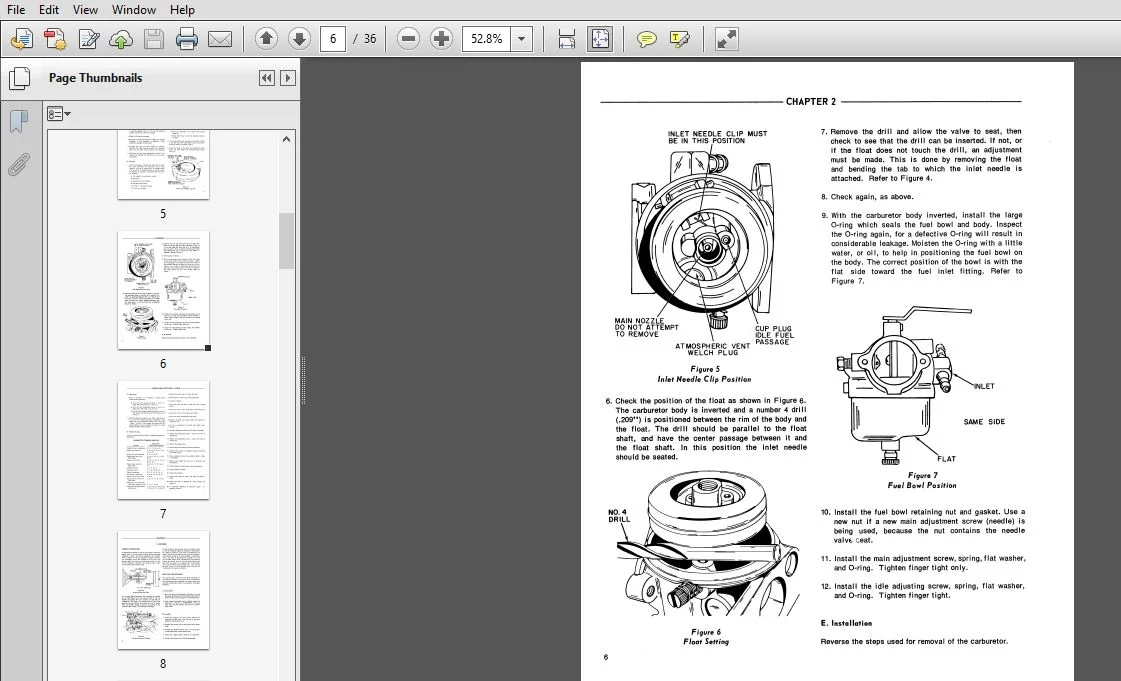

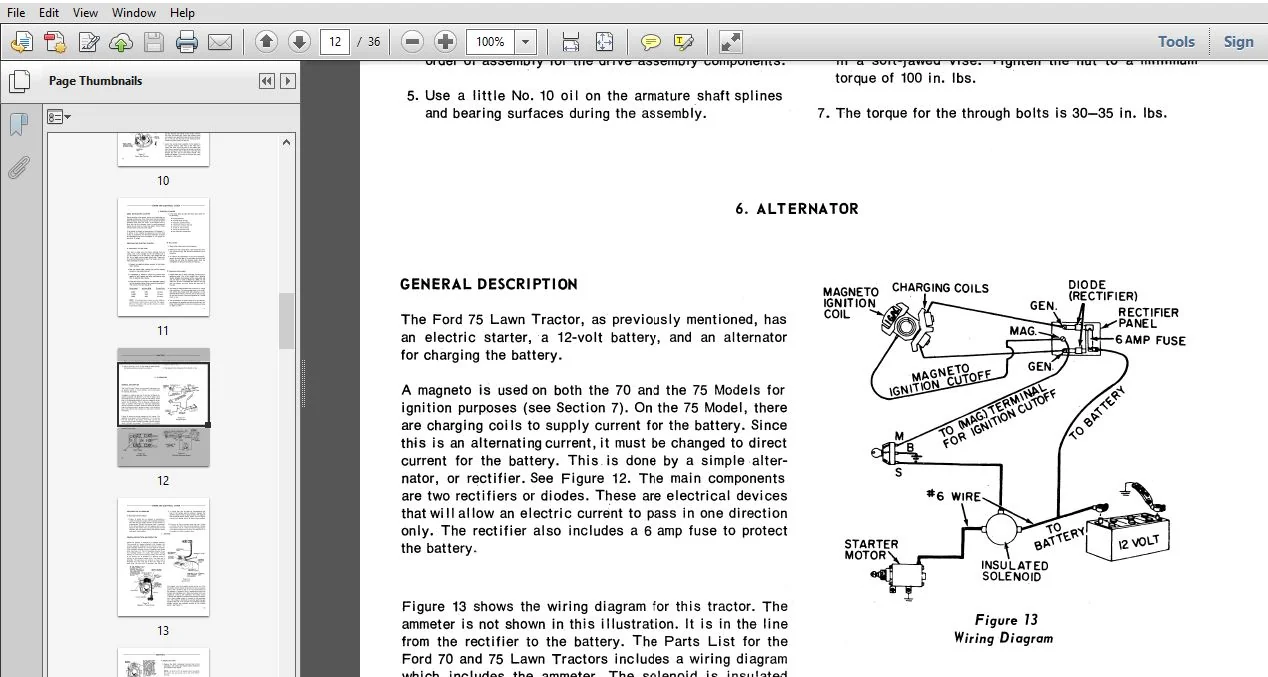

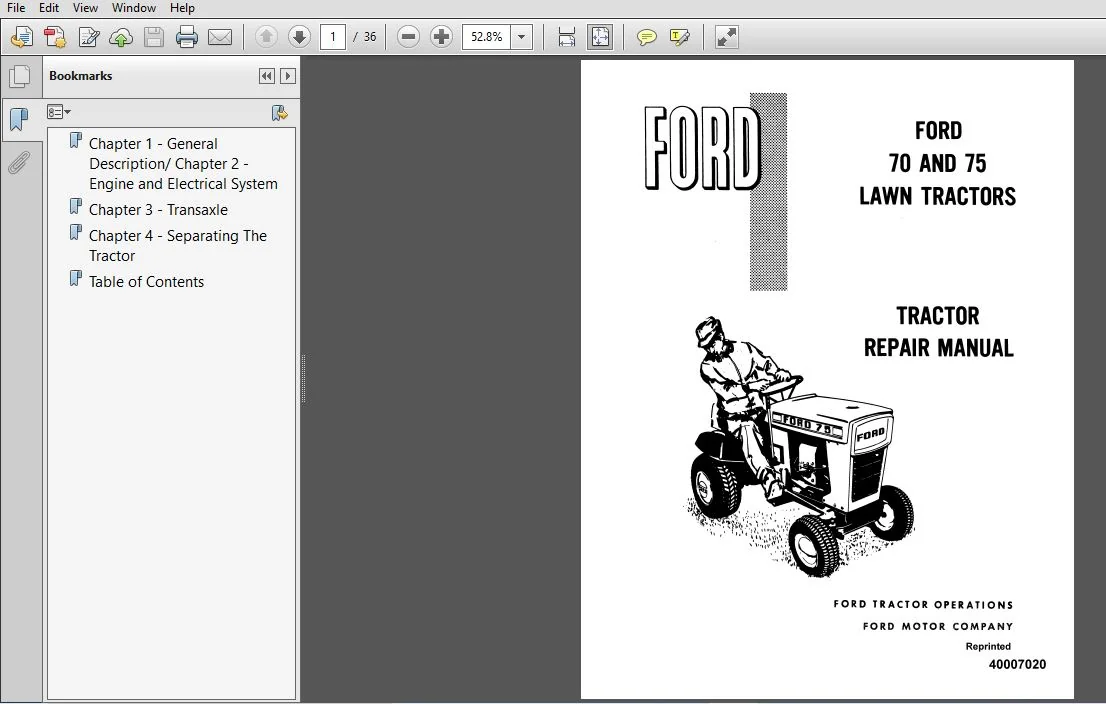

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland Ford 70 & 75 Lawn Tractors Service Repair Manual (40007020) NH Ford 70 & 75

• THIS MANUAL CONTAINS A BRIEF DESCRIPTION OF THE FORD 70 AND 75 LAWN TRACTORS, AND THE SERVICE PROCEDURES FOR THE ENGINE.
• THE ELECTRICAL SYSTEM, AND THE TRANSAXLE. INCLUDED ARE DIRECTIONS FOR GAINING ACCESS TO THE ABOVE COMPONENTS.
• A LISTING OF THE MANUAL CONTENTS IS ON THE INSIDE BACK COVER. A FLAT RATE LABOR GUIDE FOR SERVICING THE FORD 70 AND 75 LAWN TRACTOR iS LISTED ON PAGE 84.
• A MORE DETAILED GENERAL DESCRIPTION. INSTRUCTIONS FOR SET—UP, OPEFIATION, MAINTENANCE AND LUBRICATION. ADJUSTMENTS AND BELT REPLACEMENT. AND GENERAL SPECIFICATIONS ARE FOUND IN THE OPERATOR’S MANUAL. SE 3203.
• KEEP THIS MANUAL WITH YOUR OTHER SERVICE LITERATURE SO THAT IT WILL BE READILY AVAILABLE WHEN REOUIRED.
• The Ford 70 and 75 Lawn Tractors have single cylinder, four cycle.gasoline engines rated at 7.0 horsepower.
• The difference between the two tracters ls primarily In the components used for starting the engine. The Ford 70 uses a manual, or pull-type. starting mechanism. The Ford 75 has an electric starten and therefore has a battery and an alternator for charglng the battery. The 70 and the 75 both use a magneto for the ignition system. The transmission and rear axie-are combined in an assern- bly called a transaxle. This mechanism provides tor three forward. and one reverse, gear ratios. The clutch is the bell—idler type. The foot pedal serves for both ciutch and Drake action. Depressing the pedal removes the tension from the drive beit.
• When the pedal is fully depressed the brake ls applied. The steering wheel shaft has a pinlon gear at the lower end. This pinlon engagos a gear sector on the steerlng arm and shaft assembly. A drag link connects the arm of the am and shaft assembly to the steering and fie red arm and hub assembly, which is keyed to the front wheel spindle assembly. In addition to the transmission gear Shift lever. there is an implernent litt iever on the right side and a power drive clutch control levor on the left side.
• This clutch controls the flow of power to such implements as the rotary mower and the snow blower.

TABLE OF CONTENTS:

New Holland Ford 70 & 75 Lawn Tractors Service Repair Manual (40007020) NH Ford 70 & 75

Description 3
Engincnnd Electrlcolsysten 3
GeneralDescription 4
ServlclngtheCarhureiof 4
GeneralDescription 8
ServiclngthoGovc or B
4 REWINDSTARTER 9
GeneralDescription 9
Serviclngthefiewlnd3!artet 9

5 ELECTRICSTARTER 11
UsingtheElectricStarter 11
ServchngtheElectricStarter 11
GeneralDescription 12
ServiclngtheAlte atot 18
7 IGNITION 18
GeneralDescriptionand0poralion 13
ScrvlcingthelgnltionSyste 14

8 ENGINEASSE BLY 15
1OSPECIFICATIONS 23
11TOROUEVALUES 23
CHAPTER3 24
Tronsoxle 24
1 PRELI INARYCHECKS 24

2 SERVICINGTHETRANSAXLE 24
Sopo llngihoncfor 31
1 RE OVINGTHEENGINE 31
2 RE OVINGTHETRANSAXLE 32
3 SPECIALTOOLSFORENGINEANDTRANSAXLE 32

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
