New Holland Ford Series 750, 753 and 755 Backhoe Service Manual (40075031) – PDF Download

Description

New Holland Ford Series 750, 753 and 755 Backhoe Service Manual (40075031)

FILE DETAILS:

New Holland Ford Series 750, 753 and 755 Backhoe Service Manual (40075031)

• Item Number:40075031
• Description:Ford Se9358A Series 750 753 755 Backhoe
• Language:English
• Type:Service Manual
• Model:750, 753, 755

NEW HOLLAND FORD SERIES 750, 753 AND 755 BACKHOE SERVICE MANUAL (40075031) – PDF DOWNLOAD:

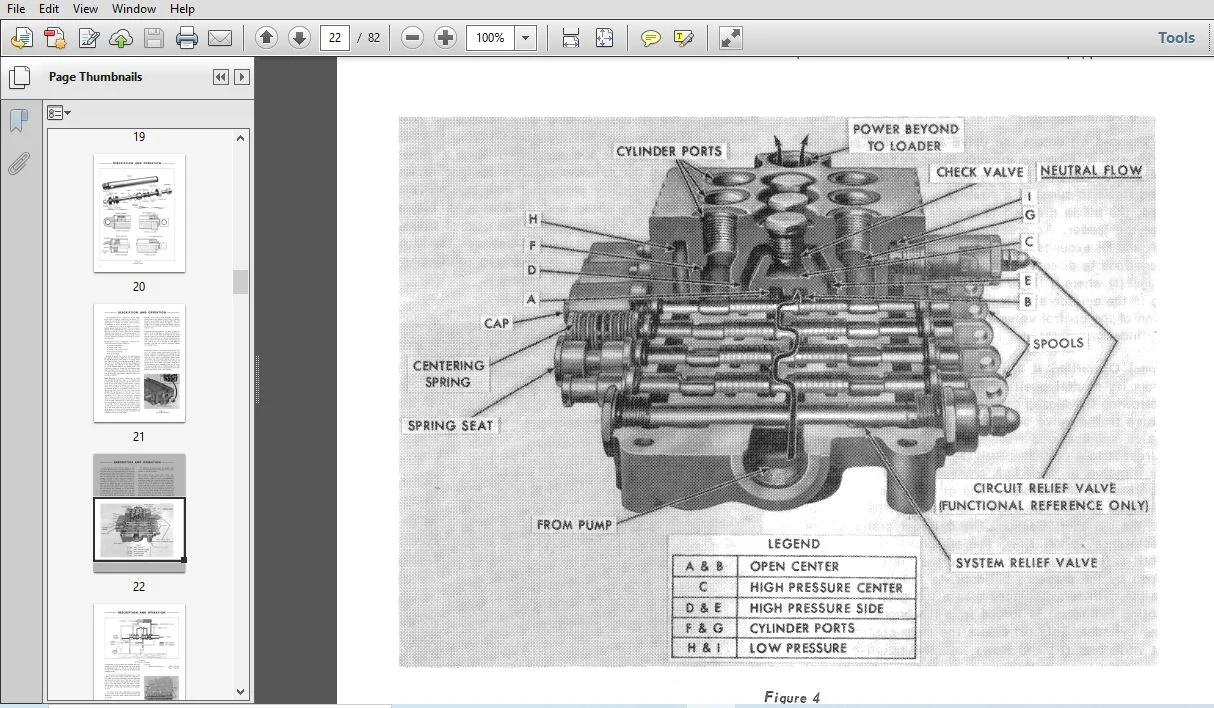

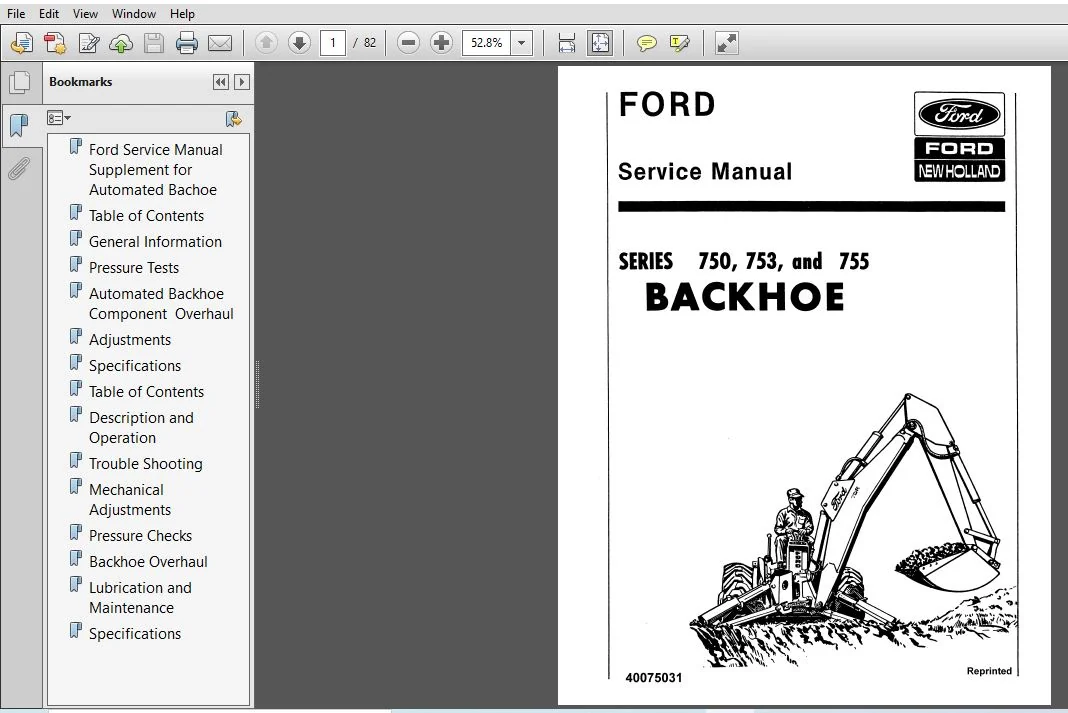

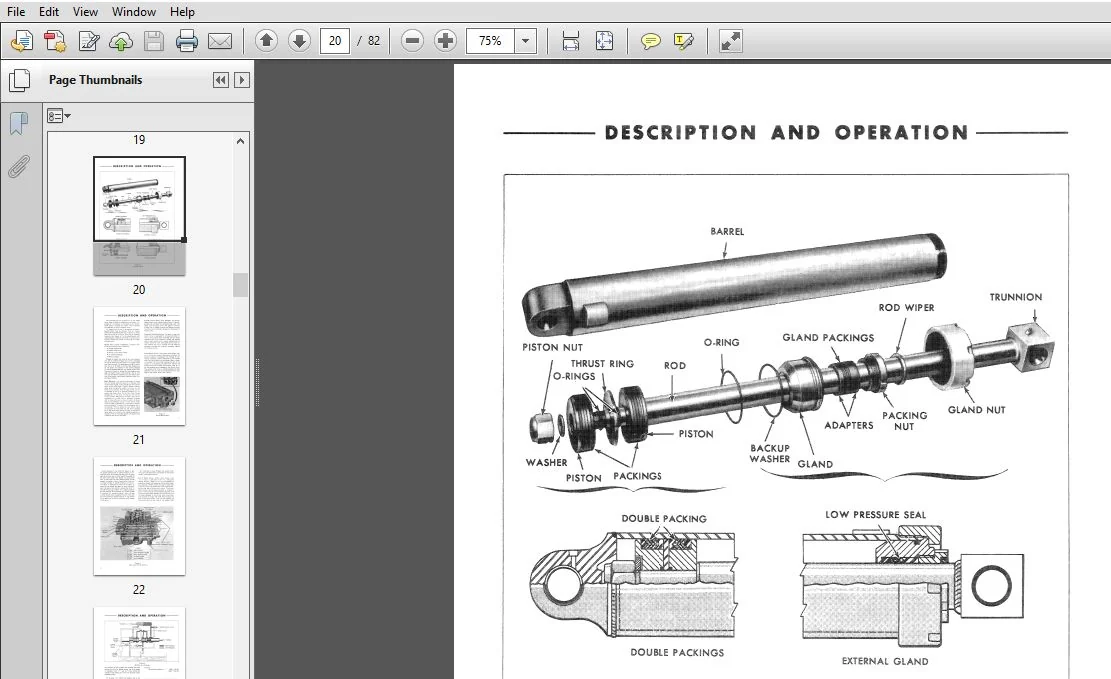

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland Ford Series 750, 753 and 755 Backhoe Service Manual (40075031)

• THIS MANUAL CONTAINS SERVICE PROCEDURES FOR THE FORD INDUSTRIAL BACKHOES. SERIES 750 (IO-FOOT). SERIES 753 (IS-FOOT). AND SERIES 755 (IS-FOOT). DETAILED INFORMATION IS GIVEN ON DESCRIPTION AND OPERATION. TROUBLE SHOOTING, TESTS AND ADJUSTMENTS, MAINTENANCE, LUBRICATION. AND SPECIFICATIONS. THE LISTS 0N PAGES 66 AND 67 CCNVERTS THE SPECIFI- CATIONS USED IN THE TEXT OF THIS MANUAL TO THE METRIC SYSTEM. INSTALLATION OF THE BASIC BAOKHOES.
• THE ATTACHING KITS, AND THE HYDRAULIC KITS IS NOT COVERED IN THIS PUBLICATION.REFER TO THE APPRO- PRIATE OPERATING AND ASSEMBLY MANUALS FOR INSTALLATION INFORMATION. EACH BACKHOE IS SIMIMR IN CONSTRUCTION AND IDENTICAL IN OPERATION: THERE ARE.
• HOWEVER. VARIANCES IN DIMENSIONS AND SPECIFICATIONS. PARTICULAR ATTENTION SHOULD BE GIVEN TO THE CORRECT SERIES IDENTI- FICATION I‘IHEN ORDERING PARTS 0R WHEN SERVICING THE UNIT.
• THE SERVICE PROCEDURES IN THIS MANUAL ARE THE MOST APPARENT.
• PRACTICAL, AND EFFICIENT METHODS: HOWEVER, A PROCEDURE MAY NOT PROVE TO BE THE MOST DESIRABLE IN ALL SITUATICNS. ALTERNATE METHODS ARE SOMETIMES REQUIRED, DEPENDING UPON THE TOOLS AND EQUIPMENT AVAIL ABLE.
• REFERB‘ICE TO DIRECTION IN THE OPERATION AND SERVICING OF THE BACK- HOE IS MADE AS VIEWED FROM TIE EACKHOE SEAT.
• WHEN ORDERING PARTS. LEFT AND RIGHT ARE REVERSED AND REFERENCED AS FACING IN THE DIREC’ TION 0F TRACTOR TRAVEL. KEEP THIS MANUAL WITH YOUR OTHER SERVICE MATERIAL SO THAT IT WILL BE READILY AVAILABLE WHEN REQUIRED.

TABLE OF CONTENTS:

New Holland Ford Series 750, 753 and 755 Backhoe Service Manual (40075031)

Ford Service Manual Supplement for Automated Bachoe …. 3
Table of Contents ……………………………….. 5
General Information ……………………………… 6
Pressure Tests ………………………………….. 8
Automated Backhoe Component Overhaul …………….. 9
Adjustments ……………………………………..15
Specifications …………………………………..16
Table of Contents ………………………………..17
Description and Operation …………………………18
Trouble Shooting …………………………………30
Mechanical Adjustments …………………………..34
Pressure Checks ………………………………….35
Backhoe Overhaul …………………………………50
Lubrication and Maintenance ……………………….72
Specifications …………………………………..74
