New Holland FR35 Wheel Loader Engine Related Components Service Repair Manual – PDF DOWNLOAD

Description

New Holland FR35 Wheel Loader Engine Related Components Service Repair Manual

FILE DETAILS:

New Holland FR35 Wheel Loader Engine Related Components Service Repair Manual

Language : English
Pages : 66
Downloadable : YES
Format : PDF
Part No : 73149377

DESCRIPTION:

New Holland FR35 Wheel Loader Engine Related Components Service Repair Manual

GENERAL:

Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining. fueling. or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining. fueling or servicing machine. Machine-mounted safety signs have been color coded yeHow with black border and lettering for WARNING and red with white border and lettering for DANGER points.

• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs,’hands and feet inside operator’s compartment at all times to reduce exposure to’hazards outside the operator’s compartment. Do not ailow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions. fire, high walls, drop off, back fills, rough terrain. ditches, ridges, excavations, heavy traffic, crowded parking. crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles crear of foreign objects, oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes belore attempting to mount or operate the machine. 8e careful of slippery conditiol1$ on stepping points, hand rails, and on the ground.
• Wear safety boots Of shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys 10 authorized security. Heed ail shut down procedures of the Operation and Maintenance Instruction Manual.
• Always , set the parking brake when leaving the machine for any reason. Do not wear rings, wrist watches, jewelry. loose or hanging apparel. such as ties, torn clothing. scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safely glasses or goggles. reflector vests, or respiralors.

TABLE OF CONTENTS:

New Holland FR35 Wheel Loader Engine Related Components Service Repair Manual

• Safety Rules
• Foreword
• General Description
• Hood and Side Panels
• Muffler
• Air Cleaner
• Engine Controls
• Cold Weather Starting Aid
• Starter and Alternator
• By-Pass Oil Filter
• Engine Protection System
• Radiator, Radiator Support and Fan Drive
• Engine
• Service Tools

NEW HOLLAND FR35 WHEEL LOADER ENGINE RELATED COMPONENTS SERVICE REPAIR MANUAL – PDF DOWNLOAD:

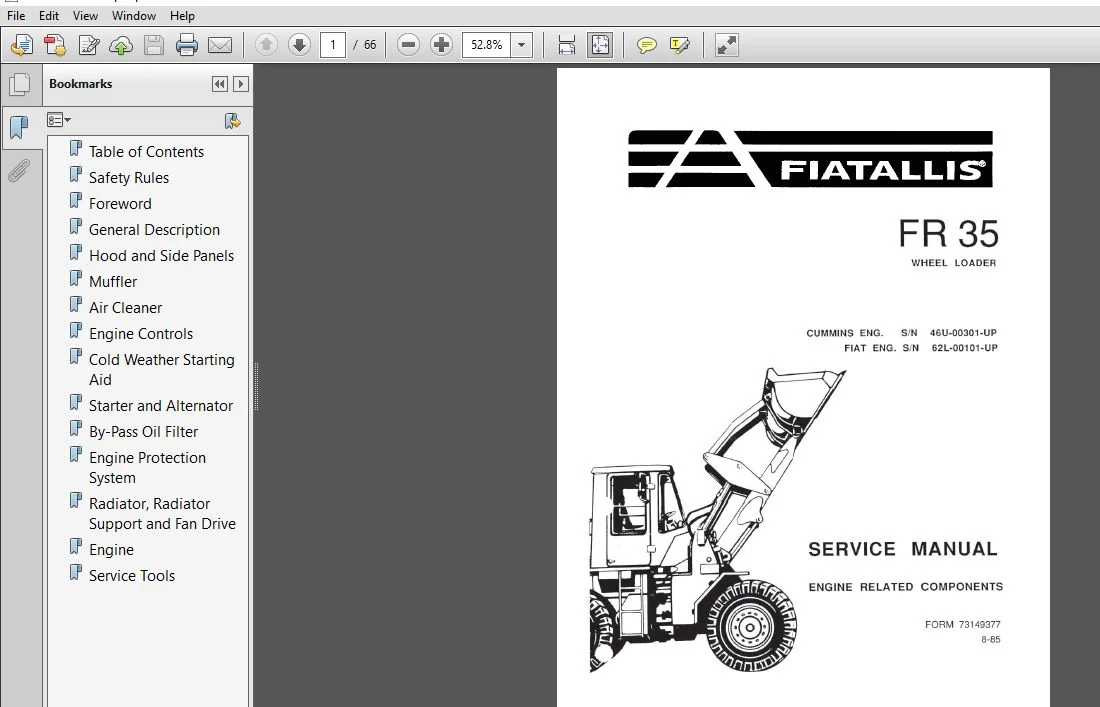

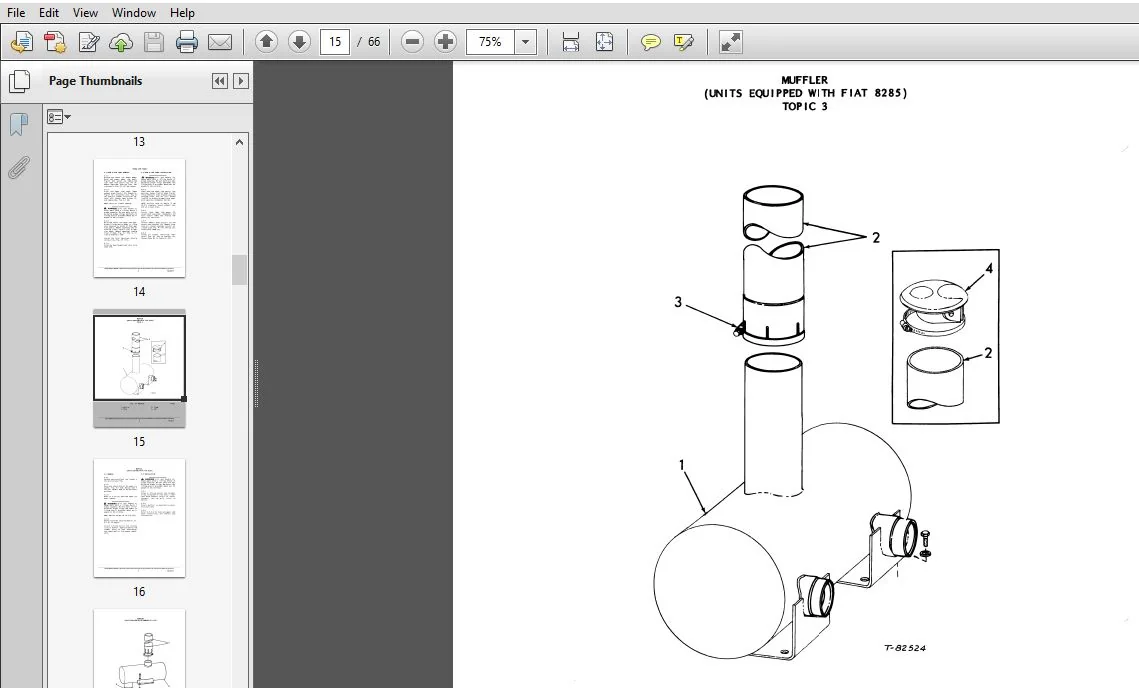

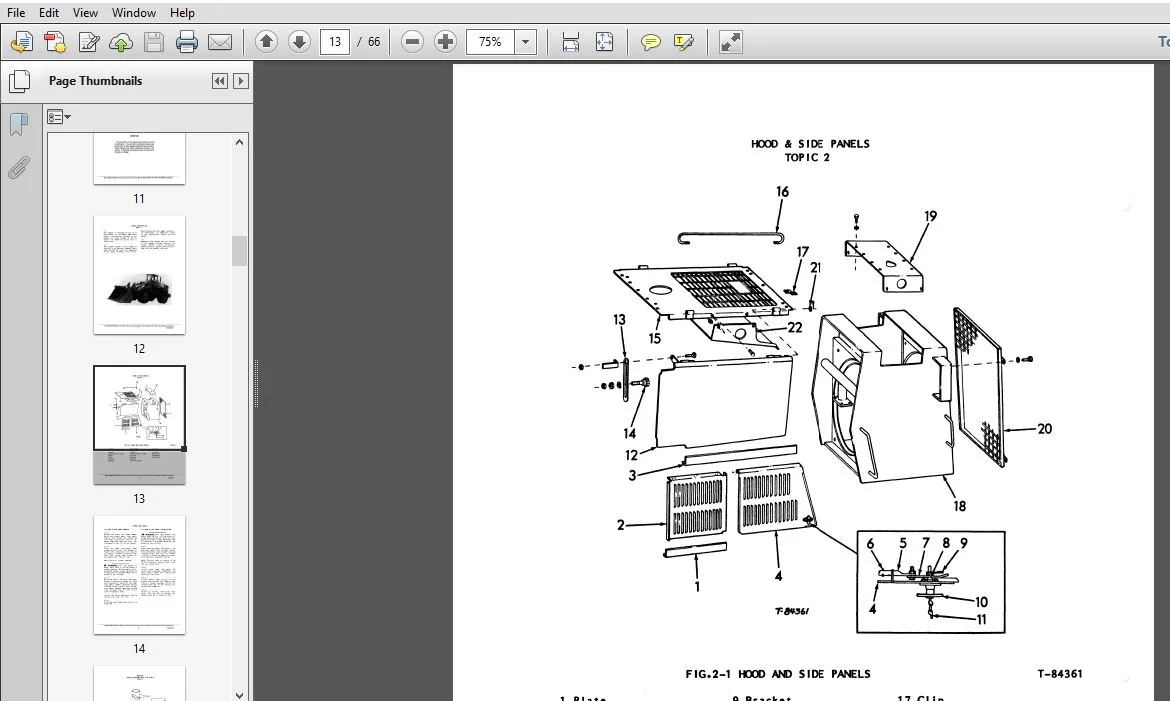

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
