NEW HOLLAND FX480LC PHOENIX SERIES CRAWLER EXCAVATOR SERVICE MANUAL 73176979 – PDF DOWNLOAD

Description

NEW HOLLAND FX480LC PHOENIX SERIES CRAWLER EXCAVATOR SERVICE MANUAL

FILE DETAILS:

NEW HOLLAND FX480LC PHOENIX SERIES CRAWLER EXCAVATOR SERVICE MANUAL

Size: 56.2 MB
Format: PDF
Language: English
Brand: Fiat
Type of machine: Excavator
Type of document: Service Manual
Model: Fiat Allis FX480LC Phoenix Series Crawler Excavator
Number of Pages: 832 pages
Date Modified: 05/1998 issue 1
Print No.: 73176979

DESCRIPTION:

NEW HOLLAND FX480LC PHOENIX SERIES CRAWLER EXCAVATOR SERVICE MANUAL

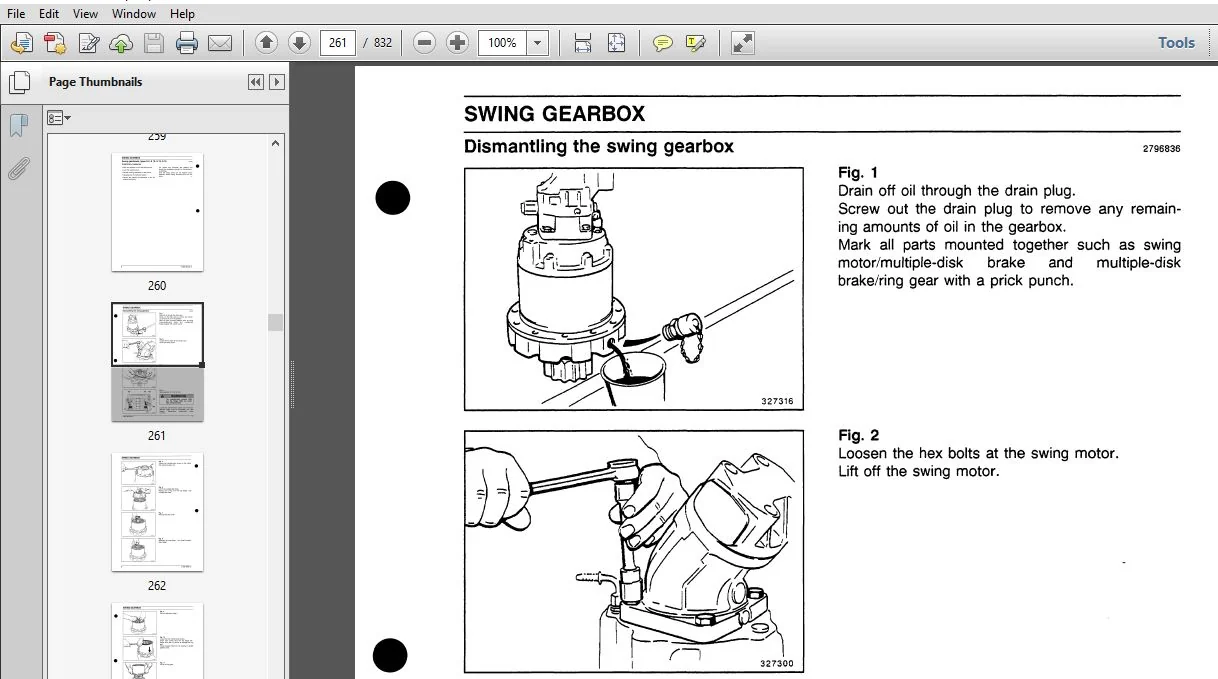

SAMPLE PAGE FROM THE MANUAL

• The operating instructions must always be at hand at the place of use oi the machine. e.g. by stowing them in the tool compartment or tool-box provided for such purpose. in addition to the operating instructions, observe and instruct the user in all other generally ap- plicable legal and other mandatory regulations rel- evant to accident prevention and environmental _ protection.
• These compulsory regulations may also deal with the handling of hazardous substances. issuing andior wearing of personal protective equipment or traffic regulations. The operating instructions must be supplemented by instructions covering the duties involved in supervising and notifying special organizational features. such as job organization. working se- quences or the personnel entrusted with the work. Personnel entrusted with work on the machine must have read the operating instructions and in particular the chapter on safety before beginning work.
• Reading the instructions after work has begun is too late. This applies especially to per- sons working only occasionally on the machine. e.g. during setting up or maintenance. Check – at least from time to time – whether the personnel is carrying out the work in compliance with the operating instructions and paying atten- tion to risks and safety factors. For reasons of security.
• long hair must be tied back or otherwise secured, garments must be close~fitting and no jewellery. such as rings. may be worn. injury may result from being caught up in the machinery or from rings catching on mov- ing parts.
• Use protective equipment wherever required by the circumstances or by law. Observe al safety instructions and warnings at- tached to tne machine. See to it that safety instructions and warnings attached to the machine are always complete and perfectly legible. in the event of safety-relevant modifications or changes in the behaviour of the machine during operation.
• stop the machine immediately and re- port the malfunction to the competent author- ityfperson. Never make any modifications. additions or con- versions which might affect safety without the supplier’s approval.
• This also applies to the in- stallation and adjustment of safety devices and valves as well as to welding work on load-bearing elements. Spare parts must comply with the technical re quirements specified by the manufacturer.
• Spare parts from original equipment manufacturers can be relied to do so. Replace hydraulic hoses within stipulated and ap- propriate intervals. even if no safety-relevant de- fects have been detected.
• Adhere to prescribed intervals or those specified in the operating instructions for routine checks and inspections. For the execution of maintenance work. tools and workshop equipment adapted to the task on hand are absolutely indispensable. The personnel must be familiar with the location and operation of fire extinguishers. Observe all fire-waming and fire-fighting proce- dures. .

NEW HOLLAND FX480LC PHOENIX SERIES CRAWLER EXCAVATOR SERVICE MANUAL 73176979 – PDF DOWNLOAD:

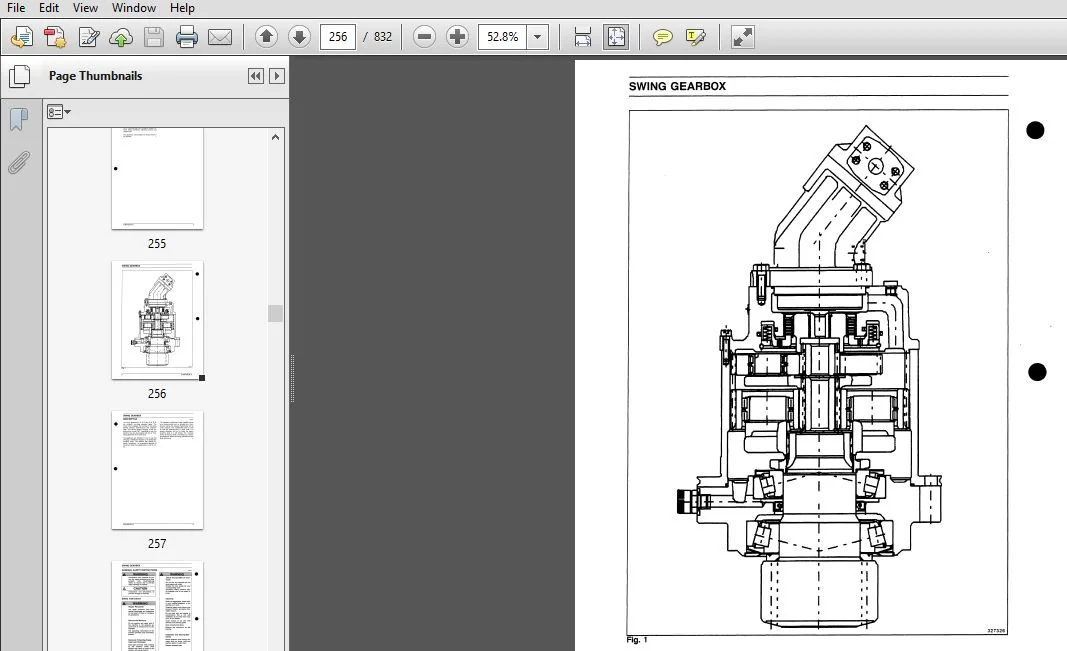

IMAGES PREVIEW OF THE MANUAL:

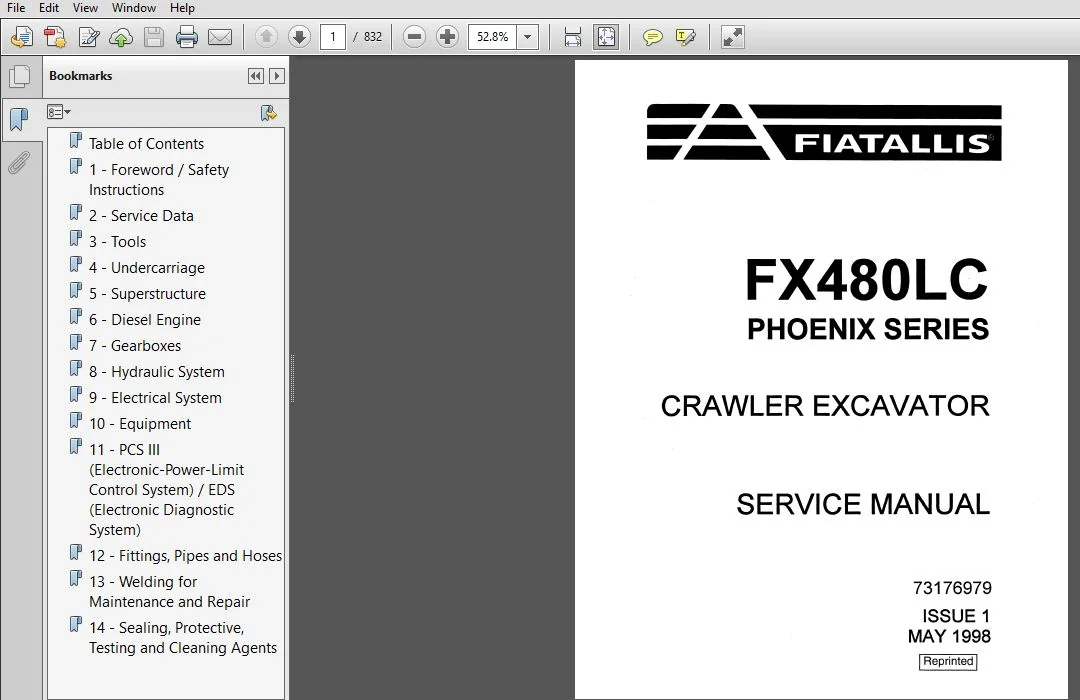

TABLE OF CONTENTS:

NEW HOLLAND FX480LC PHOENIX SERIES CRAWLER EXCAVATOR SERVICE MANUAL

Table of Contents 5
1 – Foreword / Safety Instructions 9
2 – Service Data 21
3 – Tools 111
4 – Undercarriage 123
5 – Superstructure 157
6 – Diesel Engine 183
7 – Gearboxes 185
8 – Hydraulic System 309
9 – Electrical System 409
10 – Equipment 527
11 – PCS III (Electronic-Power-Limit Control System) / EDS (Electronic Diagnostic System) 537
12 – Fittings, Pipes and Hoses 645
13 – Welding for Maintenance and Repair 697
14 – Sealing, Protective, Testing and Cleaning Agents 805
