New Holland G5030 G5035 Zero Turn Mower Service Repair Manual (84218042) – NH G5030 G5035 – PDF Download

Description

New Holland G5030 G5035 Zero Turn Mower Service Repair Manual (84218042) – NH G5030 G5035

File Details:

New Holland G5030 G5035 Zero Turn Mower Service Manual_84218042
Size: 4.67 MB
Format: PDF
Language: English
Number of Pages: 190 pages
Brand: New Holland
Type of document: Service Manual
Model: G5030 G5035 Zero Turn Mower
Part No: 84218042

NEW HOLLAND G5030 G5035 ZERO TURN MOWER SERVICE REPAIR MANUAL (84218042) – NH G5030 G5035 – PDF DOWNLOAD:

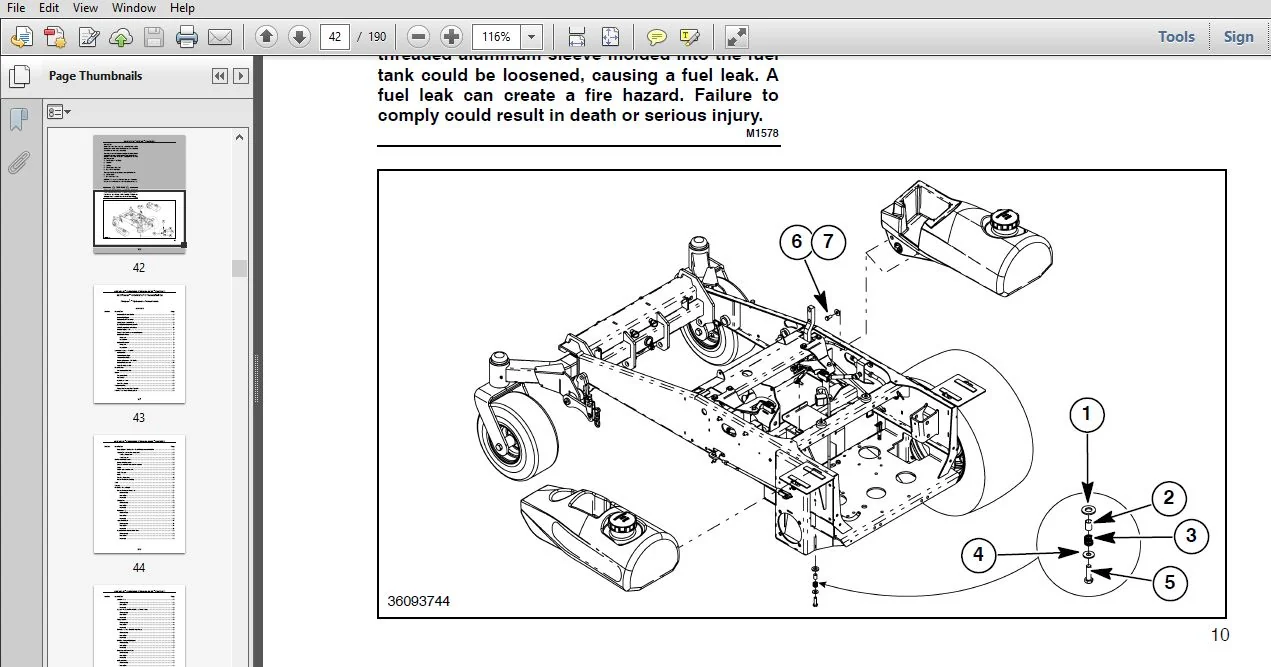

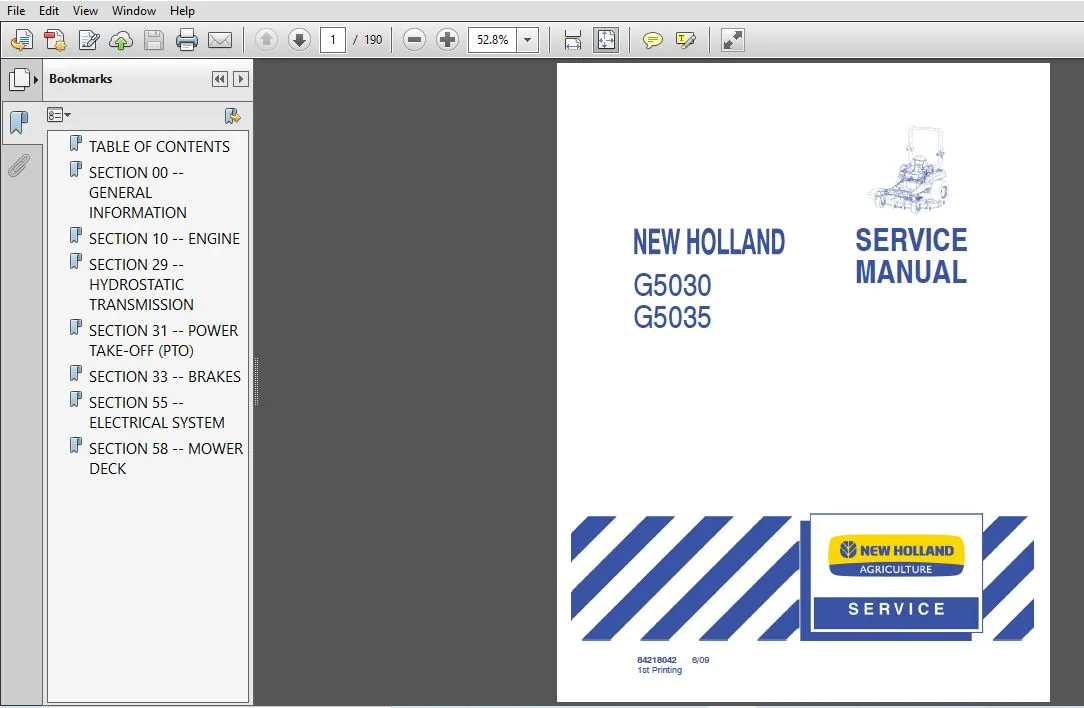

Image Preview:

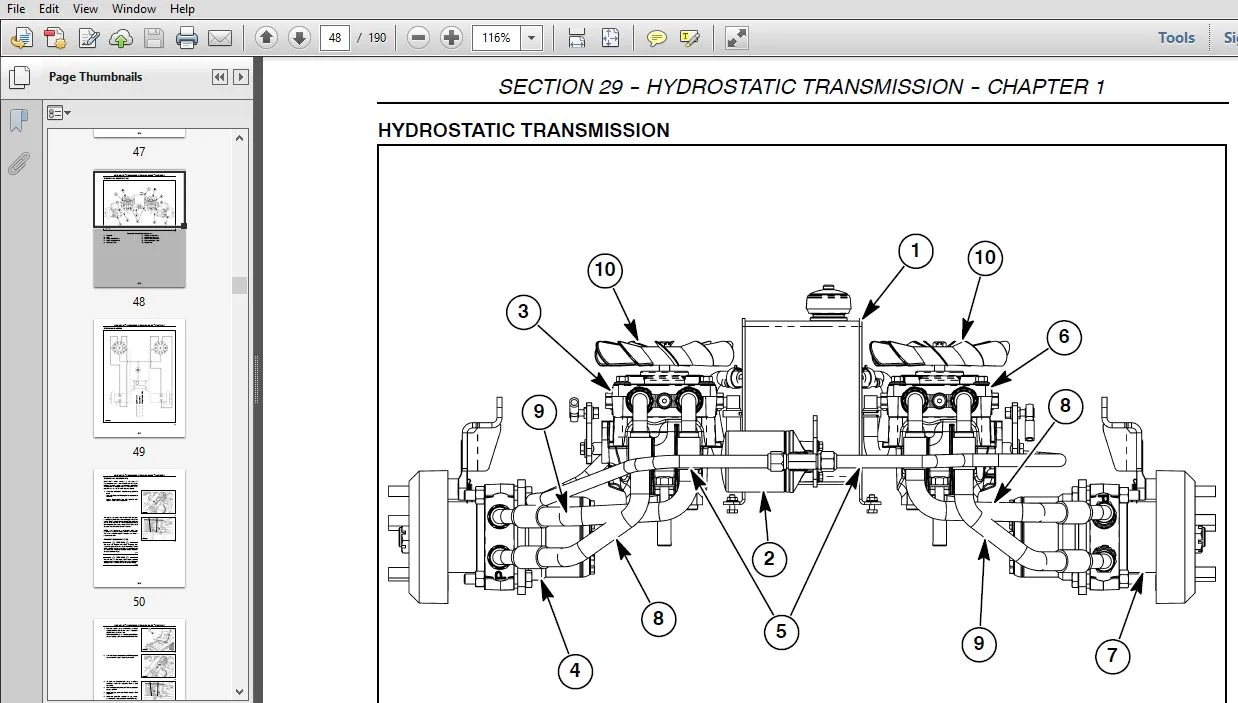

Sample Page From The Manual:

New Holland G5030 G5035 Zero Turn Mower Service Repair Manual (84218042) – NH G5030 G5035

• Never run the engine in an enclosed area. Carbon monoxide fumes from a running engine are very dangerous and can cause permanent injury or death. If the unit must be run indoors, make sure a hose or similar device is used to vent engine exhaust fumes to outside atmosphere.
• When the engine has been running, the engine, the exhaust system, and the hydraulic system, can become very hot. If components must be handled, wear heavy gloves. Better yet, wait for the unit to cool completely before performing maintenance.
• Hot engine oil and hydraulic oil can cause serious burns. Wear heavy gloves and safety glasses to protect yourself from oil that may get splashed.
• Always direct compressed air away from you or others around you. Air driven particles may penetrate the skin or eyes causing serious injury or blindness.
• Wear safety glasses and hearing protection when repairing, operating, or testing the zero-turn mower.Wear safety glasses when handling springs. Detached springs can bounce with enough force to damage property or cause personal injury.
• Always wear gloves when handling or sharpening cutting blades. Do not use blades that are damaged enough where sharpening will not correct the damage.
• Always keep the work area and repair bench clean. Dirt ingested into close fitting parts, especially hydraulic components, can cause a repeat failure.
• To avoid a falling injury, make sure the work area is well illuminated, the floor is clean and free of dirt, oil, water, or other debris.
• Never handle a battery when smoking, or while near an open flame. Explosive gas is formed and contained in the battery.
• Always wear safety glasses and heavy gloves when handling a battery. Blindness and skin burns can occur if acid is splashed or spilled. Flush the exposed area with fresh water, and call a doctor immediately when any accident involving a battery should occur.
• DO NOT work under any part of the zero-turnmower unless it is supported by a hoist, floor jack and jack stands that are capable of supporting the weight of the unit.

Table Of Contents:

New Holland G5030 G5035 Zero Turn Mower Service Repair Manual (84218042) – NH G5030 G5035

TABLE OF CONTENTS
........................  2
SECTION 00 -- GENERAL INFORMATION......... 15
SECTION 10 -- ENGINE...................... 35
SECTION 29 -- HYDROSTATIC TRANSMISSION.... 43
SECTION 31 -- POWER TAKE-OFF (PTO)........115
SECTION 33 -- BRAKES......................125
SECTION 55 -- ELECTRICAL SYSTEM...........129
SECTION 58 -- MOWER DECK..................161

Please Note:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
