New Holland G6030 G6035 Commercial Mower Service Repair Manual (84203602) – NH G6030 G6035 – PDF Download

Description

New Holland G6030 G6035 Commercial Mower Service Repair Manual (84203602) – NH G6030 G6035

File Details:

New Holland G6030, G6035 Commercial Mower Service Manual_84203602
Size: 26 MB
Format: PDF
Language: English
Number of Pages: 798 pages
Brand: New Holland
Type of document: Service Manual
Model: G6030, G6035 Commercial Mower
Part No: 84203602

Description:

New Holland G6030 G6035 Commercial Mower Service Repair Manual (84203602)

GENERAL
The G6030 and G6035 mowers have been built using metric hardware.
NOTE: Be sure to use the hardware specified when using tapped holes, as trying to install ametric bolt in an inch thread, or an inch bolt in a metric thread, will damage the thread.
Certain hardware must be tightened to specific torque specifications. If specific torque specifications are not noted, tighten the hardware to the standard torque chart specification listed in this manual.
PLATING
Hardware used on New Holland mowers is plated with zinc chromate (gold color). Gold colored hardware has different torquing requirements from unplated or zinc plated (silver color) hardware because of the difference in the coefficient of friction of the plating material. The torque charts in this manual list the correct specifications for gold, silver, and unplated bolts.
NUT TIGHTENING
Whenever possible, the nut should be tightened, not the head of the bolt. When tightening using the bolt head, the clamp load can be lost because some of the torque applied twists the bolt instead of tensioning (stretching) it. The tension on the bolt is what holds the joint together.
Approximately 90% of the torque applied during assembly goes to overcoming friction between the parts. The other 10% is used to tension (stretch) the bolt. After assembly, the frictional forces disappear, which is the basis for the saying “If it does not fail during assembly, it will not fail in service.” The bolt may later fail due to other factors, but not from being overtightened.
LOCKNUTS
Most locknuts are coated with a special lubricant that is dry to the touch. Any time a locknut is used, a lower than normal torque is required. Refer to the torque charts in this manual for specific values.
JAM NUTS
When using a jam nut to lock a regular nut, the jam nut should be installed first and tightened to one half the recommended torque, then held in place while installing a regular nut to the recommended torque.
THREAD LUBRICATION
The addition of antiseize compound, Molykote, oil, graphite, or any other lubricant to a bolt decreases the friction between it and a nut. This makes it necessary to reduce the recommended torque to prevent overtensioning of the bolt. When using the torque charts in this manual, decrease the value by
20% whenever a lubricant is used.

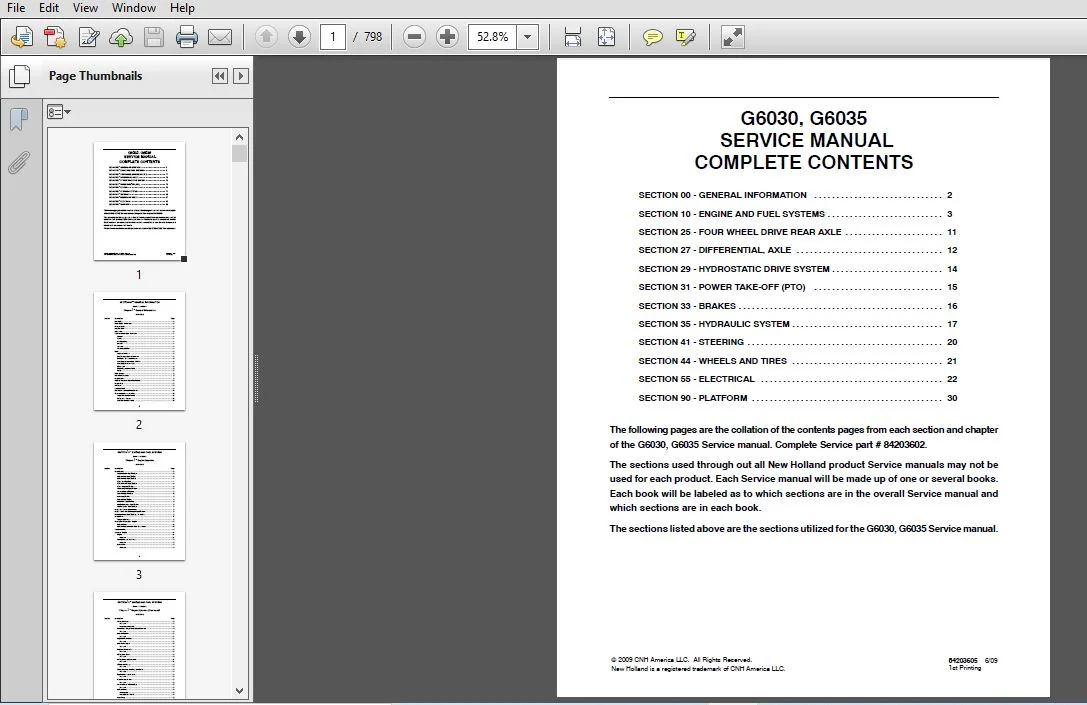

Table Of Contents:

New Holland G6030 G6035 Commercial Mower Service Repair Manual (84203602)

COMPLETE CONTENTS..........................  1
SECTION 00 - GENERAL INFORMATION........... 31
SECTION 10 - ENGINE AND FUEL SYSTEMS....... 63
SECTION 25 - FOUR WHEEL DRIVE REAR AXLE....209
SECTION 27 - DIFFERENTIAL, AXLES...........259
SECTION 29 - HYDROSTATIC DRIVE SYSTEM......323
SECTION 31- POWER TAKE-OFF (PTO)...........389
SECTION 33 - BRAKES........................425
SECTION 35 - HYDRAULIC SYSTEM..............441
SECTION 41 - STEERING......................509
SECTION 44 - WHEELS AND TIRES..............559
SECTION 55 - ELECTRICAL....................565
SECTION 90 - PLATFORM......................781

NEW HOLLAND G6030 G6035 COMMERCIAL MOWER SERVICE REPAIR MANUAL (84203602) – NH G6030 G6035 – PDF DOWNLOAD:

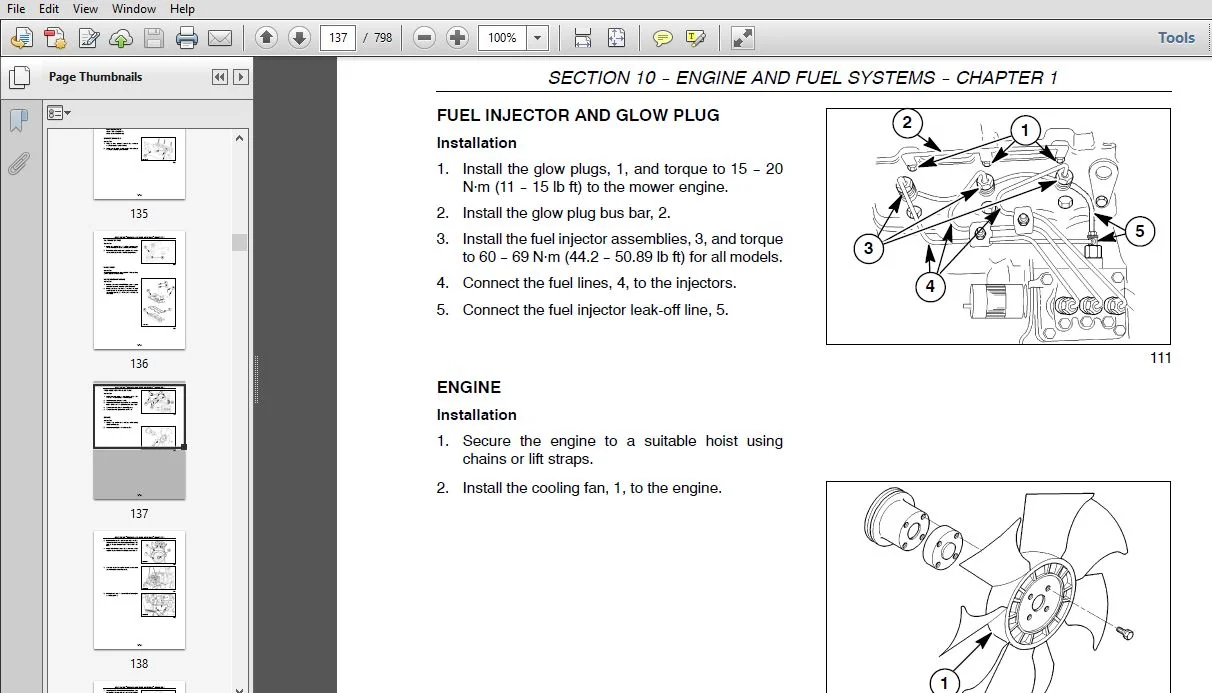

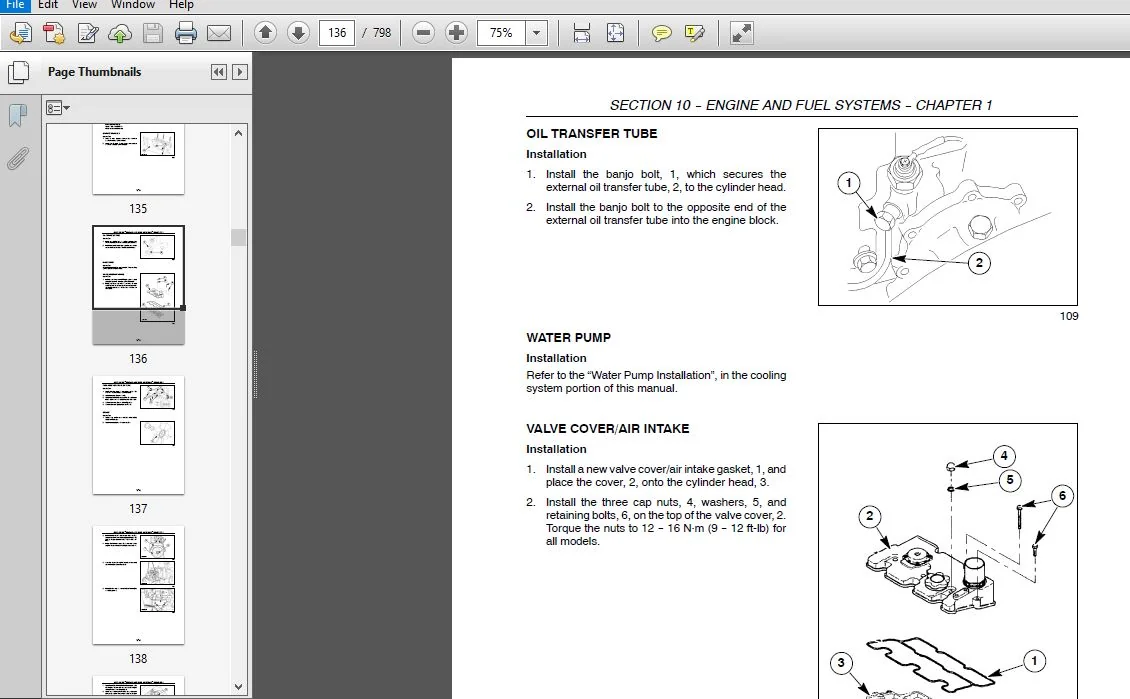

Image Preview:
