New Holland Grain Header VariFeed 760CG Service Manual 47705703 – PDF DOWNLOAD

Description

New Holland Grain Header VariFeed 760CG Service Manual

FILE DETAILS:

New Holland Grain Header VariFeed 760CG Service Manual

Size: 29.5 MB
Format: PDF
Language: English
Number of Pages: 353 pages
Brand: New Holland

DESCRIPTION:

New Holland Grain Header VariFeed 760CG Service Manual

SAMPLE PAGE FROM THE MANUAL:

• All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel, strictly complying with the instructions given, and using, whenever possible, the special tools.
• Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent damages. The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
• In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages caused by parts and/or components not approved by the manufacturer. The information in this manual is up-to-date at the date of the publication.
• It is the policy of the manufacturer for continuous improvement. Some information could not be updated due to modifications of a technical or commercial type, or changes to the laws and regulations of different countries. In case of questions, refer to your  Sales and Service Networks.Your machine may be equipped with special guarding or other devices in compliance with local legislation. Some of these require active use by the operator. Therefore, check local legislation on the usage of this machine.
• Hydraulic system safety Hydraulic oil leaking under pressure can penetrate the skin and cause infection or other injury. To prevent personal injury: Relieve all pressure before disconnecting fluid lines. Before applying pressure, make sure all connections are tight and components are in good condition. Never use your hand to check for suspected leaks under pressure. Use a piece of cardboard or wood for this purpose. If injured by leaking fluid, seek medical attention immediately.
• The hydraulic hoses and fittings on your machine meet engineering specifications for the particular function. When replacing damaged, blown or worn hoses or fittings, use only manufacture authorized service parts. Care in hydraulic hose installation is a must: Make sure pressure is relieved before starting installation procedure. DO NOT kink or twist a hose, failure may occur. Properly route the hose.
• Have a certified hydraulic technician install the hose. Remove air from the hydraulic system after installing any hydraulic component. Periodically check hydraulic system for leaks or damage. check for: Leaks at hose fitting or in hose. Damaged hoses and/or fittings. Kinked, crushed, flattened, hard blistered, heat cracked, charred, twisted, soft or loose covered hoses. Corroded or damaged fittings.
• Leaking ports. Excessive dirt and debris around hoses and/or fittings. Damaged or missing hose retaining clamps, guards, shields, etc. DO NOT stand on or use a hose as a step. DO NOT pull or apply external forces to the hose. The hose may fail and cause injury. Keep all persons away from the working area. Mechanisms controlled by fluid power can become hazardous if a hose fails.
• Lifted mechanisms can fall to the ground, machine steering may fail, etc. Stay clear of a pressurized hose assembly that has blown apart. Hose fittings can be thrown off at high speed and a loose hose can whip around with great force. Hydraulic fluid can reach high temperatures. Allow fluid to cool before servicing the system. Escaping fluid under pressure may form a mist or fine spray which can flash or explode upon contact with an ignition source.
• Vibration can reduce hose service life. Make sure all retaining clamps and/or devices are secured. Environmental conditions can cause hose and fittings to deteriorate. Inspect hydraulic hoses periodically. Replace worn or damaged hoses and fittings.

NEW HOLLAND GRAIN HEADER VARIFEED 760CG SERVICE MANUAL 47705703 – PDF DOWNLOAD:

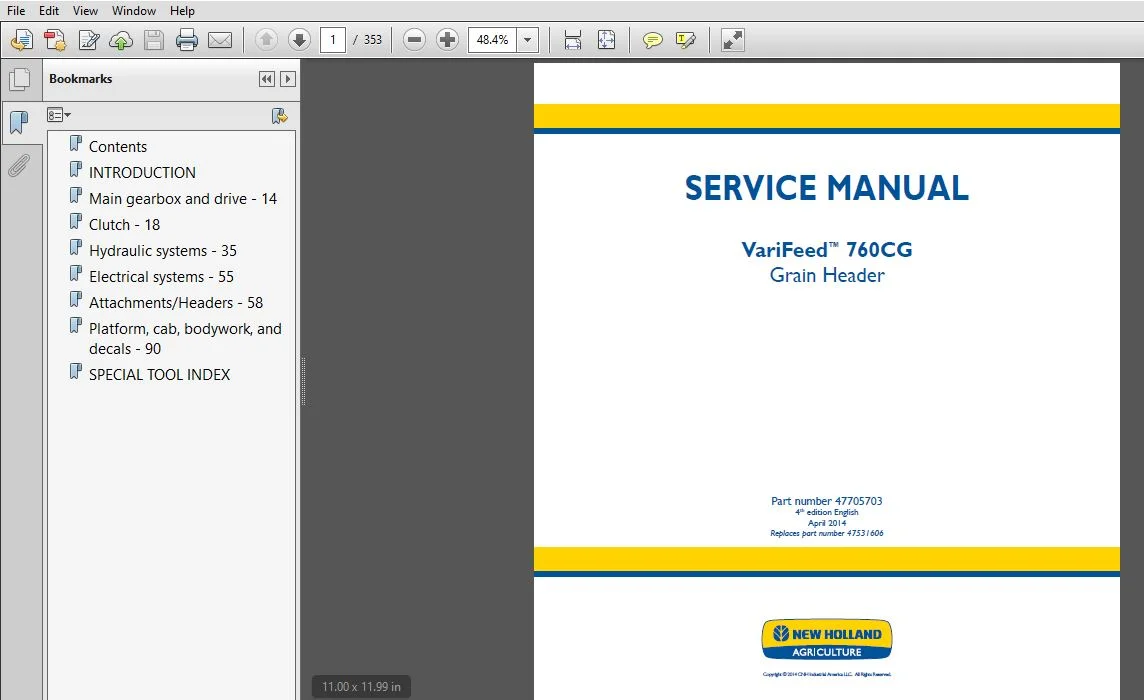

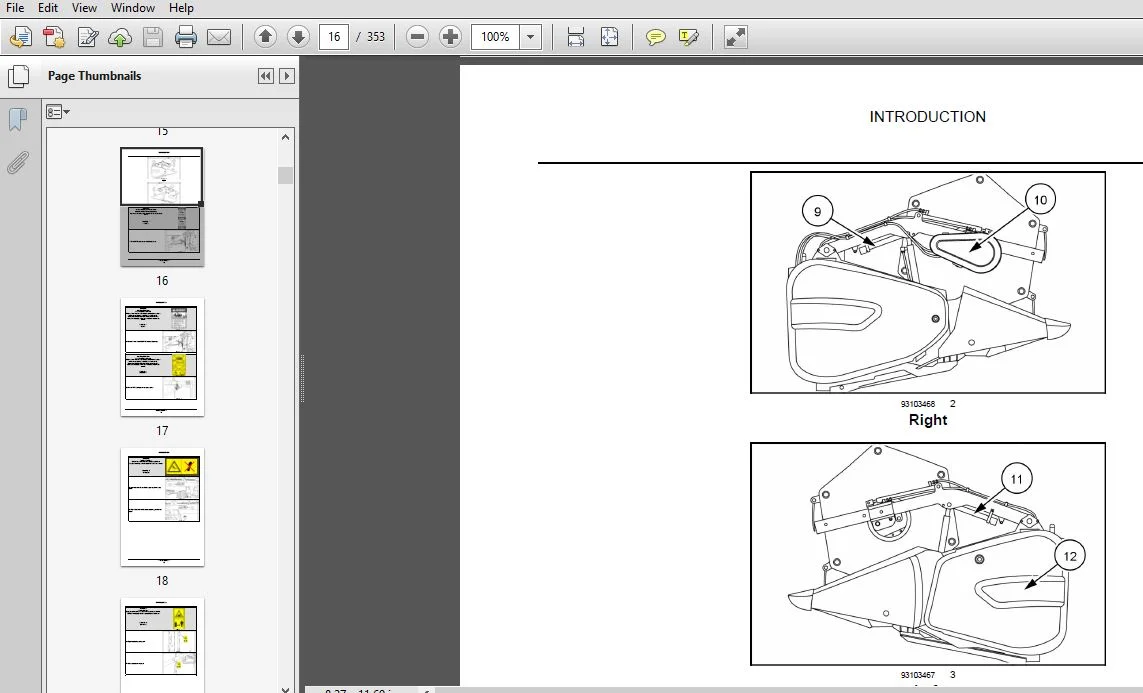

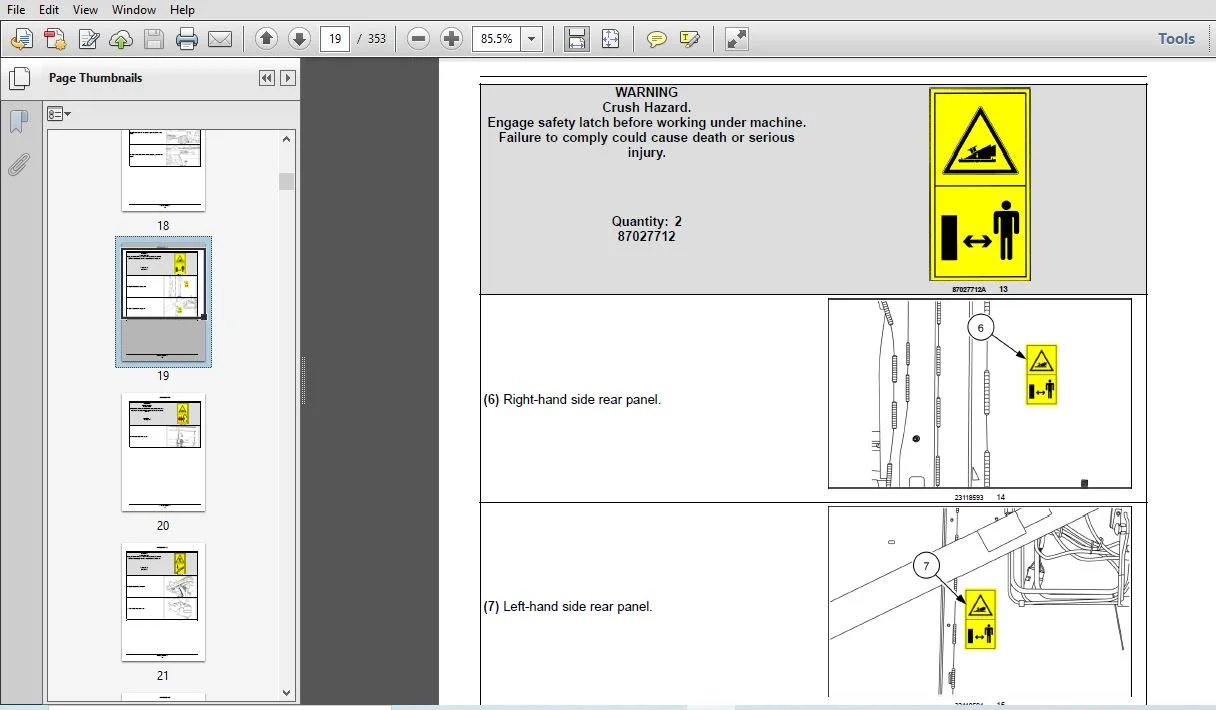

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Grain Header VariFeed 760CG Service Manual

INTRODUCTION
Main gearbox and drive 14
[14 100] Main gearbox and drive 14 1
Clutch 18
[18 112] Slip clutch or flywheel damper 18 1
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 420] Reel vertical positioning system 35 2
[35 430] Reel fore-and-aft positioning system 35 3
[35 518] Reel control system 35 4
[35 565] Cutter control circuit 35 5
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 421] Feeding control system 55 3
[55 661] Cab header controls 55 4
Attachments/Headers 58
[58 101] Attachment/Header reel 58 1
[58 105] Attachment/Header reel control system 58 2
[58 110] Attachment/Header cutting mechanism 58 3
[58 120] Attachment/Header feed auger 58 4
[58 130] Attachment/Header frame 58 5
Platform, cab, bodywork, and decals 90
[90 105] Machine shields and guards 90 1
[90 108] Decals and plates

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
