New Holland Guide for the repairs Excavator structure by weldings Manual 604.07.189.01 – PDF DOWNLOAD

Description

New Holland Guide for the repairs Excavator structure by weldings Manual 604.07.189.01 – PDF DOWNLOAD

FILE DETAILS:

New Holland Guide for the repairs Excavator structure by weldings Manual 604.07.189.01 – PDF DOWNLOAD

Language : English
Pages : 75
Downloadable : Yes
File Type : PDF
Size: 0.59 MB

DESCRIPTION:

New Holland Guide for the repairs Excavator structure by weldings Manual 604.07.189.01 – PDF DOWNLOAD

FORWARD
If construction machineries work under severe conditions for long period, welded structural components may
crack.
To reduce down time and to extend the life of the machine, it is imperative to check for cracks and to repair as
soon as possible. Repairing cracks by appropriate welding techniques (crack detection, restraint, preheating,
gouging, repair welding, reinforcement, and finishing) are most important and effective measures.
However, if inadequate repair welding is applied, cracks will develop again in a shorter period of operation than
before, making it difficult to trace the cause of the repeated crack. If appropriate welding techniques are not
performed, this will allow cracks to develop repeatedly.
• This manual aims to introduce the correct method of repair welding to prevent cracks from developing
repeatedly.
• This manual is intended for welders who have completed technical training of welding (American Welding
Society Class 3 or up, or equivalent), FIAT KOBELCO sales support servicemen and FIAT KOBELCO Dealer
servicemen who are in the position to supervise repair welding.
Be sure to thoroughly read this manual for correct repair welding information and procedure.
Information and specifications in this manual are for repair welding purpose only. They may be different from those
of FIAT KOBELCO construction machinery factory procedures and standards.

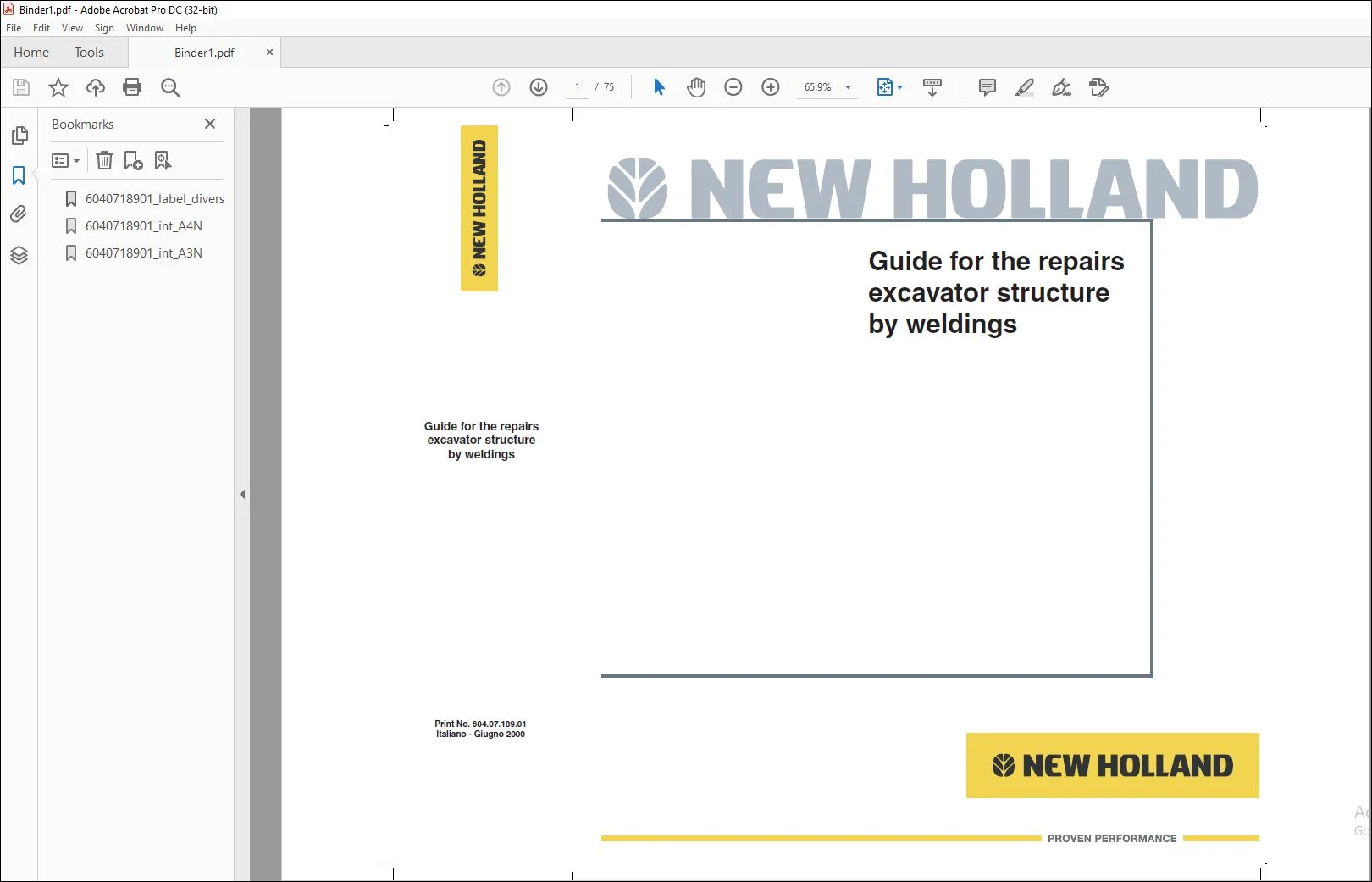

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Guide for the repairs Excavator structure by weldings Manual 604.07.189.01 – PDF DOWNLOAD

Foreword
Safety rules 3
Don’t’s: fundamentals 8

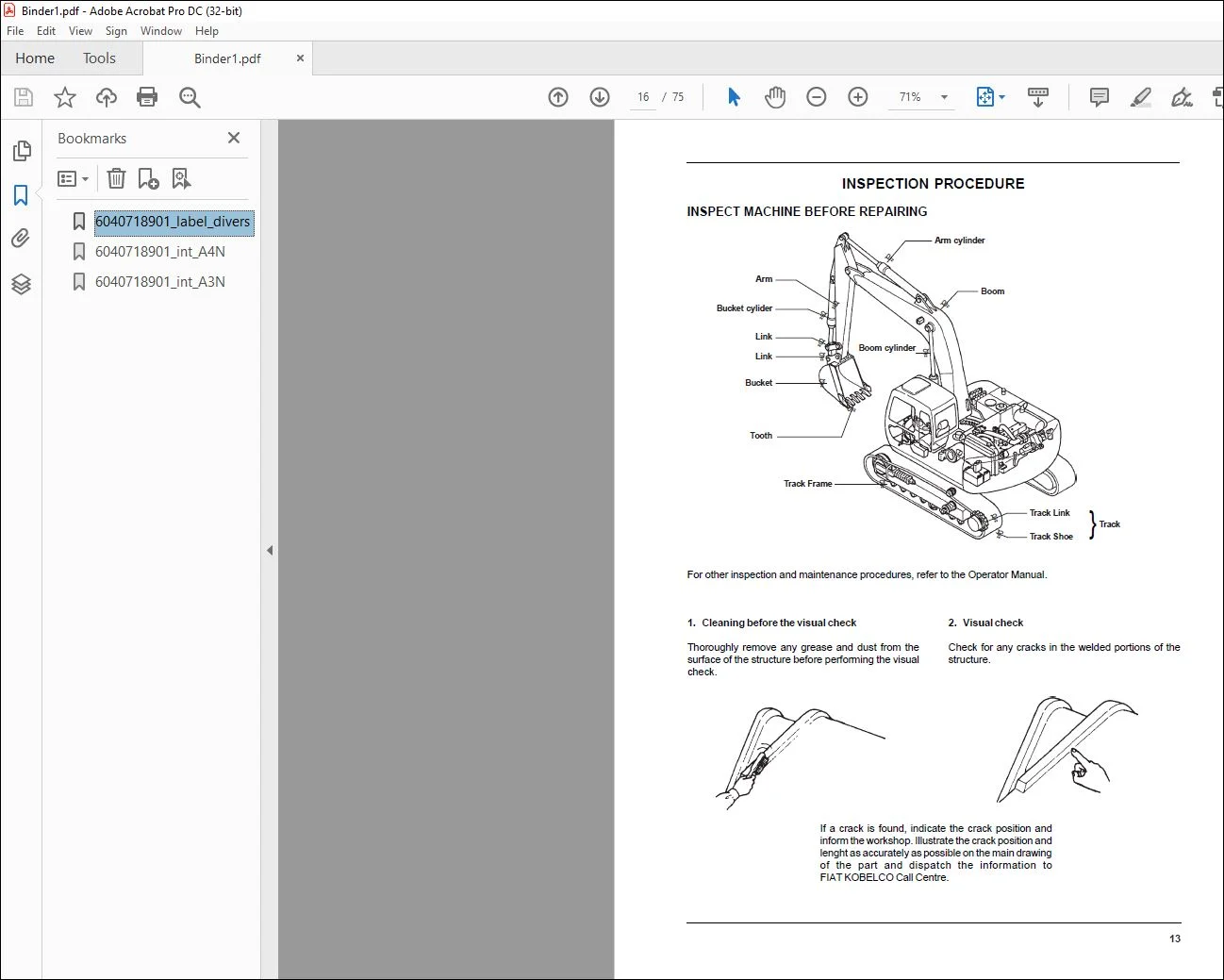

Inspection procedure 13
Repair procedures 14
– Table no. 1 – Dipper stick – Series FH 15
– Table no. 2 – Dipper stick – Series EX
Models EX135 – EX165 – EX215 19
– Table no. 3 – Dipper stick – Series EX
Models EX235 – EX255 – EX285 – EX355 – EX455 25
– Table no. 4 – Monobloc boom 31
– Table no. 5 – Triple articulation – Arm no. 1 51
– Table no. 6 – Upperstructure 55

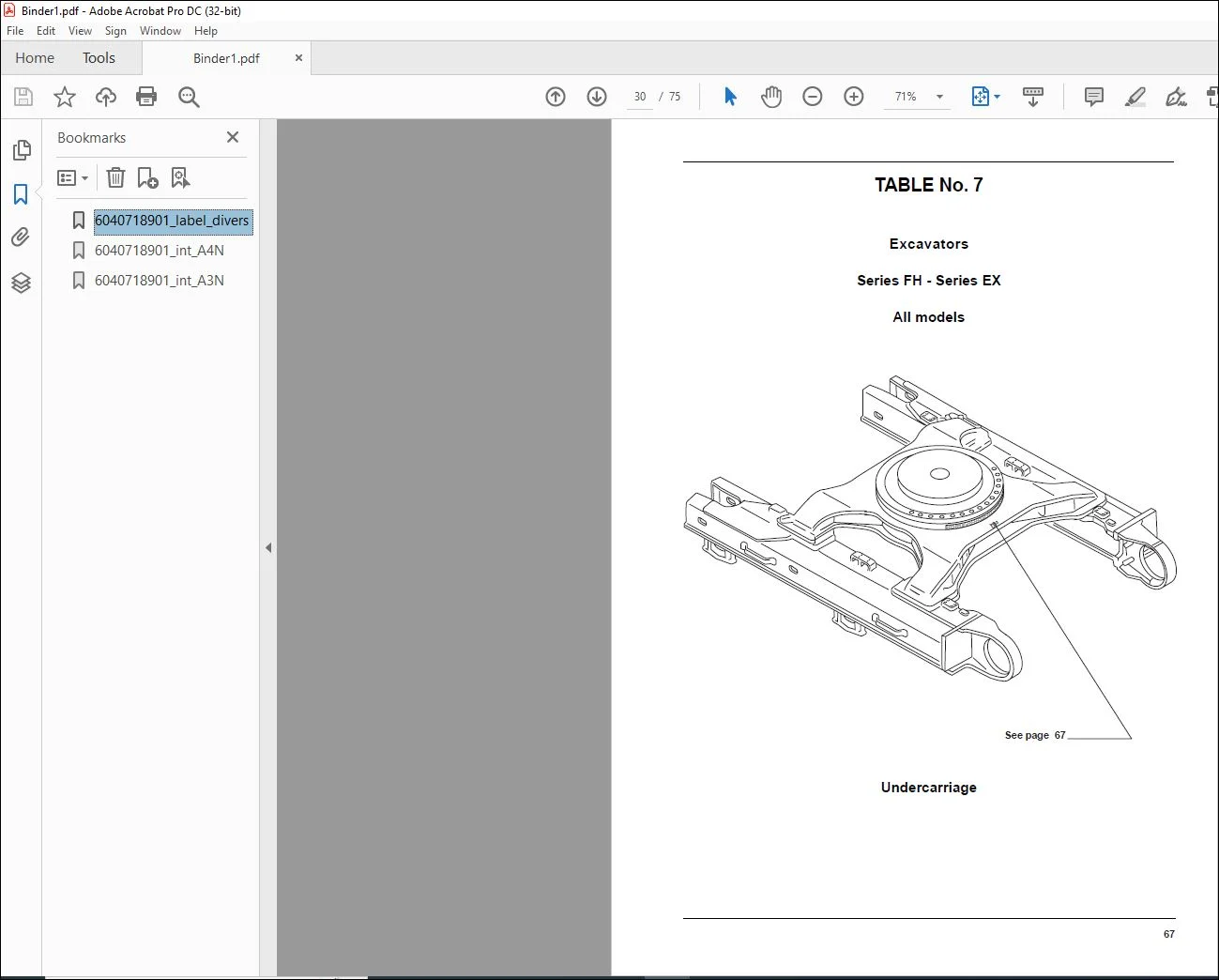

– Table no. 7 – Undercarriage 67
