NEW HOLLAND HD41 41-B CRAWLER TRACTORS STEERING CLUTCHES AND BRAKES SERVICE MANUAL 70696024 – PDF DOWNLOAD

Description

NEW HOLLAND HD41 41-B CRAWLER TRACTORS STEERING CLUTCHES AND BRAKES SERVICE MANUAL

FILE DETAILS:

NEW HOLLAND HD41 41-B CRAWLER TRACTORS STEERING CLUTCHES AND BRAKES SERVICE MANUAL

Size: 5.51 MB
Format: PDF
Language: English
Number of Pages: 50 pages
Brand: New Holland
Type of document: Service Manual
Model: HD 41 41-B
Part No: 70696024

DESCRIPTION:

NEW HOLLAND HD41 41-B CRAWLER TRACTORS STEERING CLUTCHES AND BRAKES SERVICE MANUAL

GENERAL  INFORMATION:

•  Study the Operation and Maintenance Instruction Manual be- tore starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering tor WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The follow- ing are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off. back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize tho danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to ctimbon or off machine while machine is in motion. Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
• Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as tios, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
• Do not carry loose objects in pockets that might fall unnoticed into open compartments. Do not use machine to carry loose objects by means other than attachments for carrying such objects. DO NOT CARRY RIDERSvn\oss\he machine is equipped for carrying people to reduce personal exposure to being thrown off. Do not operate machinery in a condition of extreme fatigue or illness. Be especially careful towards the end of the shift. Roll Over Protective Structures are required on wheel load- ers, dozer tractors, track type loaders, graders and scrapers by local or national requirements.
• DO NOT operate this machine without a Roll Over Protective Structure. Do not operate a machine without a falling object protective structure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat bells are required to be provided with roll over protective structures or roll protection cabs by local or national regula- tions. Keep the safety belt fastened around you during opera- tion. Where noise exposure exceeds 90 dBA for 8 hours, wear authorized ear protective equipment per local or national requirements that apply
• . Keep clutches and brakes on machine and attachments such as power control units, winches and masterclutches adjusted according to Operation and Maintenance Instruction Manuals of the manufacturers at all times. DO NOT adjust machine with engine running except as specified.

NEW HOLLAND HD41 41-B CRAWLER TRACTORS STEERING CLUTCHES AND BRAKES SERVICE MANUAL 70696024 – PDF DOWNLOAD:

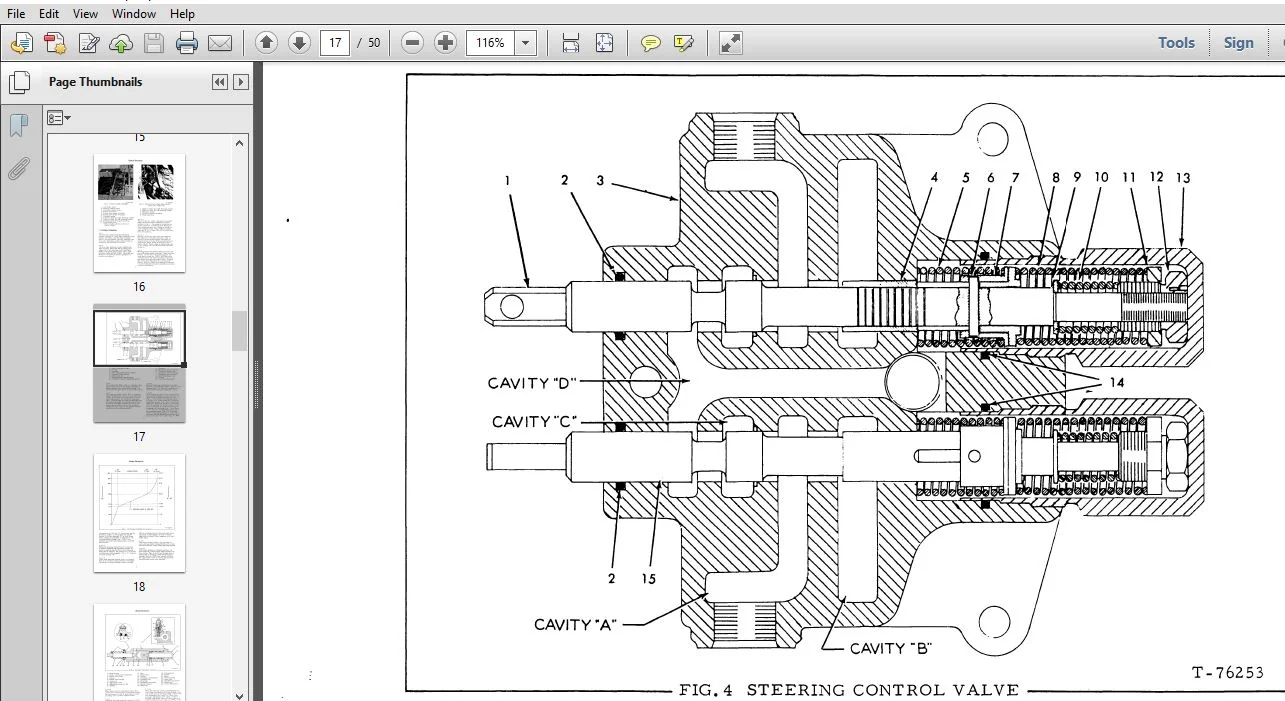

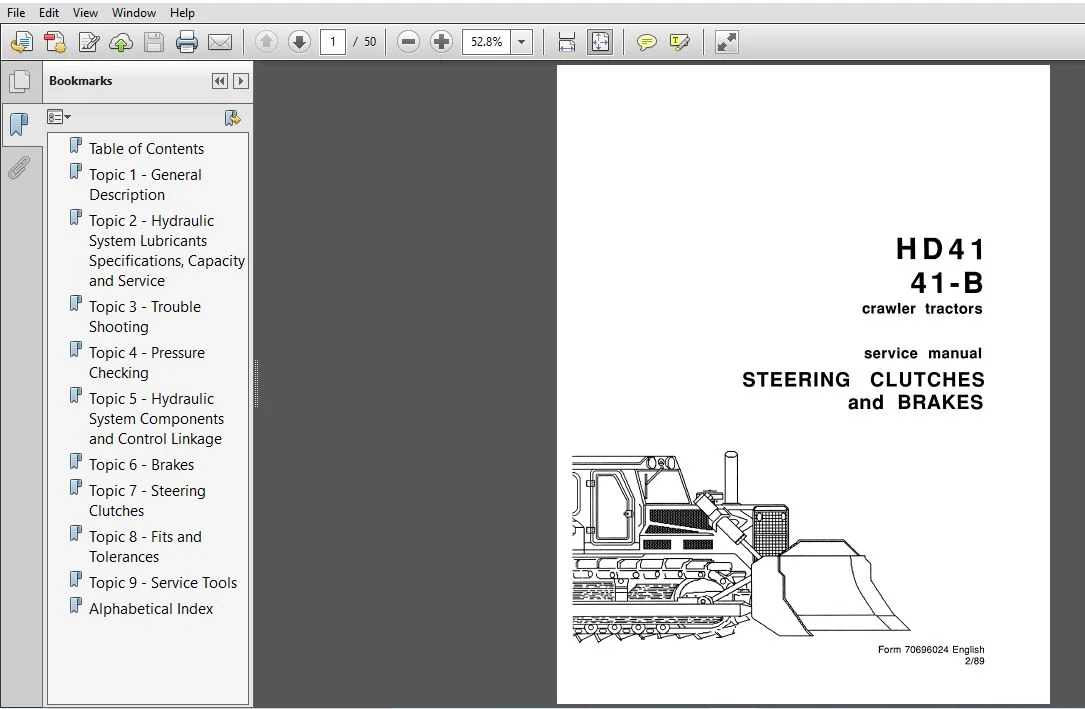

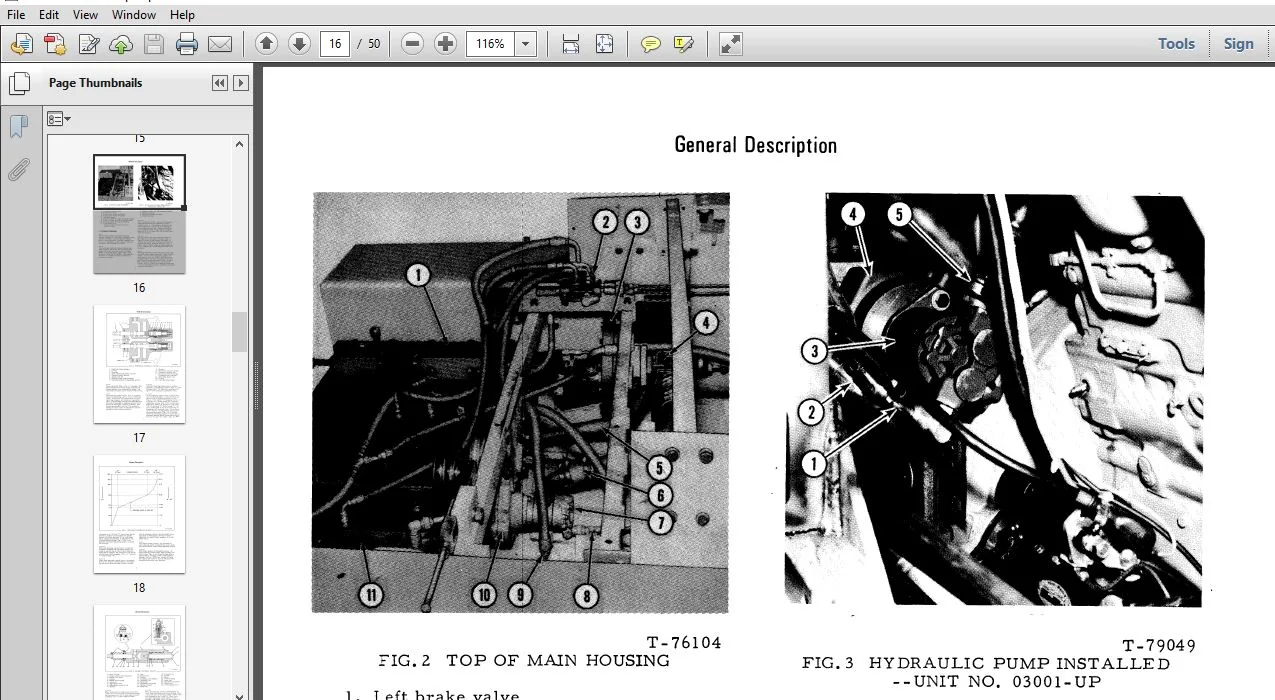

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

NEW HOLLAND HD41 41-B CRAWLER TRACTORS STEERING CLUTCHES AND BRAKES SERVICE MANUAL

Table of Contents 14
Topic 1 – General Description 15
Topic 2 – Hydraulic System Lubricants Specifications, Capacity and Service 21
Topic 3 – Trouble Shooting 22
Topic 4 – Pressure Checking 23
Topic 5 – Hydraulic System Components and Control Linkage 25
Topic 6 – Brakes 36
Topic 7 – Steering Clutches 39
Topic 8 – Fits and Tolerances 46
Topic 9 – Service Tools 47
Alphabetical Index 48

 PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
