New Holland Hydraulic excavator E20.2SR – E22.2SR – E27.2SR 604.13.401 Workshop Manual – DOWNLOAD

Description

New Holland Hydraulic excavator E20.2SR – E22.2SR – E27.2SR 604.13.401 Workshop Manual

FILE DETAILS:

New Holland Hydraulic exavator E20.2SR – E22.2SR – E27.2SR 604.13.401 Workshop Manual
Size : 35.8 MB
Format : PDF
Language : English
Number of Pages : 768 Pages

NEW HOLLAND HYDRAULIC EXCAVATOR E20.2SR – E22.2SR – E27.2SR 604.13.401 WORKSHOP MANUAL – DOWNLOAD:

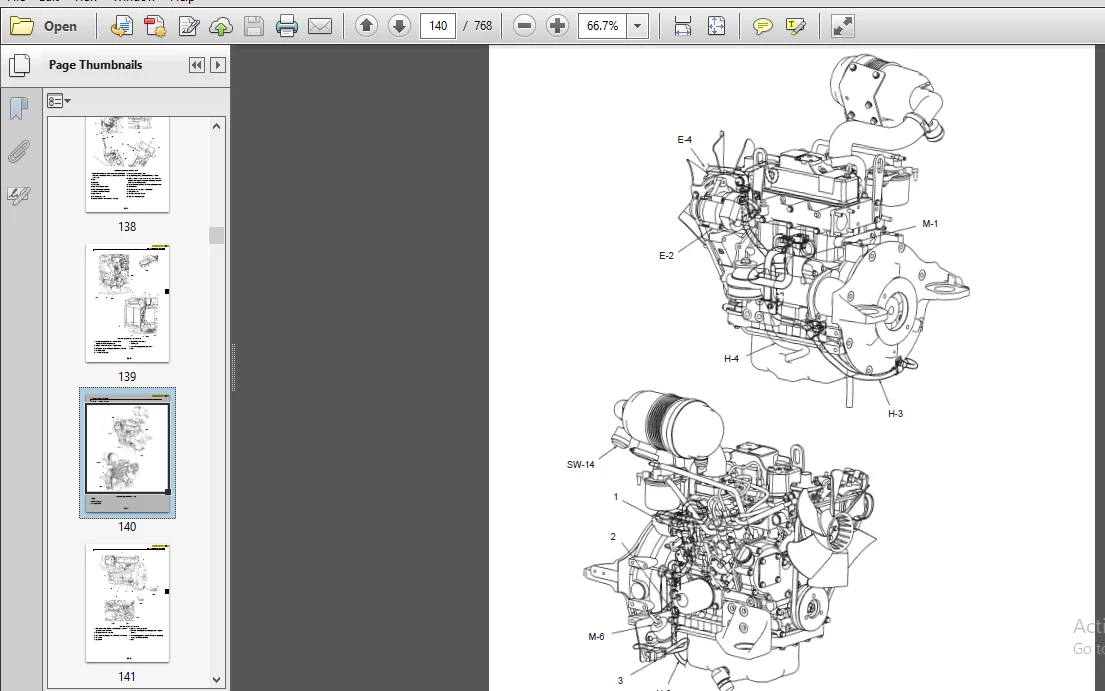

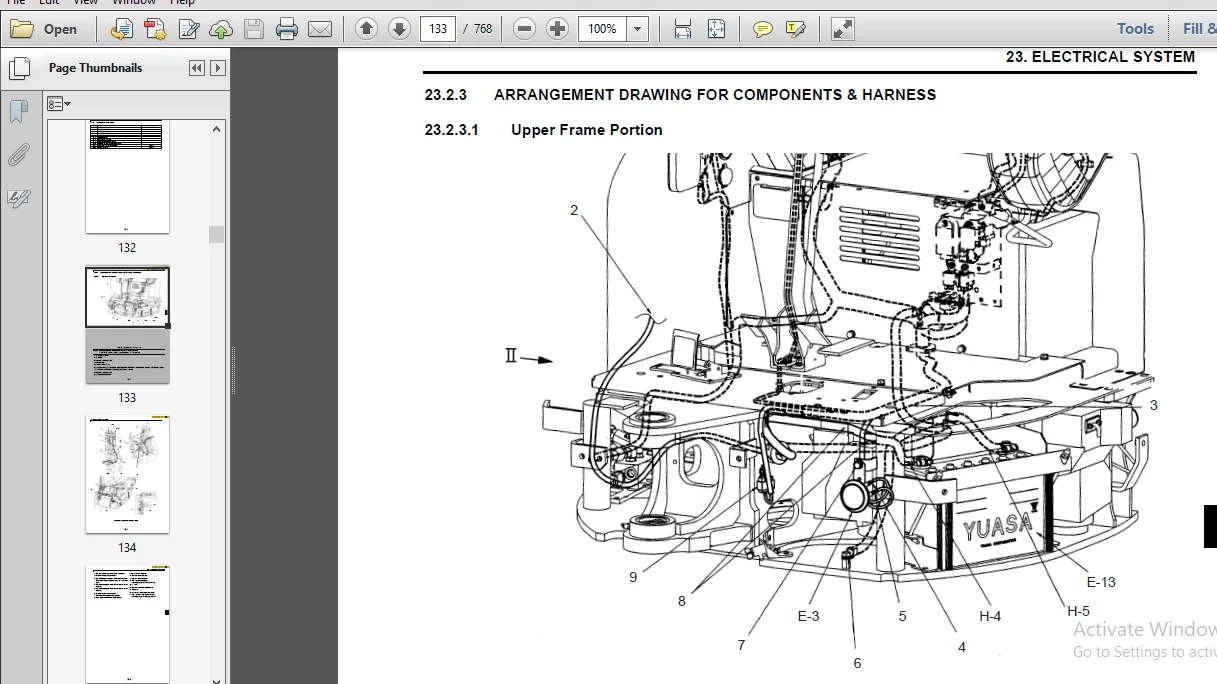

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland Hydraulic exavator E20.2SR – E22.2SR – E27.2SR 604.13.401 Workshop Manual

DESCRIPTION OF THE WORKSHOP MANUAL:

•  This repair manual consists of one single volume, identified with: E20.2SR – E22.2SR – E27.2SR – Workshop Manual “Hydraulic excavator” • The “Hydraulic excavator” Workshop Manual contains the technical information necessary for machine service and repair, the service equipment, the information on maintenance standards, the removal and installing procedures, and the disassembly and assembly procedures.
• The complete Workshop Manual for the model E20.2SR – E22.2SR – E27.2SR consists of the following volume identified by print number as shown herebelow: VOLUME MACHINE TYPE PRINT No. Workshop Manual – “Hydraulic exavator” E20.2SR E22.2SR E27.2SR 604.13.401.

PREFACE:

(1) Working Conditions :
1) Technicians: One more technicians who are qualified by Manufacturer are needed. The technicians need five years of more experience, and they have to complete the training in the operation of this machine.
2) Facilities: General jigs, tools, apparatus, testers to be provided. The maintenance workshop to be equipped with a good enough capacity of building with crane and inspection instruments necessary for specific self inspection activities.
3) Place: The workshop to be located on a flat land at which the work is able to perform and to which a service car or truck crane is accessible.
(2) Applicable Range of Standard Maintenance Time
1) Standard maintenance time: Direct maintenance time plus spare time.
2) Direct maintenance time: Net time actually spent for maintenance.
3) Spare time: Time for transportation of the machine for maintenance, preparation for safety work, meeting for the work and physiological time for the needs of body.
(3) Excluded Time (not included in the standard maintenance time)
1) Repairing time: Time for machining, sheet metal processing, welding, gas cutting, removing broken screw, taking care of parts and painting.
2) Items excluded from maintenance time because of uncertainty in time: Receiving the vehicle into shop, transportation, delivery, final inspection and investigation of causes for trouble, diagnosis and inspection.
3) Indirect time: Time for field work, preparation of required parts, etc., before starting work, going to and from the site, waiting due to user’s convenience at the site and paper work for reports, bills, etc.
4) Special time: Working time at early morning, at mid night and on holidays shall be separately calculated.  Separate calculation: The cost for service cars, trucks with crane and truck cranes shall be separately calculated.
(4) Applicable Machine for Estimation of Standard Maintenance Time
1) Standard machine.
2) A well maintained machine combined with standard attachments which has operated in a normal circumstances.

TABLE OF CONTENTS:

New Holland Hydraulic exavator E20.2SR – E22.2SR – E27.2SR 604.13.401 Workshop Manual

•  OUTLINE
•  SPECIFICATIONS
•  ATTACHMENT DIMENSIONS
•  TOOLS
•  STANDARD MAINTENANCE TIME TABLE
•  MAINTENANCE STANDARDS AND TEST PROCEDURES
•  HYDRAULIC SYSTEM
•  ELECTRICAL SYSTEM
•  COMPONENTS SYSTEM
•  HYDRAULIC COMPONENTS
•  ELECTRICAL EQUIPMENT
